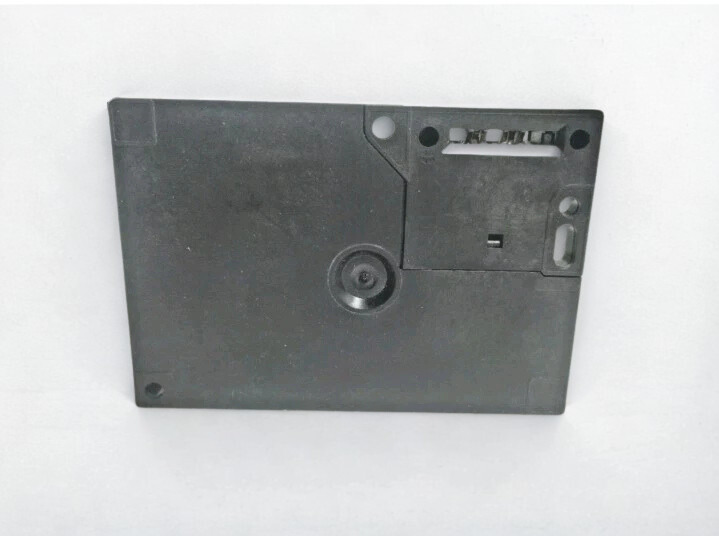

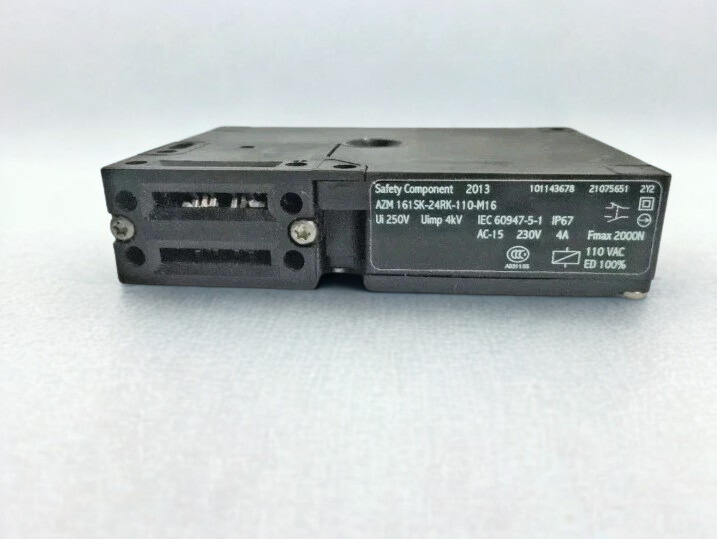

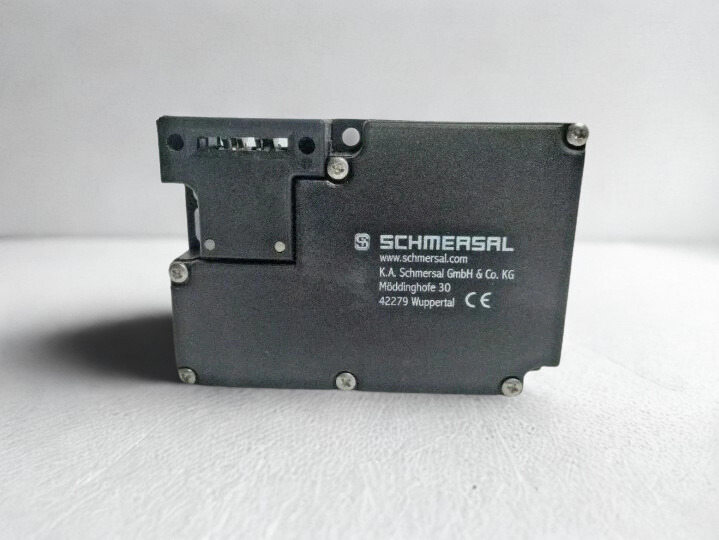

Schmersal AZM161SK-24RK-110-M16 Safety Limit Switch

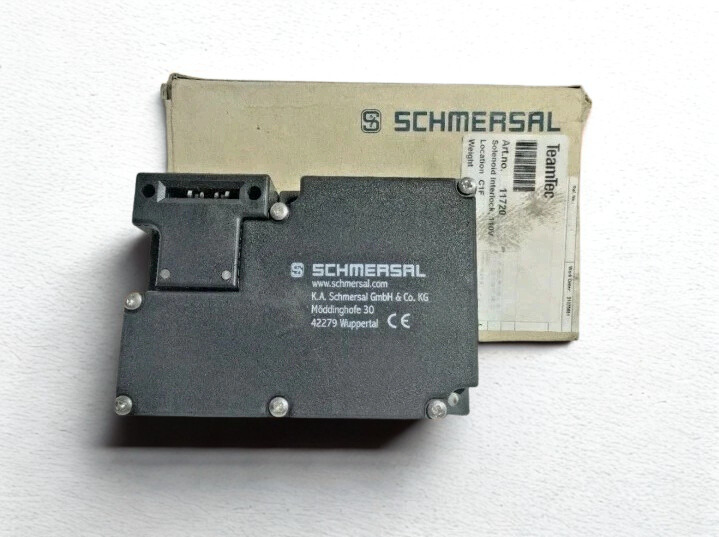

New Schmersal AZM161SK-24RK-110-M16 Safety Limit Switch

The Schmersal AZM161SK‑24RK‑110‑M16 is a safety interlock limit switch that keeps people from getting into dangerous areas on machines, presses, robots, and automation cells. It has a special stainless-steel actuator key (guard key) and a solenoid-locking mechanism that stops anyone from opening machine guards without permission or in a hazardous way.

The actuator key turns on the switch body when the guard is closed. The internal solenoid locks the mechanism, keeping the guard shut until the machine is safe. The guard may be safely unlocked and released once the control system releases the solenoid (after halting the machine and taking away its power). This helps keep operators safe and stops the machine from restarting by accident.

This switch is great for places where dangerous moving parts, high voltage, or process energy need to be locked and regulated, such packaging lines, metalworking machines, robotics, and automated production cells.

General Specifications

Mechanical Specifications

Electrical Specifications

Schmersal AZM161SK Key Features:

1) Solenoid-locking safety interlock: This keeps the guard from opening until the machine is securely stopped and the solenoid is turned off, which keeps people from getting into dangerous regions.

2) Positive-break NC safety contacts: These NC contacts are slow-acting and physically pushed open (positive-break). They make sure that the circuit is interrupted when the actuator key is removed, which makes the system safer and more reliable.

3) Defeat-resistant stainless-steel actuator key: This key is very strong and has a distinctive shape that makes it harder to tamper with using simple tools, tape, or bent wires. This lowers the risk of responsibility.

4) IP67 protection rating: The thermoplastic housing is sealed and resistant to corrosion, so it keeps dust and water out quite well. This makes it perfect for use in tough industrial settings.

5) Independent monitoring of the key and locking pin: Separate monitoring contacts for the actuator key position and locking pin status make the system safer and allow for safe restart logic.

Typical Applications and Usage

-> Machine Guard Interlocking: Put this on movable guards, access doors, and covers of presses, CNC machines, injection moulding machines, and other industrial equipment to keep people from getting in while the machines are running.

-> Hazardous Area Access Control: Use in robot cells, automated lines, and process machinery where access must be locked until motion and energy (hydraulic, pneumatic, and electrical) are safely removed.

-> Safe Restart Logic: Connect with safety PLCs or relays to make sure that the machine can’t start up again until the guard is completely closed and the solenoid is re-energised, in accordance with safety category criteria.

-> Harsh Industrial Environments: The strong IP67-rated housing and corrosion-resistant materials make it possible to use in places with dust, moisture, and moderate impact.

Target Industries & Machines

• Manufacturing & Assembly Lines

• Packaging & Converting Machinery

• Metal‑working Machines (presses, shears, stamping)

• Injection Molding & Thermoforming Machines

• Robotics & Automation Cells

• Conveyor Systems with Access Gates

• Material Handling & Processing Equipment
