SCHNEIDER EM6400NG CONZERV Power & Energy Meter

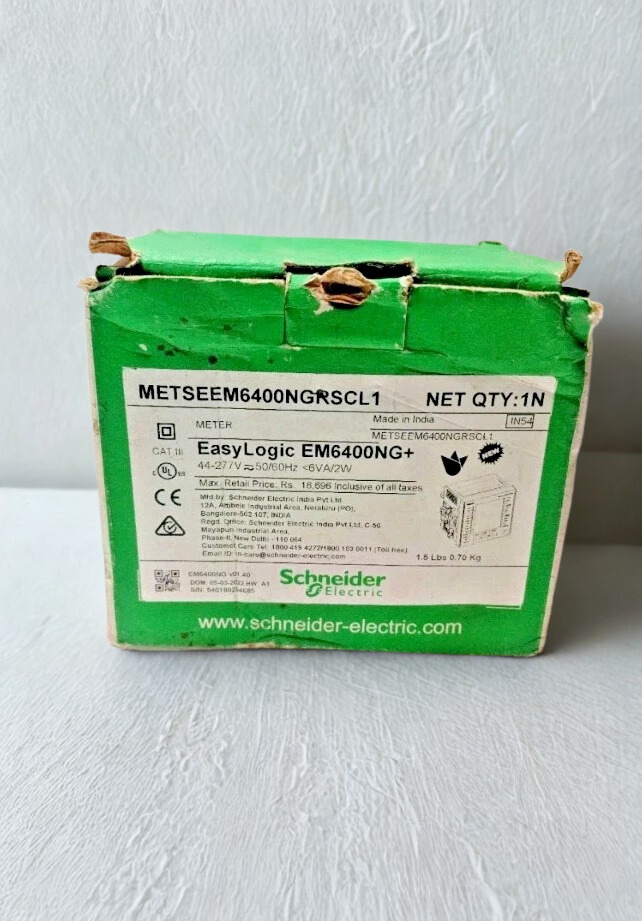

The Schneider EM6400NG+ METSEEM6400NGRSCL1 is a high-precision Class 1.0 digital multifunction meter that may be used in businesses and factories to accurately measure power and energy. This RS-485-enabled gadget from the EasyLogic series is great at keeping track of electrical parameters, harmonics, and demands, which helps with the best energy management.

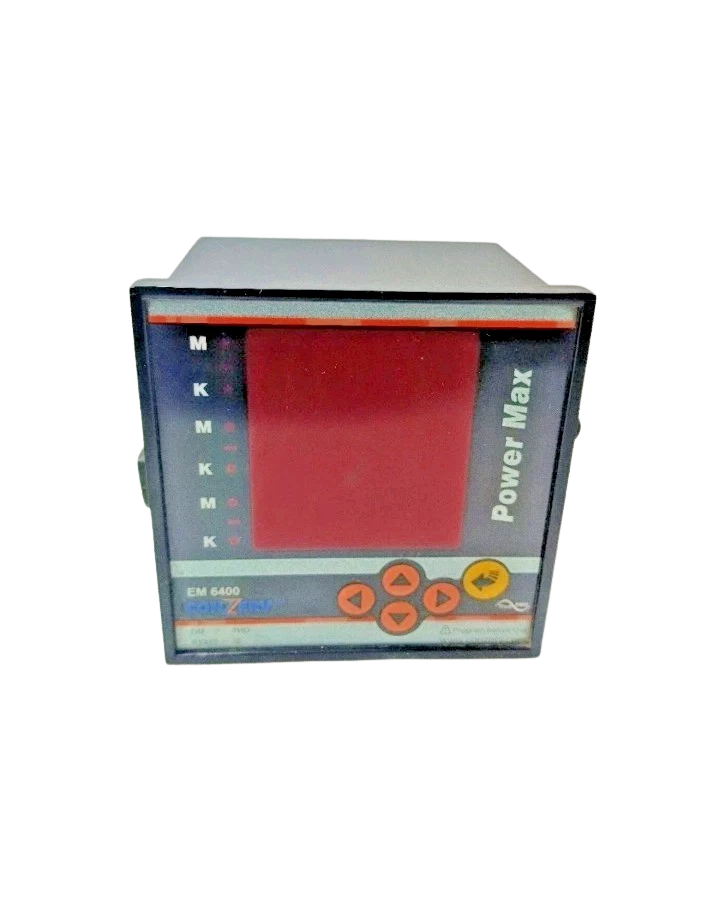

This small panel-mount meter measures true RMS at 64 samples per cycle and works with 1P, 2P, and 3P+N networks up to 480V L-L without transformers. It has a bright red 7-segment LED display with three lines for displaying multiple parameters at once, easy three-button navigation, and security measures including shutting the RS-485 port. It meets the IEC 62053-21 and IEC 61557-12 standards and is great for tenant billing, load control, and power quality analysis.

Technical Specifications: SCHNEIDER EM6400NG

Conzerv EM6400NG Key Features:

1) Advanced power quality analysis includes THD% and individual harmonics up to 15th order per phase, which helps find electrical problems sooner.

2) Tracking of peak demand for active, reactive, and apparent power and current, with date/time stamps and adjustable time periods (1–60 minutes).

3) Four-quadrant energy metering (Wh, VARh, VAh) with net/total values, delivered/received registers, and storage that doesn’t go away

4) A real-time clock that logs the minimum and maximum values of nine parameters (V, I, PF, Hz, powers), as well as the number of hours the load runs and diagnostics

5) Password protection, settings that can’t be changed, and the ability to turn off RS-485 for cybersecurity make sure that the device works safely.

Usage Guide:

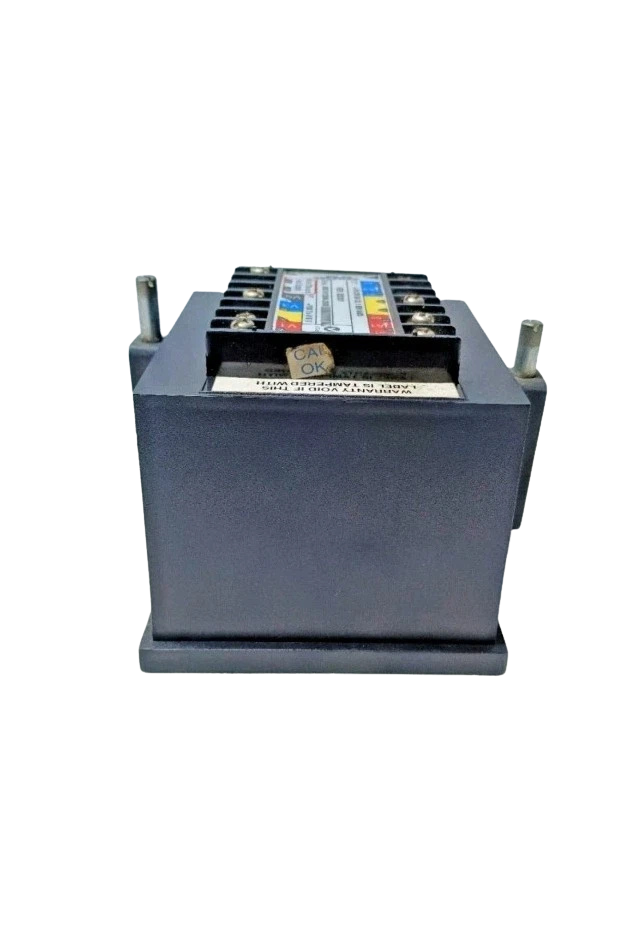

• To ensure CAT III 480V compliance for interior use, mount the meter vertically on a panel using clips (no tools are required).

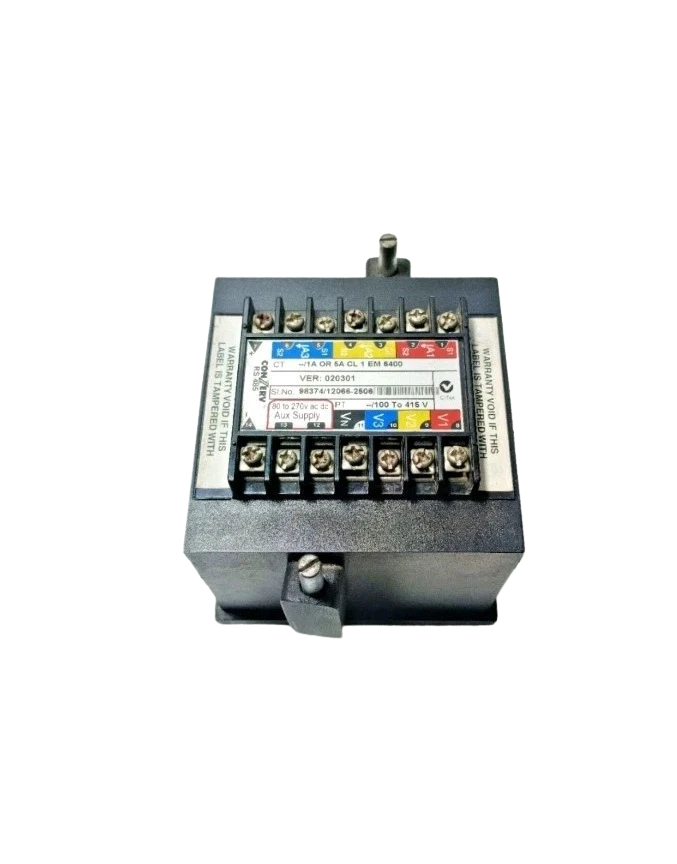

• Connect the voltage terminals (V1-V3, VN) at the top, current (S1/S2 per phase) at the bottom, aux supply (L+/N-), and RS-485 (D1+/D0-) according to the wiring schematic.
• For setup, use three navigation buttons to configure CT/VT ratios, demand sync (thermal/timed), suppression current (5-99mA), and password.
• Monitor instant data via an LED display, and access harmonics, demands, and energy via Modbus for SCADA integration.
