SOLO 200-001 Universal Smoke Detector Removal Tool | Solo Fire

Solo 200-001 | Universal Detector Removal Tool

To keep marine boats and industrial sites safe from fire, you need to be very careful, especially when working with detectors that are hard to reach or high up. The SOLO 200-001 Universal Smoke Detector Removal Tool is the best way to make the inspection and replacement process easier without using ladders or scaffolding.

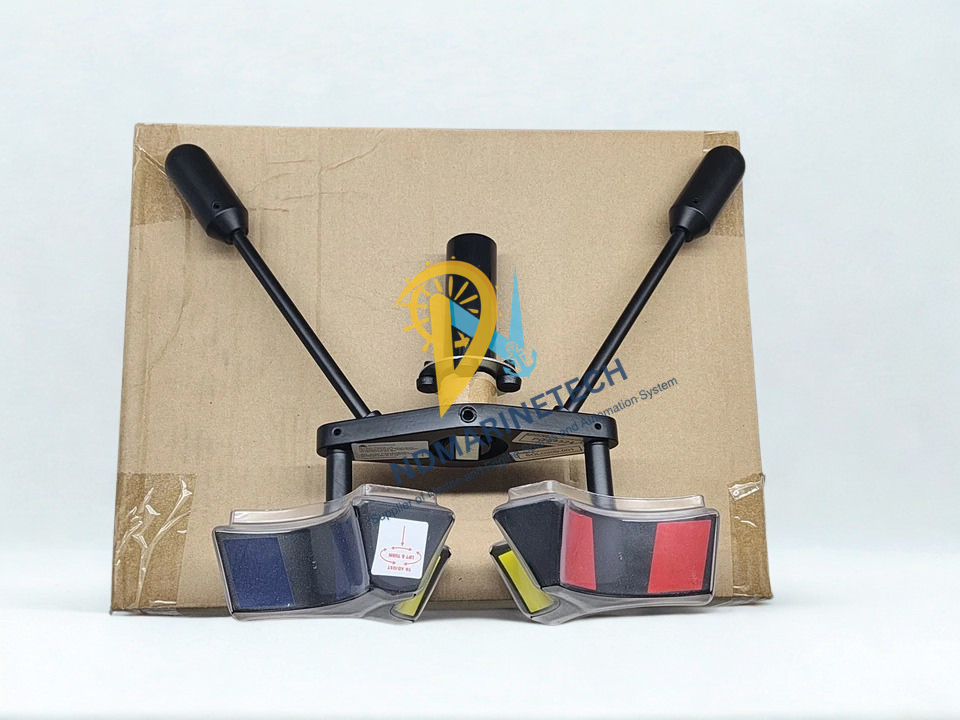

The SOLO 200-001 is a professional-grade removal tool that is designed to work with the most types of smoke, heat, and CO detectors. If you operate on a commercial ship, an offshore platform, or a big industrial complex, this tool makes it easy to get rid of things without having to carry about a bunch of different brand-specific removal heads. Its special “tri-grip” system has color-coded, rotating grips that fit the exact size of the detector head. It works well with a Solo telescopic access pole.

Technical Specifications

Engineering Key Features

1) The flexible, color-coded heads of the Universal “Tri-Grip” Design swivel to create different size combinations. This makes it work with more than 95% of major detector brands, such as Apollo, Gent, Hochiki, and System Sensor.

2) Integrated Pivot Joint: The tool has a high-quality universal joint that keeps it parallel to the ceiling, even when the access pole is utilized at an angle.

3) No Damage: The innovative rubberized grips provide you a lot of torque so you can unlock tight bayonet mounts without scratching, splitting, or harming the plastic detector housing.

4) Safety-First Engineering: Made for use on the ground, so you don’t need to rent dangerous ladders or expensive “cherry pickers” in places with high ceilings.

5) Marine-Ready Durability: Made from strong materials that don’t wear out easily in tough conditions, so fire safety personnel can count on them for a long time.

Professional Applications

• FPSO Hangar Bays: Moving sensors out of high ceilings where vibrations can cause the bayonet locks to get very tight.
• LNG Carrier Manifolds: In places where gas-tight integrity is required, heads can be taken off and cleaned rapidly.
• BESS Battery Rooms: Safely taking out sensors in high-voltage places where tools that don’t conduct electricity are needed.
• Cargo Holds: You don’t need heavy equipment to get to detectors on the beams above.
• Machinery Spaces: Use the tool’s pivot feature to switch heads that are beneath pipes or ducts for ventilation.

Manual and Documents

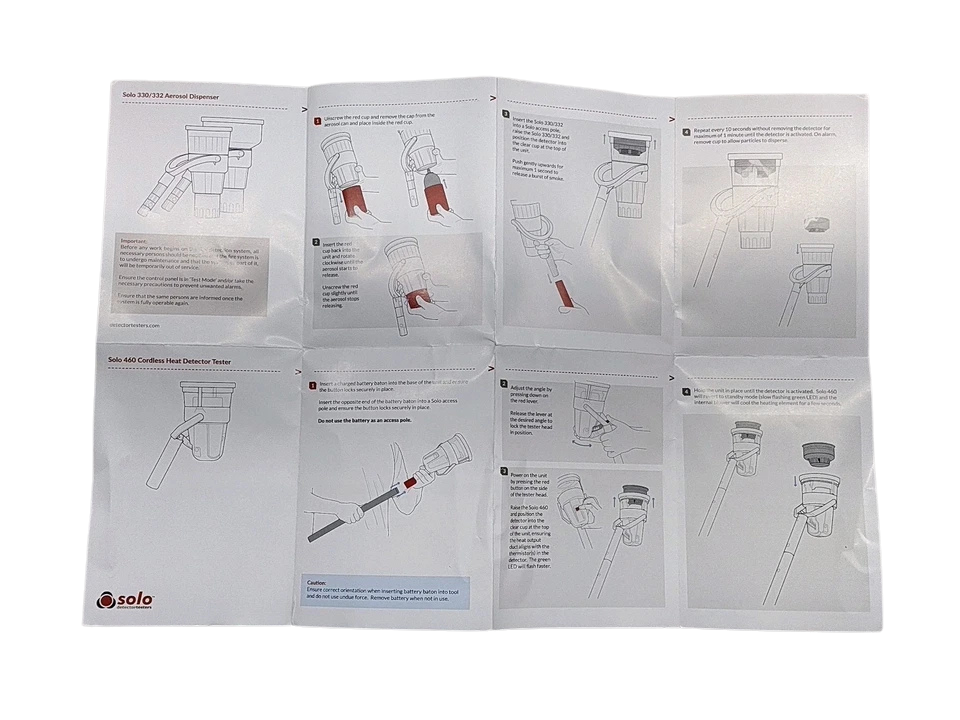

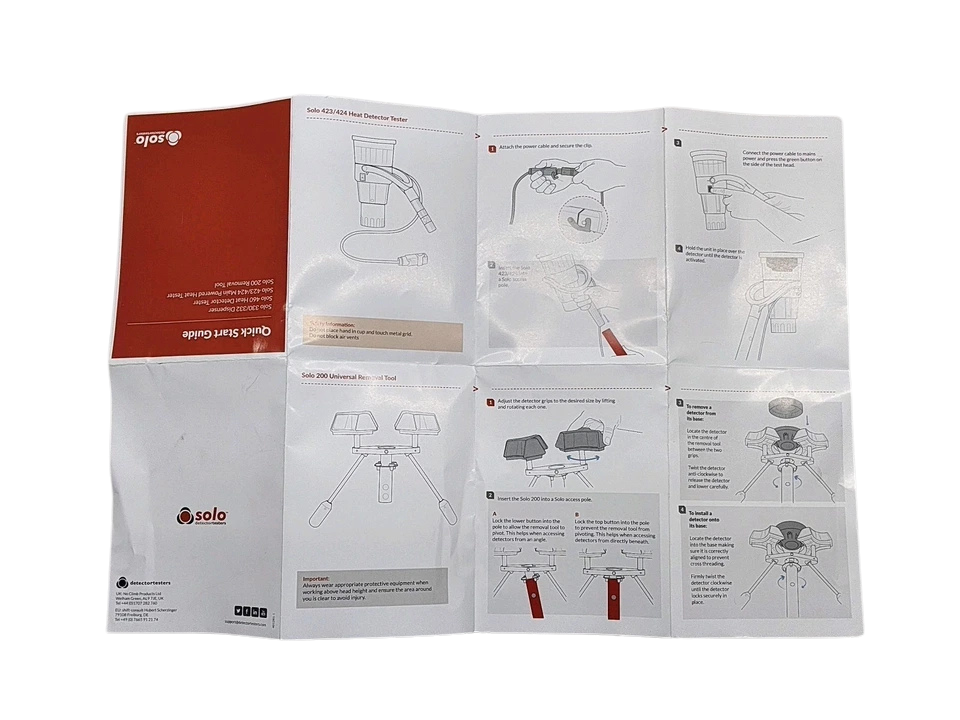

Solo 200 User Manual PDF

Pro-Tip for Marine Engineers: Addressing Vibration-Induced Signal Noise

A recurring issue in engine room fire loops is intermittent open-circuit faults or signal noise. While we often blame the cable, the culprit is frequently the base-to-head contact pressure. Over years of engine vibration, the metal spring contacts in the base can lose tension or develop fretting corrosion.

When using the Solo 200-001 to replace a head, don’t just twist and go. Use a specialized contact cleaner like DeoxIT on the base terminals. If the loop still shows high 500\Omega resistance or noise spikes, check the power stability. We recommend feeding your fire panels through a surge-protected, low-ripple power supply like the Mean Well EDR-120-24. It cleans up the dirty power common on ships, ensuring that when you seat a new head with the Solo 200, the signal stays clean and the ghost alarms stay away.
