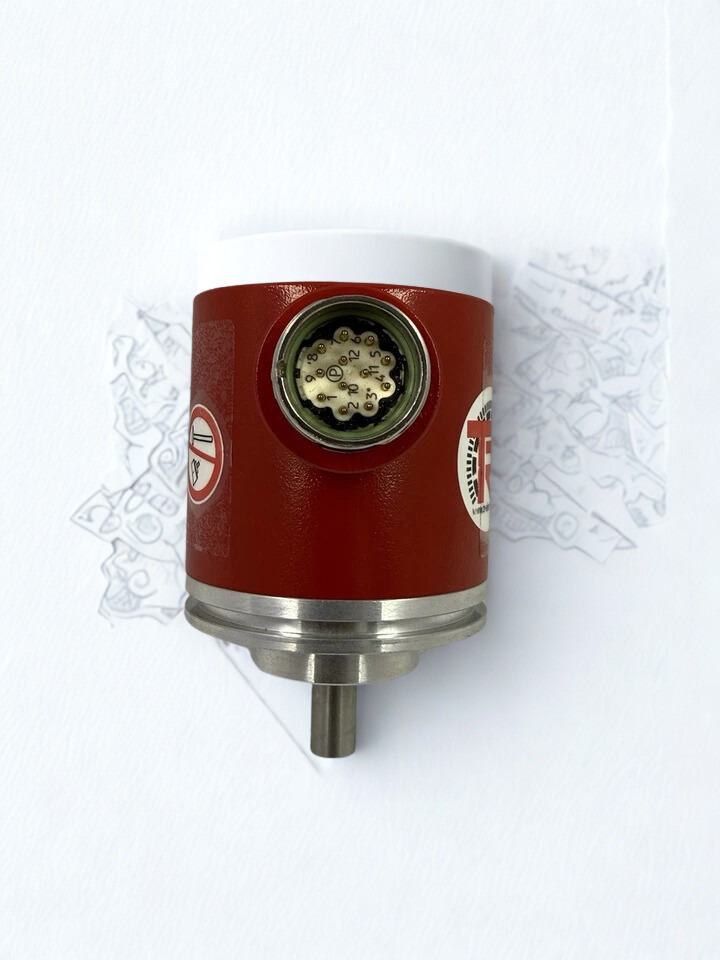

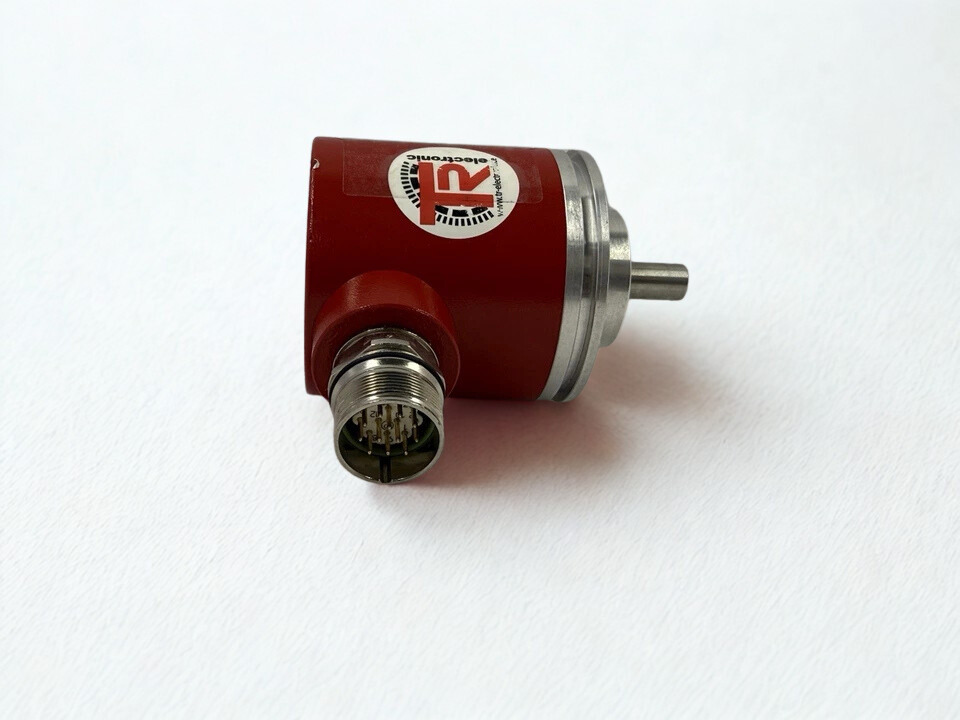

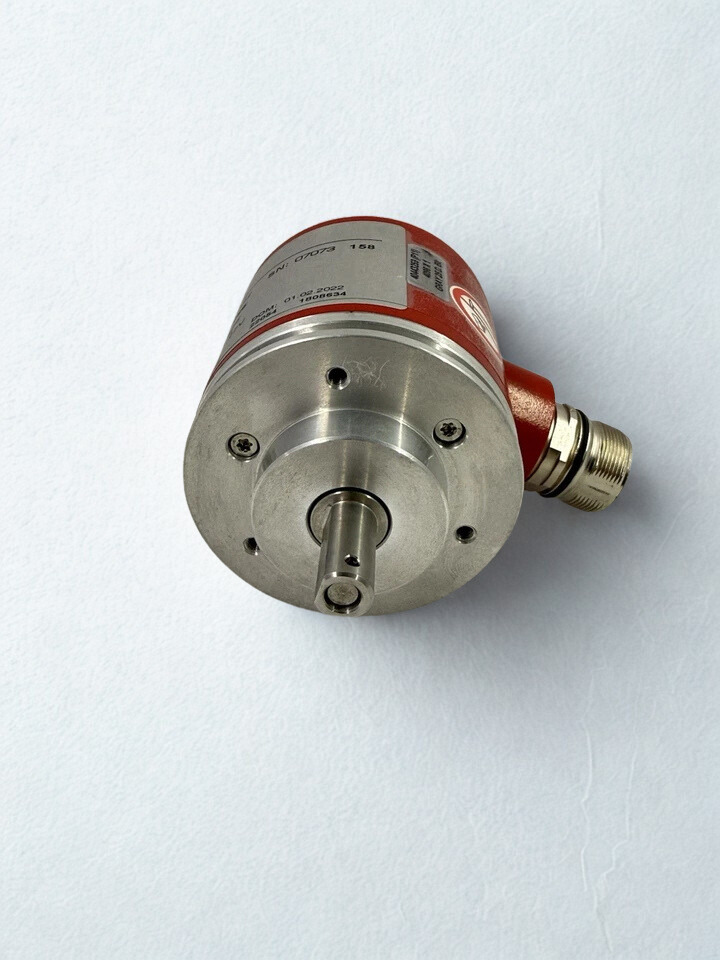

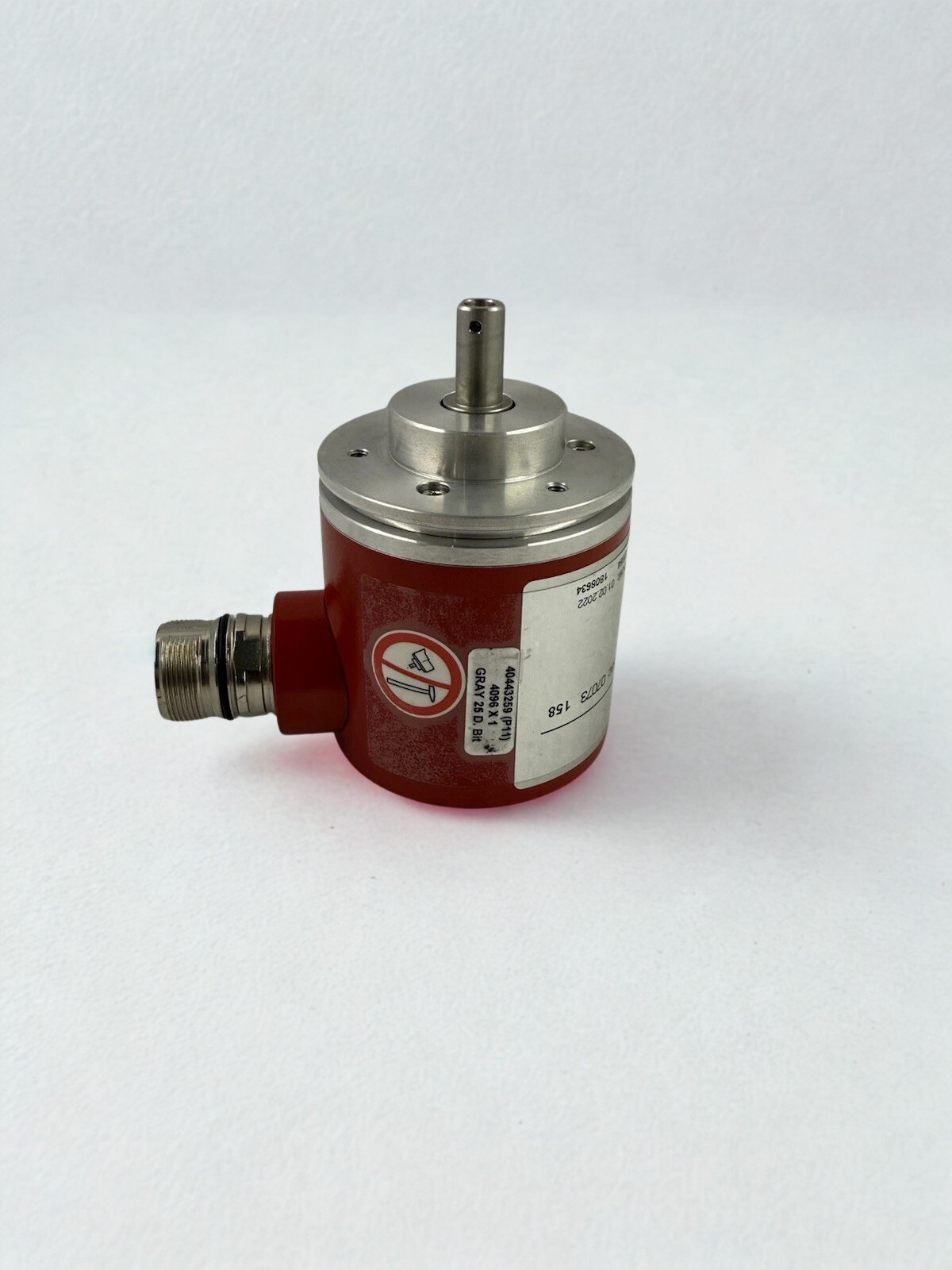

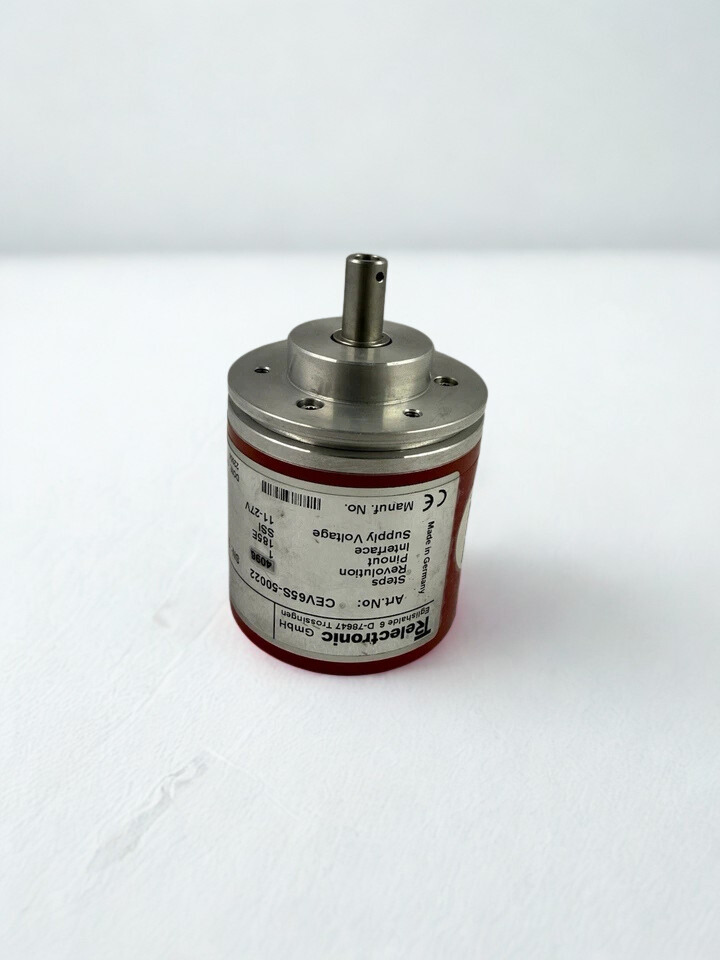

TR ELECTRONIC CEV65S-50022 Rotary Encoder

Technical Specifications

The TR ELECTRONIC CEV65S-50022 rotary encoder is a high-end absolute encoder made for industrial automation with the highest level of accuracy. This solid-shaft encoder, model CEV65S-50022, sends 8192 steps per revolution through an SSI interface. It provides reliable position feedback without reference runs, making it perfect for CNC machines and robots.

The CEV65S-50022 has IP65 protection, optical scanning, and flexible SSI clock speeds up to 1000 kHz. It will make your machines work better. The TR ELECTRONIC CEV65S-50022 rotary encoder is great for marine equipment, cranes, and servo controls. It can handle vibrations and harsh conditions while providing 13-bit single-turn resolution for easy integration.

CEV65S-50022 Rotary Encoder Functions:

1) Using the SSI interface, it gives feedback on the absolute position with 8192 steps per revolution (13-bit resolution). This allows for accurate angular measurement without the need for homing cycles.

2) Supports a wide range of SSI clock frequencies, from 80 kHz to 1000 kHz, so it works with a variety of control systems.

3) For hybrid encoder applications in speed and position monitoring, it offers optional incremental outputs in addition to absolute data.

4) Allows you to set programmable options like counting direction, preset values, and zero pulse positioning for personalized use.

5) Uses optical scanning technology to make sure that it is always accurate and reliable, even when the power goes out.

Industrial Uses:

The CEV65S-50022 lets CNC machines and robots control servo motors very precisely, which cuts down on mistakes when they are working quickly. It is used in the marine and heavy equipment industries for crane positioning and ship propulsion systems because it can handle a wide range of temperatures and vibrations. It also helps steel mills and wind turbines run automatically by giving them steady feedback on how to control speed and torque.
