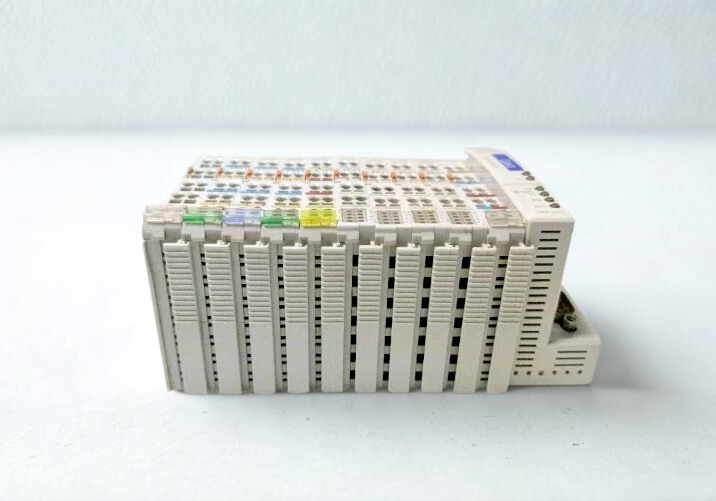

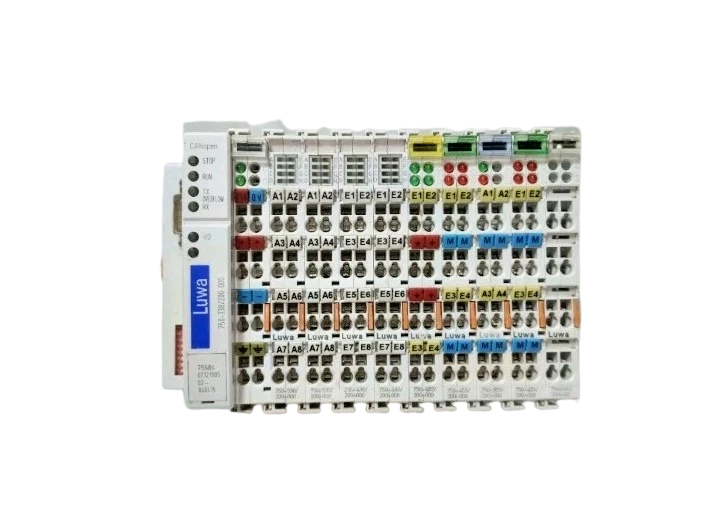

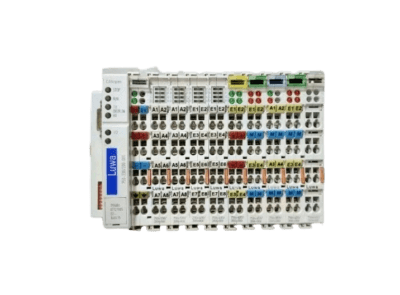

WAGO 750 I/O Modules Lot: 750-338 CANopen Coupler, 750-530 DO, 750-430 DI

WAGO 750 I/O Modules Lot: 750-338 CANopen Coupler, 750-530 DO, 750-430 DI

This premium package includes six WAGO 750 Series I/O modules that are essential for the integration of fieldbuses in challenging industrial environments. These modules guarantee the seamless processing of digital and analog signals for automation tasks and are compatible with the WAGO-I/O-SYSTEM 750. Ideally suited for marine, manufacturing, and process control installations that necessitate effortless DIN-rail mounting and high reliability.

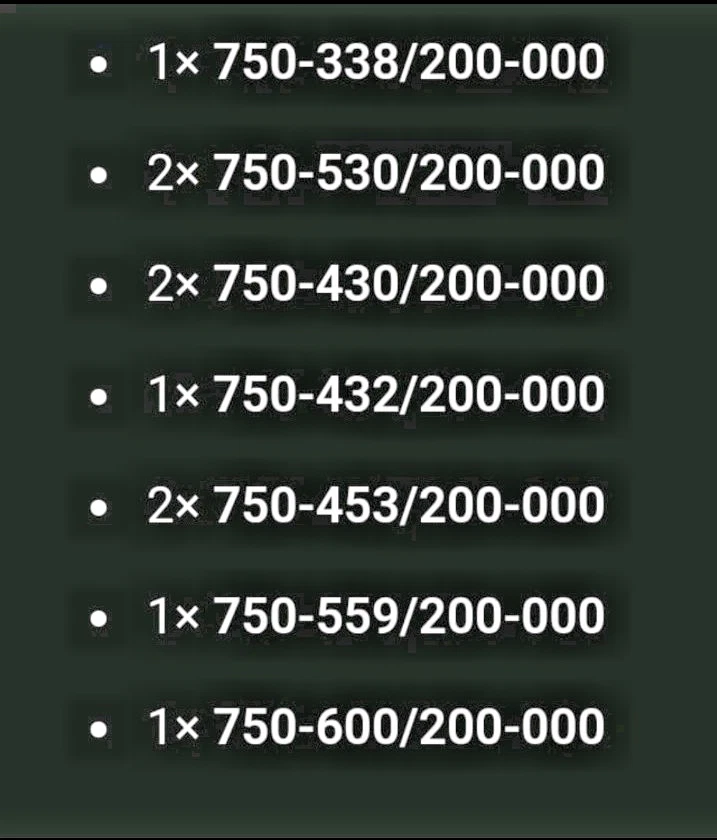

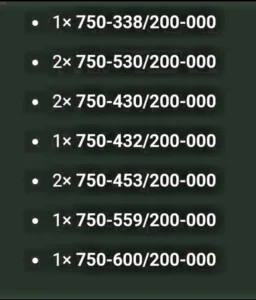

Model Details

• 750-338: CANopen Fieldbus Coupler with D-Sub connector, links up to 64 modules as CANopen slave.

• 750-530: 8-channel digital output module, 24 VDC, 0.5 A per channel, high-side switching.

• 750-430: 8-channel digital input module, 24 VDC, 3 ms filter, high-side switching.

• 750-432: 4-channel digital input module, 24 VDC, 3 ms filter, 2-conductor sensor connection.

• 750-453: 4-channel analog input module, 0-20 mA, single-ended, 16-bit resolution.

• 750-559: 4-channel analog output module, 0-10 VDC, precise voltage signaling.

WAGO 750 I/O modules: Technical Specifications

Key Features of WAGO 750 I/O modules:

• The 750-338 coupler lets you connect CANopen devices at baud rates from 10 kBd to 1 MBd, with up to 110 nodes and a D-Sub 9-pin for ease wiring.
• Opto-isolation, short-circuit protection on outputs, and noise-filtered inputs make signal transmission very reliable.
• The 12 mm width of each I/O module makes the most of the panel area while managing 10 A power jumpers across the system.
• Handling analog signals in a flexible way: 16-bit accuracy on 750-453 inputs and exact 0-10 V outputs on 750-559 for process control.
• Field-tested approvals for tough jobs, such as UL, ATEX, and marine certifications (ABS, DNV).
