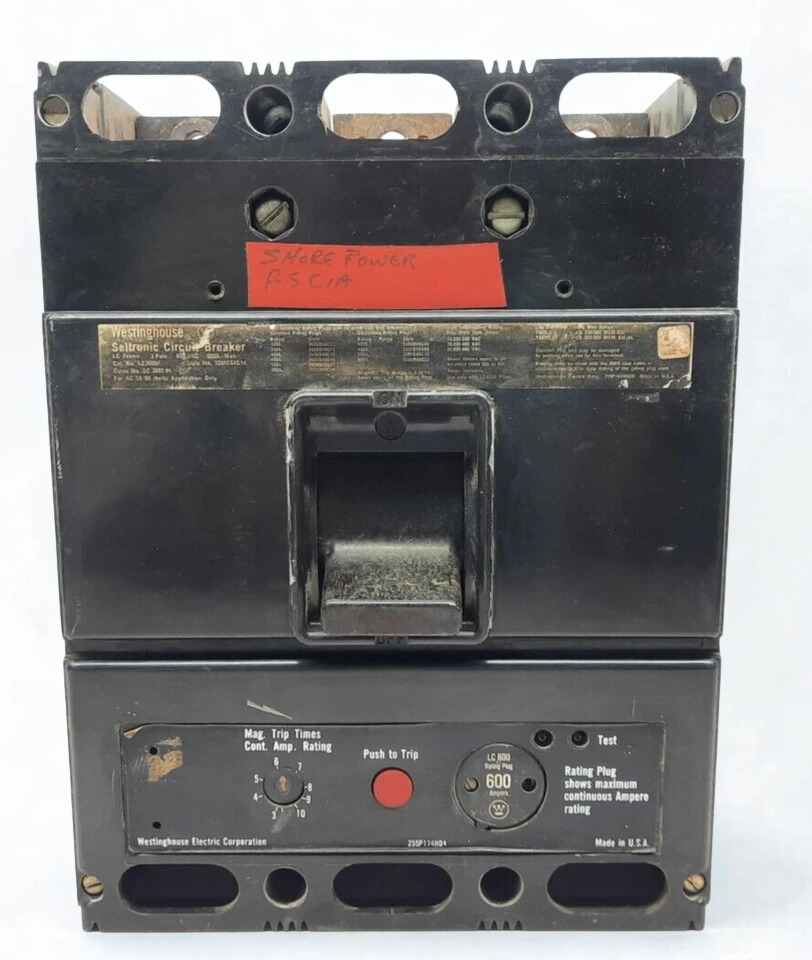

Westinghouse LC3600F 600A 3 Pole Circuit Breaker 600VAC

The WESTINGHOUSE LC3600F 3 Pole 600 Amp Circuit Breaker is a molded case circuit breaker that may be used in businesses and factories. It protects 600VAC systems very well. This circuit breaker is well-known for being safe, long-lasting, and meeting industry requirements, which makes it a good choice for tough electrical situations.

LC3600F Circuit Breaker Technical Specifications

Product Details:

• Westinghouse is the maker
• 600A of amperage
• 600 VAC of voltage
• There are 3 poles
• Type of Frame: LC
• 30 kAIC at 480 V is the interrupting capacity
• Type of Mount: Bolt-On
• Phase: Three Phase
• Trip Functions: Long Time and Short Time Trip Functions (Solid State)
• Included Parts: Only the Frame (No Rating Plug)

Features:

1) Thermal magnetic protection for both short circuits and overloads.

2) Solid-state trip unit with pickups for long and short delays that may be changed to give you exact protection settings. ​

3) Good for usage in power distribution panels, motor control centers, and industrial switchgear. ​

4) Meets UL 489 and CSA criteria for safety and dependability. ​

Details about the installation and the physical space

-> Size: The frame is small so it may be installed in a small location (the exact size may vary per model). ​

-> Weight: About 17.85 pounds (this number may change slightly depending on the source). ​

-> Terminals: Standard load and pressure lines for aluminum or copper wires. ​

-> Mounting: The bolt-on construction makes installation safe and stable. ​

Application: Perfect for protecting circuits in big power distribution systems, commercial buildings, and industrial facilities that need to stop enormous currents and work reliably.
