Yokogawa GS200 GS210-7 DC Voltage/Current Source | 100VAC Precision
-

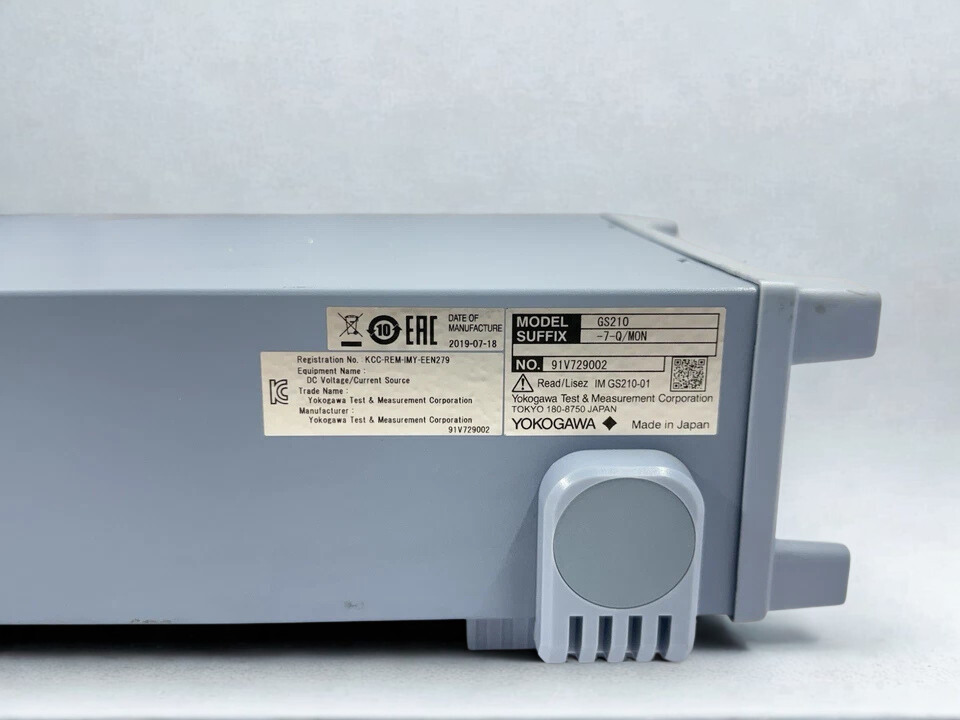

Model Number: GS210
-
MPN: GS210-7-D (Standard configuration for 100VAC input)
-
Suffix Code -7: Denotes 100 VAC, 50/60Hz rated supply voltage.
-
Suffix Code -D: UL/CSA standard power cord
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions

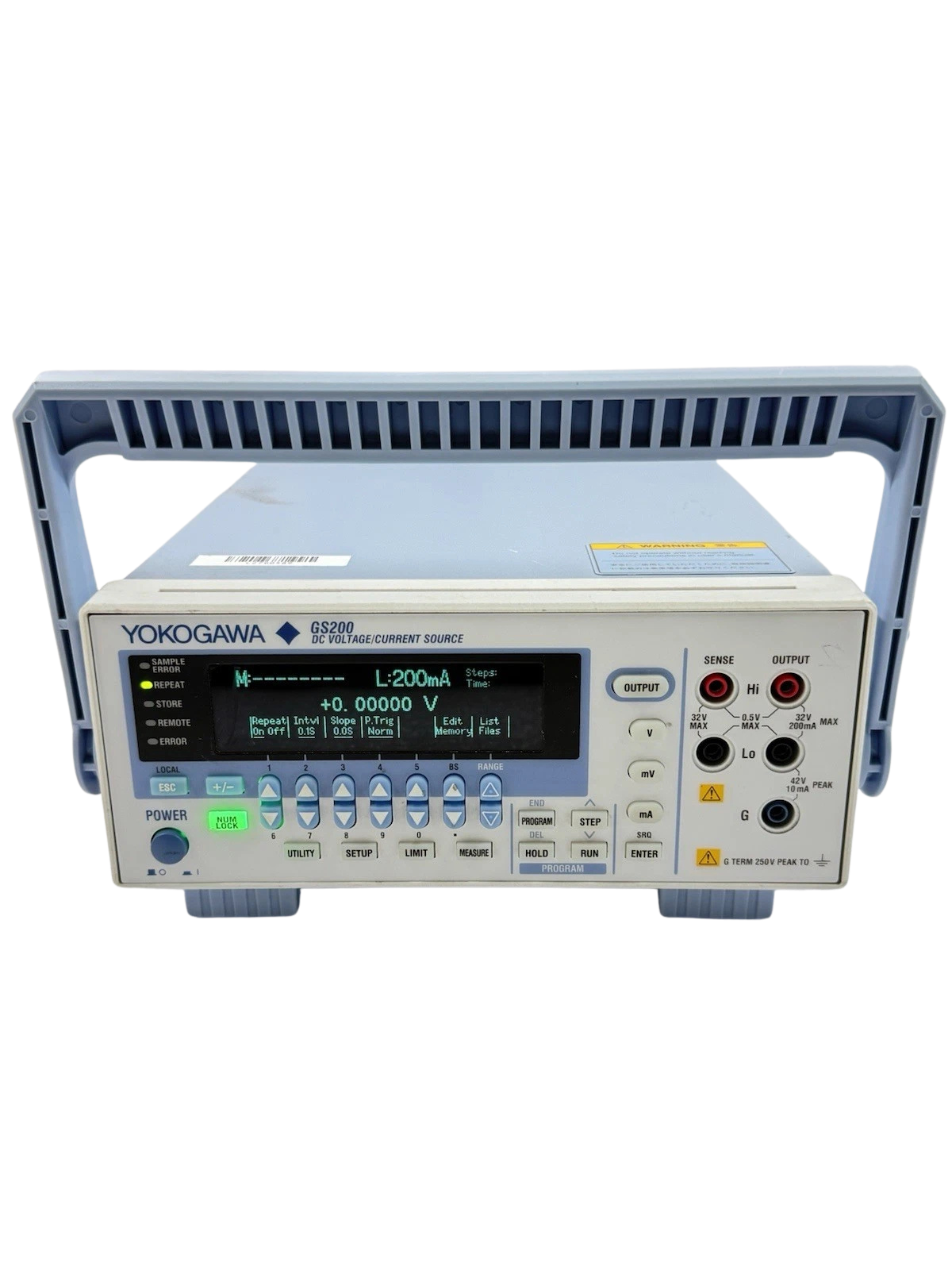

Yokogawa GS200 DC Voltage/Current Source (GS210-7) 100 VAC
The Yokogawa GS200 (Model GS210-7) is a low-noise, high-precision DC voltage and current source engineered for demanding electronic characterization and calibration tasks. Operating on 100 VAC (50/60 Hz), this unit provides the exceptional stability and 5.5-digit resolution required for semiconductor testing, quantum computing research, and high-accuracy sensor calibration.
The GS200 series represents a significant advancement in DC source technology. Utilizing dual Digital-to-Analog Converters (DACs), it achieves a voltage resolution of 100 nV and a current resolution of 10 nA. Unlike standard power supplies, the GS200 functions as both a high-accuracy source and a constant-current electronic load (sink), allowing for seamless four-quadrant operation. Additionally, its integrated USB mass storage feature allows users to manage up to 10,000 programmable steps as simple files via a PC.
Technical Specifications
| Description | Specification |
|---|---|
| Voltage Source Ranges | 10 mV, 100 mV, 1 V, 10 V, 30 V |
| Max Voltage Output | ±32.000 V |
| Current Source Ranges | 1 mA, 10 mA, 100 mA, 200 mA |
| Max Current Output | ±200.000 mA |

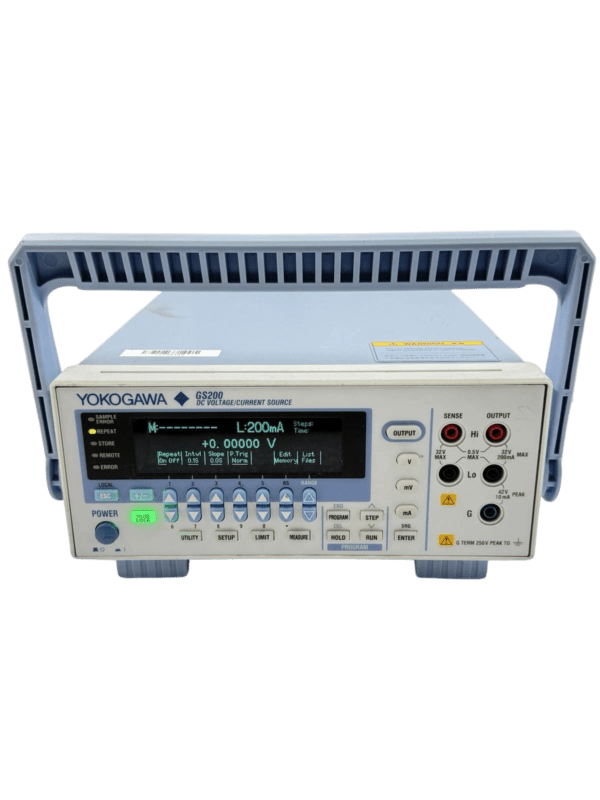

| Output Resolution | 5 ½-digit, ±120,000 counts |
| Min. Voltage Resolution | 100 nV (at 10 mV range) |
| Min. Current Resolution | 10 nA (at 1 mA range) |
| Accuracy (1 Year) | ±0.016% of setting + 240 μV (10V range) |
| Stability (24 Hour) | ±0.001% of setting + 20 μV (10V range) |
| Supply Voltage | 100 VAC (±10%), 50/60 Hz |

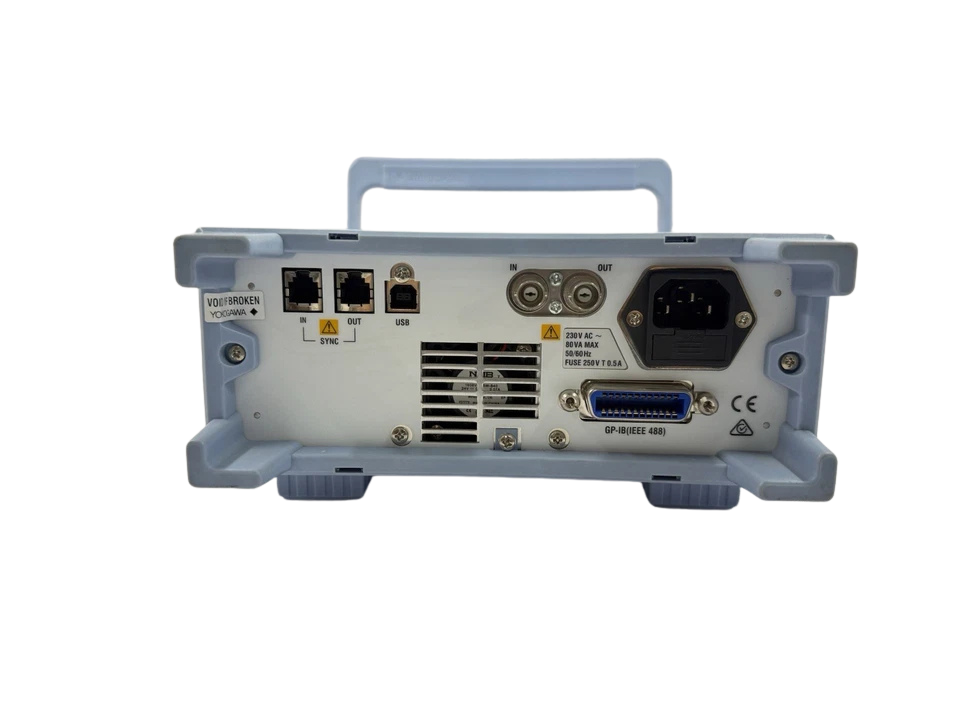

| Interface | USB (Standard), GP-IB (Standard), Ethernet (Optional) |
Key Features
- Ultra-Low Noise Output: Features a noise floor as low as 3 μVp-p, ideal for sensitive applications like quantum qubit testing and high-speed ADC characterization.
- Four-Quadrant Operation: Operates as both a precision power source and a current sink (load) up to 30V/200mA without hardware changes.
- USB Mass Storage Integration: Internal 4MB memory is recognized as an external drive by PCs, simplifying the management of CSV patterns for complex sweep testing.
- Bipolar Output Polarity: Polarity changes are executed electronically without mechanical relay chatter, preventing voltage spikes during transitions.
Downloads
| Technical Datasheet | View PDF |
| Instruction Manual | View PDF |
