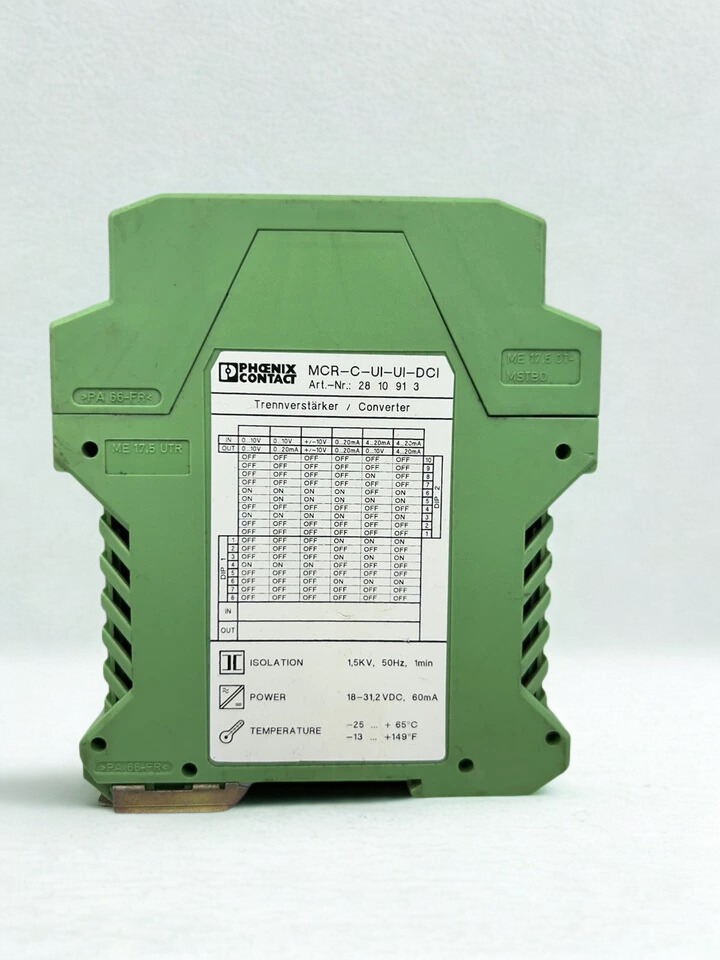

2810913 PHOENIX CONTACT MCR-C-UI-UI-DCI Signal Conditioner
Condition: New
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
The 2810913 PHOENIX CONTACT MCR-C-UI-UI-DCIÂ provides reliable three-way electrical isolation for analog signals in industrial settings. This preconfigured signal conditioner stops interference, works with all types of voltage and current conversion, and makes sure that signals are sent correctly.
This small device mounts on a DIN rail and separates sensor signals from control systems using built-in DC/DC converters and inductive transmission. A green LED shows the power status, and downstream filtering cuts down on noise so that process automation, level sensing, and machinery monitoring can get accurate data. Perfect for marine, industrial, and automation setups that need high isolation up to 1.5 kV AC, it connects high load resistances without losing the signal.
Phoenix Contact 2810913Â Technical Specifications
| Category | Specification | Value/Details |
|---|---|---|
| Product Type | Signal Conditioner | 1-channel, 3-way isolation |
| Supply Voltage | Range | 18-30 V DC |
| Max Current Consumption | Without load | <30 mA |
| Input Signals | Voltage/Current | 0-10 V / up to 50 mA; 1 MΩ (voltage), 50 Ω (current) resistance |
| Output Signals | Voltage/Current | 0-10 V / up to 30 mA; ≥10 kΩ (voltage load), ≤500 Ω (current load) |
| Transmission Error | Maximum | ≤0.1% of final value |
| Step Response | 10-90% | 11 ms |
| Limit Frequency | 3 dB | 30 Hz |
| Test Voltage | Input/Output | 1.5 kV AC (50 Hz, 60 s) |
| Operating Temperature | Ambient | -20°C to 65°C |
| Dimensions | Width x Height x Depth | 17.5 mm x 99 mm x 114.5 mm |
| Connection | Pluggable Screw (COMBICON) | 0.2-2.5 mm² (24-14 AWG) |
| Certifications | CE, UL 508, EMC | IP20 protection |
Phoenix 2810913 Functions:
1) It has 3-way galvanic isolation to get rid of ground loops and keep sensitive equipment safe from electrical noise.
2) Preconfigured universal I/O lets you easily change 0–10 V or current signals, and you can order it to fit your needs.
3) High accuracy with a transmission error of less than 0.1% and a temperature coefficient of 0.0075%/K for stable performance.
4) Transient protection and a 30 Hz bandwidth make sure that the device works reliably in tough industrial settings.
5) The slim 17.5 mm width of the DIN rail mount makes the most of the space in control cabinets.
Usage Guide:

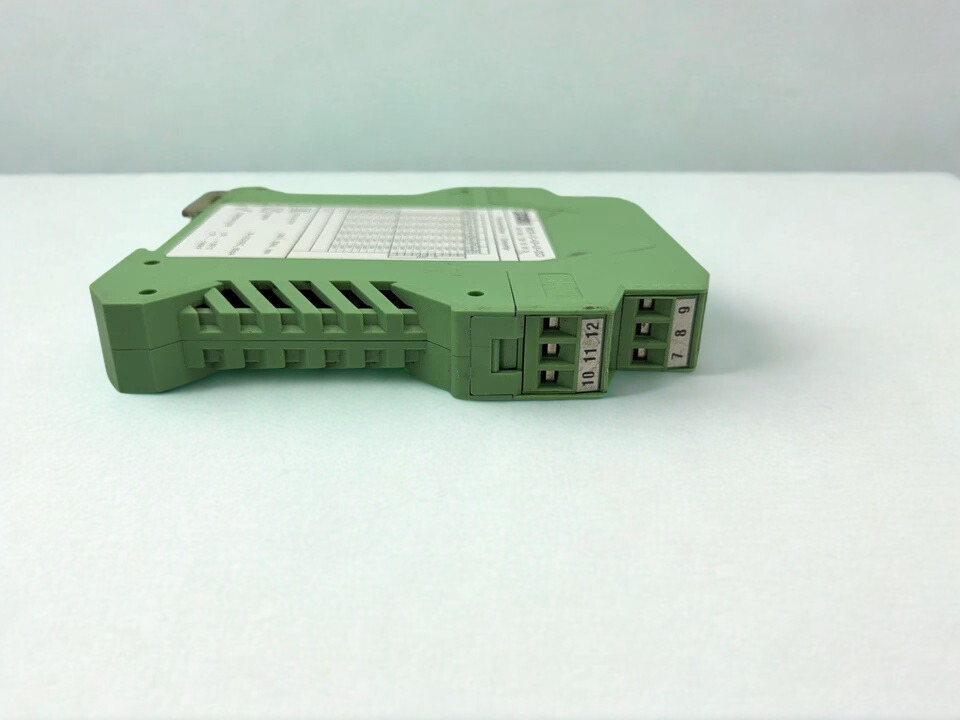

-> Attach the mount to a standard DIN rail in any position and connect power (18–30 V DC) to terminals 10–12. Check the green LED to make sure the supply is active.

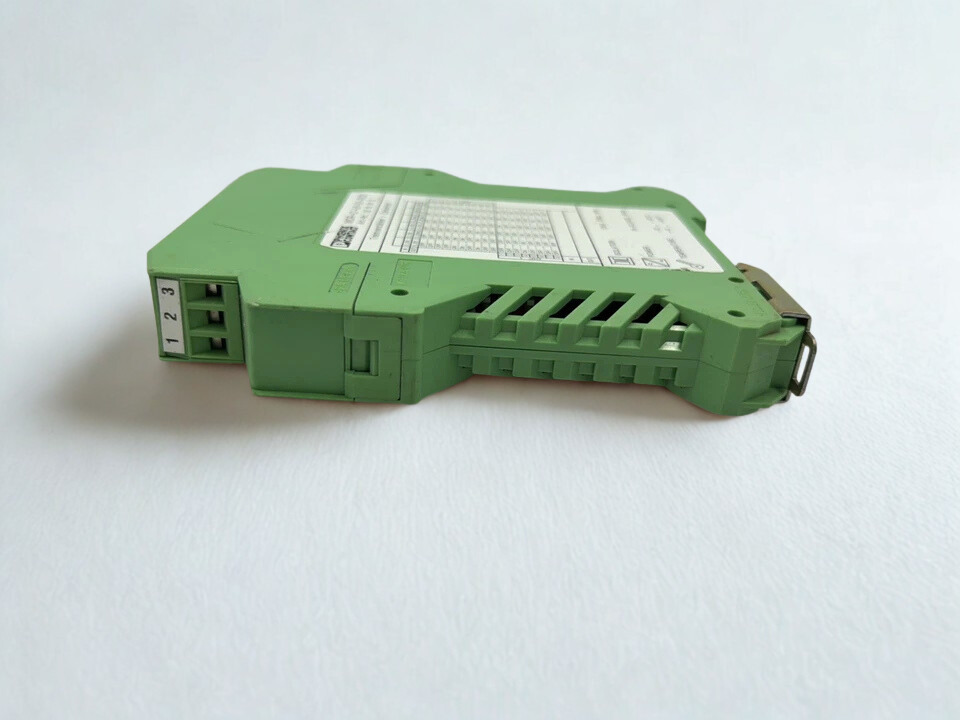

-> Connect the wire input signal (like from a level sensor) to terminals 1-3, making sure the polarity is correct and the voltage is between 0 and 10 V/50 mA.
-> Connect the output to the control unit (terminals 7–9), making sure it meets the load requirements (≥10 kΩ for voltage).
-> If necessary, use potentiometers to fine-tune zero (±2%) and span (±2%) after installation for precise calibration.
