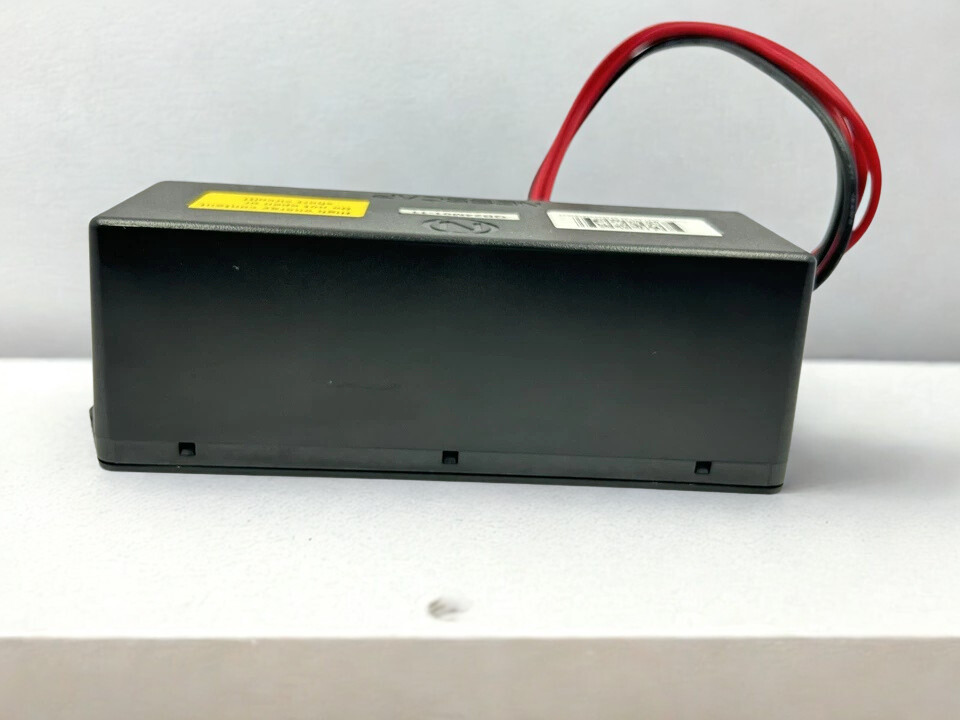

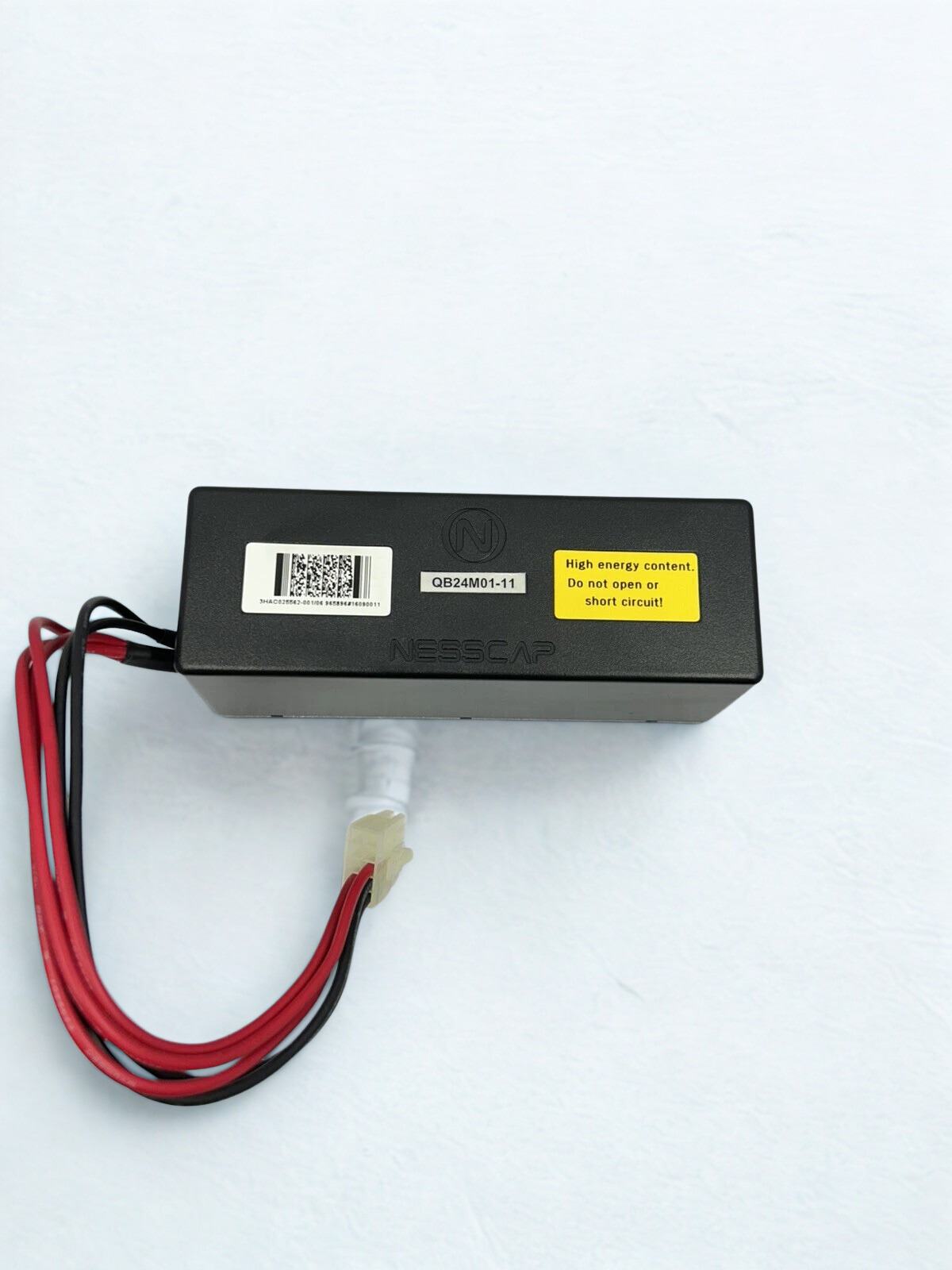

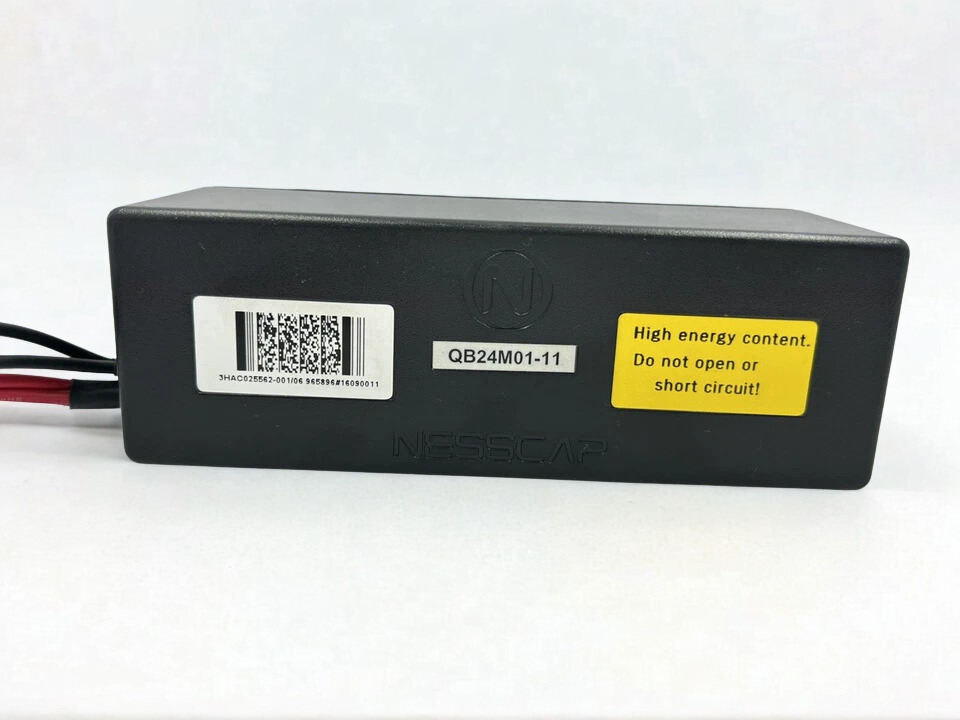

ABB 3HAC025562 001 NESSCAP Capacitor Unit for IRC5 Robot Controllers

The DSQC 655 NESSCAP Capacitor Unit, also known as the ABB Robotics 3HAC025562-001/06, is a high-performance ultracapacitor module made for ABB IRC5 robot controllers. This electrical device protects important position data during sudden power outages, making sure that the robot can start working again without any problems.

The 3HAC025562-001 is made for use in industrial robotics. It uses advanced NESSCAP ultracapacitor technology to provide reliable non-volatile memory backup in ABB’s M2006 and later IRC5 systems. Its small, strong design makes it possible to work in demanding manufacturing settings like automotive assembly and material handling for long periods of time. ABB gives this capacitor unit its seal of approval for being able to hold more energy and leak less, which cuts down on downtime and increases system uptime.

Technical Specifications

Key Features of ABB 3hac025562-001:

1) Power Loss Protection: Keeps track of the robot arm’s position during power outages, so it can be restored right away without having to be recalibrated.

2) Ultracapacitor Technology: Uses NESSCAP’s low-ESR design for quick charge and discharge cycles and more than 500,000 life cycles.

3) Lightweight and small: It weighs only 0.42 kg and has exact measurements that make it easy to fit into IRC5 compact controllers.

4) Wide Temperature Range: Works well between -40°C and +85°C, making it perfect for tough industrial environments.

5) ABB Certified Quality: Meets strict robotics standards for long-term durability and resistance to vibrations in automation lines.

Application in Industry:

-> Follow the ABB service manual’s instructions to install in the right IRC5 controller slot so that it can connect to the main drive unit.

-> Before using the robot for the first time, fully charge it using its power supply. It usually takes less than a minute to charge to full capacity.

-> Check for physical damage or leaks in places with a lot of vibration every six months.

-> If the error codes say the capacitor is broken, replace it. It works with M2006 robots, but for older models, use 3HAC020150-001.

Compatibility

This capacitor unit fits ABB IRC5 robot controllers (M2006 onwards) and IRB 14000 series cooperative robots, serving as a vital spare for automotive welding, painting, and precision assembly tasks. It excels in 24/7 operations where power stability is critical, preventing costly production halts.
