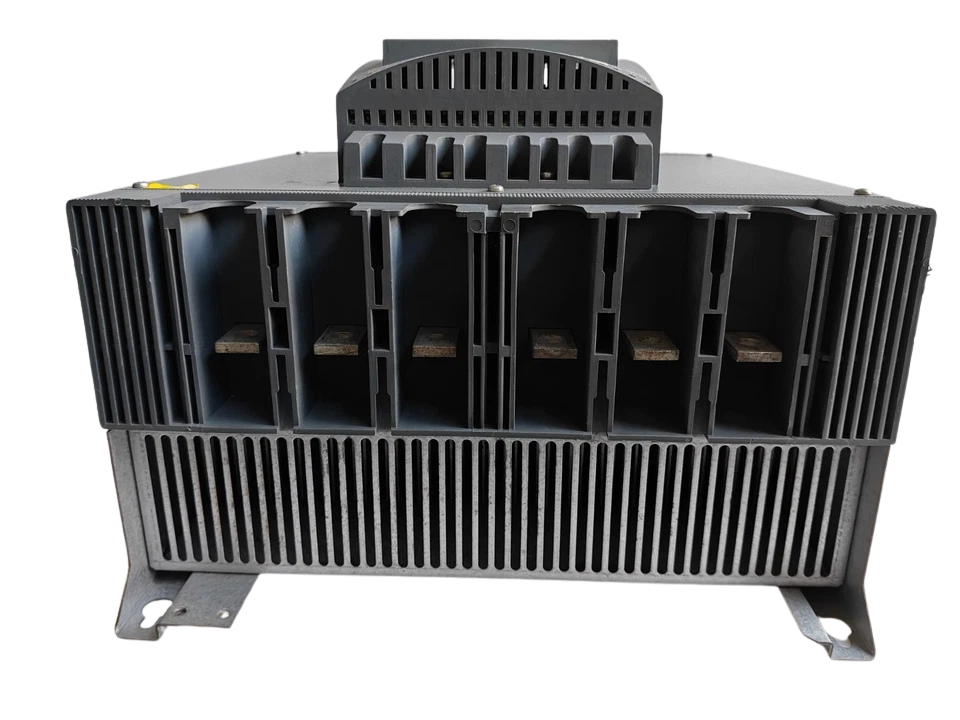

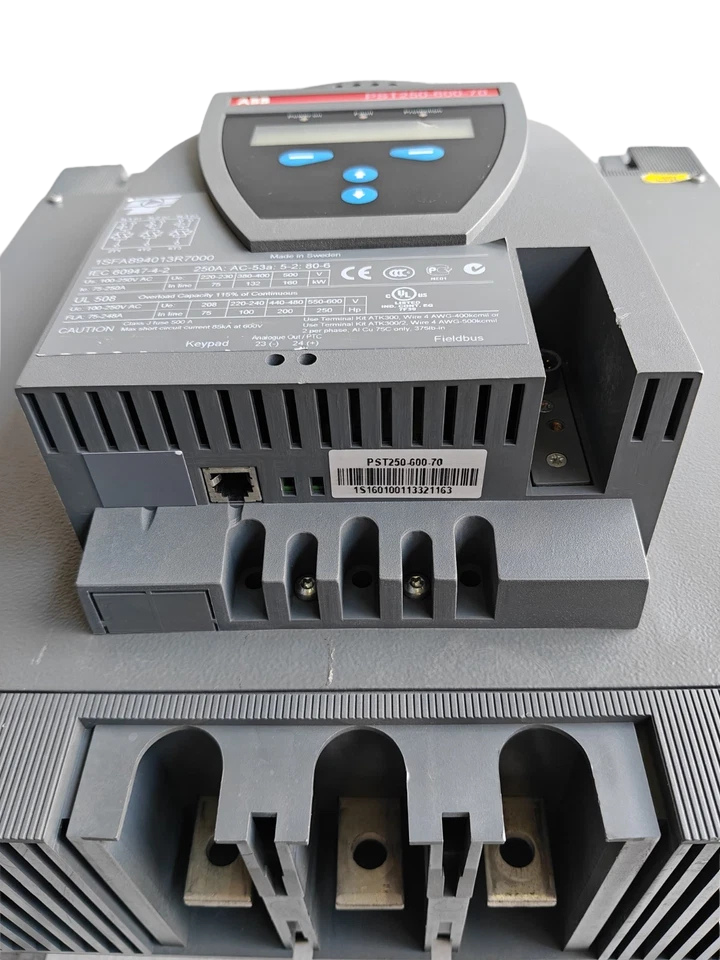

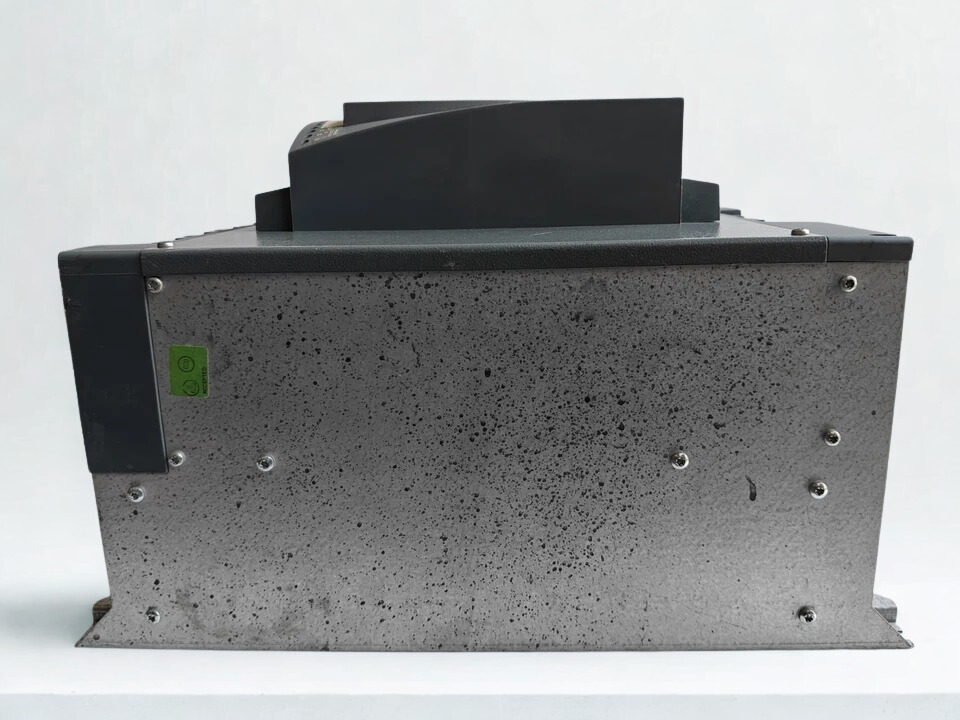

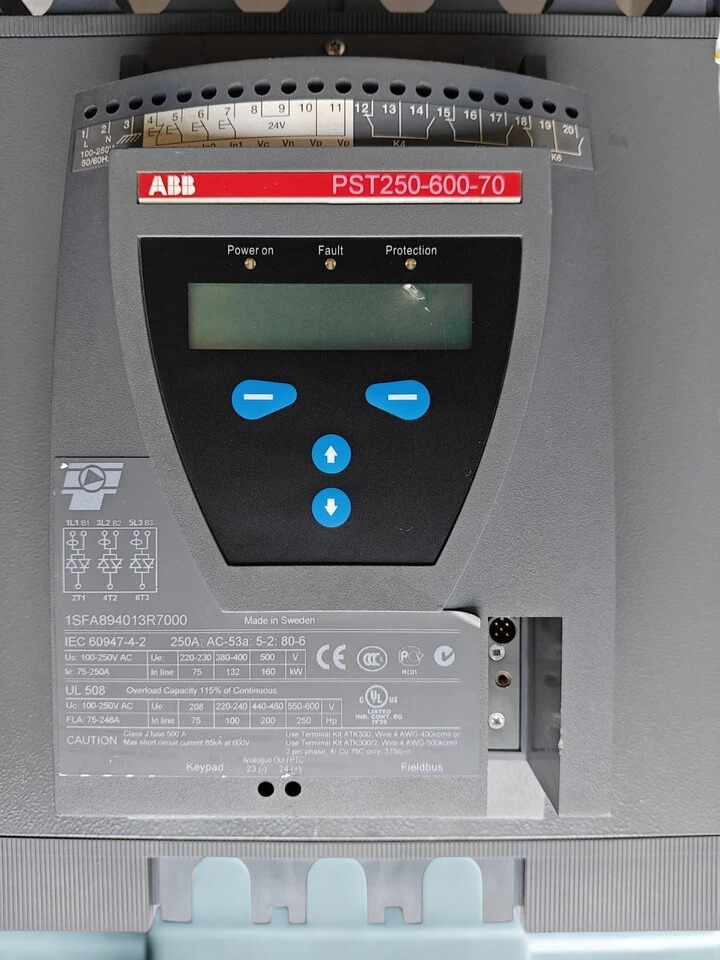

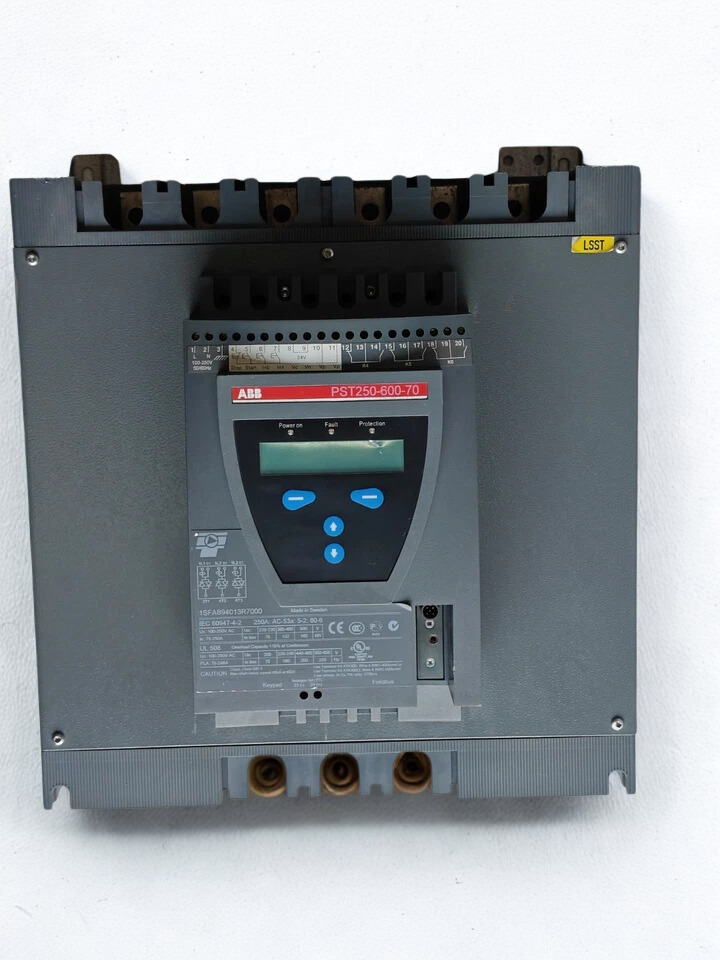

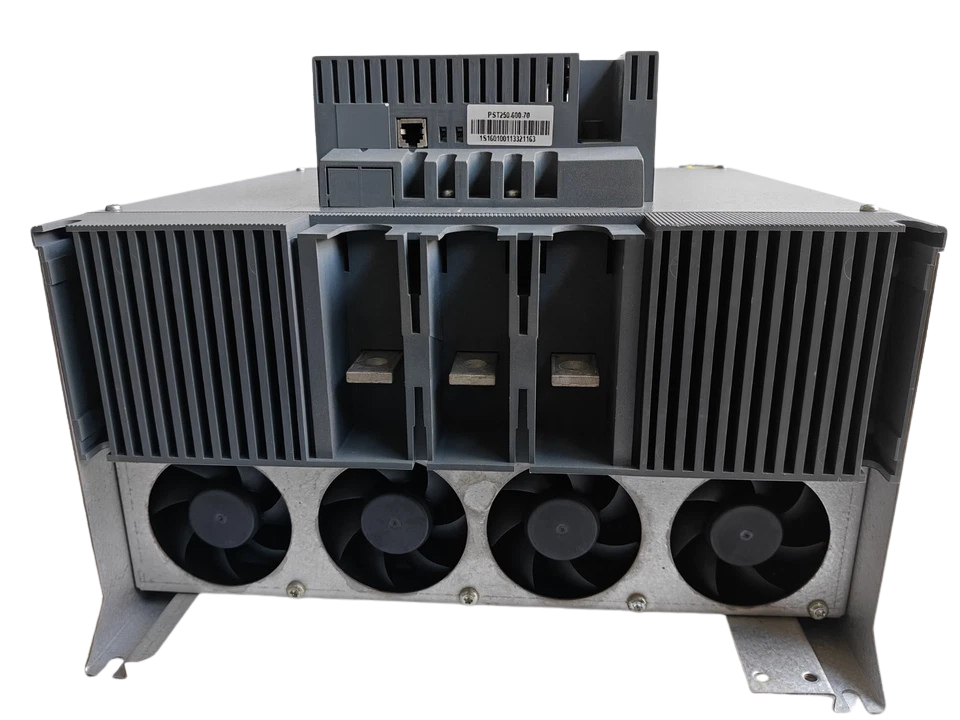

ABB PST250-600-70 Softstarter 250A | 1SFA894013R7000

The ABB PST250-600-70 softstarter, model 1SFA894013R7000, is a reliable way to regulate three-phase motors in tough industrial settings. It has a 250A in-line rating. It is made for main voltages up to 600V AC and control supply of 100-250V 50/60Hz, and it reduces mechanical stress and inrush currents when starting up. This little unit is 360x420x270 mm and weighs 23 kg, making it easy to add to automation systems.

Model Details

• Model Designation: PST250-600-70, part number 1SFA894013R7000 from ABB’s PST series softstarters.

• Current Ratings: 250A in-line / 430A inside-delta for versatile motor control.​

• Voltage Specs: Main 208-600V AC; control supply 100-250V AC 50/60Hz.

• Power Capacity: Up to 132 kW (400V in-line) / 220 kW (inside-delta).​

• Motor Compatibility: Three-phase AC induction motors up to 295 kW at 500V delta.

• Connection Types: Supports in-line or inside-the-delta configurations with built-in bypass.

• Standards Compliance: RoHS, CE marked, UL 508 certified for global industrial use.

Technical Specifications: ABB PST250 600 70

ABB pst250-600-70 Manual

Download manual pdf file

Applications:

• In order to mitigate mechanical degradation and prevent water hammer, pumps and fans are implemented in HVAC and water treatment systems.
• Compressors are utilized in manufacturing to minimize voltage fluctuations through controlled starts.
• Reliable torque management is achieved through the use of industrial machinery and conveyors in automation lines.
• Onboard compressors and marine propulsion auxiliaries for vibration-sensitive operations.
• In factories, the control of general three-phase AC motors necessitates gentle starting for currents of up to 250A.
