ABB SACE T7S 1250 3 POLE CIRCUIT BREAKER 1250 AMPS 690VAC
Condition: Used, Tested
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions

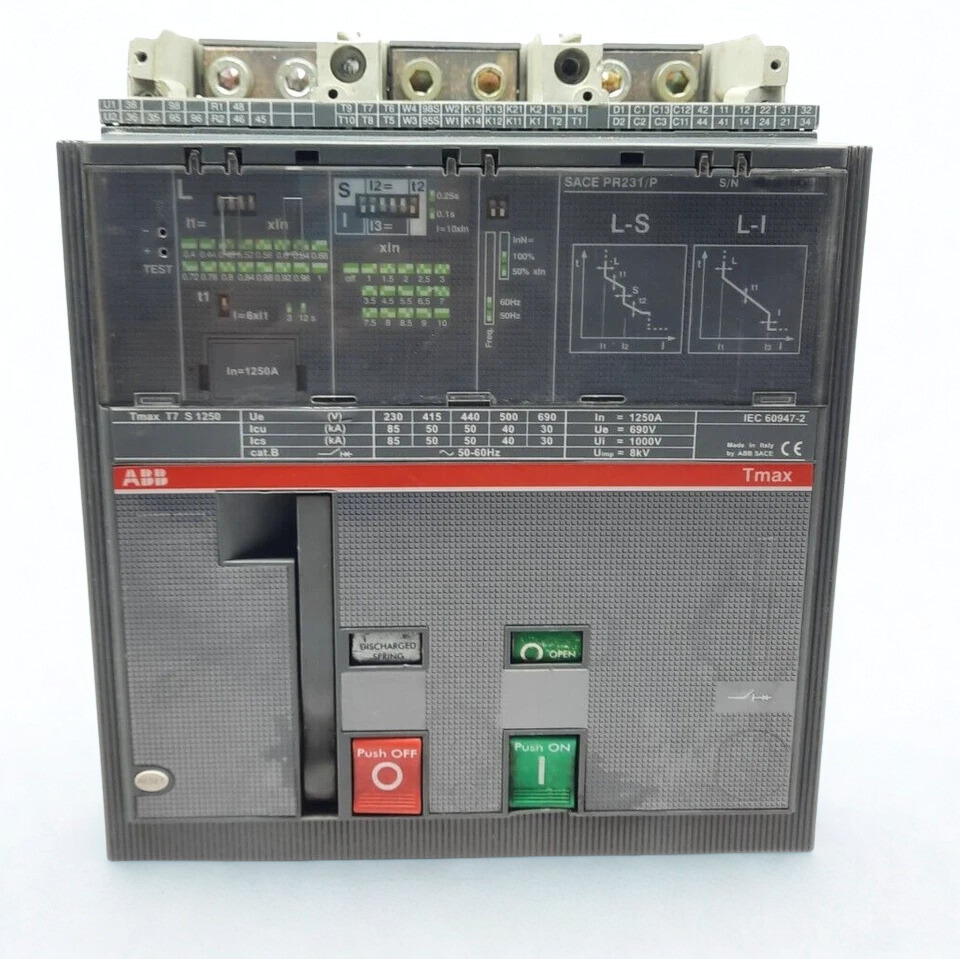

ABB SACE Tmax T7S 1250 is a heavy‑duty 3‑pole molded case circuit breaker designed for reliable protection of low‑voltage power distribution systems up to 690 V AC with a rated current of 1250 A. Equipped with an electronic PR231/P LS/I trip unit, it provides precise long‑time, short‑time and instantaneous protection, making it suitable for use as a main or feeder breaker in industrial panels, switchboards and MCCs.
Its robust construction, high short‑circuit breaking capacity and compact 210 × 268 mm footprint allow easy integration into existing installations while ensuring safe operation and long service life in demanding environments.
ABB T7S 1250 Circuit Breaker Technical Specifications
| Parameter | Value / Description |
|---|---|
| Series / type | SACE Tmax T7S molded case CB |
| Poles | 3‑pole, fixed, front terminals |
| Rated current In | 1250 A at 40 °C |
| Rated operational voltage Ue | 690 V AC |
| Rated insulation voltage Ui | 1000 V |
| Trip unit | PR231/P LS/I electronic (L, S, I) |
| Ics at 220/230 V AC | 85 kA |
| Ics at 380–440 V AC | 50 kA |
| Icw (1 s) | 20 kA |
| Standards | IEC 60947‑2 |
| Dimensions (W × H × D) | 210 × 268 × ~178 mm |
| Approx. weight | 11 kg |
| Short‑circuit performance level | S (standard/high) |
Dimensions and weight

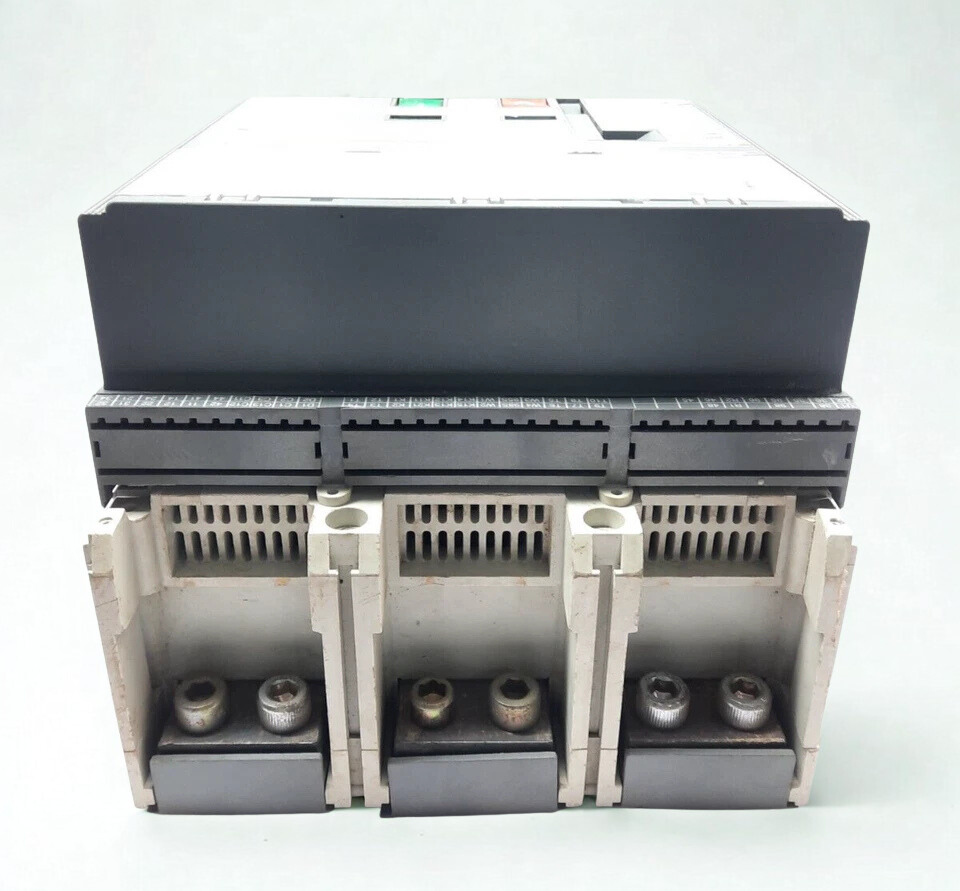

For the 3‑pole fixed version with front terminals:
-
Width: 210 mm.
-
Height: 268 mm.
-
Depth: approx. 178 mm (net depth from ABB datasheet; some commercial sheets round 154–178 mm depending on version).
-
Net weight: about 11 kg.
Ratings and performance
-
Rated current of main circuit: 1250 A at reference ambient 40 °C
-
Utilization category: Power distribution MCCB, 50/60 Hz AC
-
Short‑circuit performance level: Type “S” (standard/high breaking capacity for T7 family)
Breaking and short‑time ratings (IEC 60947‑2)
-
Rated service short‑circuit breaking capacity Ics:
-
220 V AC: 85 kA
-
230 V AC: 85 kA
-
380–440 V AC: 50 kA (specified at 380, 400, 415, 440 V)
-
-
Rated short‑time withstand current Icw (1 s): 20 kA
Mechanical, thermal and construction data
-
Product type: Molded Case Circuit Breaker, toggle/lever operating mechanism, stored‑energy type for “M” versions
-
Number of poles: 3
-
Power loss: 47 W per pole at rated conditions
-
Mechanical durability: 10,000 operating cycles.
-
Electrical durability: 2,000 operating cycles at rated current (typical value in ABB datasheet for this model)
