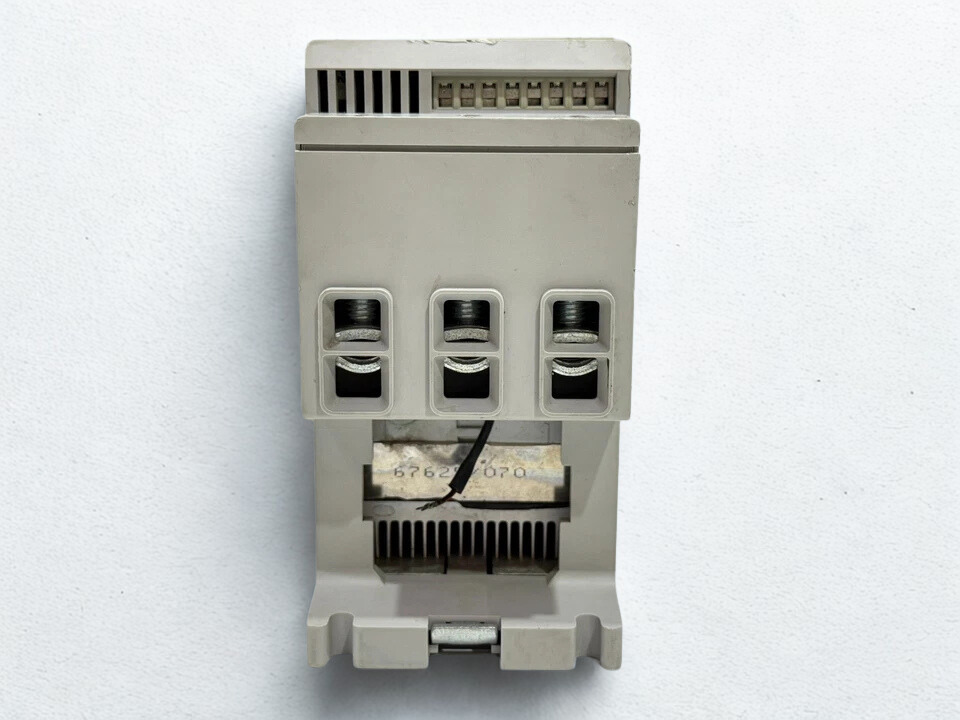

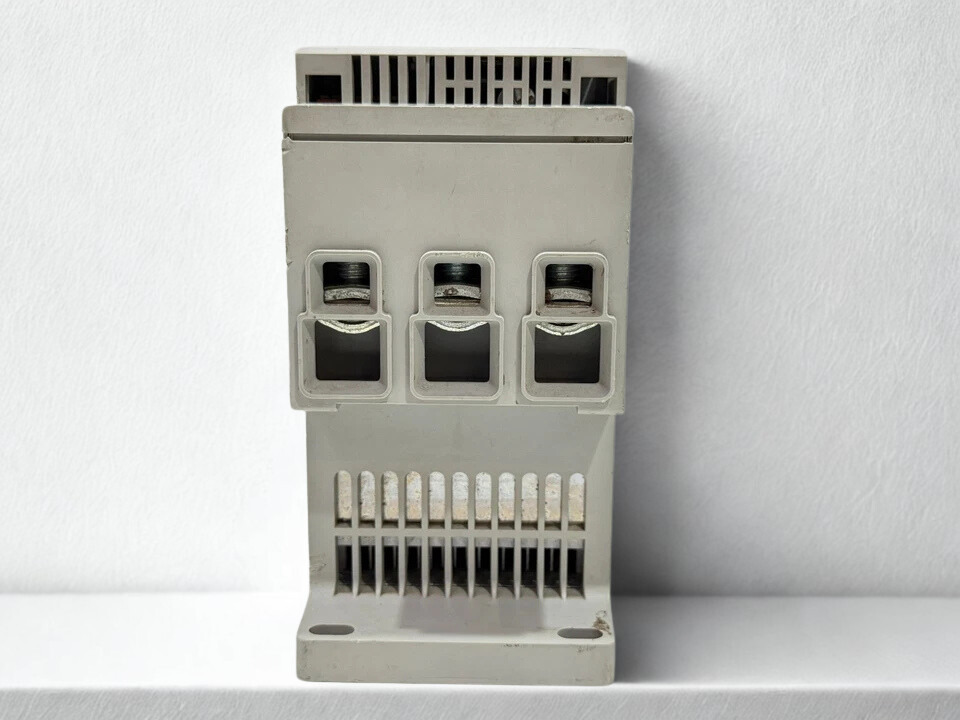

Allen Bradley 150-C60NBD SMC-3 Soft Starter 60A
The Allen Bradley 150-C60NBD is a smart motor controller that can start and stop three-phase induction motors up to 60 A at voltages up to 480 V AC. It is an SMC-3 model. This Series B open-type soft starter combines solid-state control, motor overload protection, and internal bypass connections into a small, low-cost alternative to traditional starters in OEM machines and process applications.
This controller works with most industrial power systems across the world since it has a wide 200–480 V three-phase operating range and a 100–240 V AC control supply. The SMC-3 firmware has standard soft start and soft stop settings, as well as current limit and motor diagnostics. This helps lower mechanical stress, inrush currents, and downtime in your motor-driven equipment.
Model Details: 150-C60NBD SMC-3 Soft Starter
-
Model: 150-C60NBD, Bulletin 150 SMC‑3 smart motor controller, Series B.
-
Current rating: 60 A nominal operating current at 40 °C, suitable for medium-duty motor loads.
-
Motor power: Up to approx. 30 kW at 400 V (inline connection) and 55 kW at 400 V (inside‑delta).
-
Line voltage: 200–480 V AC, 3‑phase, 50/60 Hz three-phase mains supply.
-
Control supply: 100–240 V AC control voltage, 50/60 Hz single-phase.
-
Connection type: 3‑wire, open type soft starter with integrated internal bypass contactor.
-
Protection: Integrated motor overload protection with adjustable trip class and motor/system diagnostics.
-
Enclosure / IP: Open type component, IP2X when mounted in a suitable enclosure.
-
Physical size: Approx. 206 mm (H) × 72 mm (W) × 130 mm (D), weight about 2.25 kg.
-
Duty: Normal (medium) duty, starting duty around 350% current for typical SMC‑3 rating.

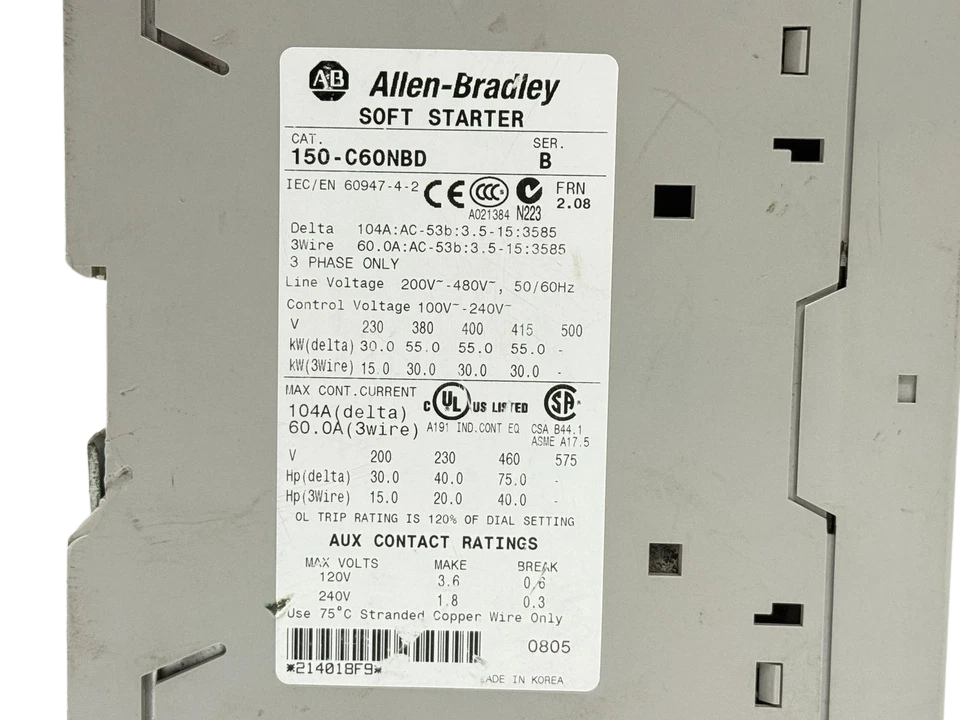

Specifications: Allen Bradley 150 C60NBD
| Parameter | Value / Description |
|---|---|
| Product range | SMC‑3 smart motor controller, Bulletin 150 |
| Catalog number | 150-C60NBD, Series B |
| Component type | Soft starter / smart motor controller |
| Line voltage (Ue) | 200–480 V AC, 3‑phase, 50/60 Hz |
| Rated operating current (Ie) | 60 A at 40 °C ambient |
| Rated motor power (inline, 400 V) | ~30 kW three-phase motor |
| Rated motor power (inside delta) | ~55 kW three-phase motor at 400 V |
| Starting duty | Approx. 350% (medium duty SMC‑3) |
| Control supply voltage (Us) | 100…240 V AC, 50/60 Hz single‑phase |
| Phases controlled | 3‑phase control (true three‑phase) |
Construction & Environmental Data
| Parameter | Value / Description |
|---|---|
| Enclosure type | Open type, for panel mounting |
| IP rating (device) | IP2X when enclosed |
| Height | 206 mm |
| Width | 72 mm |
| Depth | 130 mm |
| Weight | Approx. 2.25 kg |
| Ambient temperature (no derating) | Up to 40 °C |
| Product status | Existing product range SMC‑3 |
Datasheet and Manual PDF Files
| Datasheet File | View PDF |
| Manual File | View PDF |
