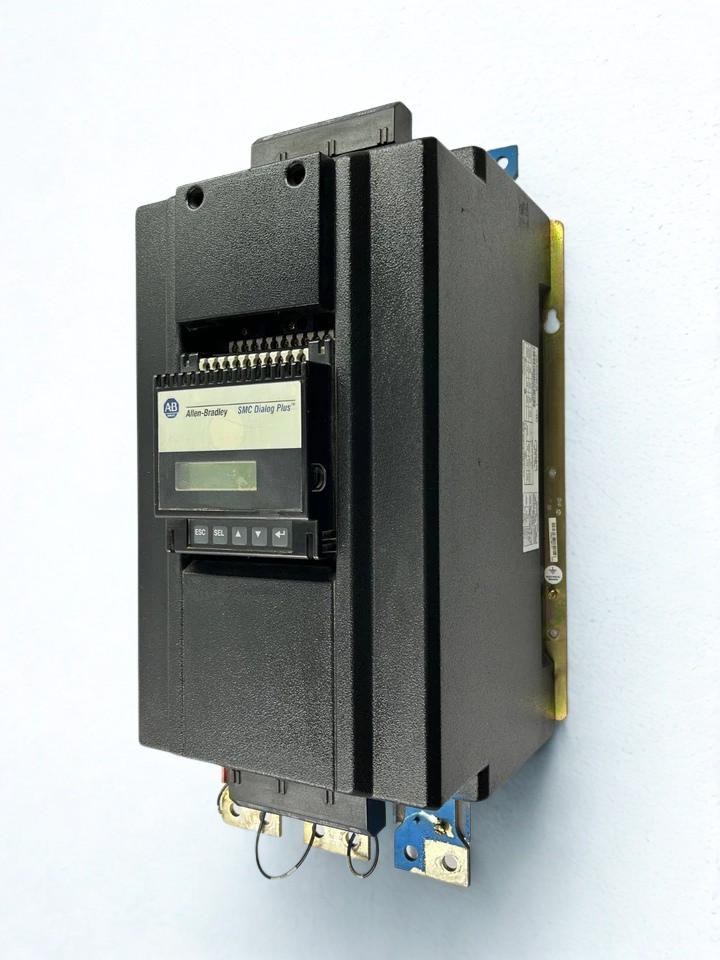

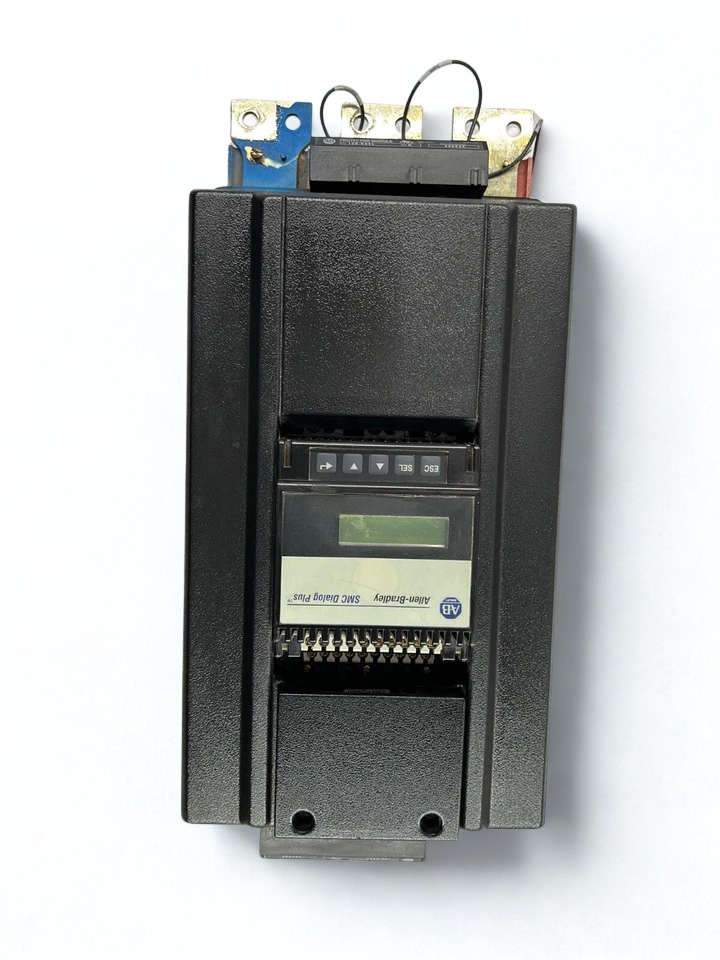

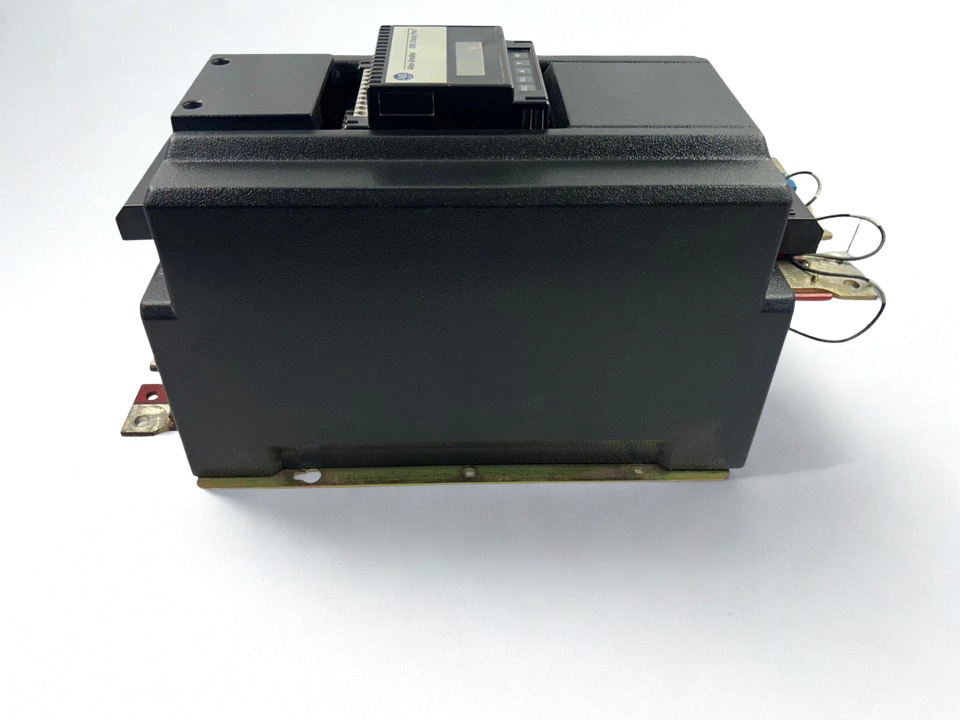

Allen Bradley 150-B240NBD-8B SMC Dialog Plus Soft Starter

The Allen-Bradley SMC Dialog Plus 150-B240NBD-8B is a smart motor controller (soft starter) that can start and stop three-phase AC induction motors with a current of up to 240 A at 380–480 V AC. It is usually used for applications with a power output of 150–200 HP, depending on the voltage. ​

ALLEN BRADLEY SMC DIALOG PLUS 150-B240NBD-8B DETAILS:

• Manufacturer/Series: Allen-Bradley, Bulletin 150 SMC Dialog Plus smart motor controller family. ​
• The catalog number is 150-B240NBD-8B, which is a version of 150-B240NBD that is often called Series A/B in listings. ​
• Function: This is a solid-state soft starter or smart motor controller for three-phase squirrel-cage induction motors. It controls acceleration and deceleration and has superior protection and monitoring features. ​
• Common uses: pumps, fans, compressors, conveyors, and other heavy-duty industrial drives that need less inrush current and less mechanical stress. ​

Details about the mechanics and installation

• The base catalog 150-B240NBD has a “N” in the enclosure type, which means that it is an open-type device that can be mounted in a control panel or MCC. It needs the right enclosure and external branch circuit protection. ​
• Cooling: Higher-current SMC Dialog Plus frames, such the 240 A size, use integral fan cooling. According to Rockwell installation requirements, there must be enough space between the fans and the frame. ​
• Wiring:

1. Power terminals that can handle 240 A class conductors; three line and three load terminals for three-phase wiring.
2. Separate control terminals for the 100–240 V AC control supply, start and stop commands, and extra outputs. ​

The role of the system and its main benefits

1) By restricting torque and current at start and stop, it reduces mechanical stress on motors and other equipment, which makes them last longer.

2) Compared to across-the-line starters, it lowers the peaks in electrical demand and keeps voltage sags to a minimum. This helps with utility and system compliance.

3) It combines superior protection and diagnostics, enabling the replacement of separate overload relays and some protective relays, thereby simplifying panel design.

Ratings for electricity

• The line voltage range is 380 to 480 V AC, 3-phase, 50/60 Hz. The voltage code “B” in the 150-B240NBD part number means 380 to 480 V. ​
• Continuous motor current rating: 240 A (soft-starter frame/rating size “240”).
• Typical motor power is between 150 and 200 HP at 460 V AC, depending on the service factor and the application. This is the most frequent rating for this current level in the SMC Dialog Plus range. ​
• Control power: There is a separate 100–240 V AC control supply. The NBD type employs AC control, whereas the NBR type uses DC control. ​
• Phases: a three-phase, three-wire connection between the line and the motor. ​

Equipment Compatibility & System Integration

• Automation Platforms: Compatible via SCANport or DPI interface bridges with Allen-Bradley SLC 500 (1747 line), PLC-5, MicroLogix (1761/1766), CompactLogix (1769), and ControlLogix (1756) modular controller architectures.
• Communications Modules: Supports direct pairing to 1203 series communication gateways for Remote I/O, DeviceNet, ControlNet, and PROFIBUS physical layer protocols.
• Motor Type Compatibility: Standard 3-phase squirrel-cage induction industrial motors or Wye-Delta (6-lead) inline motor configurations.

Operational Programming and Control Modes

1. Soft Start with Selectable Kickstart: Constant current ramp initialization programmable from 0 to 30 seconds; Kickstart pulse delivery up to 450% FLA for a period of 0.5 to 1.5 seconds.
2. Current Limit Start: Limits maximum starting current across a variable range of 150% to 450% of full-load amps.
3. Pump Control Logic: Advanced closed-loop micro-controller firmware designed to eliminate fluid surges (water hammer) in centrifugal pumping networks; features an adjustable acceleration path (0–30s) and deceleration path (0–120s).
4. Braking Control Options: Integrated Smart Motor Braking (SMB) capability providing DC injection braking up to 400% FLA without needing external brake resistors, contactors, or speed sensors.
5. Accu-Stop Positioning: Applies braking torque to slow down the motor shaft to a preset hold speed (7% or 15% of rated synchronous RPM) prior to applying complete zero-speed holding torque.
6. Energy Saver Mode: Dynamic internal phase angle reduction execution optimized to lower total current consumption when operating heavily under-loaded or un-loaded motors over extended intervals.

Industrial Certifications & Enclosure Ratings

• Standards Compliance: UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-2.
• Approvals: UL Listed (File E56639, Guide NMFT), CSA Certified (LR 1234), CE Marked for European Union Low Voltage and EMC Directives.
• Enclosure Rating: Open-type chassis design (IP00); requires installation inside a ventilated NEMA Type 4/12 (IP65) industrial electrical cabinet to ensure target thermal parameters match the environment.
