Honeywell CC-TFB412 Fieldbus 4 Link Redundant IOTA Module

Honeywell CC-TFB412 Fieldbus 4 Link Redundant IOTA Interface Module

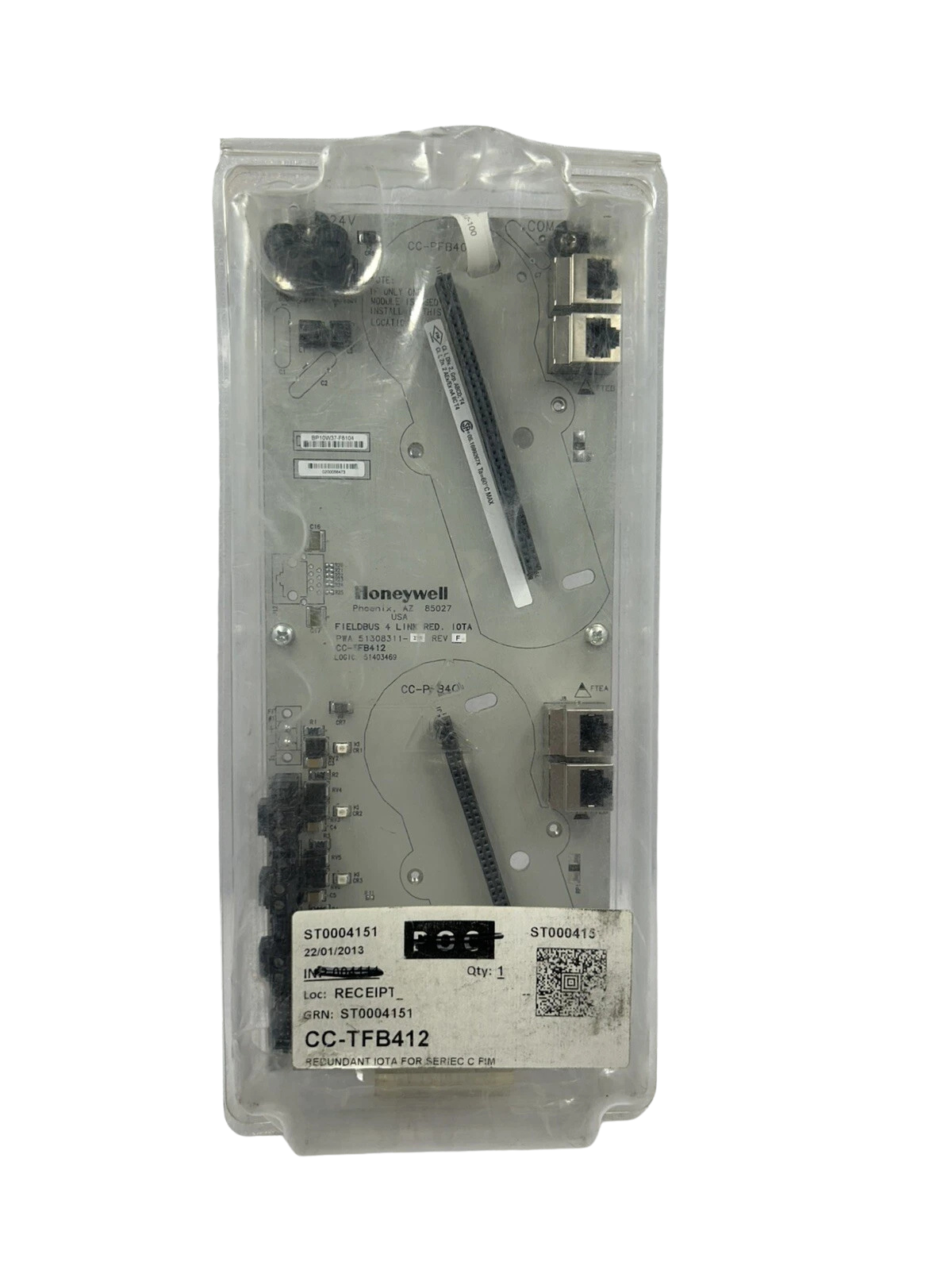

The Honeywell CC-TFB412 is a reliable Fieldbus 4 Link Redundant Input/Output Termination Assembly (IOTA) Interface Module Printed Wiring Board Assembly (PWA). Specially engineered for critical process control networks within the Honeywell Experion® Series C framework, this interface module manages high-speed fieldbus communications while maintaining full media and hardware redundancy. It bridges the gap between field-level smart instrumentation and central control architectures, ensuring that even if a physical link fails, critical telemetry remains uncompromised. Built with premium conformal coating (“CC” designation), this hardware resists harsh atmospheric elements, making it suitable for both maritime vessels and terrestrial heavy industries.

Model Details

• Model: CC-TFB412
• Manufacturer Part Number (MPN): 51308311-275
• Board Revision: Typ. Rev F or higher (batch dependent)

Honeywell CC-TFB412 Technical Details

Key Features

1. Quad-Channel Topology: Distributes intricate instrumentation networks across minimal physical infrastructure by managing four independent Fieldbus Link connections simultaneously.
2. Automated nodes are safeguarded from abrupt signal drops or localized wire fractures by the native dual-link pairing architecture, which provides true hardware redundancy.
3. Conformal Coated Protection: Enhanced factory-applied protective layer safeguards sensitive inner micro-circuitry from corrosive chemical vapors, ambient humidity, and salt spray.
4. Galvanic Protocol Isolation: Protects the upstream system core by isolating low-voltage logic controllers from unpredictable high-voltage external field disturbances.

Part Number Cross-References

• Honeywell 51308311-275
• CC-TFB412-51308311-275
• CCTFB412

Compatibility:

The CC-TFB412 is directly compatible with the Honeywell Experion PKS (Process Knowledge System) Series C control systems. It integrates alongside the C300 Distributed Process Controller infrastructure and mounts to specialized redundant IOTA termination panels designed for multi-channel network routing.

Expert Note:

In offshore automation systems, vibration and microscopic moisture ingress are the silent killers of communication cards. The Honeywell CC-TFB412 stands out because of its robust conformal coating. The “CC” prefix ensures the board can handle the harsh engine rooms or steering gear flats common on commercial vessels.

Guide to Installation and Maintenance:

1. Shielding & Grounding Integrity: When running lines to the 4-link terminals, ensure the fieldbus cable drains are grounded at exactly one designated system point on the IOTA chassis. Multi-point grounding introduces ground loops that distort high-frequency fieldbus data packs.
2. Torque Specifications: Do not over-tighten the mounting screws holding the PWA to the backplane IOTA. Structural tension over time combined with low-frequency shipboard vibrations can create micro-cracks along the trace lines near the mounting points.
3. Redundancy Validation: During initial harbor acceptance tests (HAT) or routine plant turnarounds, physically disconnect Link A while watching the controller diagnostics. The module must transition data routing to Link B within milliseconds without causing safety drops or freezing values on the HMI.
