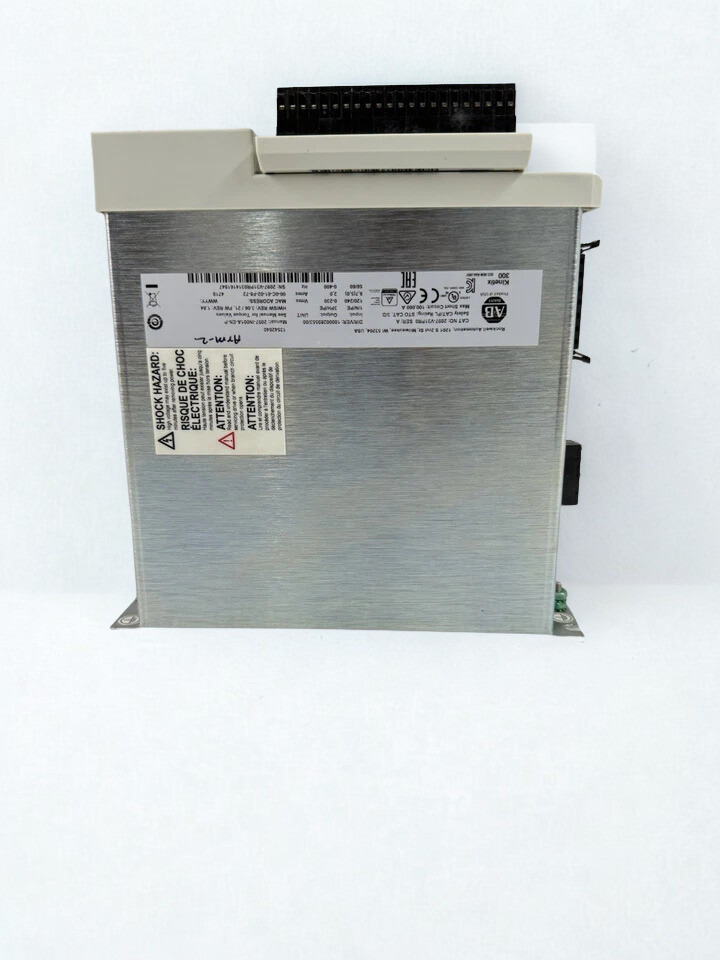

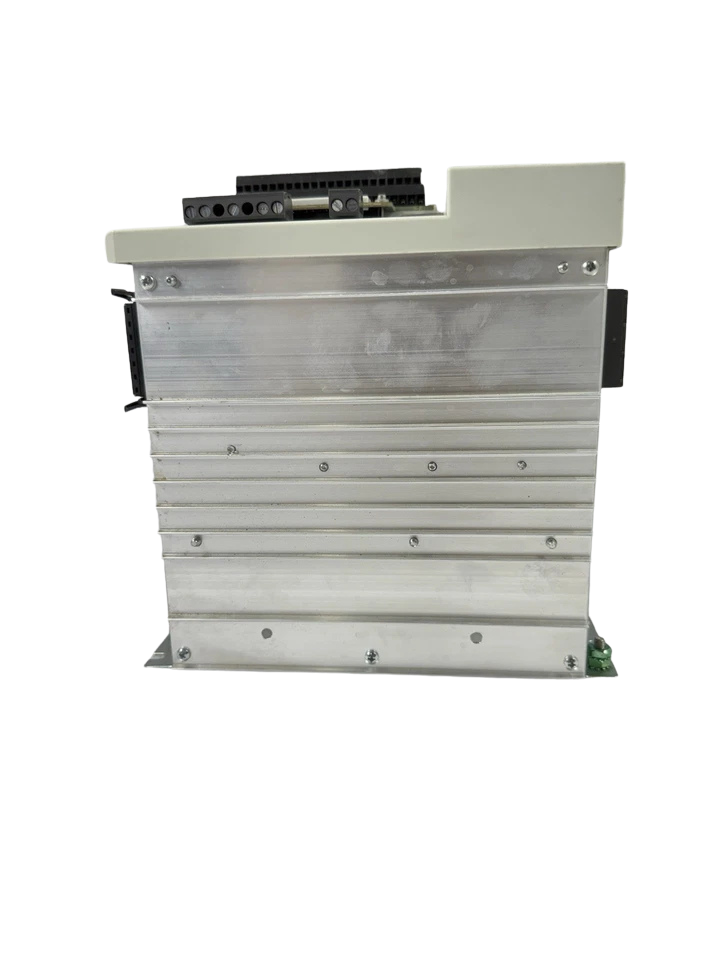

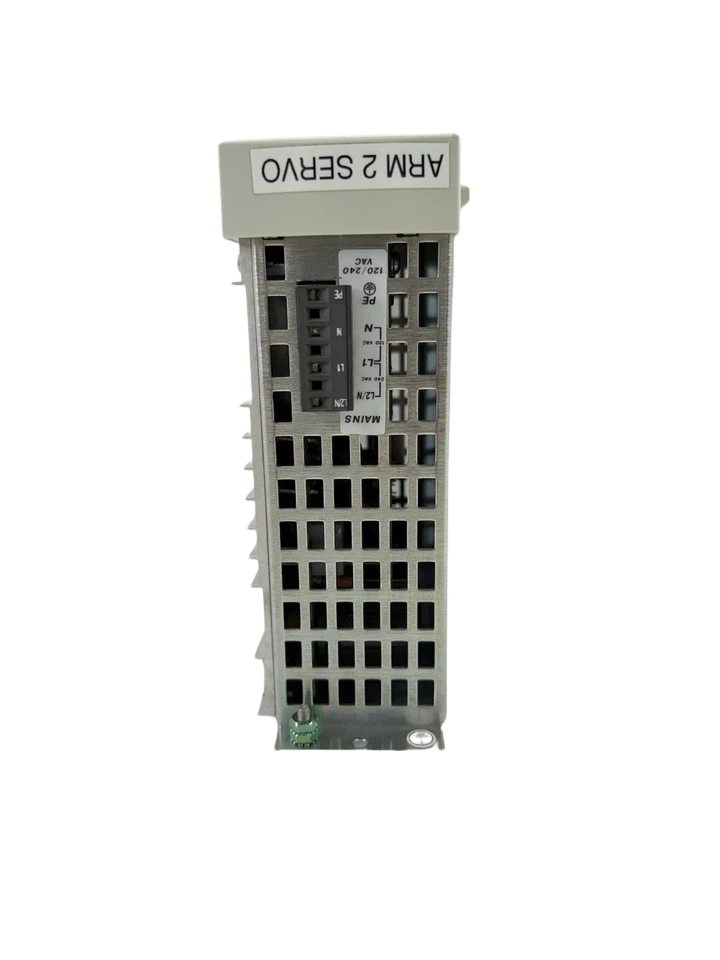

ALLEN BRADLEY 2097 V31PR0 Kinetix 300 Servo Drive 120-240V

Allen Bradley 2097 V31PR0 Details:

• Series and Type: Kinetix 300 EtherNet/IP Indexing Single-axis Servo Drive.

• Input Voltage: 120/240V AC single-phase, 48…62 Hz frequency.

• Continuous Output Current: 2.8A (0-peak).

• Continuous Output Power: 400W (0.4 kW).

• Key Features: 120V Doubler mode for full-speed 240V motors, Safe Torque-Off (STO) safety function.

• Dimensions: Height 190 mm (or 185 mm), Width 68 mm, Depth ~185 mm; Weight 1.3 kg.

The Kinetix 300 series has a high-performance EtherNet/IP indexing servo drive called the Allen Bradley 2097-V31PR0. It’s great for controlling motion on a single axis in industrial automation. It works with 120-240V single-phase input and is very accurate for packaging, moving materials, and putting things together.

With its 120V doubler mode, this Kinetix 300 servo drive can provide 400W of continuous output power, which lets 240V motors run at full speed from a 120V source. It has EtherNet/IP capability, which makes it easy to connect to Rockwell Automation Logix controllers. This allows for quick indexing of up to 32 places and extensive diagnostics using a built-in web server.

ALLEN BRADLEY 2097-V31PR0: Technical Specifications

Key Features

1) The Logix 5000 controllers are capable of real-time control and diagnostics through the use of EtherNet/IP connectivity, which supports trapezoidal/S-curve profiles.

2) The 120V doubler mode enables the operation of a 240V motor from a single-phase 120V input, thereby maximizing flexibility in power-constrained configurations.

3) Integrated Safe Torque-Off guarantees SIL 2 safety without the need for additional hardware, thereby guaranteeing adherence to international standards.

4) Support for high-resolution absolute/incremental encoders with auxiliary feedback for gearing applications.
