BERGER LAHR WDP3-014.0801 Stepper Drive 24V

BERGER LAHR WDP3-014.0801 Stepper Motor Drive | 3-Phase 24V Controller

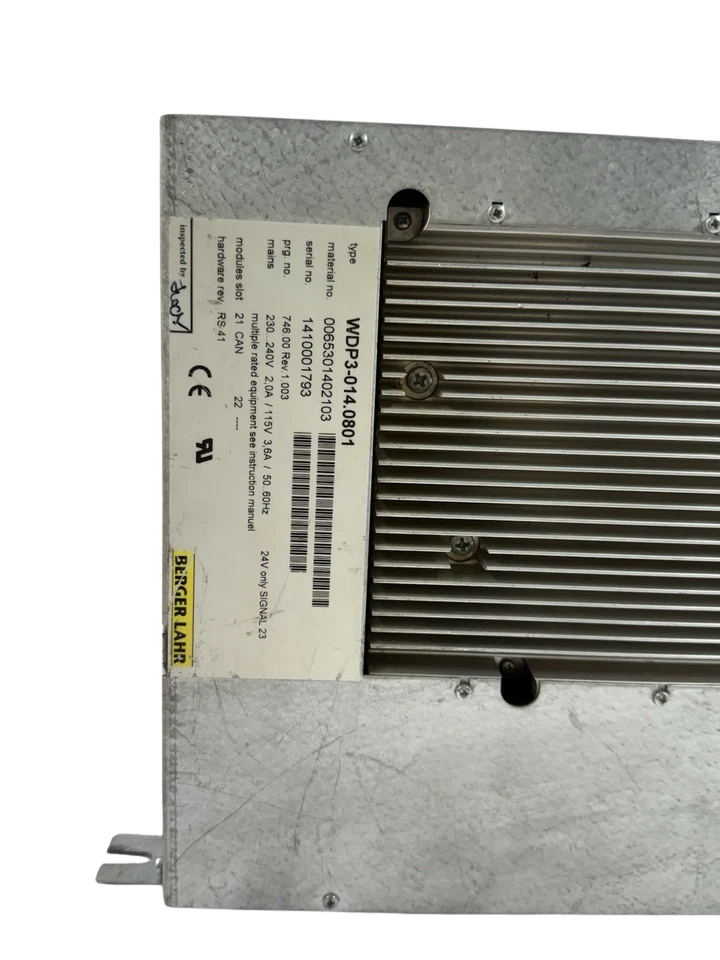

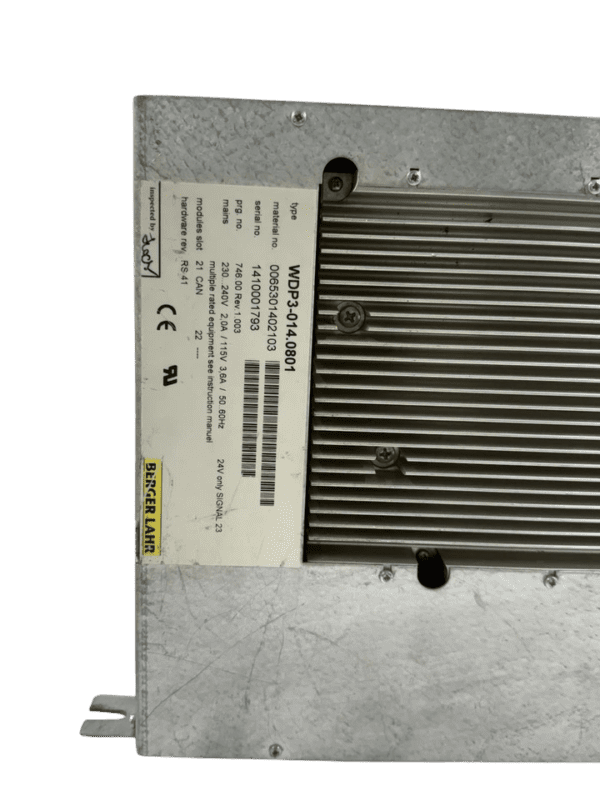

The BERGER LAHR WDP3-014.0801 (Part No. 0065301402103) serves as the primary motion control interface for 3-phase stepping motors in distributed marine automation architectures. Operating on a 24V DC logic baseline, this drive is frequently integrated alongside Schneider Electric Modicon PLCs or ABB AC800M platforms to manage precise positioning tasks. By converting digital pulse and direction signals into highly regulated, MCU-based PWM phase currents, the WDP3-014.0801 ensures deterministic motor control even when the master network experiences high-latency command cycles.

Operational stability in a vessel’s engine room demands hardware capable of withstanding severe environmental stressors. This stepper drive utilizes hardened logic components designed to remain functional during 60Hz grid fluctuations and transient voltage spikes caused by heavy auxiliary load switching. Because it is often mounted in localized control cabinets near primary machinery, the unit is engineered to resist the mechanical fatigue of Category 3 hull vibrations and the slow degradation associated with salt-mist intrusion in high-humidity ambient zones.

Technical Specifications

Main Features

• Opto-Coupled Galvanic Isolation: All of the signal inputs are electrically separate from the power stage so that earth faults and stray currents can’t hurt the logic board.
• Active Resonance Damping: Internal MCU algorithms alter the phase currents on the fly to get rid of mid-frequency resonance. This keeps the motor from stalling while essential valve actuations happen.
• Wide Voltage Tolerance: The internal DC bus can handle the voltage changes that occur when ship generators are synchronized.
• Non-Volatile Fault Memory: States of drive trips, like overcurrent and thermal overload, are saved even when the power is out. This makes it easier for ETOs to fix problems rapidly.
• Hardened Output Stage: The phase outputs can’t short-circuit; therefore, the IGBTs won’t fail in a big way if the motor feeder wires rub against the bulkheads.

Marine Applications

• Fuel Rack Actuation: Micro-stepping control for the electronic governors on the main engine and the indexing of the fuel injection.
• HVAC and Damper Systems: Accurate placement of automated fire dampers and louvers in air-handling units (AHUs).
• Purifier Skids: Control of the flow regulation valve on heavy fuel oil (HFO) and lubricant oil separator units.
• Bridge Telegraph Systems: The bridge console controls synchronized feedback and indication pointers.
• Fin Stabilizer Hydraulics: The pilot valve is activated in the localized hydraulic control loop.

Maintenance and Field Tips:

For chief engineers and ETOs, the most common operational failure of the WDP3-014.0801 is not a blown IGBT but terminal creep on the 24V DC I/O block. Persistent low-frequency engine harmonics cause the copper conductors within the screw terminals to compress and expand over time. This mechanical backing-out creates high-resistance connections, leading to intermittent pulse loss or localized terminal melting. During scheduled maintenance, ensure all Phoenix-style connectors are re-torqued. Furthermore, utilize vibration-dampening DIN rail mounts to isolate the chassis from direct bulkhead resonance.

Another hidden failure mode involves verdigris accumulation on the internal ribbon cables and opto-isolator pins. While the drive is housed in an IP20 casing, unventilated cabinets undergo thermal cycling that draws in moisture-laden, salt-heavy air. This condensation inevitably causes copper-oxide growth, which bridges adjacent logic pins and triggers phantom fault codes. Before replacing a unit for a persistent “overcurrent” alarm, inspect the internal I/O headers for green oxidation. Applying a marine-grade dielectric spray to the signal plug bases prior to initial commissioning significantly extends the Mean Time Between Failures (MTBF).
