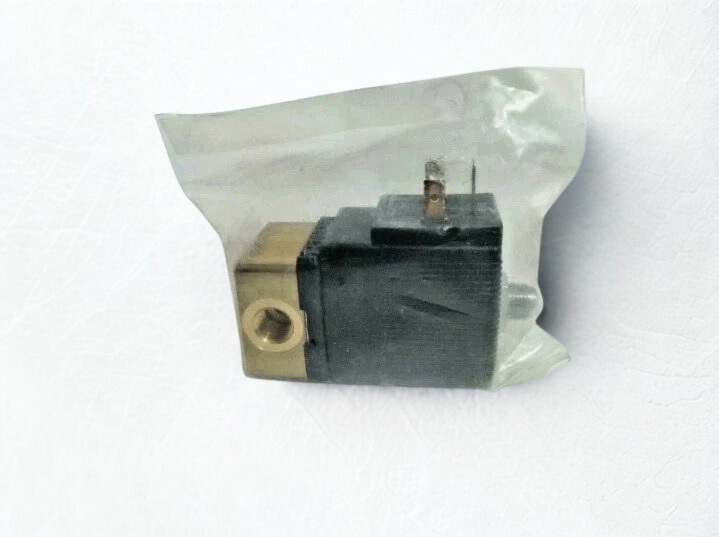

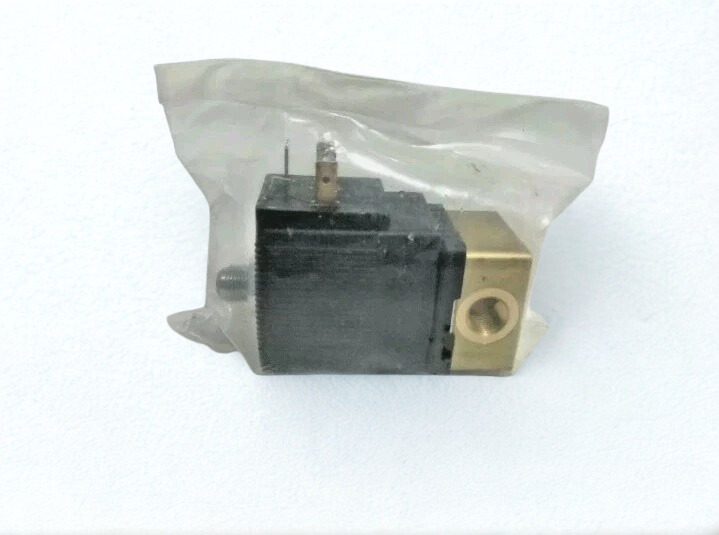

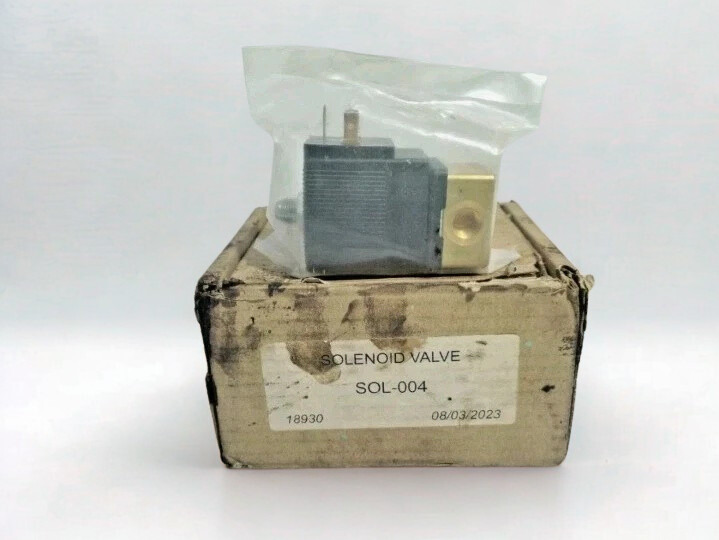

Burkert 6014 C 1.5 FKM MS Solenoid Valve 00125332

The Burkert 6014 C 1.5 FKM MS Solenoid Valve (Article 00125332) is a small, direct-acting 3/2-way plunger valve that can be used to reliably manage neutral gases and liquids in industrial automation and pneumatic systems.

The 6014 C 1.5 FKM MS version is a 3/2-way solenoid valve that is generally closed and has a 1.5 mm orifice and a brass body. It has FKM sealing to make it more resistant to chemicals and high temperatures. It works best for things like controlling pneumatic actuators, switching between air and inert gases, and moving neutral fluids within its designated pressure and temperature range.

This valve features Burkert’s direct-acting plunger design, which means that the stopper and core guide tube are welded together to make it more resistant to pressure and leaks, even when it is in use all the time. The fastened coil system that is built in and vibration-proof makes sure that the device works well in tough conditions. The G 1/8 inner threaded ports make it easy to connect to manifold blocks and pipes.

The 00125332 design can be utilized with European mains supplies because it has a rated operating voltage of 230 V AC (50 Hz). It can also run continuously at 100% duty cycle. It is a space-saving and long-lasting option for OEM machinery, panel builders, and maintenance replacements since it has a small footprint and a wide range of ambient and medium temperatures.

Burkert Solenoid Valve 6014 Key Features:

1) Design for high performance

• Direct-acting plunger structure lets you switch quickly and safely shut off even when there is no differential pressure. This makes it perfect for pilot responsibilities and modest flow control.
• The welded stopper and core guide tube make the inside stronger and less likely to leak, which makes it more reliable over time when used continuously.

2) Strong building

• The brass body and stainless steel interior parts, along with the FKM seals, make this a long-lasting and corrosion-resistant solution for neutral media in industrial settings.
• The fastened coil system is vibration-proof, thus it keeps machines that are exposed to mechanical stress and vibration running smoothly.

3) Wide range of operation

• It can handle a wide range of pressures, from 0 to 16 bar, thus it can be used in both low- and high-pressure control circuits.
• A medium temperature range of −10 °C to +100 °C works for a lot of fluid, compressed air, and inert gas control systems.

4) Simple to add on

• The G 1/8 female thread and small size make it easy to install on manifolds, valve islands, or panel-mounted assemblies.
• The standard 230 V AC 50 Hz coil works with most industrial power supply, making it easier to design and install new electrical systems.

5) Options in the series that save energy

• The Type 6014 platform includes Kick and Drop coil variations that save energy, which is helpful when thermal load or power utilization is very important.

Burkert 6014 C 1.5 FKM MS Solenoid Valve 00125332 Specifications

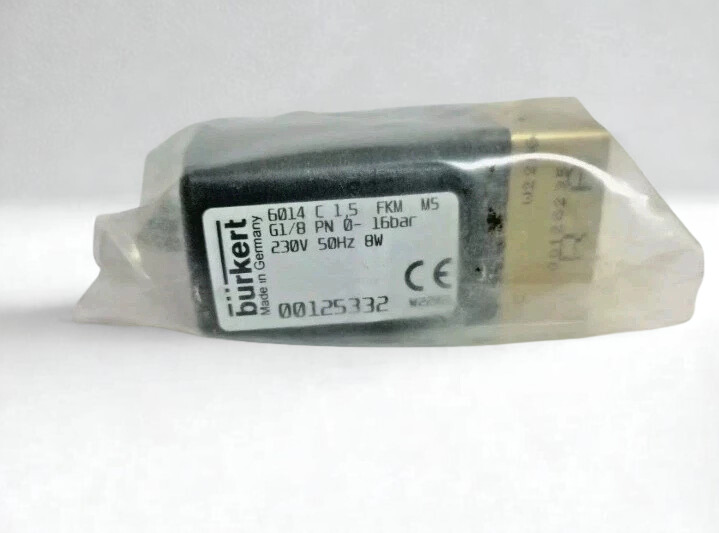

The Burkert 00125332 is a Type 6014 3/2-way normally closed (C) direct-acting solenoid valve with 1.5 mm orifice, brass body (MS), FKM seals, and 230 V AC 50 Hz coil. This consolidated table compiles all key specifications from official datasheets and product details for quick reference in industrial applications like pneumatic pilot control and neutral media handling.

Usage guidelines:

-> As a pilot valve, you can control pneumatic actuators, cylinders, and bigger process valves as long as the pressure and temperature stay within the limitations.

-> Use as a 3/2-way control device to switch compressed air or inert gases in automation panels, test rigs, and handling systems.

-> Use in activities that involve controlling neutral liquids like water-based solutions, coolant, or light oils, as long as they work with brass and FKM.

-> Integrate into manifold systems for multi-channel control when space is limited and a long cycle life is needed.
