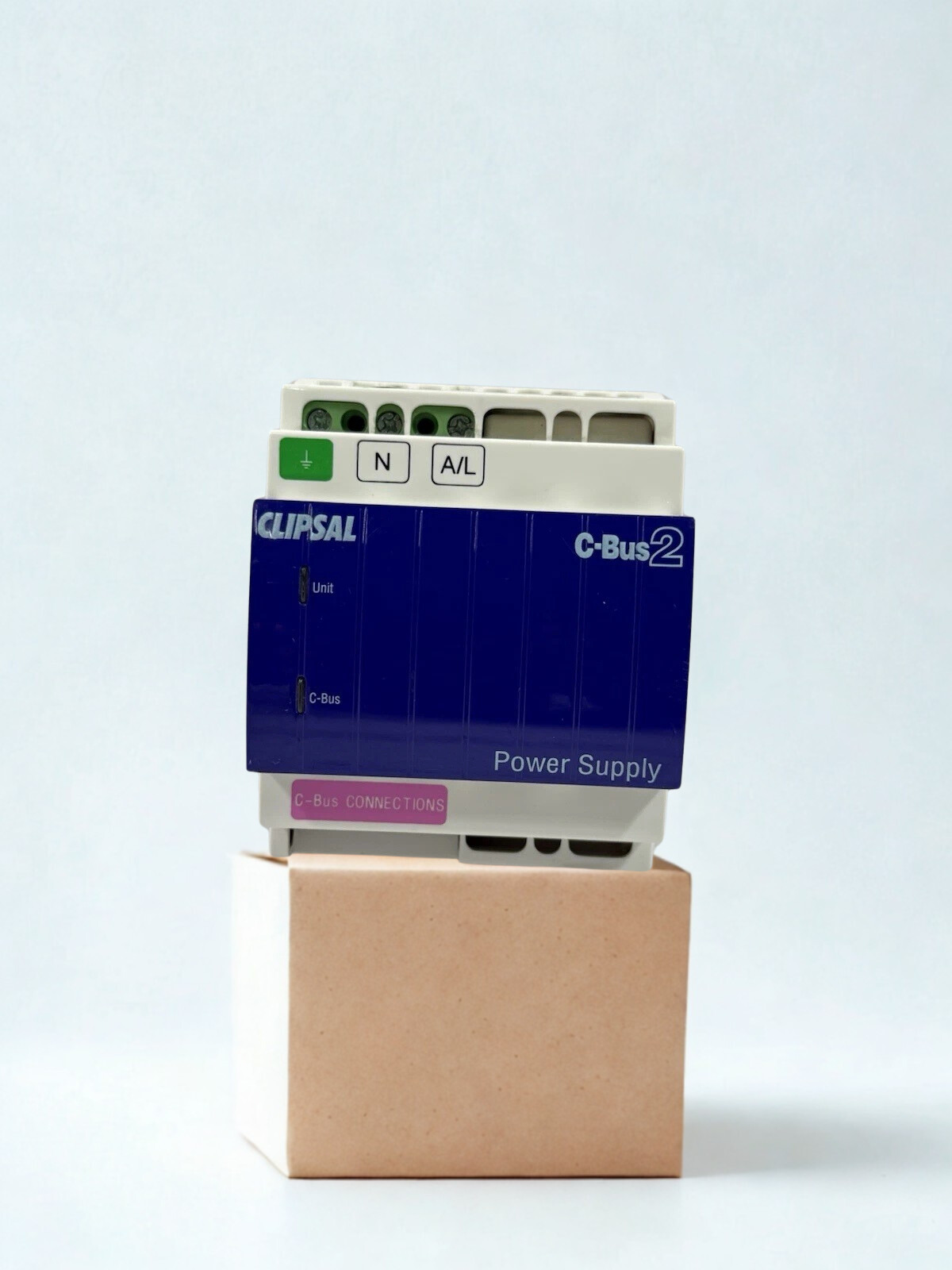

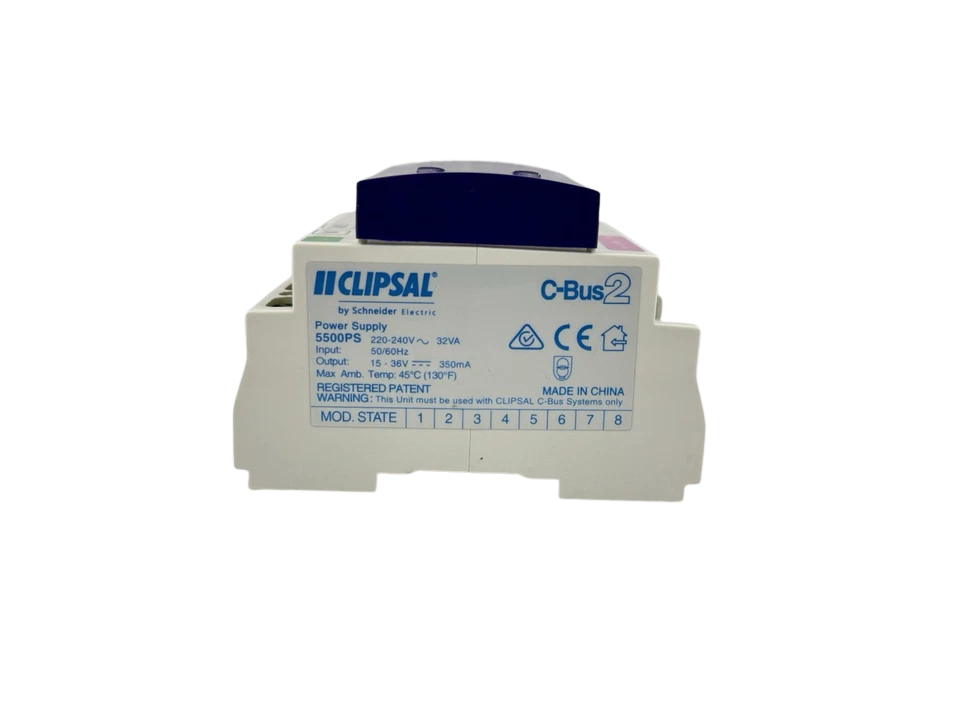

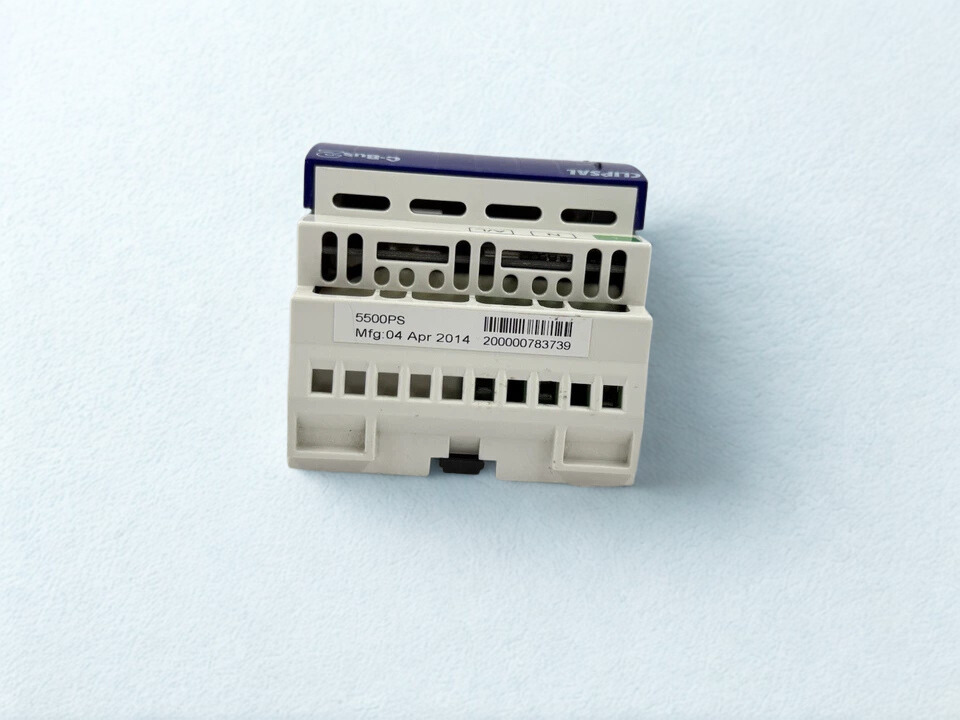

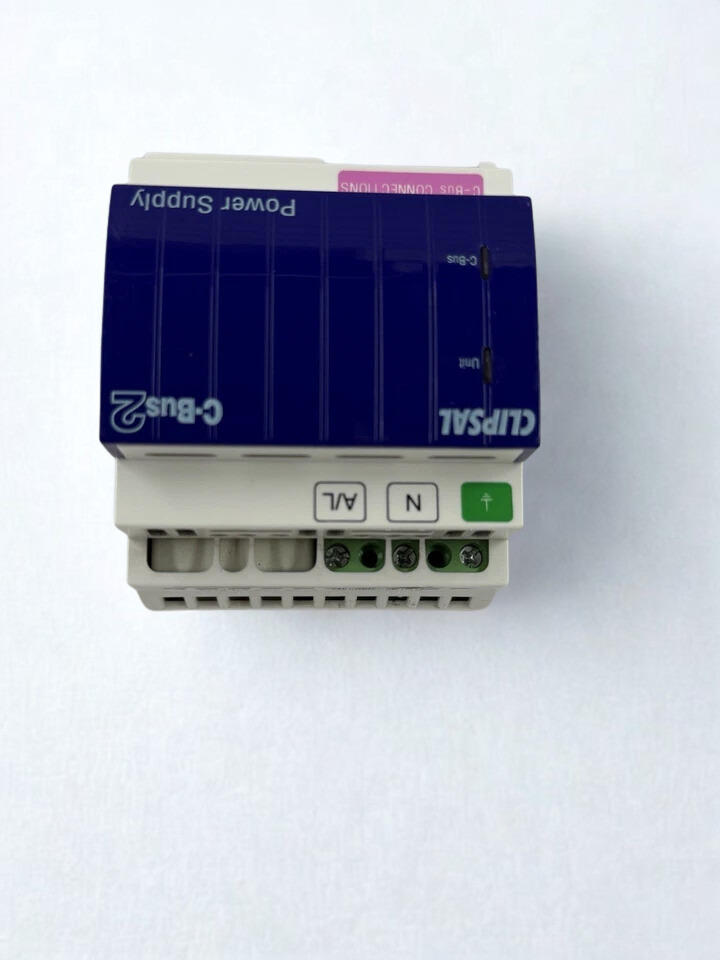

CLIPSAL C Bus2 5500PS Power Supply Module | DIN Rail 350mA 36V DC

The CLIPSAL 5500PS C Bus2 Power Supply Module serves as a foundation for dependable smart home and commercial automation solutions. This DIN rail-mounted unit provides a consistent 36V DC output at up to 350mA, powering up to 18 passive C-Bus devices such as key inputs, dimmers, and occupancy sensors with precision. Its switched-mode design automatically responds to input fluctuations ranging from 240Vac (47-63Hz), ensuring reliable performance across demanding networks.

The 5500PS is designed for seamless scalability, supporting concurrent operation of up to five units per C-Bus network while evenly sharing loads to avoid overloads and outages. Advanced protections, such as short circuit, reverse polarity, heat, and overload safeguards, protect connected equipment, while twin RJ45 connectors and LED status indicators make installation and diagnostics easier. This Schneider Electric module is ideal for Clipsal C-Bus2 configurations, improving energy economy and network dependability in modern electrical installations.

Technical Specifications

Clipsal C-Bus2 Key Features:

• Provides a reliable 36V DC output with a maximum current of 350mA, powering up to 18 passive C-Bus modules such as key inputs and sensors.
• DIN rail-mounted design (72 x 92 x 63mm) allows for easy integration into electrical panels and enclosures.
• The switched-mode technology automatically compensates for 240Vac input changes (47-63Hz) to maintain 32-39Vdc under load.
• Supports up to 5 units in parallel per network, allowing for scalable load sharing without downtime.
• Comprehensive precautions include short circuit, reverse polarity, thermal, and overload protection.

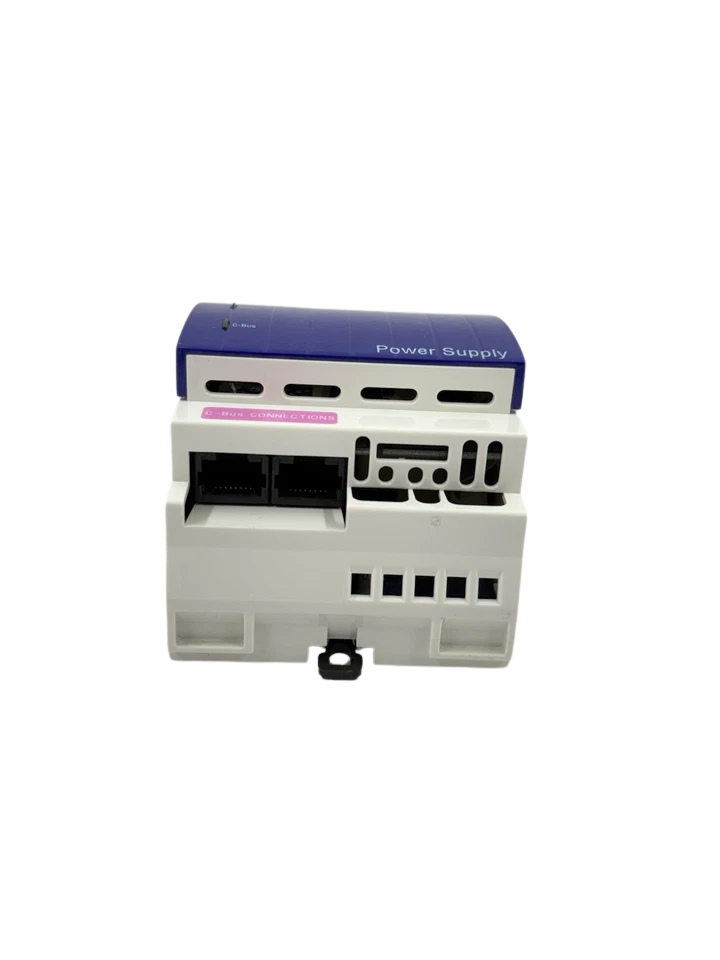

• Dual RJ45 C-Bus connectors with a 300mm mains patch lead provide convenient daisy-chaining.
• LED indications provide rapid diagnostics of the C-Bus network state and mains presence.
• Low DC impedance (20 ohms) and high AC impedance allow for reliable data superposition.
• Galvanic isolation (3.75kV) is RoHS compliant and fulfills Australian/European EMC and safety standards.
• Fast 3-second warm-up time, operating temperature range of -5°C to 45°C, and humidity tolerance of 10-95 percent.

Installation and Applications

-> Mount on DIN rail for simple installation in home automation, commercial buildings, or industrial controls; warm-up takes only 3 seconds.

-> This Schneider Electric module is ideal for Clipsal C-Bus systems that power lighting, sensors, and switches.

-> It improves energy efficiency while dissipating very little heat.
