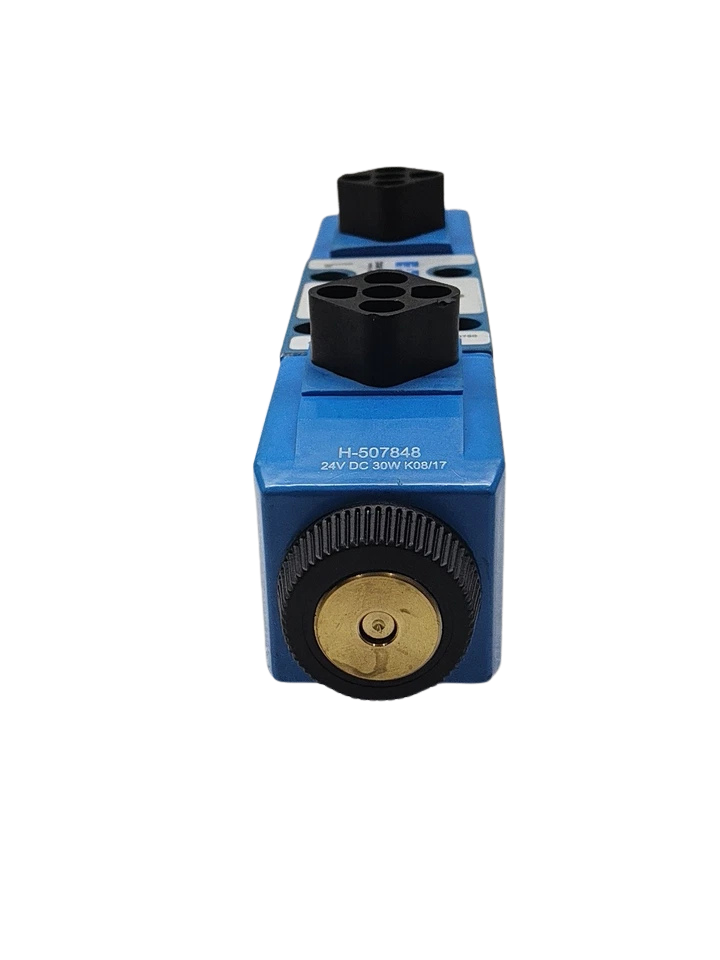

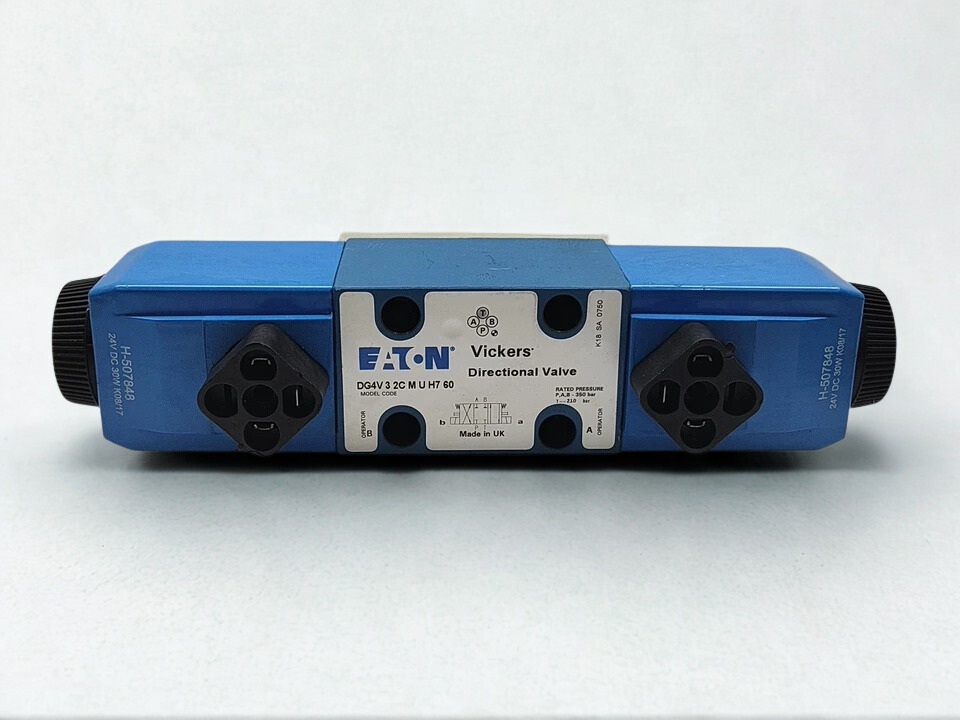

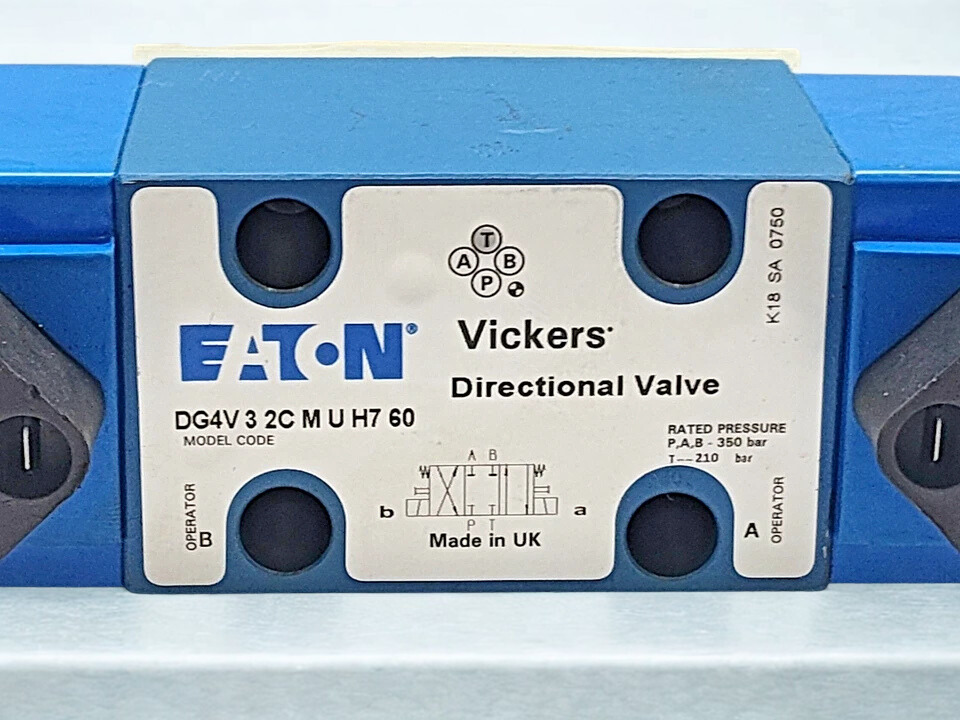

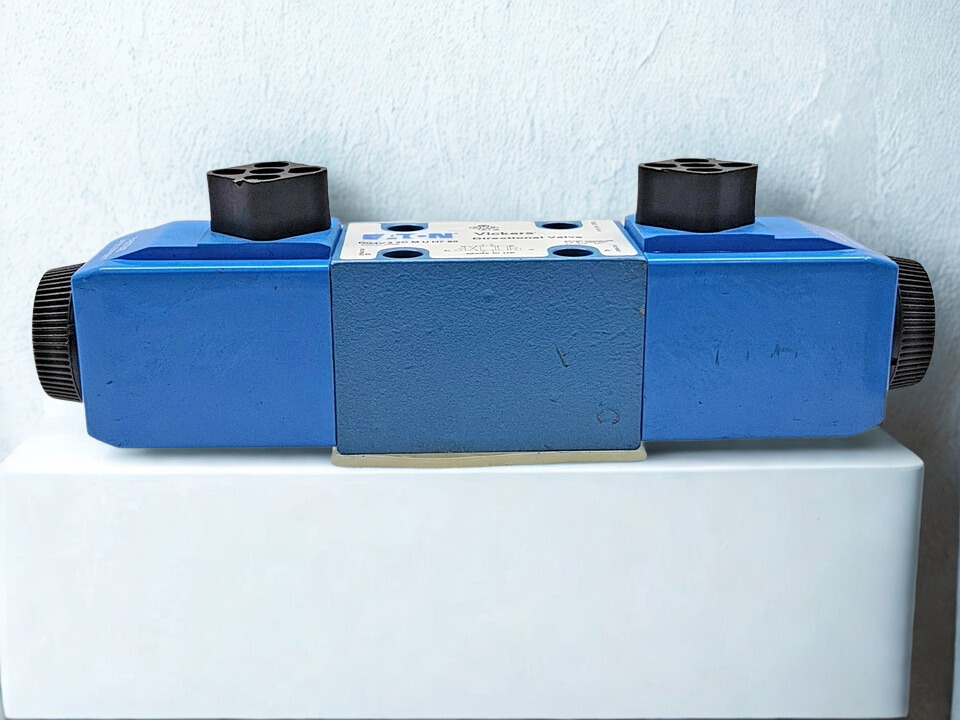

EATON Vickers DG4V-3-2C-M-U-H7-60 Directional Control Valve

The EATON Vickers DG4V-3-2C-M-U-H7-60 is a high-performance solenoid-operated directional control valve that is made for accurate hydraulic flow management in both industrial and mobile settings. The 60 Series valve has a closed-center spool type 2C, which makes sure that it switches reliably even when the pressure is as high as 350 bar.

The DG4V-3-2C-M-U-H7-60 is designed to be mounted on a subplate according to the ISO 4401-03 (CETOP 3, NFPA D03) interface. It is great for machines that need fast, precise directional control of hydraulic actuators. It has a 24 VDC coil and Viton seals, which means it can handle petroleum-based fluids while reducing hydraulic shock through smart design. This model is great for SEO-focused searches on Vickers hydraulic valves. It can flow up to 80 LPM and uses very little power, making it energy-efficient.

EATON Vickers DG4V-3-2C-M-U-H7-60 Tech Specs

• Model: DG4V-3-2C-M-U-H7-60 Directional Control Valve​

• Series: Vickers 60 Series Solenoid Operated​

• Spool Type: 2C (Closed Center)​

• Max Operating Pressure: P/A/B: 350 bar (5076 PSI); T: 210 bar (3045 PSI)

• Max Flow Rate: 80 LPM (21 GPM)​

• Coil Voltage: 24 VDC​

• Power: 30 Watt​

• Seals: Viton (FKM)​

• Mounting: ISO 4401-03 (CETOP 3, D03, NG6)​

• Temperature Range: -20°C to +70°C (-4°F to 158°F)​

• Fluid Cleanliness: 19/17/14 Micron (ISO 4406)​

• Weight: Approximately 2.3 kg​

• Connections: DIN 43650 / ISO 4400​

• Manual Override: Plain (non-locking)

Key Functions: dg4v 3 2c m u h7 60

1) The P, A, and B ports can handle a lot of pressure, up to 350 bar, which makes them great for heavy-duty industrial hydraulic circuits that don’t wear out easily.

2) The 60 Series design is small and has a 24 VDC solenoid that lets it respond quickly (45–28 ms to energize) and uses just 30W of power, making it efficient.

3) The closed-center spool 2C arrangement allows for fine control in single-stage applications and works with petroleum oils and Viton seals.

4) The DIN 43650 connector makes wiring easier while still fulfilling ISO standards. It’s great for use in automated machinery and transportable equipment.

5) Strong construction can take up to 80 LPM flow, which cuts down on hydraulic shock and makes parts last longer in tough jobs.

Industry Use:

1) Use grade 12.9 bolts to mount securely on ISO 4401-03 subplate, making sure the surface is flat within 0.013 mm for leak-free operation.

2) Plug in 24 VDC electricity to the DIN connector and check that the solenoid is working according to ANSI B93.9 regulations before using it.

3) Use clean petroleum fluid (19/17/14 micron) and slowly apply non-shock pressure to avoid damaging the spool during the first few cycles.

4) Check the valve shift response when it’s under load, lowering the system pressure to less than 350 bar max. If you’re using AC-input versions, service the rectifier.

Applications and Compatibility

This Vickers directional valve suits hydraulic presses, machine tools, material handling, and construction equipment where reliable solenoid shifting is critical. Compatible with Vickers SystemStak stacks and multi-port subplates for compact system builds. Its soft-shift optimized orifice minimizes piping stress, making it a top choice for high-flow industrial hydraulics.
