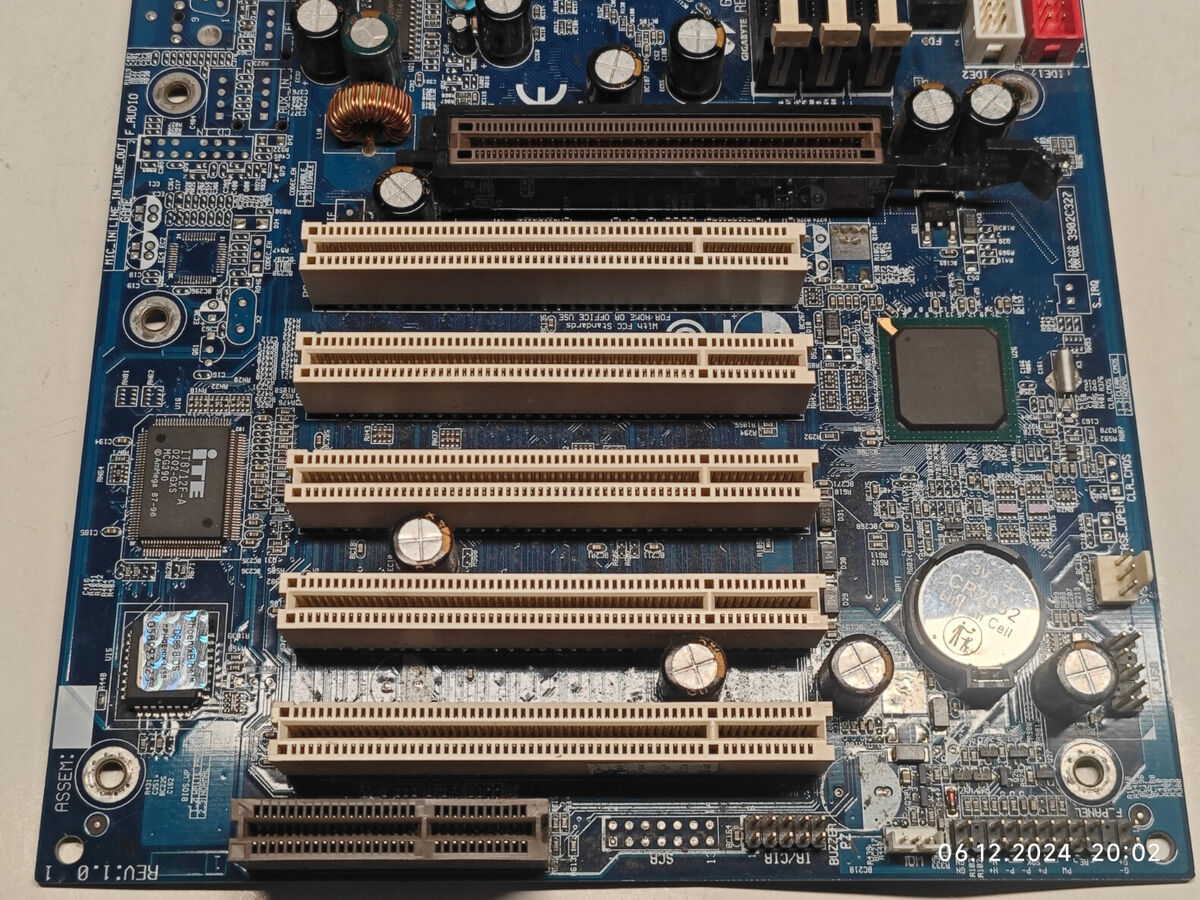

Gigabyte Ga-60xt Motherboard Rev 1.0 Socket 370 Board

The Gigabyte GA-60XT Motherboard Rev 1.0 is an ATX motherboard that has a Universal Socket 370 that works with Intel Pentium III processors (CopperMine/Tualatin) and other CPUs. It has an Intel 815EP/ICH2 chipset and can handle front-side bus speeds of 66, 100, and 133 MHz.

This motherboard was made in the early 2000s and is meant for Pentium III processors, which were the most common type of CPU at the time. It has a chipset that works with integrated graphics and standard I/O, which lets it work with older devices from that time.

Gigabyte GA-60XT Motherboard specifications:

-> The Universal Socket 370 is the CPU socket for Intel FC-PGA/FC-PGA2 Pentium III processors.

-> Intel 815EP with ICH2 is the chipset.

-> Memory: Has three DIMM slots for 168-pin SDRAM modules and can hold up to 512 MB of SDRAM (supports 32, 64, 128, 256, and 512 MB modules).

-> The form factor is ATX, which is about 30.5 x 18 cm.

-> This motherboard weighs about 720 grams and was built in Taiwan.

-> It works with an ACPI-compliant BIOS and ATX power supply.

-> The board can use Pentium III and Celeron FC-PGA processors that run at rates of about 1.2 GHz and have front-side bus speeds of up to 133 MHz.
