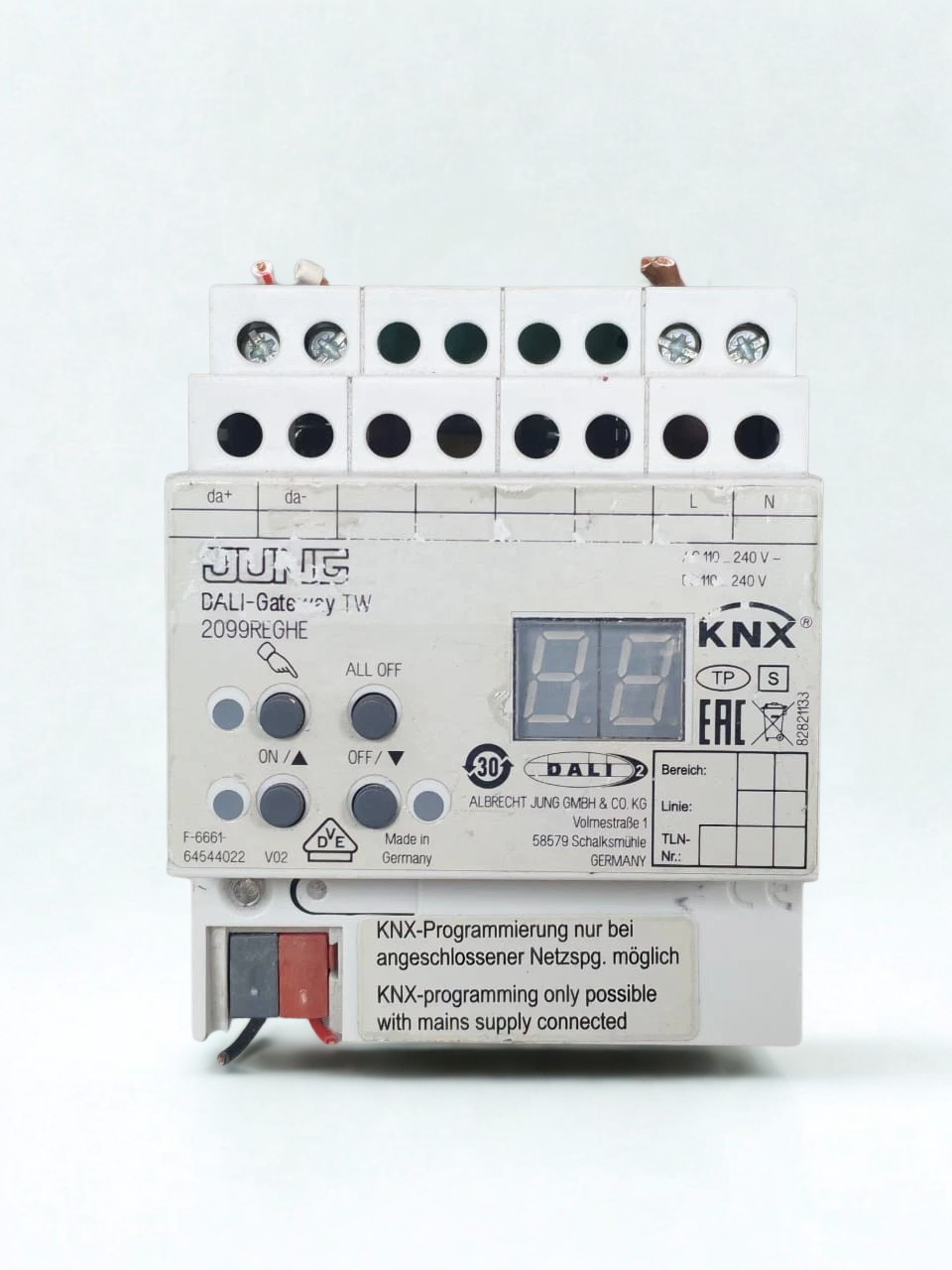

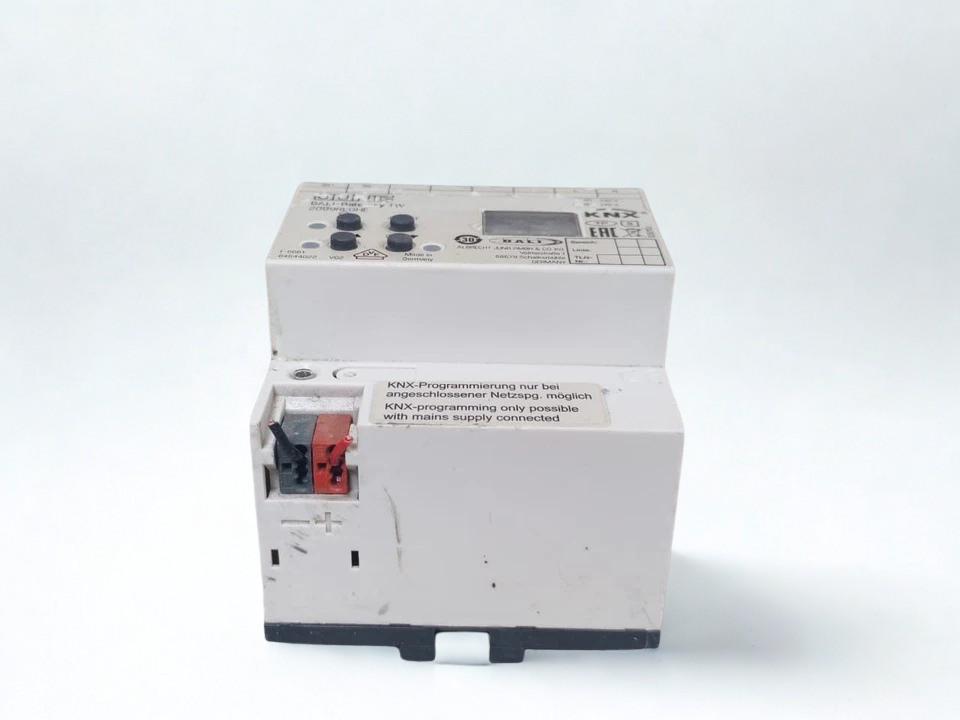

Jung 2099REGHE KNX DALI-Gateway for Smart Lighting Control

Jung 2099REGHE KNX DALI-Gateway:

The Jung 2099REGHE KNX DALI-Gateway is a high-performance rail-mounted interface that connects KNX systems to digital DALI (Digital Addressable Lighting Interface) lighting systems. It lets KNX building management systems and DALI-compatible lights talk to each other and operate each other without any problems. This makes it great for advanced lighting automation in homes, businesses, and factories. ​

Features:

• Interface: Links KNX and DALI systems and lets you control and monitor up to 64 DALI devices in up to 32 groups. ​
• Tunable White & Color Control: Lets you modify the color temperature for lights using DALI Device Type 8, which lets you create dynamic lighting effects and sceneries. ​
• Centralized Control: Lets you address DALI devices individually, in groups, or from a central location. It also supports up to 16 light scenarios and broadcast communication. ​
• Advanced Functions: These include manual operation, forced switching, independent ON/OFF delays, a staircase lighting timer, a corridor function, and feedback on the state of the luminaire (brightness, faults) through KNX. ​
• Flexible Configuration: DALI participants can develop projects online or offline utilizing ETS plug-ins, and it’s straightforward to set up and upgrade firmware. ​
• Safety and dependability: has protection against surges, short circuits, and overloads. KNX Data Secure is a feature that lets you communicate safely and get firmware updates that will last for a long time. ​
• Mounting and Connection: DIN rail mounting (4 rail units, 72 mm wide) and screw terminal connections for power and DALI. It works with standard encased cables. ​

Technical Details

-> Rated Voltage: 110–240 V AC/DC, 50/60 Hz

-> Maximum power loss: 3 W

-> Temperature in the air: −5 °C to +45 °C

-> Temperature for storage and transport: −25 °C to +70 °C

-> DALI Voltage: 16 V DC

-> DALI Transfer Speed: 1.2 kbit/s

-> EN 62386 (DALI-2 certified) is the DALI protocol.

-> Number of DALI Devices: 64 at most

-> Cable for DALI Length: Up to 300 m (with a 1.5 mm² cable)

-> KNX Connection: TP 256, SELV DC 21–32 V, normal use 150 mW

-> Width of mounting: 72 mm (4 rail units)

-> Type of connection: screw terminals (for single or stranded wire with a cross-sectional area of 0.5 to 4 mm²)

Can be used in:

1. Automating buildings and controlling smart lights
2. Tunable white systems with Human Centric Lighting (HCL)
3. Works with emergency lights, sensors, and presence detectors
4. Commercial, industrial, and residential projects that need advanced, flexible lighting control. ​
