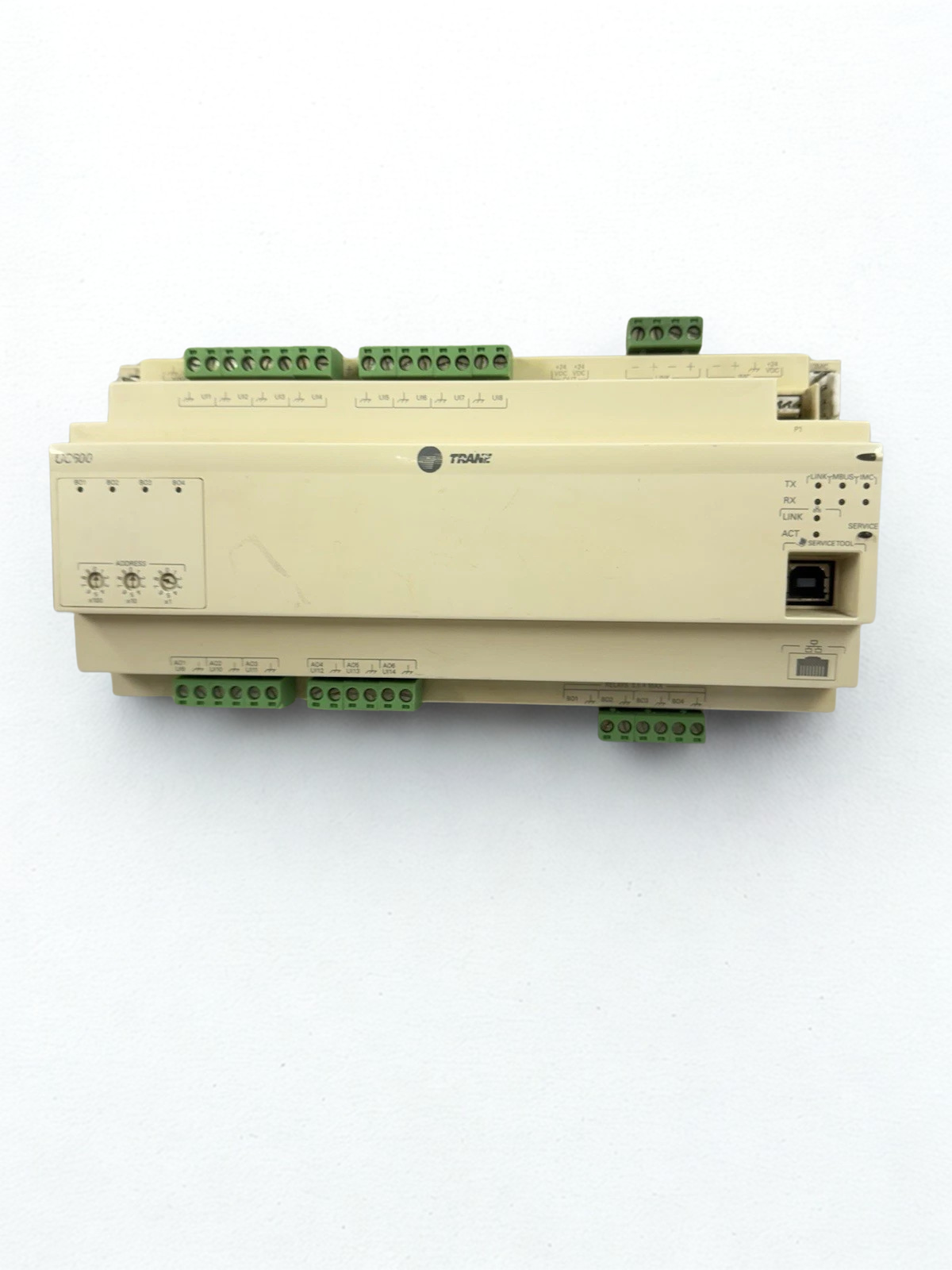

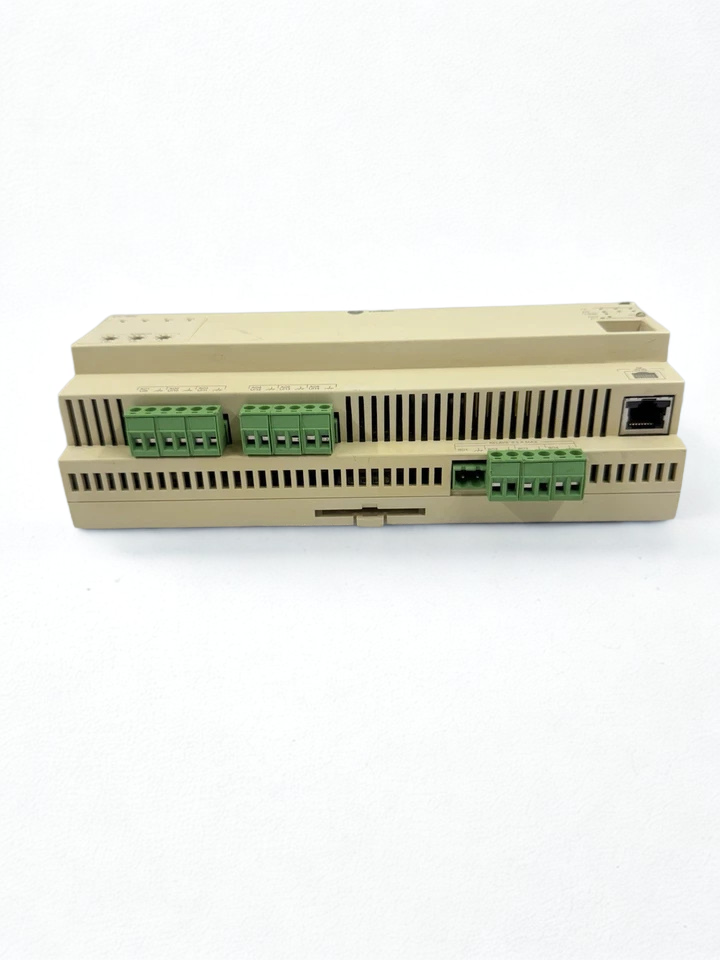

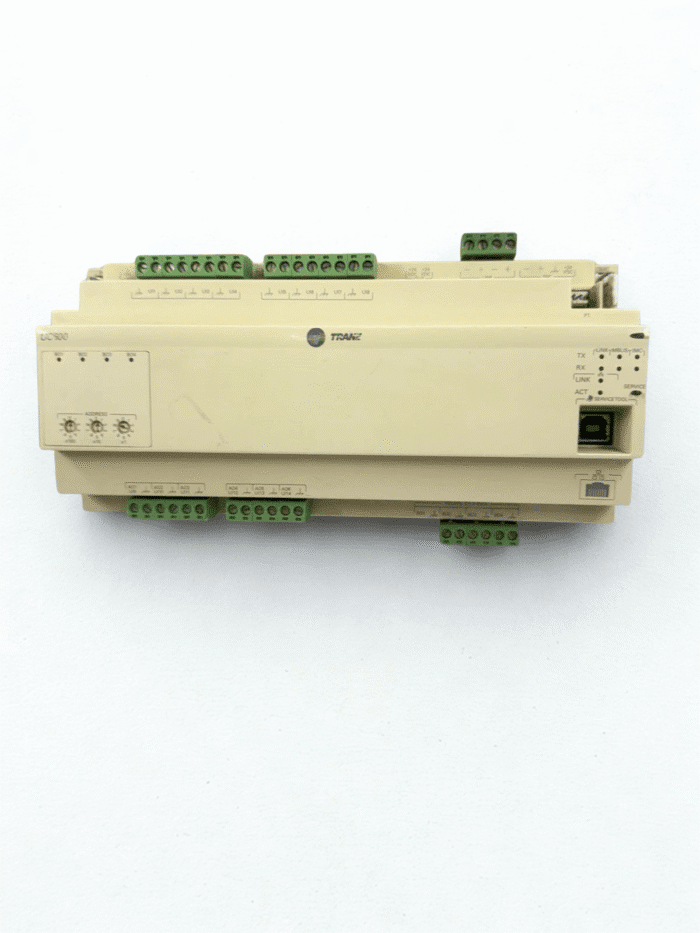

TRANE UC600 PROGRAMMABLE CONTROLLER X13651548010 Rev 103

Description of the Product

The Trane Tracer UC600 is a versatile programmable controller. It is made for sophisticated control of air-handling units (AHUs), rooftop units, chillers, central heating and cooling plants, cooling towers, and general input/output (I/O) control in commercial HVAC systems.

It has an open BACnet MS/TP interface that makes it easy to connect to building automation systems. It can handle up to three weekly schedules and lets you make up to ten unique visuals and eight custom data graphs for better reporting and monitoring.

You can change the controller in any way you choose, and it comes with factory programming to make setup quick. You can even add optional modules to the controller to meet your extra I/O needs.

It is straightforward to install because it has removable connectors, can be mounted on a DIN rail, and has several service tool connections for maintenance.

Important Features

1. BACnet MS/TP communication protocol for connecting to BAS systems
2. Three weekly schedules (analog, binary, and multistate)
3. Can handle up to 10 custom visuals and 8 custom data graphs
4. Completely programmable with factory-installed programs for quick setup
5. 19 hardware terminations are built in, and you may add more via modules to get up to 120
6. Logging data for up to 25,000 samples
7. Easy to install and service with removable connectors and DIN rail mounting​

Technical Specifications:

-> Temperature for storage: -67°F to 203°F (-55°C to 95°C)

-> The temperature range for operation is -40°F to 158°F (-40°C to 70°C).

-> Humidity: 5% to 95% without condensation

-> Power Input: 20.4–27.6 Vac (24 Vac, ±15% nominal), 50/60 Hz, 26 VA

-> Power Output: 24 Vdc, ±10%, and the device can handle a maximum load of 600 mA.

-> Time Clock: A real-time clock with a 7-day backup built in

-> Weight of the Mount: 1.3 lb. (0.6 kg)

-> NEMA 1 for the environment

-> Compliance with the following standards: UL 916 PAZX, UL 94-5V, CE Marked, FCC Part 15, Subpart B, Class B Limit, BTL Mark—Advanced Application Profile (B-AAC)​

Specifications for Input and Output:

• Universal Inputs: 8 (Thermistor, Resistive, RTD, Current, Voltage, Binary, and Pulse Accumulator)
• There are six universal inputs/analog outputs: thermistor, resistive, RTD, current, voltage, and binary.
• 4 binary outputs: relay, form A, wet 24 VAC, 0.5A max per contact
• Input for pressure: 1 (3-wire, 0–5 in H2O)
• 19 total points

Size:

• 8.50 inches wide (215.9 mm)
• 4.00 inches tall. (101.6 mm)
• 2.17 inches deep. (55 mm)
