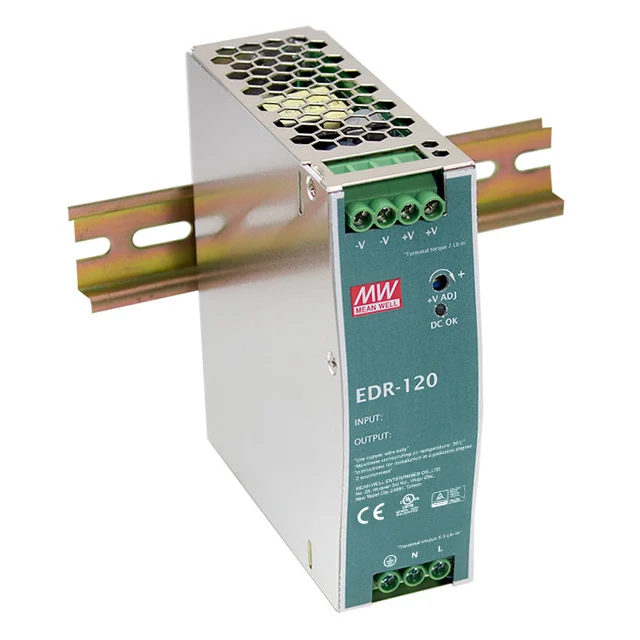

Mean Well EDR 120-24 DIN Rail Power Supply 24V 5A 120W

The Mean Well EDR 120-24 is a 120-watt DIN rail power supply for industrial use. It is made to convert power in control panels and automation systems in a reliable and effective way. It has one regulated output of 24V DC at 5A, which is good for powering industrial machines that need a constant DC voltage.

Product features:

• Wide input voltage range: 90–264 VAC and 127–370 VDC; thus, it can work in a variety of places throughout the world.
• Strong metal enclosure that is only 40 mm wide, so it can be installed on conventional TS-35/7.5 or TS-35/15 DIN rails without taking up too much space.
• Convection cooling that works well (no fans), which means it runs quietly and is more reliable because there are no moving parts.
• High efficiency, about 87.5%, which means less energy use and heat production.
• Full protection features include short circuit, overload, overvoltage, and overtemperature safeguards that automatically reset to protect connected devices.
• The certification process includes compliance with UL 508, EN61000-6-2, EMC EN55022 Class A, and RoHS standards, ensuring that industrial environments are safe and compatible with electromagnetic waves.
• The operating temperature range is -20°C to +60°C, which means it can work well in a wide range of industrial climates.
• Size: roughly 40 mm wide, 125 mm high, and 114 mm deep, and it weighs about 0.6 kg.

It is used in factory automation, industrial automation, and machinery control systems to provide reliable and efficient power.

This makes the EDR-120-24 a reliable option for industrial uses that need small, efficient, and globally compatible DC power supplies.
