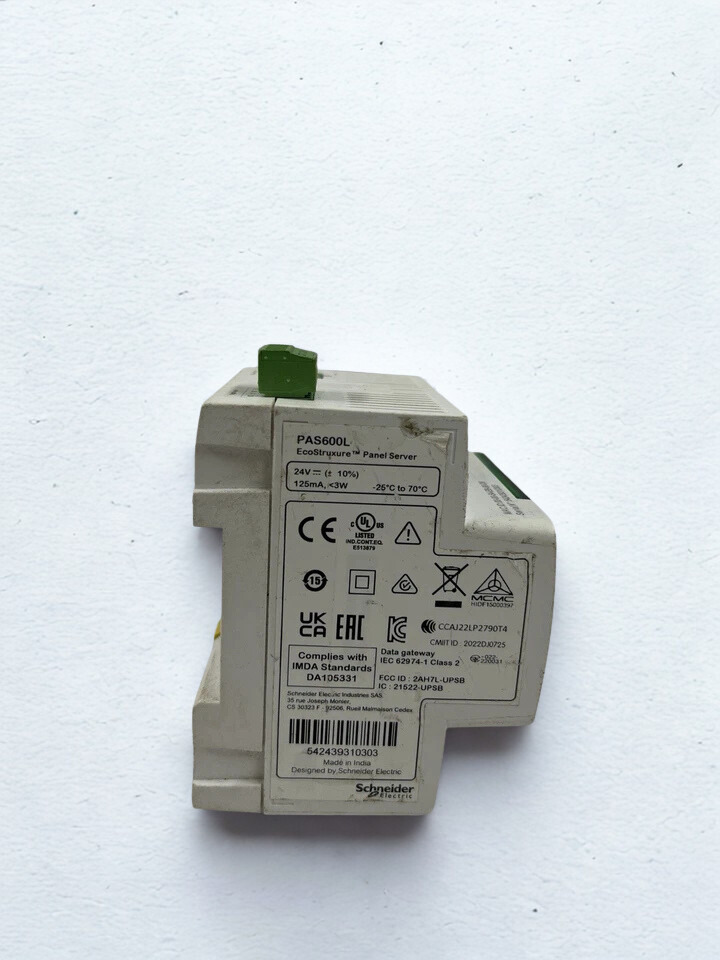

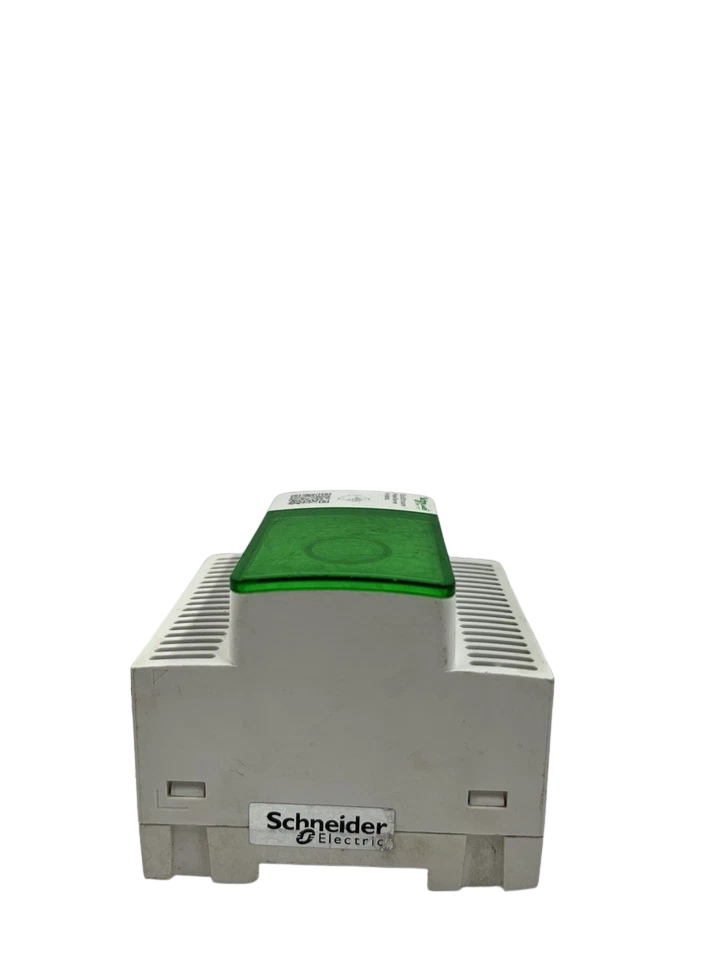

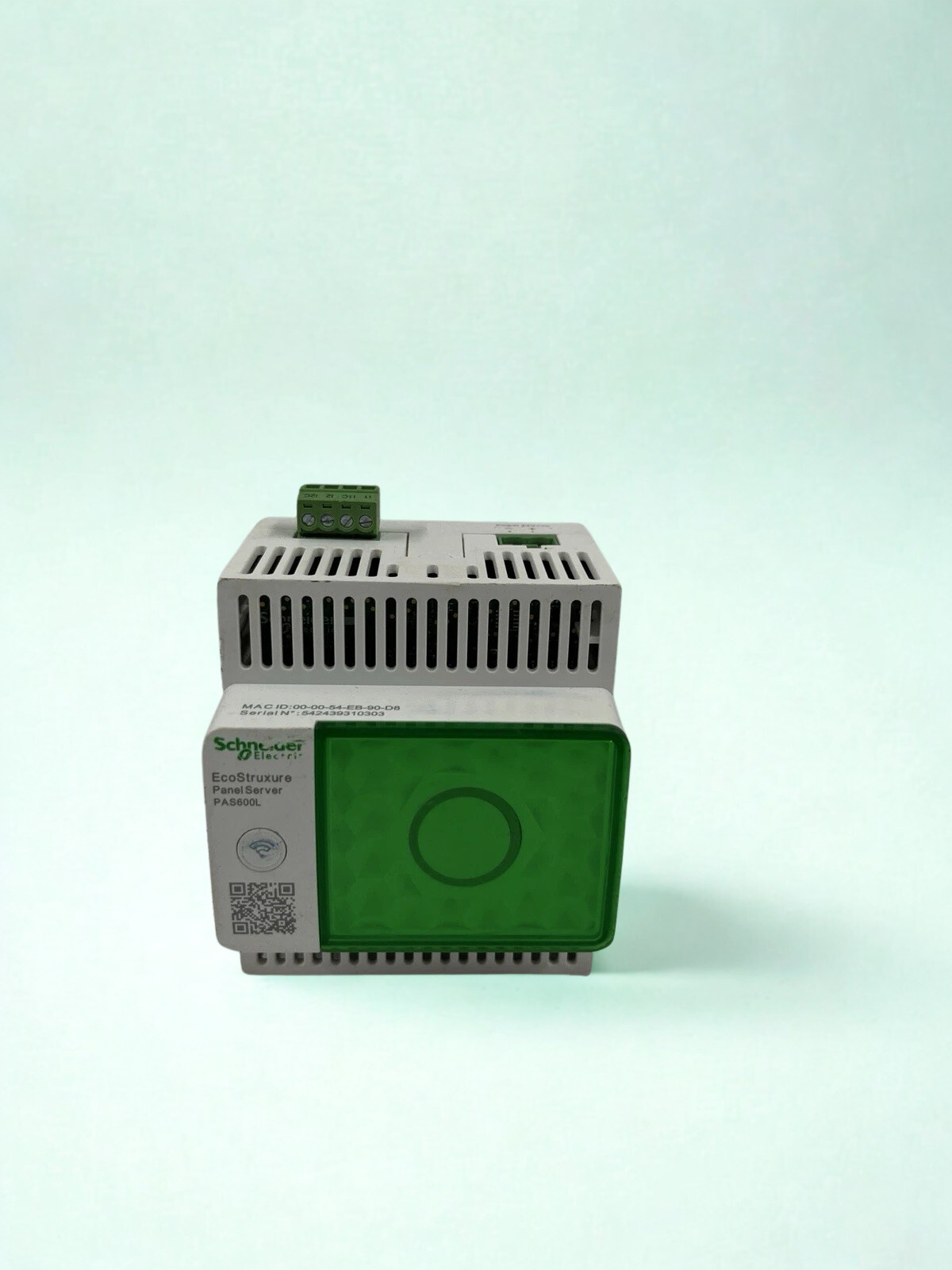

PAS600L EcoStruxure Panel Server: Schneider Electric Modbus Gateway

The PAS600L EcoStruxure Panel Server from Schneider Electric changes the way industries communicate by acting as a universal wireless concentrator and Modbus gateway. It is powered by a stable 24 VDC supply. This small device is made to work perfectly with the EcoStruxure ecosystem. It collects data from a variety of wired and wireless IoT sensors, meters, and controllers, allowing for real-time monitoring and communication from the edge to the cloud. The PAS600L has two Ethernet ports and supports protocols including Modbus TCP, DHCP, HTTPS, and IPv6. This makes sure that current automation configurations may be easily separated and grown.

The PAS600L has a lot of different ways to communicate, including RS485 for Modbus RTU slaves, Wi-Fi (2.4/5 GHz), Bluetooth Low Energy, and IEEE 802.15.4. It can connect to up to 128 Modbus devices and 100 wireless endpoints. Digital inputs built inside the device gather pulses from utilities like water, gas, electricity, and steam. An embedded web server makes it easy to set up, troubleshoot, log events, and upgrade firmware through EcoStruxure Power Commission. The PAS600L is a great choice for energy management and predictive maintenance since its tough IP40-rated design can handle temperatures from -25°C to 70°C.

The PAS600L makes things more efficient in fields like manufacturing, maritime automation, and building operations by sending data to platforms like Power Monitoring Expert and Facility Expert, which help keep track of resources and send alarms. It is only 85 x 72 x 70.2 mm and can be mounted on a DIN rail. It has 512 MB of NAND storage for CSV exports and email notifications and is certified to CE, cULus, and IEC 62443-4-1 standards. Companies that need scalable IIoT gateways pick the PAS600L because it uses only 3W of power and has a pollution degree 3 rating, which means it will work reliably for a long time in tough situations.

Technical Specifications

Key Features:

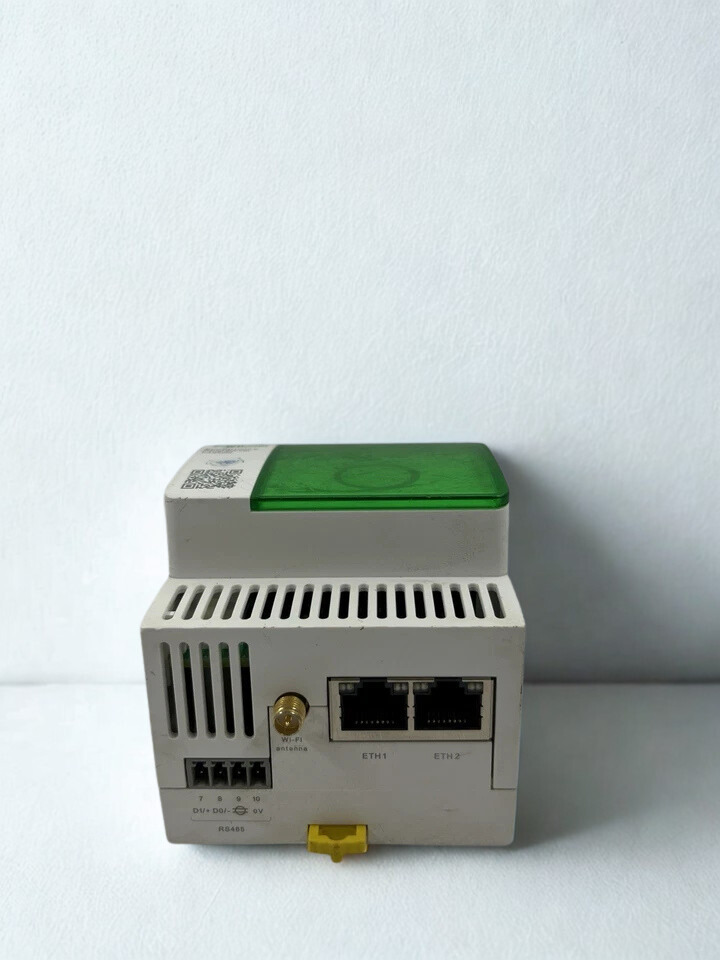

-> Two Ethernet ports allow for reliable network separation, which improves both security and performance.

-> The RS485 interface works with Modbus RTU devices and wireless choices like Wi-Fi (2.4/5 GHz), Bluetooth Low Energy, and IEEE 802.15.4.

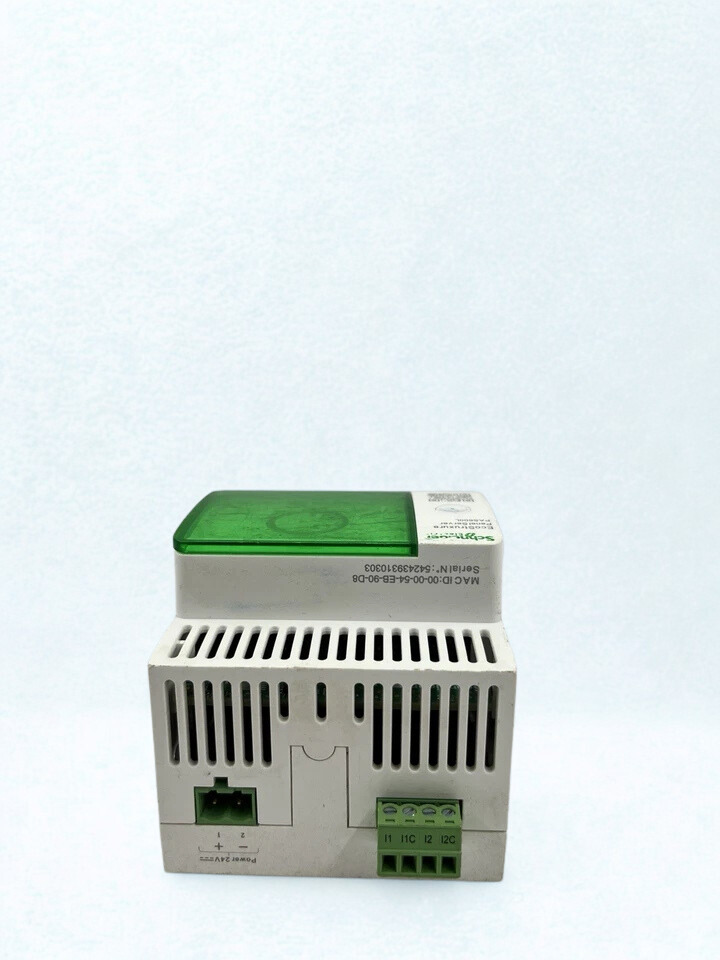

-> Built-in digital inputs manage dry contacts or pulses to monitor utilities such as water, air, gas, electricity, and steam.

-> The embedded web server makes it easier for users to set up, troubleshoot, and upgrade firmware.

-> Event logging, email alerts for energy and alarms, and CSV exports make it easy to work with a lot of data.

-> Being compatible with EcoStruxure Power Commission makes commissioning and integration easier.

Application:

1. In factories, it collects data from Modbus RTU slaves and wireless sensors like PowerTag Energy meters and sends it to EcoStruxure Power Monitoring Expert or Building Operations in real time to help them save energy.
2. Building managers utilize it to link environmental sensors and Acti9 devices. Facility Expert or Asset Advisor can then be used to access the cloud for predictive maintenance and resource tracking.
3. In the marine and process sectors, withstands extreme environments to monitor WAGES utilities. It can handle up to 128 Modbus RTU and 100 IEEE 802.15.4 devices for IIoT solutions that can grow.
