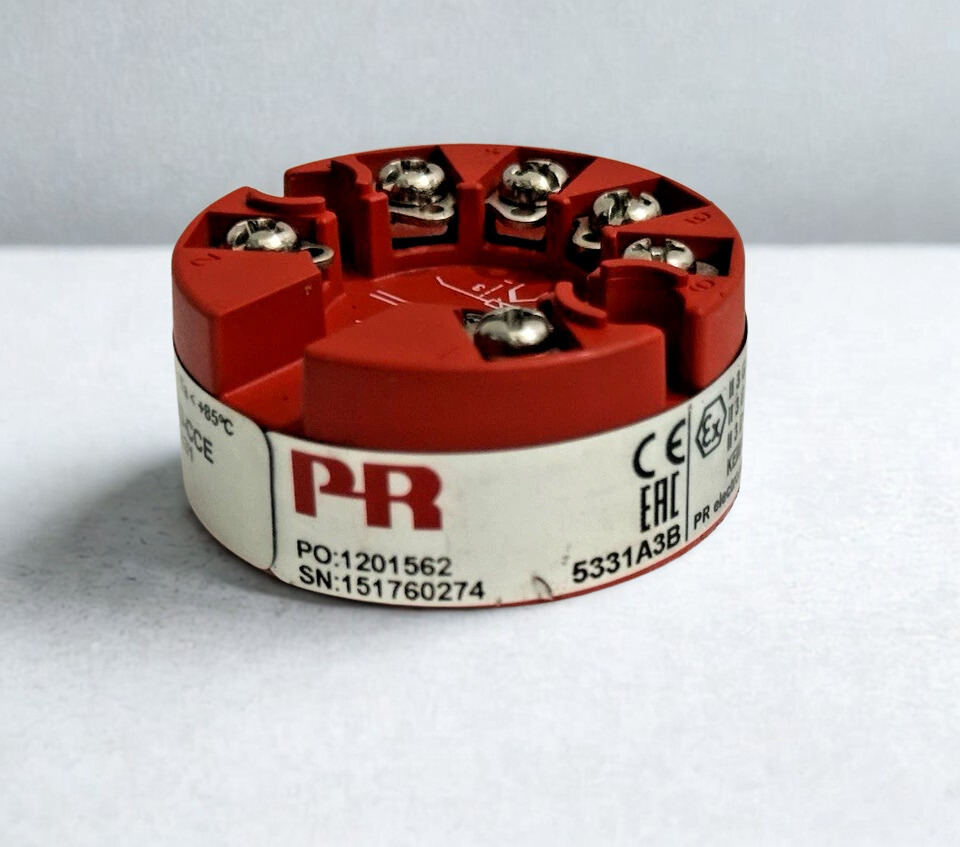

PR Electronics 5331A3B Temperature Transmitter

PR Electronics 5331A3B Temperature Transmitter | High Accuracy

The PR Electronics 5331A3B is a high-performance, 2-wire programmable transmitter made for professional-grade temperature monitoring. It is known for being very accurate and for being able to turn a wide range of input signals, like RTDs and thermocouples, linear resistance, and voltage, into a standard 4–20 mA analog output.

Main Features:

1) Universal Input: It works with Pt100, Ni100, thermocouples (TC), resistance (Ohm), and voltage (mV).

2) Very Accurate: The measurement is more accurate than 0.05% of the range you picked.

3) Galvanic Isolation: This keeps the signal clean by providing 1.5 kVAC galvanic isolation between the input and output.

4) Using NAMUR NE43 upper and lower limits, programmable sensor error detection may be able to locate sensor errors.

5) Rugged Design: Built to last in severe industrial environments and provides good EMC protection.

6) Easy to Set Up: The PReset software and a common PC interface make it easy to set up.

Applications:

• Chemical Processing: Watching the temperatures in the reactors and making sure that the thermal cycles remain consistent.
• Power Generation: Measuring the temperature of steam and exhaust gas in turbines.
• Food and drink: highly precise monitoring of loops for sterilization and pasteurization.
• Water and Wastewater: Keeping an eye on the temperature and level in the treatment tanks.
• HVAC/R: Adding climate control to systems that operate huge buildings.
