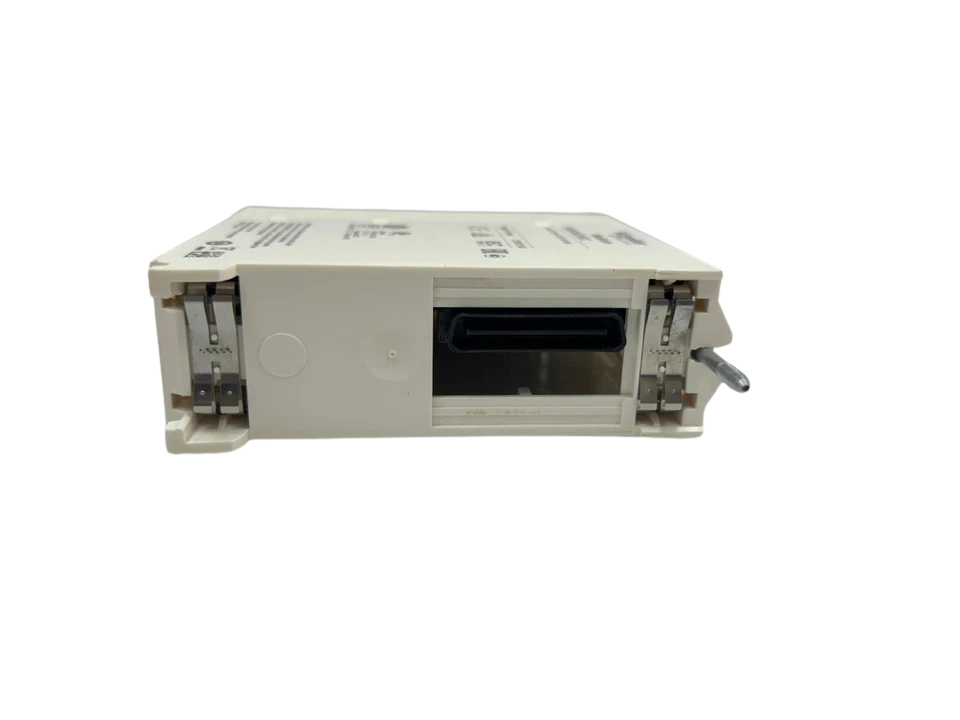

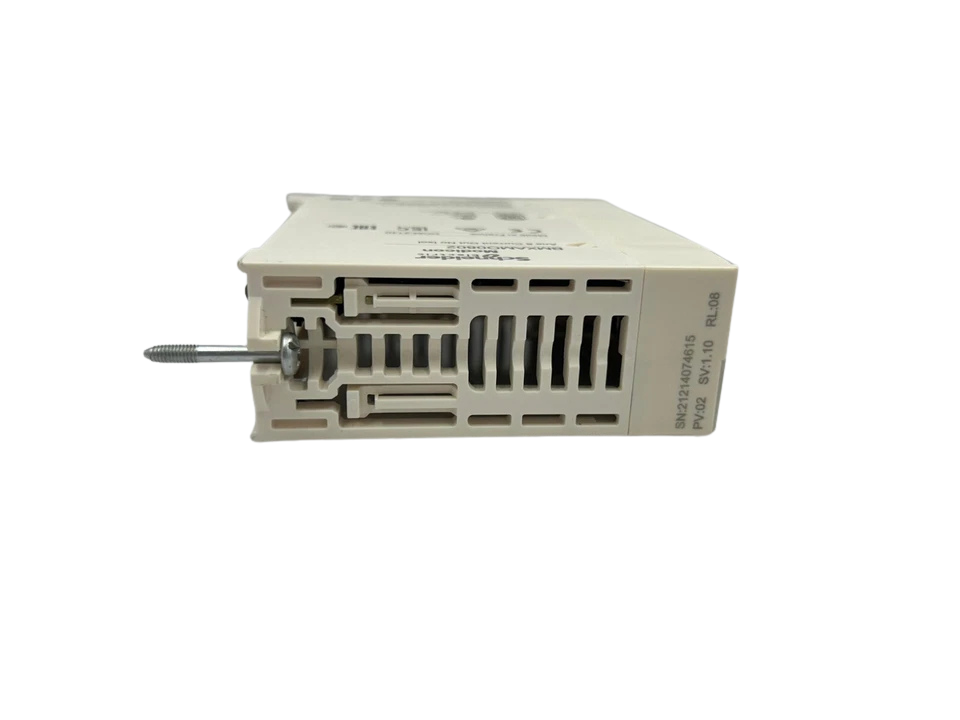

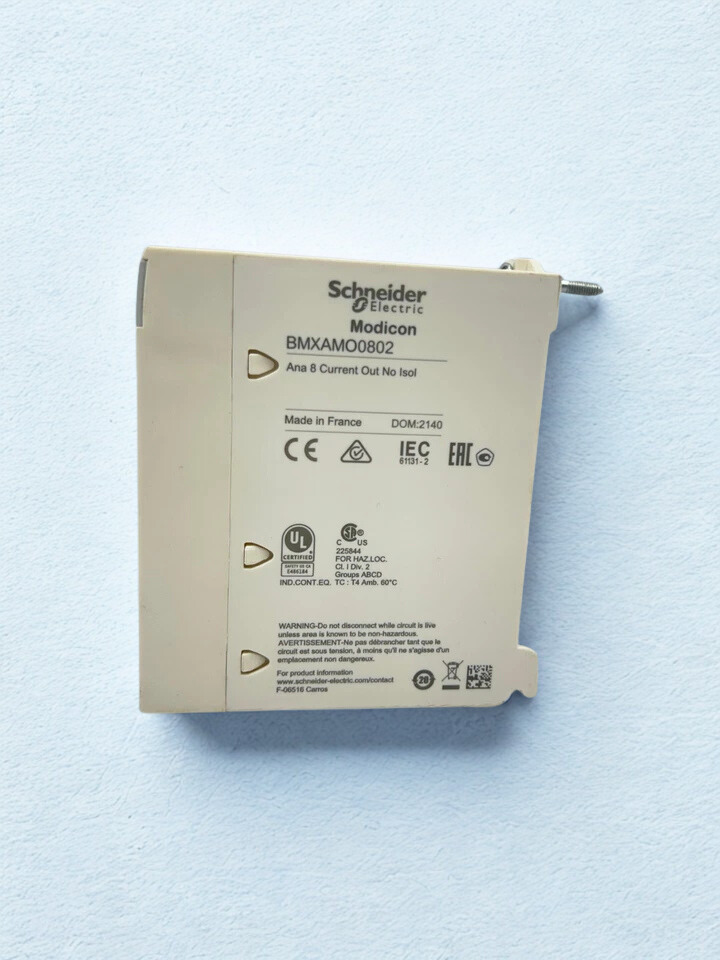

Schneider BMXAMO0802 Analog Output Module

The Schneider BMXAMO0802 gives Modicon X80 automation platforms precise 8-channel analogue current outputs. This makes it perfect for controlling industrial processes in maritime and automation systems. This high-resolution module makes sure that signal conversion works every time without channel isolation. It gets its power directly from the rack backplane.

The Modicon X80 series from Schneider Electric includes the BMXAMO0802 analogue output module, which has eight channels that can output 0–20 mA or 4–20 mA. This lets you control valves, actuators, and drives accurately in tough situations. This product is made for Modicon M340 and M580 PACs. It has rapid 4 ms conversion speeds and built-in diagnostics that make it easy to add to PLC systems. Its small size (IP20 rating) and Green Premium sustainability make it a strong choice for e-commerce stocked industrial parts.

Technical Specifications

Key Features of BMXAMO0802:

-> High-speed analogue outputs with self-powered current loops that don’t need outside power sources, making wiring easier.

-> Per-channel diagnostic LEDs and RUN/ERR/I/O status make it easy to fix problems in automated systems.

-> Fallback modes that can be changed and the ability to find faults in open circuits (4–20 mA) or shorts (0–20 mA).

-> Non-isolated channels with 80 dB common mode rejection that are appropriate for multi-output applications that don’t cost too much.

-> Powered by an internal supply, works with BMXXBP racks for industrial PLC systems that can grow.

Installation Details

Mounting and Wiring

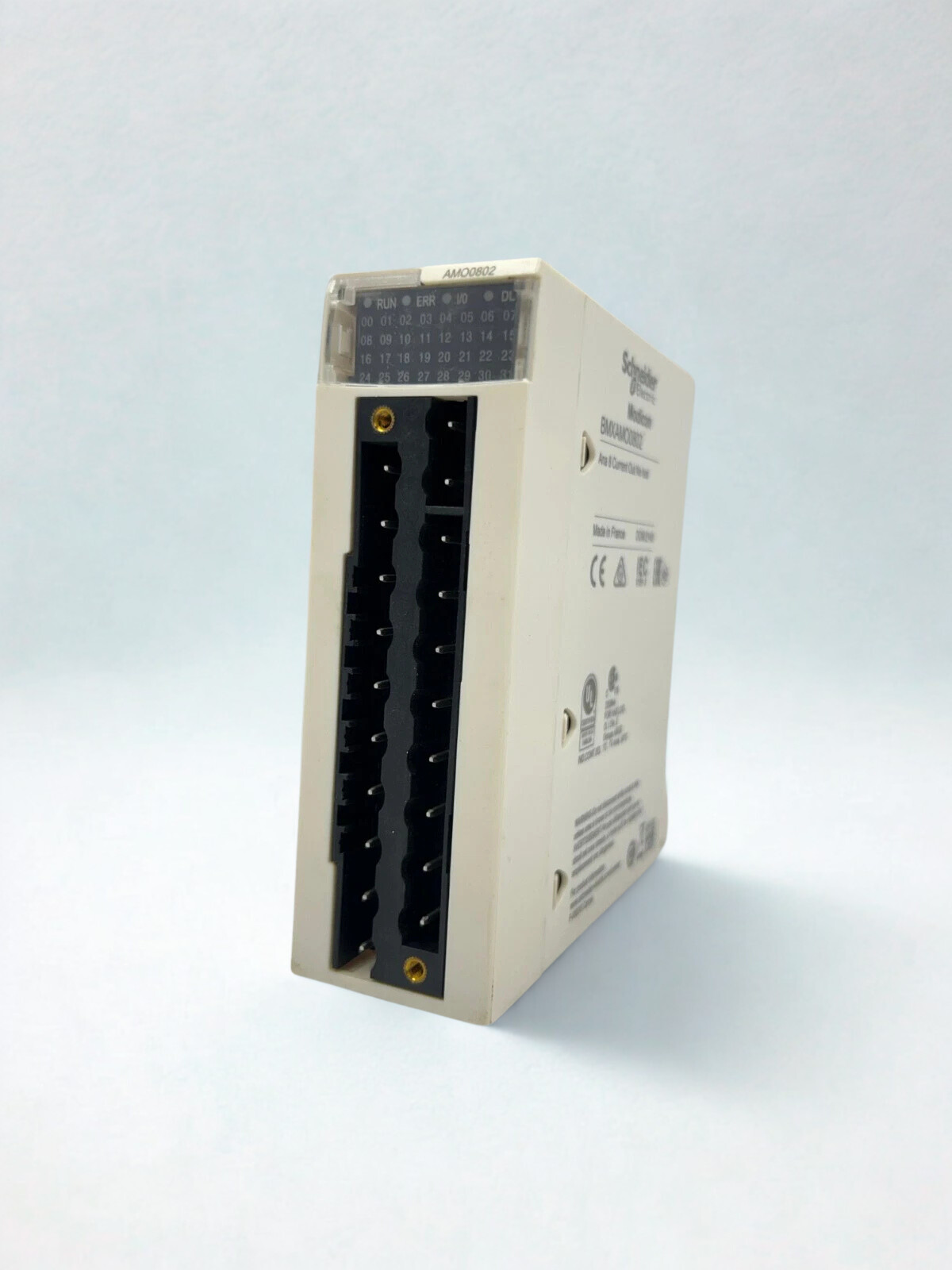

Mount the BMXAMO0802 directly onto Modicon X80 racks like BMXXBP0400 or larger using the 20-way connector for backplane communication. Secure with cage, screw, or spring terminal blocks; dimensions fit standard DIN rails (AM1 ED).

Electrical Connections

Wire positive poles (Ix) and common negatives (COMx) per channel; COMx internals connect together, supporting loop-powered devices up to 350 Ω. No external 24 V supply needed—module draws from rack. Ensure 1400 V isolation compliance during setup.

Usage:

1. Set up outputs in EcoStruxure Control Expert program for ranges of 0 to 20 mA or 4 to 20 mA, and choose the resolution and fallback options.
2. Watch through the green channel LEDs show proper operation while red shows defects. They can be connected to SCADA for real-time process control.
3. Use in marine technology or automation panels to control valve position, drive speed, or sensor activation.
4. Keep in places with 10% to 95% humidity; if necessary, lower the rating above 2000 m.
