Trane EX2 Expansion Module 6400-2583-01 Rev B

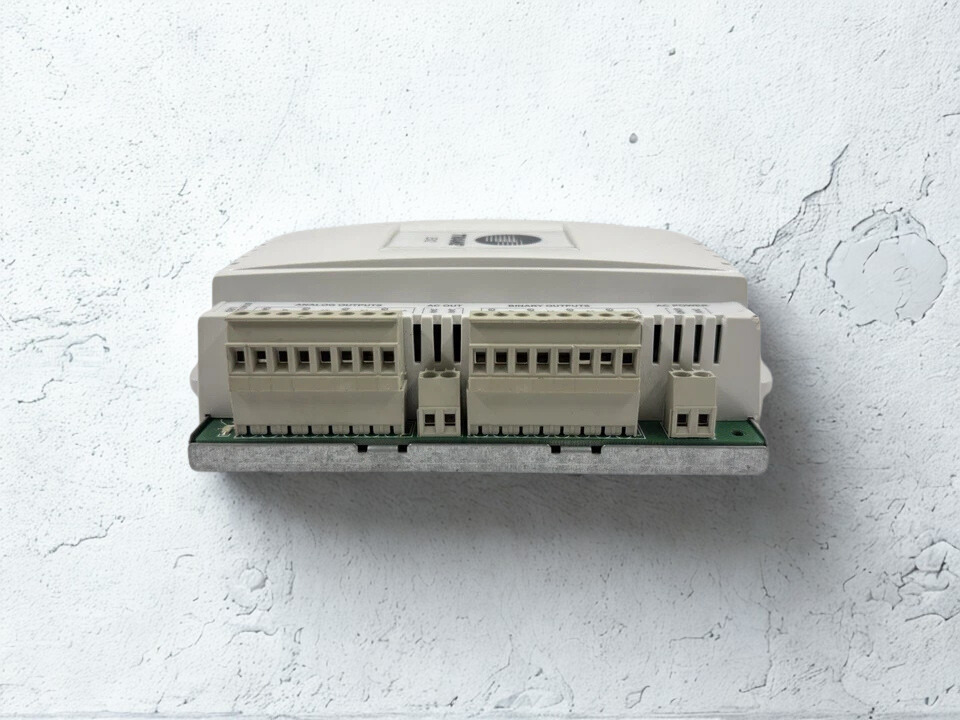

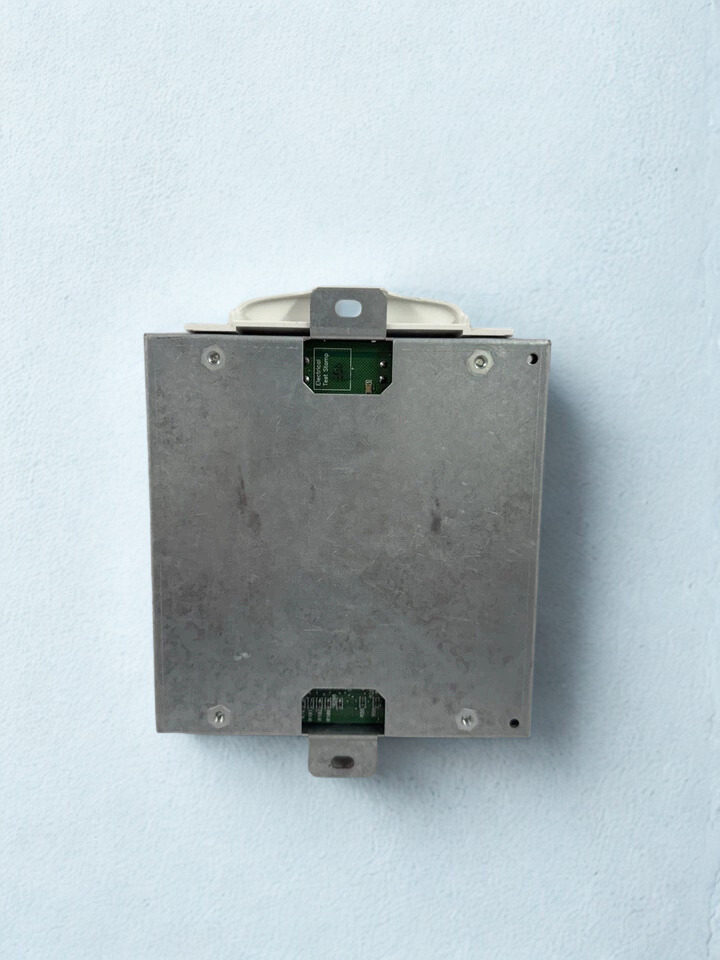

The Trane EX2 Expansion Module 6400-2583-01 Rev B is a high-performance I/O expansion module that adds more features to the Trane Tracer™ MP580 and MP581 programmable controllers in Building Management Systems (BMS) and HVAC settings. This module can be installed in the field and adds up to 14 more input/output points (6 universal, 4 binary, and 4 analog). This lets you control Trane air handling units (AHUs) more precisely, including its air conditioning, fans, valves, and sensors.
You can get this EX2 expansion module in Rev B with either a metal or plastic case. It communicates via an IEEE-485 bus (up to 1000 ft / 300 m) and can support up to four modules per Tracer MP580/581 controller. It is great for retrofitting or expanding existing systems because it works with LonTalk and is reliable in industrial settings, which means less maintenance in important places.
Technical Specifications
| Feature | Details |
|---|---|
| Points Added | 6 UI, 4 BO, 4 AO per module |
| Connection Bus | IEEE-485, max 1000 ft (300 m) |
| Universal Inputs (UI) | 0-20 mA (2/3 wires), 0-10 V, resistive sensors |
| Binary Outputs (BO) | 24V Relays, 2A max |
| Analog Outputs (AO) | 0-10 Vdc, load >500 Ω |
| Power Supply | Via MP580/581 (24 VAC/DC) |
| Compatibility | Tracer MP580/581, up to 4 modules |
| Programming | TGP, Rover service tool, Tracer Summit |
Features and Benefits
Input/Output Capacity Expansion
- 6 universal inputs: temperature, humidity, static pressure (0–20 mA, 0–10 V, 2/3 wire sensors, up to 1000 ft).
- Four binary outputs: relays for alarms, actuators, and contactors (maximum load 2A).
- 4 Analog Outputs: 0–10 V for variable speed drives and motorized valves (load >500 Ω).
- Pros: Each controller may support up to four EX2 modules, which adds 56 more I/O points. A strong I/O bus and flexible wiring cut down on installation time and mistakes when wiring.
Strong Design of Hardware
- Power: The main controller sends 24 VAC/DC to each module (less than 5W).
- You can select between metal and plastic enclosures for mounting on a wall or in a cabinet.
- The I/O bus can go 1,000 feet, while the 0–20 mA sensors can go 300 feet.
