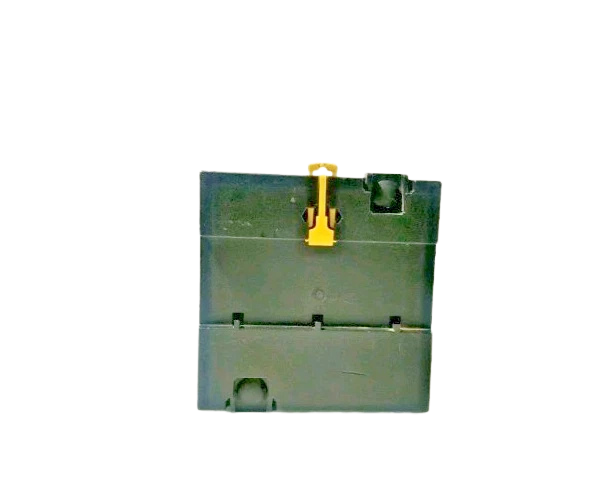

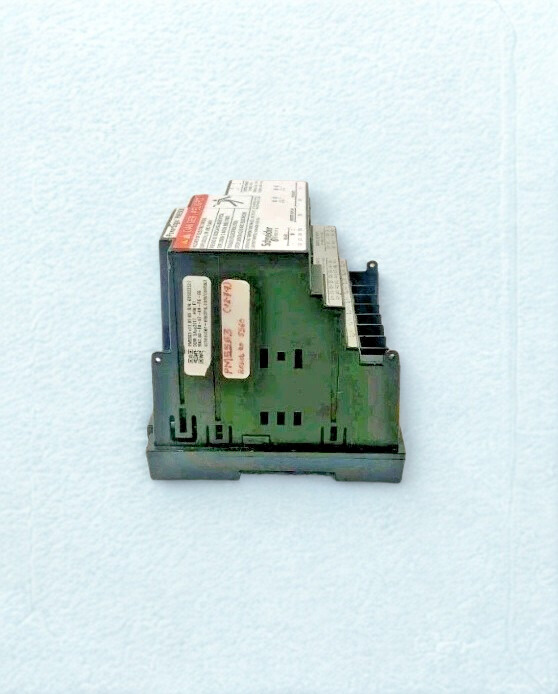

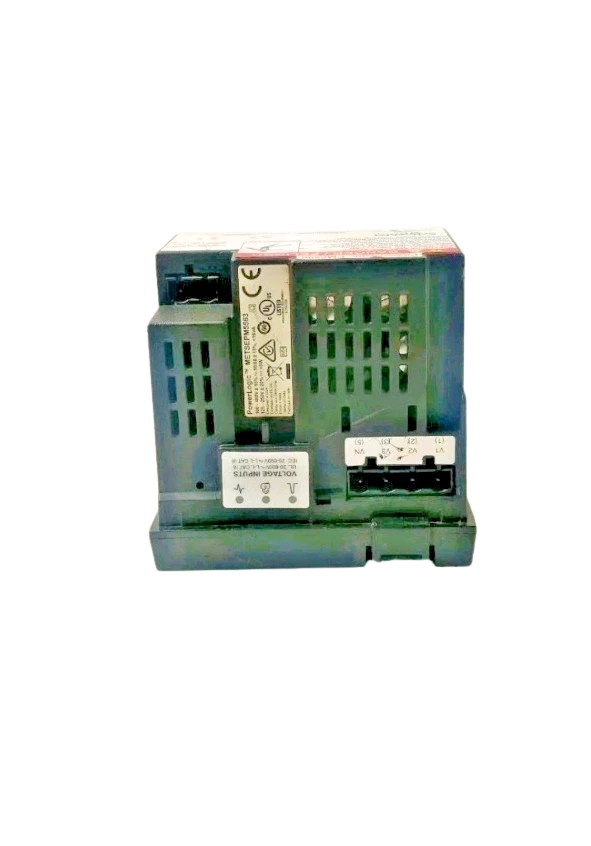

Schneider Electric PowerLogic PM5500 PM5563 Power Meter
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
The Schneider Electric PowerLogic PM5500 Power Meter (METSEPM5563) is a very accurate energy and power quality meter that can be mounted on a DIN rail. It is made for use in industrial, commercial, and utility settings. It has a Class 0.2S accuracy for measuring energy and includes advanced power-quality analysis, multi-protocol communications, and flexible I/O for monitoring, controlling, and managing costs.
The PM5563 is a great choice for modern electrical networks since it has strong hardware, an onboard web server, extensive data logging, and support for up to the 63rd harmonic. It is perfect for sub-metering, tenant billing, energy management systems (EMS), and power quality diagnostics.
Main Features of Powerlogic PM5500
-> Class 0.2S high-accuracy metering for active and reactive energy, power, voltage, current, frequency, and power factor. This makes sure that the data is reliable for billing and sub-metering.
-> Power quality and harmonic analysis up to the 63rd harmonic, including THD, TDD, K-factor, crest factor, and monitoring of neutral and ground current for extensive power quality diagnostics.
-> Dual Ethernet connections with support for many protocols (Modbus RTU/TCP, Ethernet/IP, BACnet/IP, DNP 3.0) as well as an onboard web server for real-time data access and remote setup.
-> Four digital inputs and two solid-state digital outputs for monitoring WAGES, sounding alarms, and controlling relays or status signals without needing an external power source.
-> Data logging on board with 1.1 MB of memory, adjustable logging intervals, and support for multi-tariff and demand management.
PM5563 Tech Specs:
| Parameter | Specification |
|---|---|
| Product type | PowerLogic PM5500 power meter, transducer model (no display) |
| Accuracy class | Class 0.2S per IEC 62053‑22 for active energy |
| Measurement range (V‑L‑L) | 20–828 V AC (45–65 Hz) |
| Measurement range (V‑L‑N) | 20–400 V AC (45–65 Hz) |
| Current input range | 1 A or 5 A (CT input), neutral and ground current monitoring supported |
| Power measurements | kW, kVAR, kVA, PF (true and displacement), frequency, unbalance |
| Harmonic analysis | Up to 63rd harmonic, THD/TDD, K‑factor, crest factor |
| Sampling rate | 128 samples per cycle for high‑resolution waveform capture |
| Memory | 1.1 MB onboard memory for data logging (up to 14 parameters) |
| Communication interfaces | 1 × Modbus RS‑485 (RTU/ASCII), 2 × 10/100 Mbps Ethernet (Modbus TCP/IP, Ethernet/IP, BACnet/IP, DNP 3.0) |
| Digital I/O | 4 digital inputs, 2 solid‑state digital outputs (WAGES monitoring and control) |
| Alarms | Up to 52 configurable alarms for events and thresholds |
| Tariff support | Multi‑tariff energy metering with multiple tariff schedules |
| Mounting | DIN‑rail (TS35) or panel‑mount, 96 × 96 mm footprint |
| Operating voltage (auxiliary) | 100–480 V AC / 125–250 V DC |
| Frequency rating | 50/60 Hz networks |
Industrial Use:
- Sub-metering and billing tenants in commercial buildings, data centers, and industrial plants so that energy costs can be accurately divided across departments, renters, or production lines.
- Energy management and EMS integration, where the PM5563 sends real-time data on consumption, demand, and power quality to SCADA, BMS, or cloud-based energy systems for optimization and reporting.
- Using harmonic, THD, and unbalance data to find distortion causes, capacitor-bank problems, and non-linear loads for power-quality monitoring and troubleshooting.
- WAGES and gateway apps use digital I/O and numerous communication protocols to keep an eye on circuit-breaker status, control relays, and connect old Modbus devices to Ethernet-based control systems.
PM5500 Datasheet
