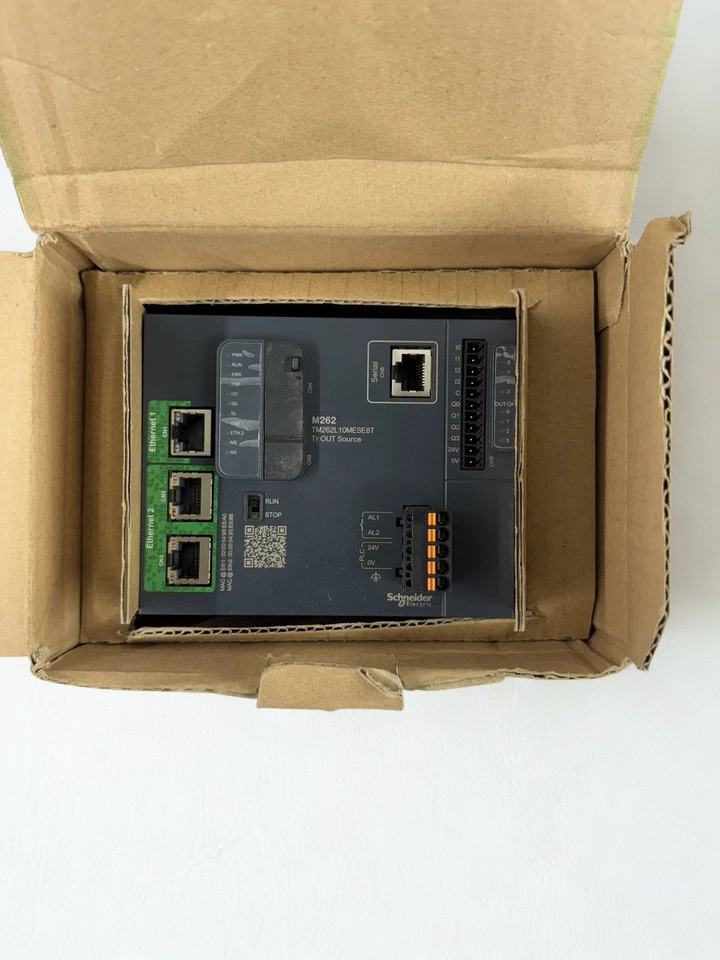

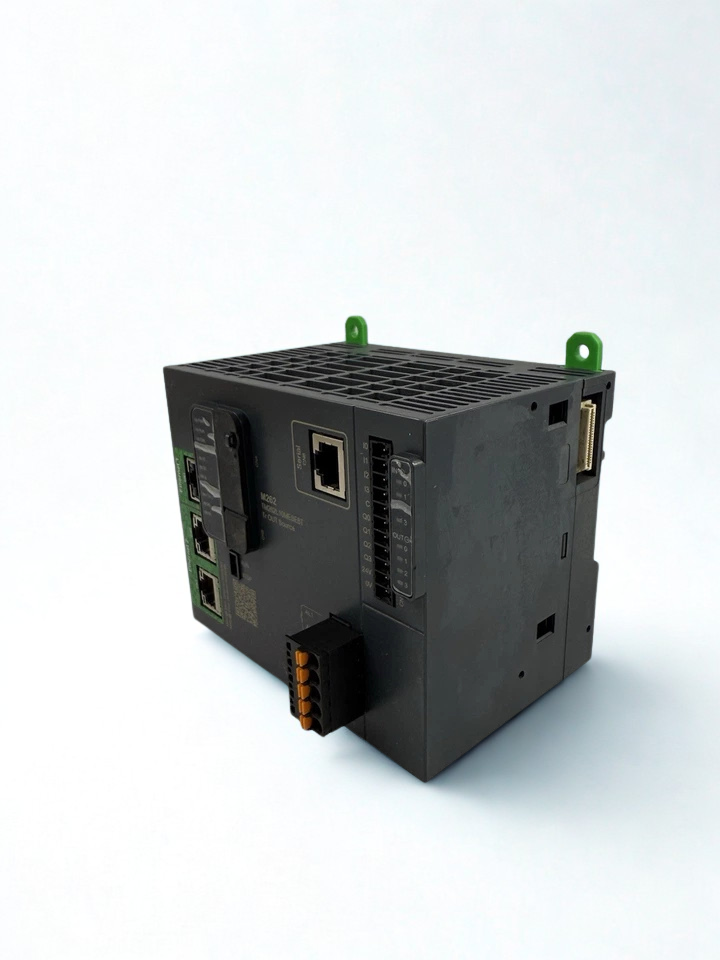

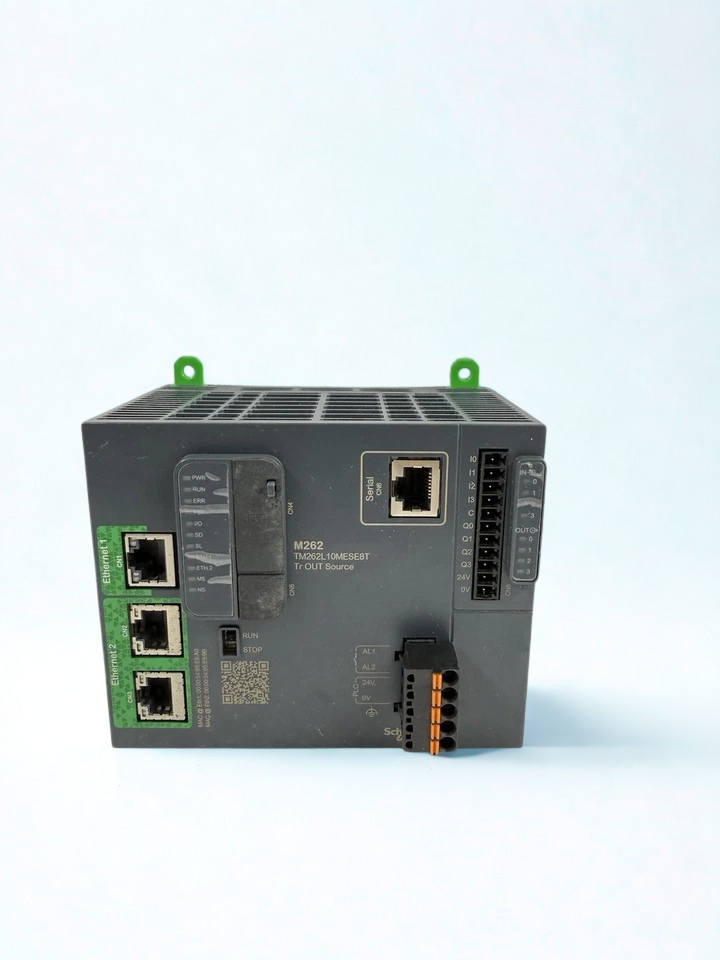

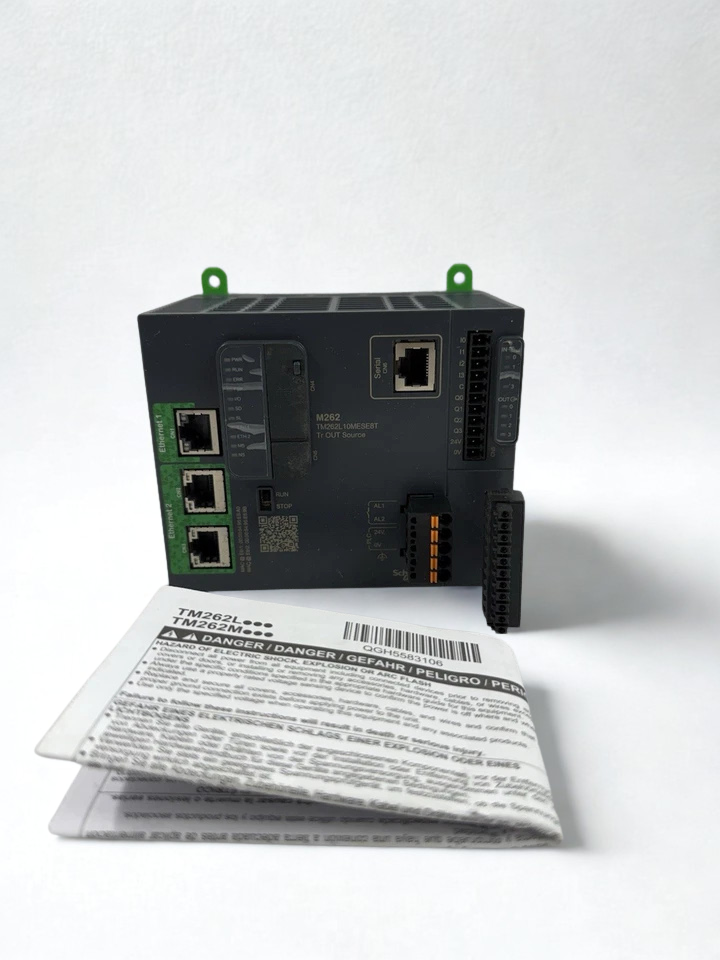

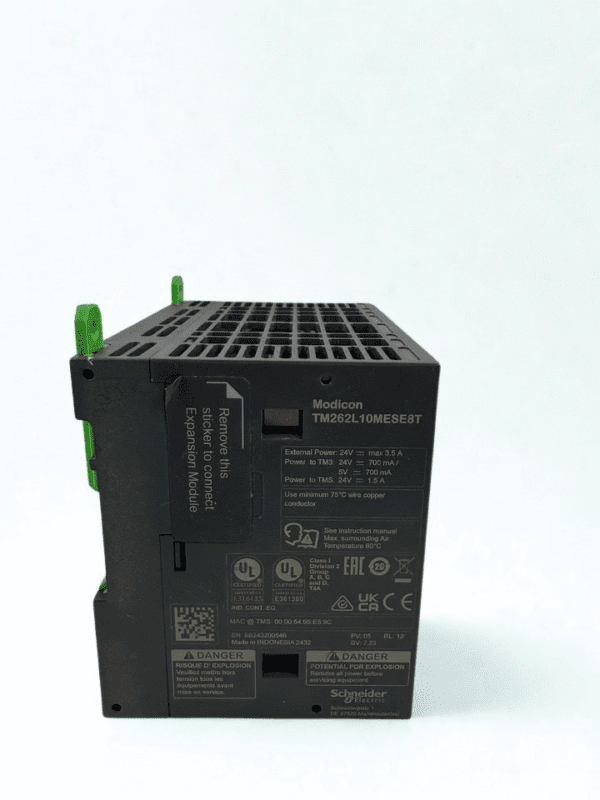

Schneider Electric TM262L10MESE8T Modicon M262 Logic Controller

The Schneider Electric TM262L10MESE8T Modicon M262 logic/motion controller is made for industrial automation applications that need a lot of power. It has built-in IIoT connection and safety features.

Product details:

-> Brand: Schneider Electric ​

-> Model: Modicon M262 series TM262L10MESE8T ​

-> Function: Logic and motion controller with built-in safety and IIoT features ​

-> Inputs and outputs: 4 fast digital inputs and 4 fast digital transistor outputs (source type) ​

-> Performance: 5ns per instructions, and a dual-core CPU for parallel logic and communication ​

-> Ethernet (RJ45), Modbus TCP, EtherNet/IP, MQTT, OPC UA, HTTP/HTTPS, SNMP, FTP, SQL, email, and web server protocols are all ways to connect. ​

-> Motion Control: Can handle up to 24 axes moving at the same time in 4 milliseconds

-> Memory: 32 MB of RAM for programs, 32 MB of RAM for the operating system and websites, and 192 MB of RAM for the system. ​

-> Power: 24 VDC, 82 W, and 40 A of current ​

-> Size: 100 mm high, 125 mm wide, and 90 mm deep; weight: 0.665 kg ​

-> Temperature range for operation: -20°C to +60°C​

-> IP20: Protection ​

-> Type of terminal: spring terminal block

-> Certifications: IEC 61131-2, UL, CSA, CE, RCM, EAC, Achilles, KC, and others. ​

-> Environmental: The whole lifecycle carbon footprint is 1204 kg CO2 eq, and the packaging is produced from recycled cardboard. ​

Schneider Electric TM262L10MESE8T Features:

• Ready for the IIoT with built-in protocols (MQTT, OPC UA, API) that link directly to the cloud ​
• Safety that works for logic, motion, and safety control applications ​
• Works with a lot of different industrial communication standards ​
• Made for machines that need fast logic, motion, and safety control ​

Common Uses

1. Automation in factories
2. Controlling machines
3. Systems for controlling motion
4. Smart manufacturing systems that work with IIoT
