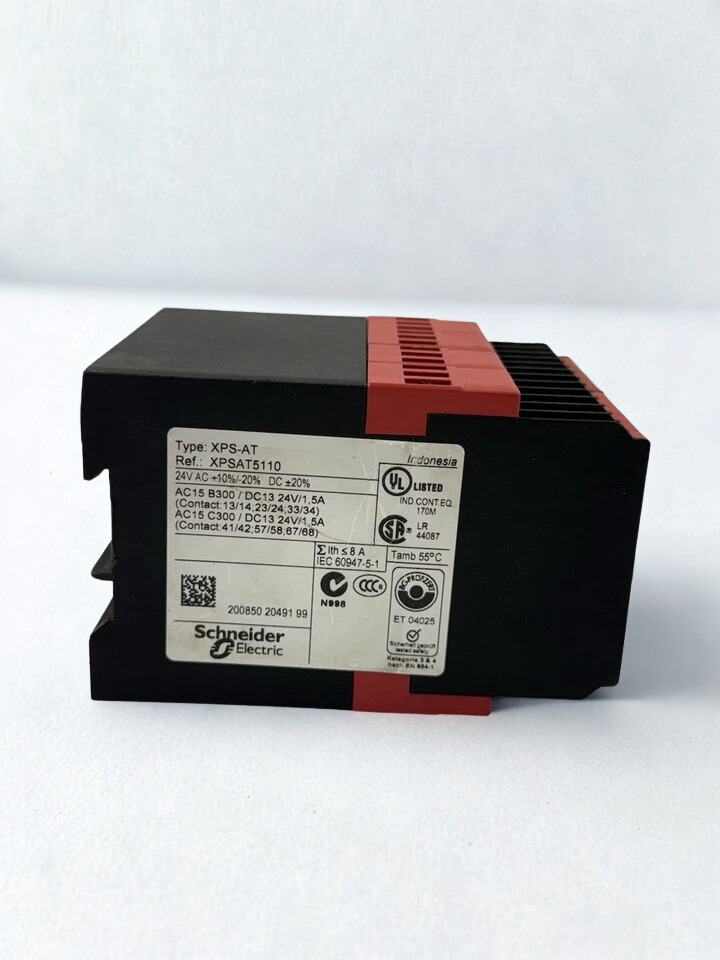

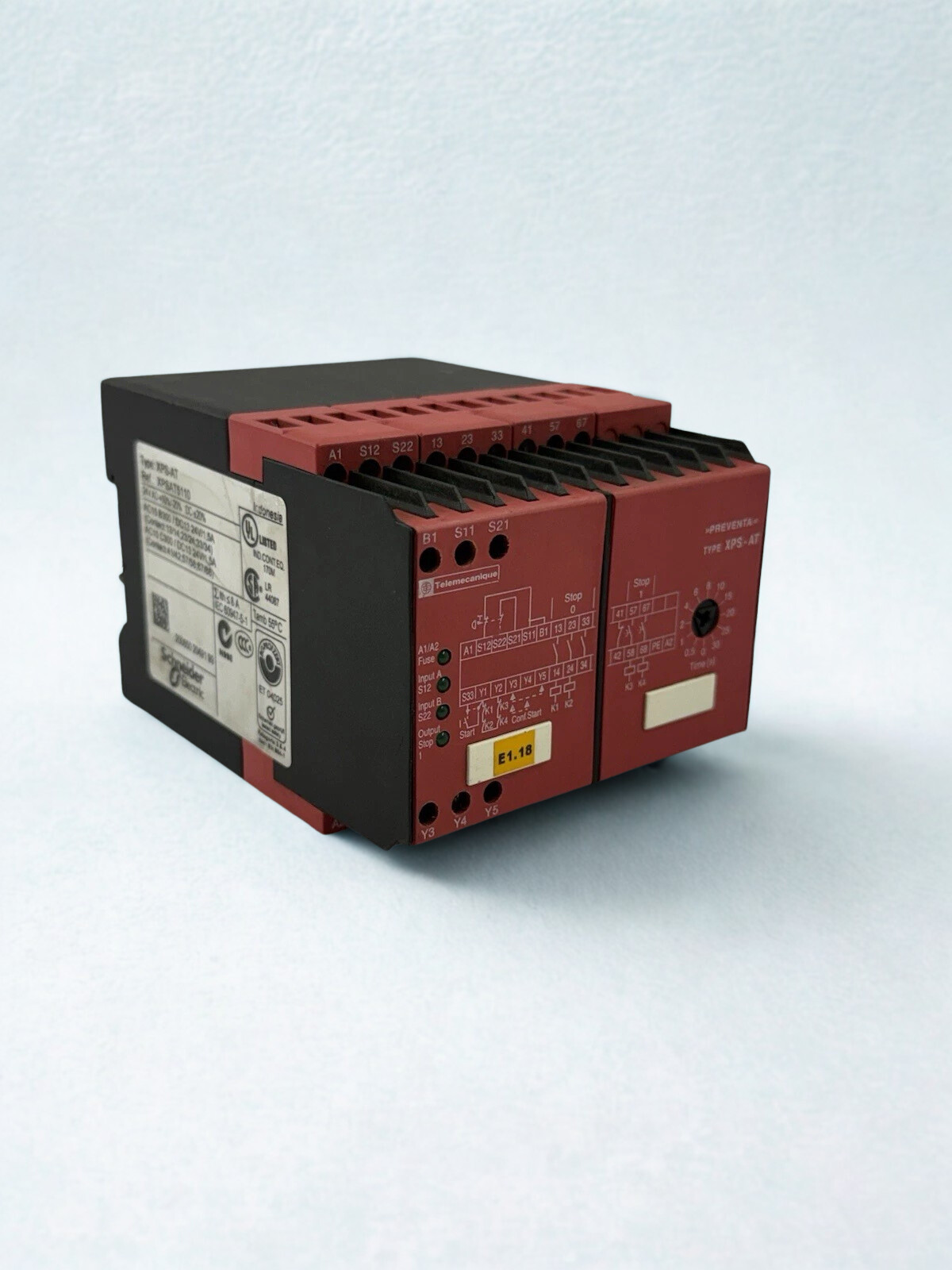

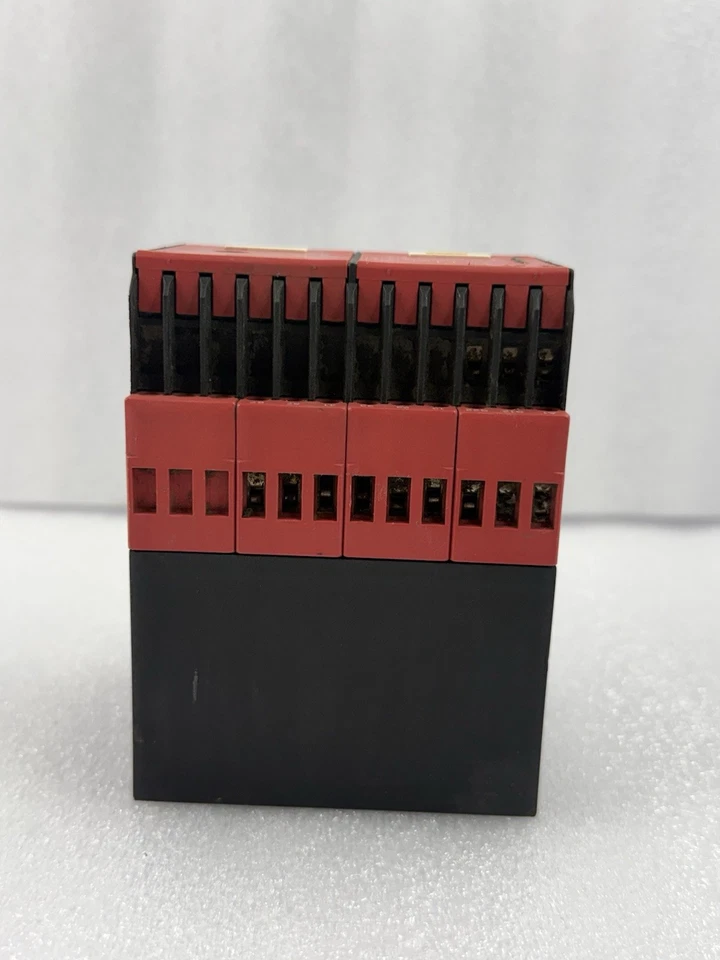

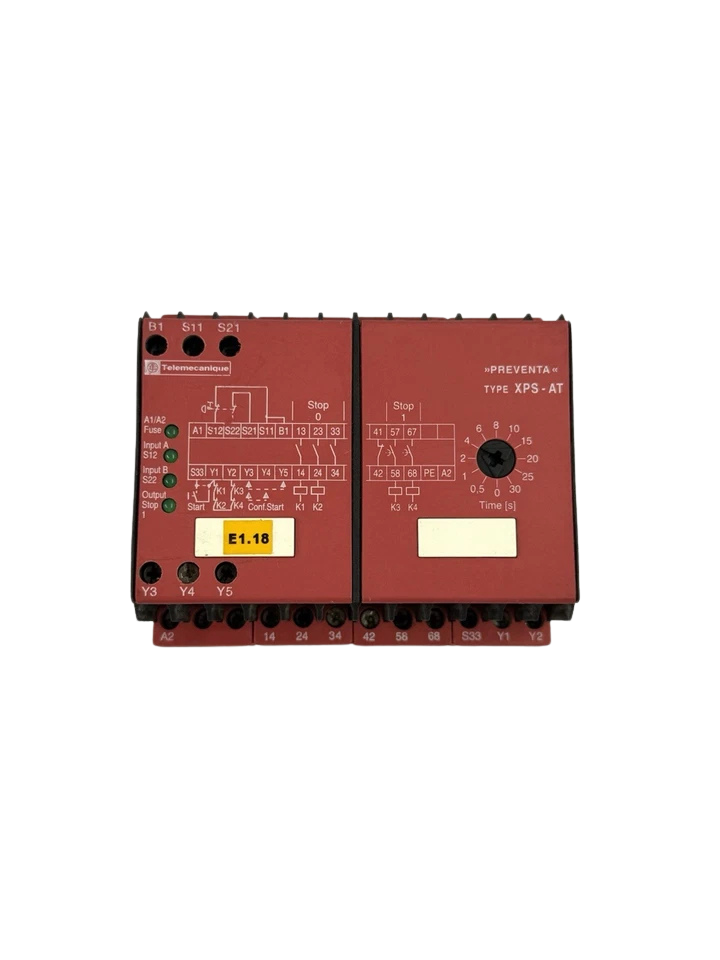

Schneider Electric XPSAT5110 24V Safety Relay 300V 5A

SCHNEIDER ELECTRIC XPS-AT XPSAT5110 24V Safety Relay

The Schneider Electric XPSAT5110 is a high-performance safety relay from the Preventa XPS-AT series. It is designed for important industrial safety tasks that need dependable monitoring of emergency stops and switches. This module runs on a 24V AC/DC supply and has a 300V 5A rating. It meets EN 954-1 criteria for Category 4 safety (instantaneous) and Category 3 safety (time delay) performance.

This little safety relay module protects machines by stopping them right away if it finds a problem with an emergency stop or protective switch. This keeps both the user and the equipment safe. The XPSAT5110 is part of Schneider Electric’s well-known Preventa range. It works perfectly with automation systems and has configurable options for customized safety solutions in manufacturing, assembly lines, and heavy industry. It hasn’t been made since 2008, yet many still want it for legacy systems and upgrades that work with it.

Technical Specifications: XPSAT5110

Schneider Electric XPSAT5110 Features:

1) For instantaneous outputs, it gets PL e / Category 4 safety integrity, and for time-delayed stops, it gets Category 3. This makes it perfect for high-risk industrial settings.

2) Emergency stop buttons, limit switches, and safety gates can all use dual-channel monitoring with automatic or monitored start choices.

3) The configurable time delay (up to 30 seconds on similar models) lets you slow down the machine in a regulated way, which makes the process more efficient.

4) Diagnostic LEDs give you real-time status updates so you can fix problems quickly and cut down on downtime.

5) The tough industrial design with screw connections makes sure it works well in tough settings and works with PLC signaling.

Applications

Utilize the XPSAT5110 in manufacturing automation to safeguard robotic cells, presses, and conveyors, where a fail-safe emergency response is indispensable. It is particularly adept at monitoring e-stops, door interlocks, and rope draws, and it seamlessly integrates with Schneider’s Harmony and Modicon systems to create comprehensive safety networks. Enable predictive maintenance and Industry 4.0 compliance by pairing with PLCs via solid-state signaling outputs for modern enhancements.
