Schneider Magelis XBT-N400 | Industrial Text Display Terminal

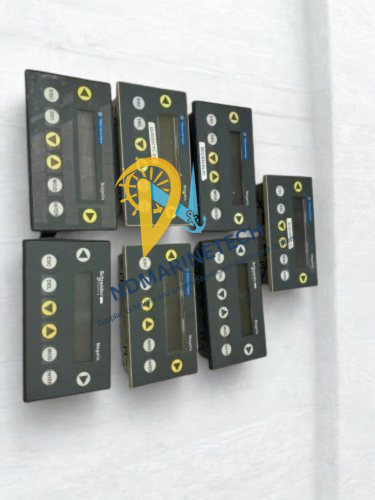

The Schneider Electric XBT-N400 is a small, high-reliability alphanumeric display terminal that is part of the Magelis XBT N series. It is great for use in tough industrial settings. It was made to make the human-machine interface (HMI) work better.

This device’s high-contrast, backlit LCD is great for showing diagnostic data, alarm messages, and operational parameters from PLCs. Its tactile membrane keypad is made to give operators responsive control even when they are wearing gloves and working in filthy or wet circumstances.

Specifications

Where to Use

• Marine & Offshore: Monitoring of fuel oil purifiers, bilge pump systems, and auxiliary generator parameters.
• Manufacturing: Localized status displays for conveyor systems and packaging lines.
• Water Treatment: Displaying flow rates, pH levels, and pump pressures in filtration plants.
• HVAC Systems: Control and monitoring of industrial-scale chillers and boiler units.

Engineer Tips:

-> Gasket Integrity: Always check the front panel seal during regular maintenance in marine settings. Salt air can damage the rubber, but a little layer of silicone oil can keep it from becoming brittle and keep the IP65 rating.

-> Voltage Stability: The XBT-N400 doesn’t work well when the voltage dips. If you put it on a boat, make sure the 24V DC supply is filtered to keep out dirty power that can happen when big motors start up.

-> Backlight Management: If the terminal doesn’t need to be visible all the time, adjust the sleep mode or backlight timeout in the software settings to save the LCD’s life.
