Deep Sea Electronics DSE7320 Auto Mains Failure Control Module

Deep Sea Electronics in the UK made the DSE7320 MKII, also known as the DSE7320-03. It is an advanced Auto Mains (Utility) Failure Control Module. It is designed to automatically start and stop diesel or gas generator sets when the main power goes out, making sure that standby power systems work smoothly and reliably.

Key Features of DSE7320 Module:

It has a strong Dual Core core processor that makes processing quick and easy.

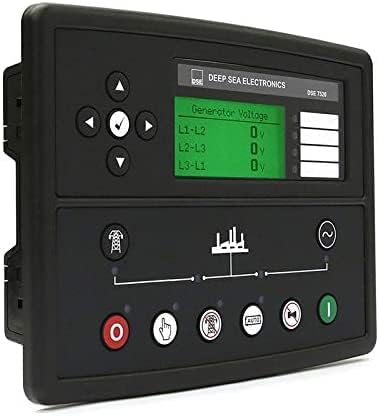

Easy to use because it has a large 4-line backlit LCD text display and a simple five-key menu.

Supports up to three remote display units, which makes it easier to keep an eye on things.

You may set up different power-up modes, timers, alarms, and inputs/outputs for personalized control.

Drag and drop powerful PLC editor makes programming easy without having to write complicated code.

Supports many languages and has a user-friendly interface design

Checks a wide range of engine data, such as speed, oil pressure, temperature, fuel use, and more

Full monitoring of mains (utility) with automatic start, switching, and stop features

Works with CAN engine protocols, even those that manage Tier 4 emissions.

It protects against reverse power, overload, and power monitoring (kWh, kVARh, kVAh).

Control of the fuel pump for manual priming

Configurable CT placement and protection against imbalanced loads to keep systems safe

The data logging feature keeps track of events and performance data for maintenance and diagnosis.

Specifications for electricity:

DC Supply Voltage: 8 V to 35 V all the time, and 5 V for up to a minute while cranking

Maximum operating current: 510 mA at 12 V and 240 mA at 24 V

Utility (Mains) Voltage Range: 15 V to 415 V AC (Phase to Neutral) and 26 V to 719 V AC (Phase to Phase)

3.5 Hz to 75 Hz is the frequency range.

The voltage range for the magnetic pickup is ±0.5 V to 70 V, and the frequency can go up to 10,000 Hz.

Size: 240 mm x 181 mm x 42 mm (9.4″ x 6.8″ x 1.6″)

Size of the panel cutout: 220 mm x 160 mm (8.7″ x 6.3″)

Made to fit in control panels that are no thicker than 8 mm (0.3″).

Application:

Automatically starting and switching between diesel and gas generating sets

Power backup systems that need to quickly and reliably find and respond to Mains failures

Managing backup electricity for homes, businesses, and industries

Monitoring and controlling the performance of the engine and genset for best operation

Working with systems for load shedding, reverse power protection, and power management

Advantages:

The dual-core processor makes sure that the generator is only offline for a short time, so it responds quickly.

Inputs and outputs that can be fully configured make it possible to adapt to different control methods.

Remote monitoring and communication tools make it easier to administer a system.

Built tough to last in industrial settings and keep working for a long time

The user interface is easy to understand, which makes setup, use, and troubleshooting easier.
