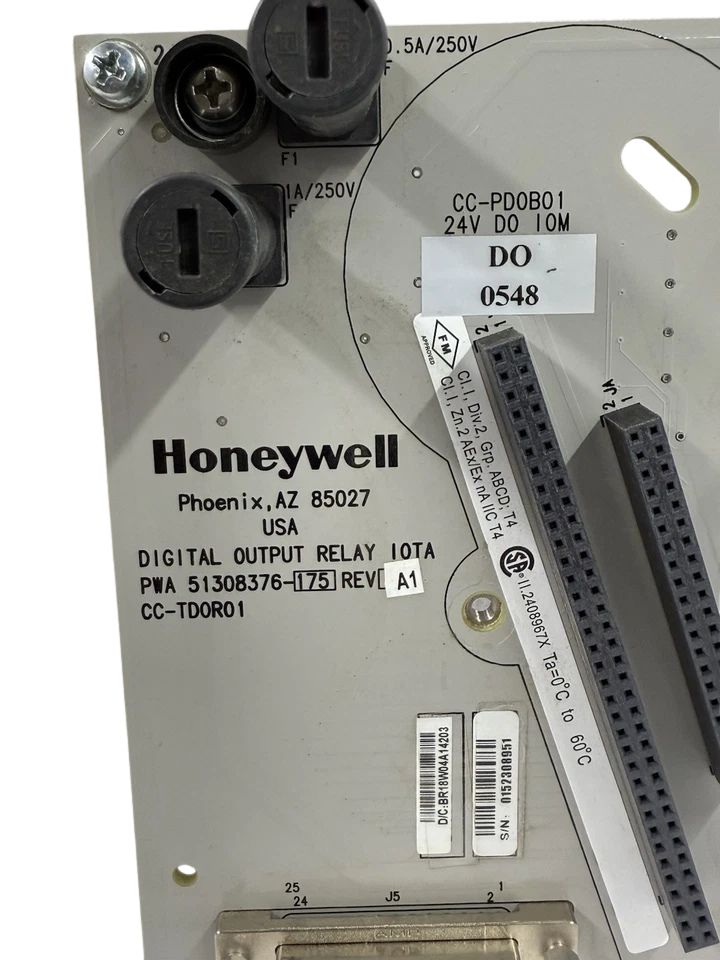

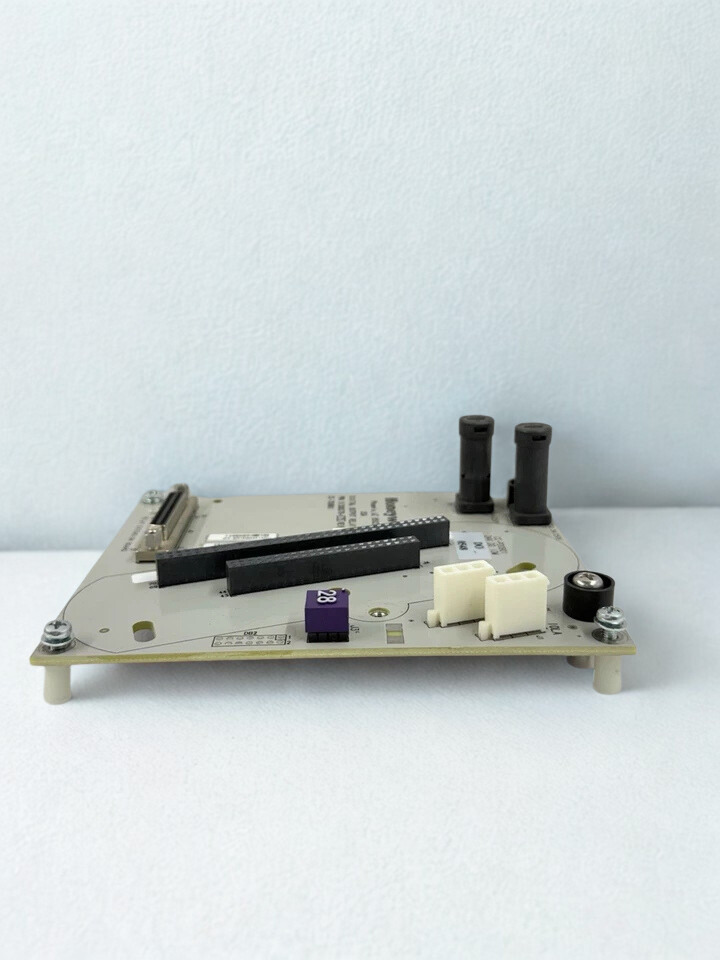

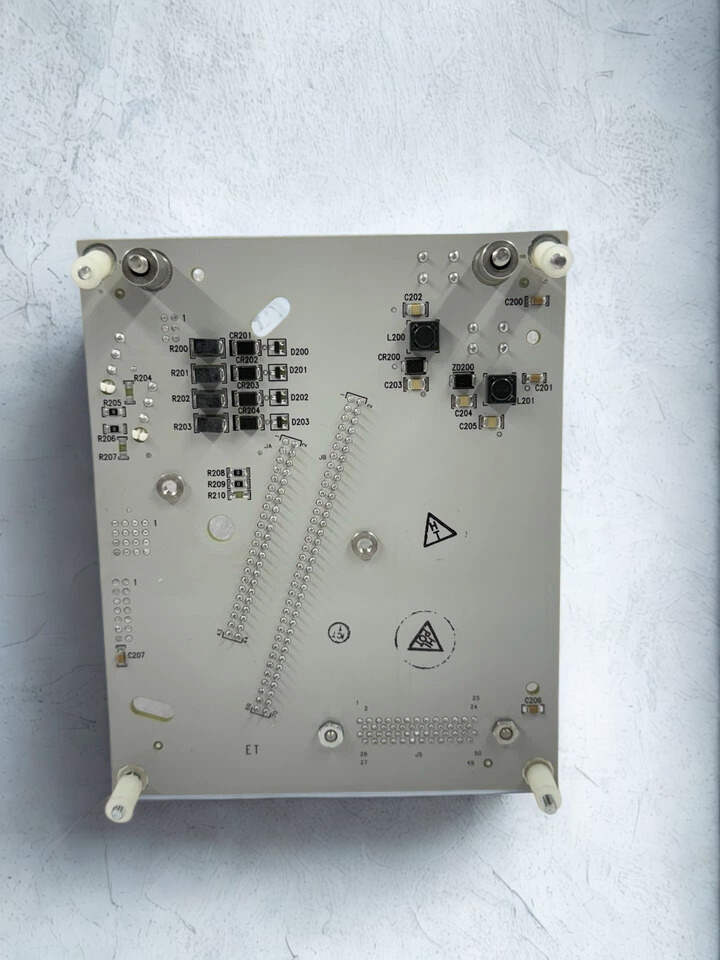

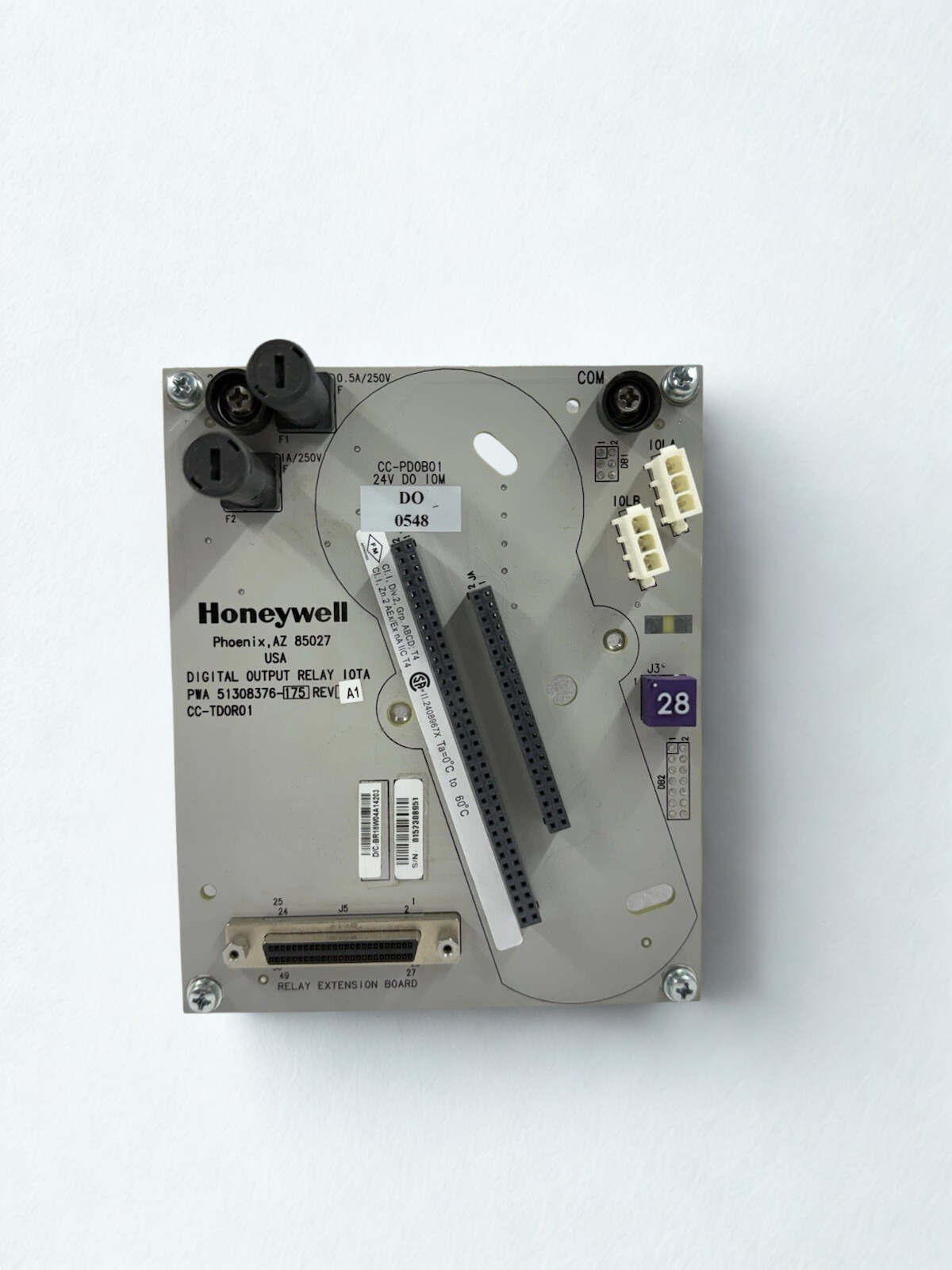

Honeywell CC-TDOR01 Digital Output Module MIOTA 51308376-175

Product Overview

The CC-TDOR01 Honeywell Digital Output Module MIOTA (51308376-175) is an example of cutting-edge industrial automation technology. It has 32 high-reliability relay channels that work perfectly with Experion PKS C300 controllers. Designed as a coated, non-redundant I/O Terminal Assembly (IOTA), it works great in tough conditions by delivering strong 0.5A @ 24VDC switching for field devices like solenoids and valves. This module is vital for DCS applications in the marine, oil and gas, and manufacturing industries since it has electronic short-circuit protection and can work in temperatures from -40°C to 85°C.

Key Features of Honeywell cc tdor01

• 32 Independent Relay Channels: This feature gives you 32 digital output relay channels that let you control field equipment like solenoids, valves, and indicators with great accuracy.
• High Reliability Relay Outputs: Each channel can handle 0.5A at 24VDC and has mechanical relay contacts for strong switching in tough situations.
• Electronic Short-Circuit Protection: Built-in safety features keep the system running by stopping damage from wiring problems and overloads.
• Non-Redundant Coated IOTA Design: Epoxy-coated to further protect against dust, moisture, and corrosive environments in maritime and industrial settings.
• Wide Operating Temperature Range: Works well in harsh circumstances from -40°C to 85°C.
• Flexible Channel Configuration: Lets you turn channels on and off individually and get diagnostic feedback for better control.
• Easy to install: Just plug it in and attach it on Honeywell Series C I/O racks. It works with C300 controllers.
• High Noise Resistance: Electromagnetic compatibility fulfills industrial requirements, which cuts down on false triggers.
• Low Power Consumption: Efficient 24VDC operation lowers energy expenses for big DCS systems.
• Comprehensive Diagnostics: Experion PKS can find faults and report on their state on board, allowing for proactive maintenance.

Technical Specifications

Usage in Wide Industries:

1) Process Control Systems: Use reliable relay switching to control actuators, valves, and pumps in chemical plants and oil and gas refineries.

2) Manufacturing Automation: Drives solenoids and indicators on assembly lines to manage the order of operations in the automotive and food processing industries.

3) Marine Applications: Works with shipboard equipment including compressors and lights in harsh, corrosive saltwater environments.​

4) Power Generation: For safe power plant operations, it manages breaker controls and status signals in turbine and boiler systems.​

5) Water Treatment Facilities: Turns on dosing pumps, gates, and alarms for automated procedures that filter and clean water.

6) HVAC systems: for climate control that saves energy, they switch on and off dampers, fans, and chillers in big commercial buildings.

7) Pharmaceutical Production: Makes ensuring that mixers and conveyors can be turned on and off in cleanrooms and meet high compliance standards.

8) Pipeline Monitoring: Along oil and gas transmission networks, it turns on emergency shutdown valves and signaling equipment.

9) Material Handling: Controls conveyor motors, sorters, and robotic grippers for automated warehousing and logistics.

10) Emergency Systems: Connects fire alarms, sirens, and suppression systems so that essential infrastructure can respond quickly.
