The ESA VT310WA0000 VT310W Rev:1 is a tough operator interface that is used to connect people who work with heavy machinery. This old Human-Machine Interface (HMI) panel was made by ESA, a well-known industrial control company. It gives you full tactical control.

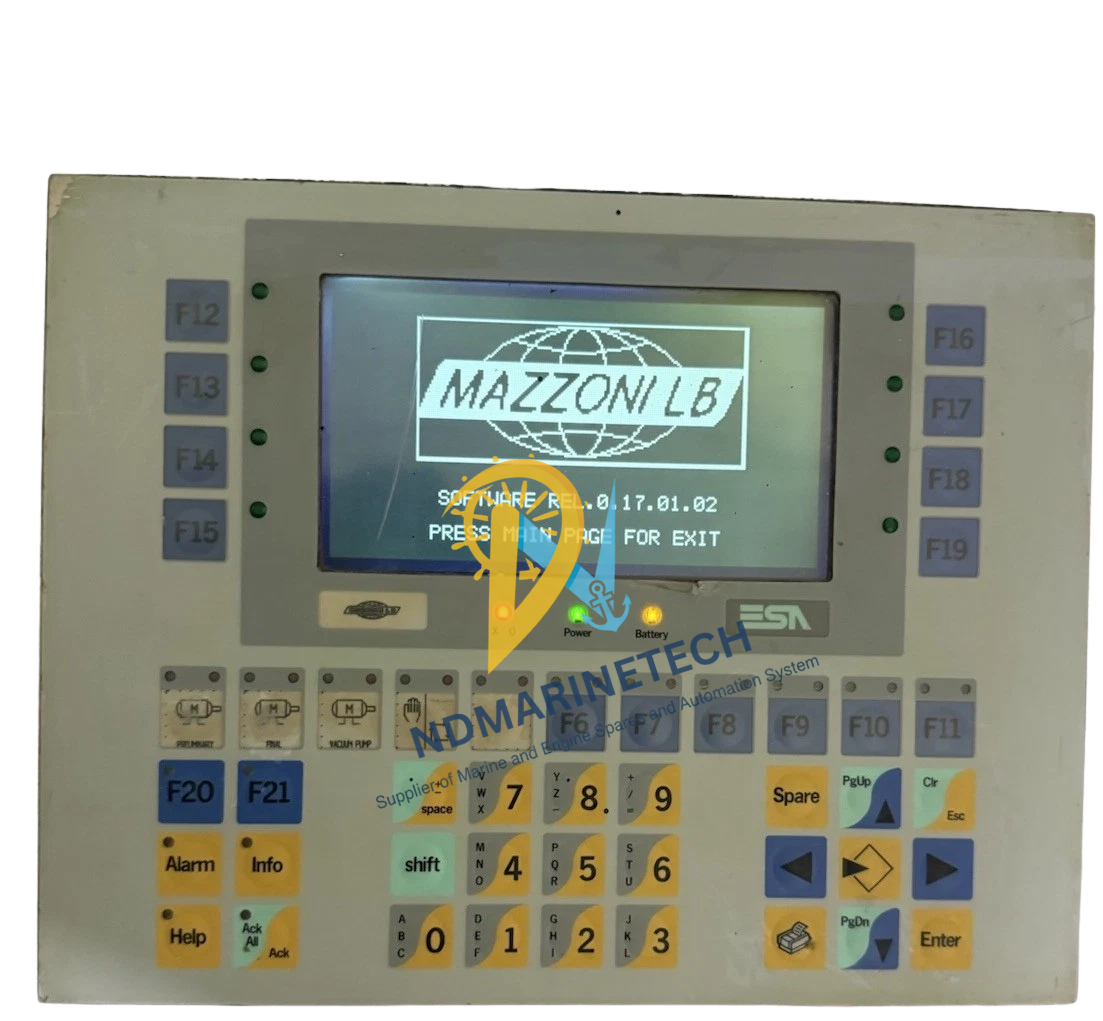

This panel has a high-contrast display with a strong industrial membrane keypad, which makes it less likely to break than modern glass screens. It was made to work in places where the temperature changes a lot, there is hydrocarbon vapor, and there is a lot of vibration. This panel gives you the exact tactile feedback and strong serial connectivity you need for daily operations, whether you’re modernizing an old manufacturing line or adding a ballast control system to a cargo ship.

Main Characteristics (Features):

1) Tactile Membrane Keypad: The responsive membrane buttons are made to keep operators who wear heavy work gloves from accidentally pressing them. They can also handle grease, salt air, and chemical solvents.

2) Optimized Memory Architecture: This includes 512 KB of built-in project memory and an extra 128 KB that is only for storing recipes. This makes it easy to rapidly recall operational settings.

3) Flexible Serial Interfacing: It has built-in MSP and ASP interfaces that make it compatible with a wide range of older PLCs and proprietary marine control units.

4) High-Contrast Visual Output: Operators may quickly check on important data flows by looking at the high-contrast visual output, which cuts through the glare of industrial illumination.

5) Ruggedized Housing: This product is made to fit easily into existing bulkheads or control cabinets. It is very resistant to engine vibration and mechanical shock.

Technical Specs

Our Engineer’s Tips: How to Install

As a marine engineer who has spent decades commissioning automated systems at sea, I can tell you that the lifespan of your HMI depends entirely on how you treat it during the first 48 hours of installation.

-> Isolate from Heat: Do not mount this unit directly adjacent to heat-radiating elements like boilers, steam lines, or exhaust manifolds. The membrane adhesives can degrade if ambient temperatures consistently exceed manufacturer limits.

-> Vibration Dampening: Even though the VT310W is rugged, shipboard vibrations (especially near the main engine or heavy thrusters) are relentless. Use high-quality rubber isolation gaskets between the panel lip and the console cutout.

-> Pre-Mounting Bench Test: Always wire the 24V DC supply and run a communication loop test with your PLC before pasting the keypad or bolting the unit into the console. Troubleshooting a blank screen is much easier on a workbench than inside a cramped control desk.
