Honeywell CC-PFB401 51405044-175 Experion PKS Fieldbus Module

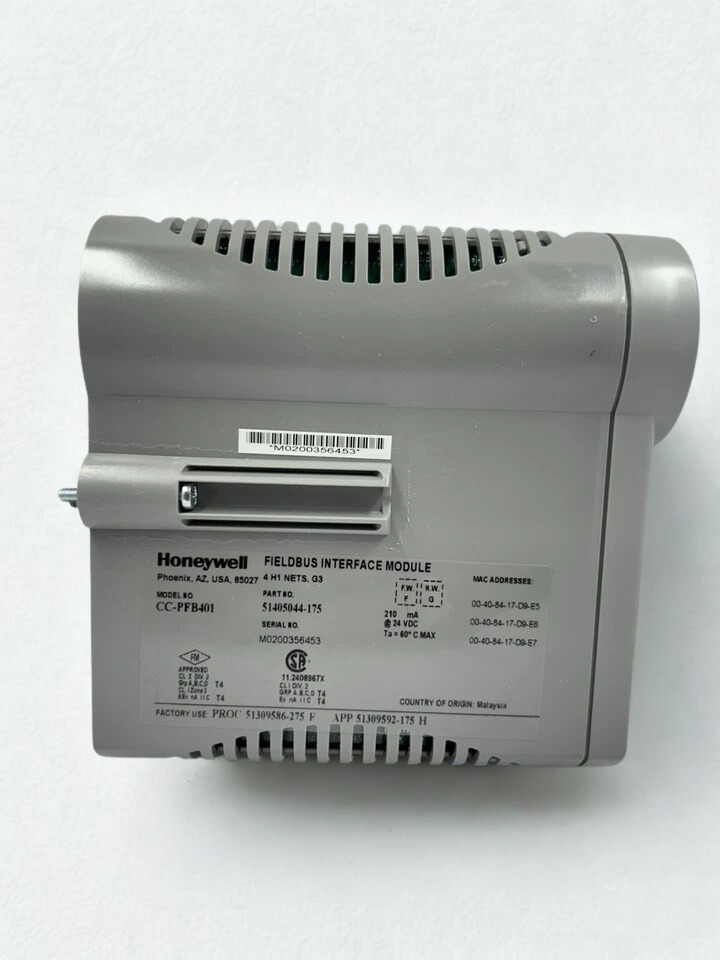

CC-PFB401: Honeywell Experion PKS Fieldbus Interface Module (51405044-175)

The Honeywell CC-PFB401, or part number 51405044-175, is a certain Fieldbus Interface Module (FIM) that is meant to be used with the Experion Process Knowledge System (PKS) architecture. This module is the most important way for the C300 controller and field-level instruments to talk to each other in the marine and offshore power ecosystem. It lets digital data transfer between PROFIBUS DP devices, which makes it easier to link to safety systems like the Honeywell Safety Manager or Schneider Acti9 electrical distribution components, as well as power management systems and engine control units.

Hardware must be able to handle non-linear loads and extreme physical conditions for maritime operations to be dependable. The CC-PFB401 is made to maintain the signal clear even when there are harmonics in the engine room and the frequency changes that happen on shipboard grids that are 60Hz apart. The module’s internal circuits are protected from electromagnetic interference (EMI), and the module is made to last in salty, humid air. This keeps the pieces from wearing out too soon when they are used for a long time at sea.

Technical Specifications

Routine Maintenance Guide

• Check the I/O termination blocks once a month for evidence of heat discoloration, which means that the connections are loose.
• Every three months, use dry, low-pressure air to blow dust off the heat sink fins to stop overheating in one spot.
• Every six months, check the grounding clamps and shielding on the PROFIBUS cable to make sure they are still working and that noise can get through easily.
• Every year, use the Experion Station to run a software diagnostic check to go over error logs and communication retries.
