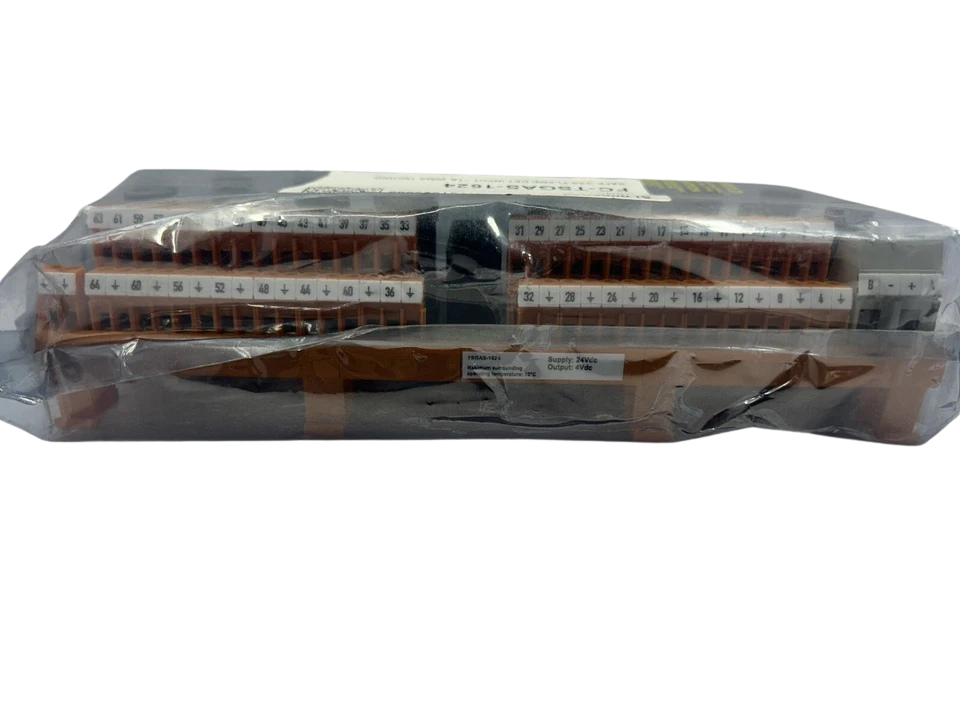

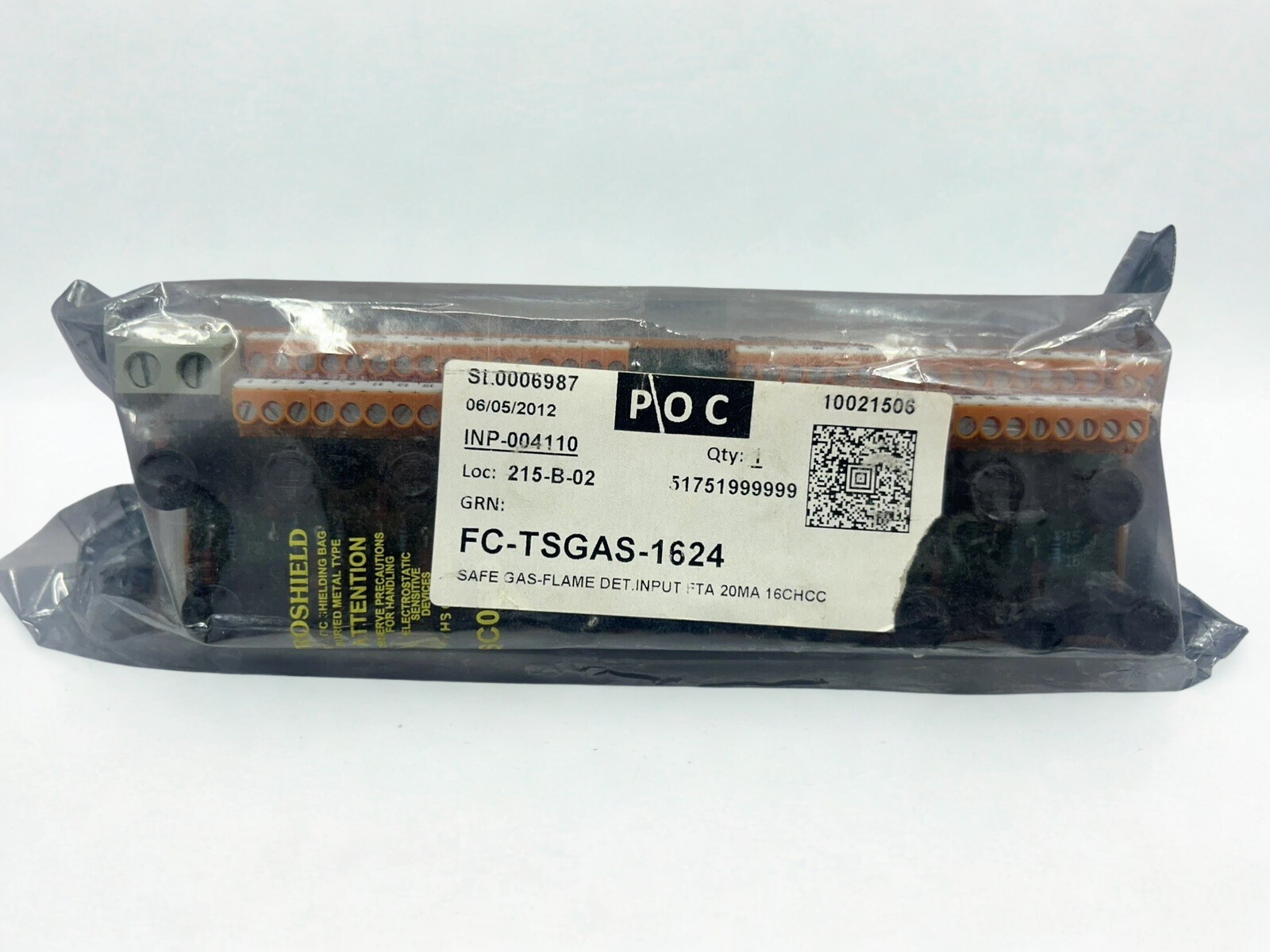

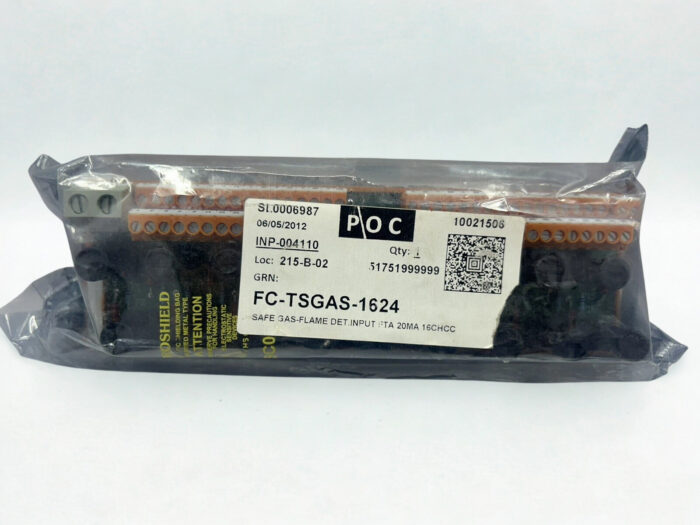

Honeywell FC-TSGAS-1624 | High-Integrity Gas & Flame FTA Module
The Honeywell FC-TSGAS-1624 is a specialized Field Termination Assembly (FTA) engineered for the Honeywell Safety Manager (SM) environment. Unlike standard termination boards, the FC-TSGAS-1624 is purpose-built to interface 16 channels of analog gas and flame detectors directly into safety-critical input modules.
In high-risk offshore and industrial settings, signal integrity is non-negotiable. This module acts as the critical bridge, ensuring that 0–25mA signals from your detection loop are conditioned and protected against field-side interference before reaching the Safety Instrumented System (SIS) logic.
Core Technical Specifications
| Feature | Engineering Detail | Marine/Industrial Context |
|---|---|---|
| Model Number | FC-TSGAS-1624 | Optimized for Honeywell Safety Manager |
| Input Density | 16 Analog Channels | Supports high-density detector arrays |
| Loop Resistance | $500\Omega \pm 5\%$ | Precise impedance for 4-20mA signal stability |
| Max Input Current | 0–25mA | Accommodates over-range/fault signaling |
| Thermal Rating | Up to 70°C | Reliable in engine rooms & high-heat enclosures |
| Safety Rating | SIL 2 Capable | Certified for Functional Safety loops |
| Certifications | FM, ATEX, CE | Mandatory for hazardous zone compliance |
Key Features
- Fail-Safe Signal Conditioning: The module is built with hardware-level reliability so that a detector defect is never mistaken for a “Safe” condition.
- Galvanic and thermal resilience: It can work at temperatures up to 70°C, making it a good choice for FPSO engine rooms and turbine enclosures where the temperature is often higher than normal commercial limits.
- Universal 0-20mA Interfacing: This device works best with Honeywell’s own detectors, but the $500\Omega$ input resistance means it can also work with a lot of other 3-wire gas and flame sensors.
- Rapid DIN Rail Deployment: Designed to fit standard 35mm DIN rails, this makes it easy to design cabinets that are neat and orderly and also speeds up “hot-swap” maintenance during planned shutdowns.
Industrial Applications
- Marine and offshore: highly significant for the sites of LNG/LPG carrier cargo manifolds and offshore platform wellheads.
- Petrochemical refineries use 16-channel detection loops on a large scale to keep an eye on dangerous gasses.
- Power Generation: Finding flames in battery energy storage systems (BESS) and gas turbine housings.
- Specialized Manufacturing: Making sure that the cleanrooms for semiconductors and the storage for pharmaceutical solvents are safe.
Pro-Tip for Maintenance: When replacing an older FTA with the FC-TSGAS-1624, always verify your supply voltage stability. While rated for 24VDC, consistent performance in marine environments relies on a clean, surge-protected power source like the Mean Well EDR-120-24 to prevent “ghost” alarms on your safety bus.
