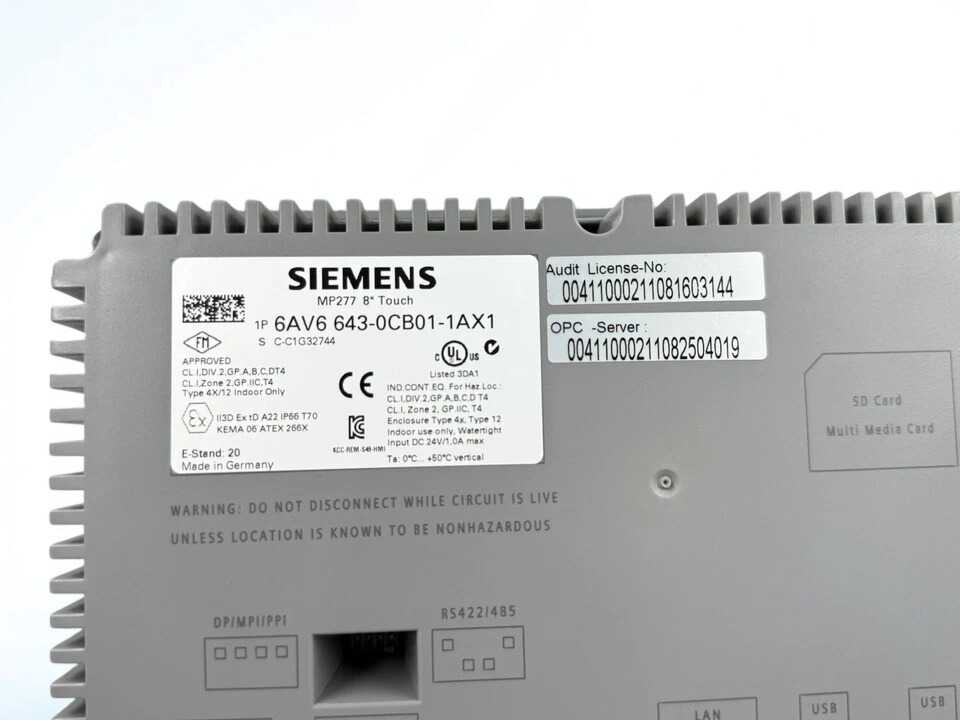

SIEMENS 6AV6643-0CB01-1AX1 MP277 8” MULTI PANEL GERMANY
Condition: Used, Tested and Fully Operational

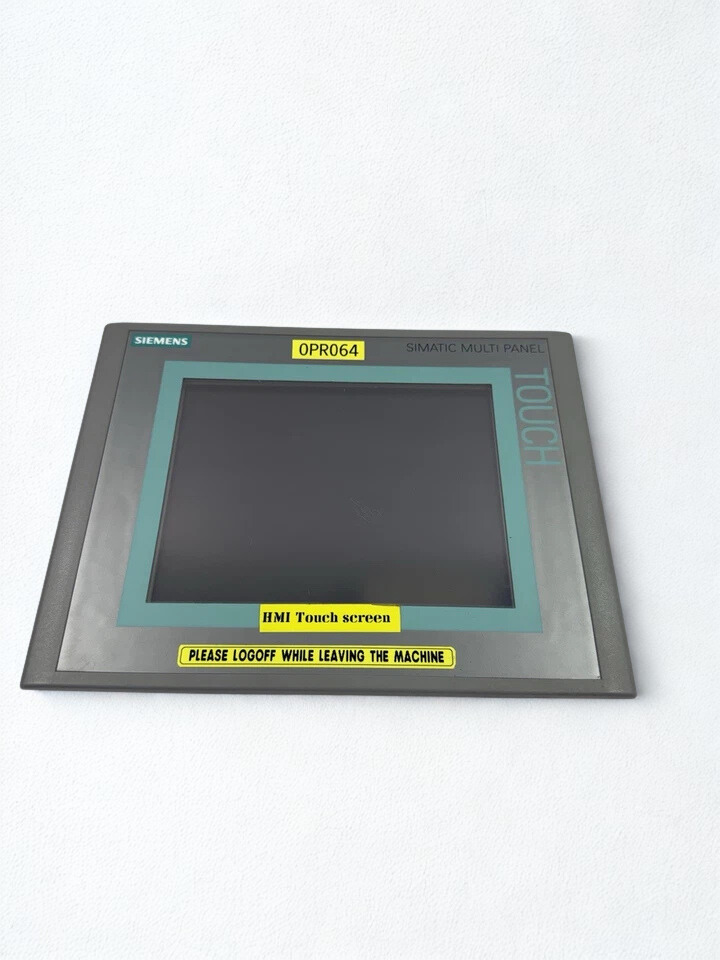

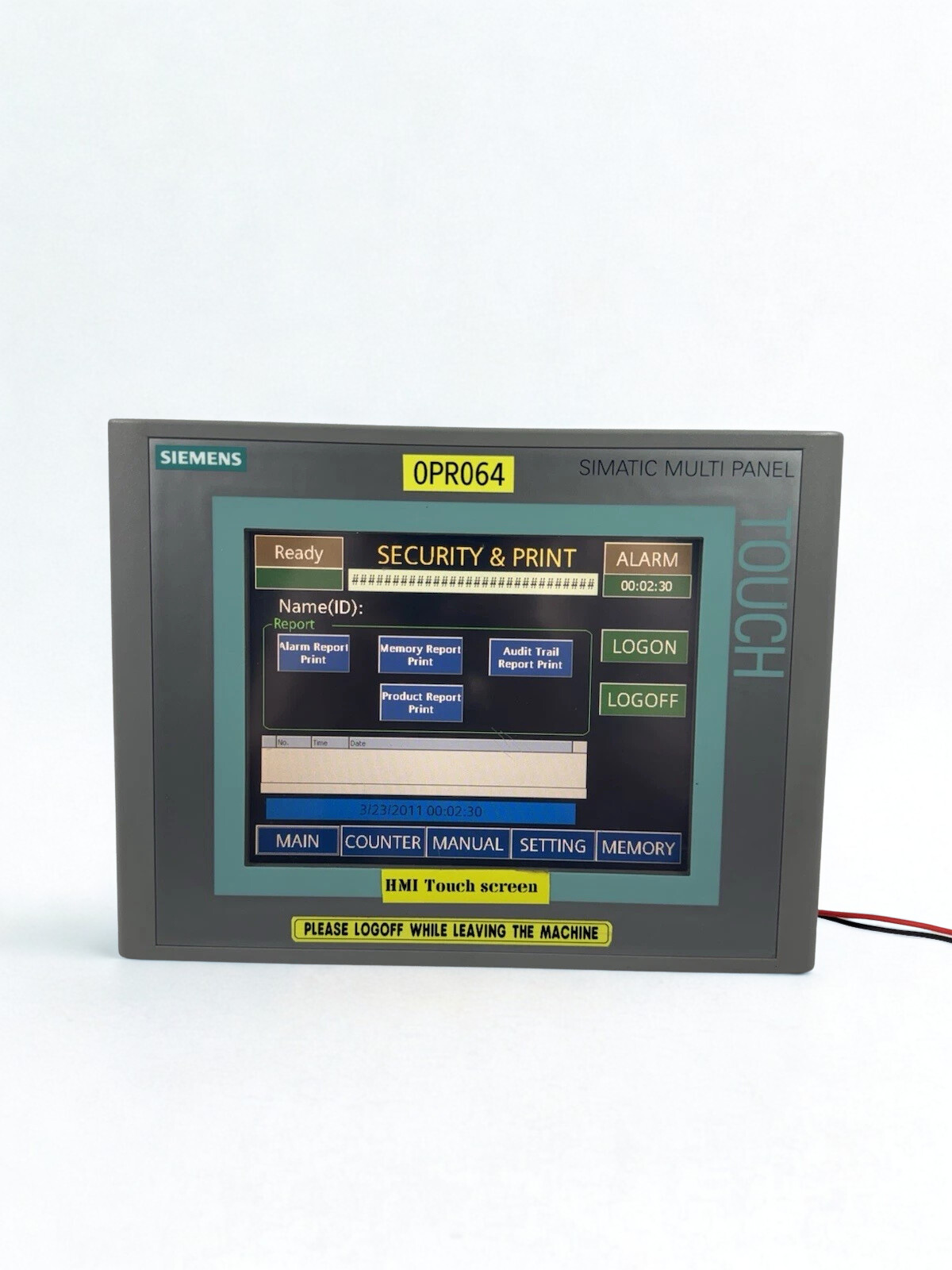

The SIEMENS 6AV6643-0CB01-1AX1 is the SIMATIC MP277 8″ Touch Multi Panel. It is a high-performance HMI (Human Machine Interface) device that is used for industrial automation and control.
SIEMENS 6AV6643-0CB01-1AX1 Product Details:
- Type of product: SIMATIC MP277 8″ Touch Multi Panel
- Siemens, Germany is the maker
- Model number: 6AV6643-0CB01-1AX1
- MP277 Series
- Display Details
- Screen Size: 7.5-inch TFT color screen
- 640 × 480 pixels (VGA) resolution
- Color depth: 65,536 colors
- Backlight: Yes, with a long MTBF at 25°C
- Touch screen: Yes (resistive touch)
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | SIMATIC MP277 8″ Touch Multi Panel |
| Display Type | 7.5″ TFT Color Display |
| Display Resolution | 640 x 480 pixels (VGA) |
| Number of Colors | 65,536 colors |
| Backlight MTBF (25°C) | 50,000 hours |
| Touch Screen | Analog, Resistive |
| Control Elements | Alphanumeric, Hexadecimal, Numeric Keyboard |
| Mounting Position | Vertical |
| Supply Voltage | 24 VDC |
| Processor Type | ARM |
| User Memory | 6 MB |
| Main Memory (max) | 128 MB |
| Clock | Hardware clock, battery backup, synchronizable |
| Interfaces | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45), 2x USB |
| Memory Card Slot | 1x Multimedia Card (up to 128 MB) |
| Supported Protocols | PROFINET IO, PROFIBUS, MODBUS, TCP/IP |
| Degree of Protection (Front) | IP65 |
| Degree of Protection (Rear) | IP20 |
| Ambient Temperature (Operating) | 0°C to 50°C |
| Ambient Temperature (Storage) | -20°C to 60°C |
| Relative Humidity (Operating) | Up to 90% (non-condensing) |
| Operating System | Windows CE |
| Alarm System | Yes (buffer and acknowledgment) |
| Recipe Management | 300 recipes, 500 data records/recipe, 1,000 entries/data record |
| Variables per Device | 2,048 |
| Languages (Online/Runtime) | 16 |
| Languages per Project | 32 |
| Dimensions (W x H x D) | 250 x 190 x 61 mm |
| Weight (without packaging) | 1.61 kg |
| Approvals/Certificates | CE, UL, cULus, FM |
Setting Up Performance and Memory
- Memory for users: 6 MB
- Recipe Management: 300 recipes, 500 data records for each recipe, 1,000 entries for each data record, and 64 KB of built-in Flash memory (which can be expanded)
- Variables: Each device can have up to 2,000 variables
Hardware and Connectivity:
- ARM-based processor
- Windows CE is the operating system
- Communication Interfaces: Ethernet, PROFIBUS, and PROFINET
- Voltage for the supply: 24 VDC
- Vertical mounting
- IP65 (water and dust resistant) is the level of protection
Functions:
- Alarm System: Yes, with a buffer and an acknowledge
- Message Indicator: Yes
- Value Display/Default for Process: Yes
- Functions: TAB sequence, calculating functions, animation, recipe management, backup/restore, simulation, switching devices, and delta transfer
- Service tools: touch calibration, screen cleaning, and manual backup and restoration
