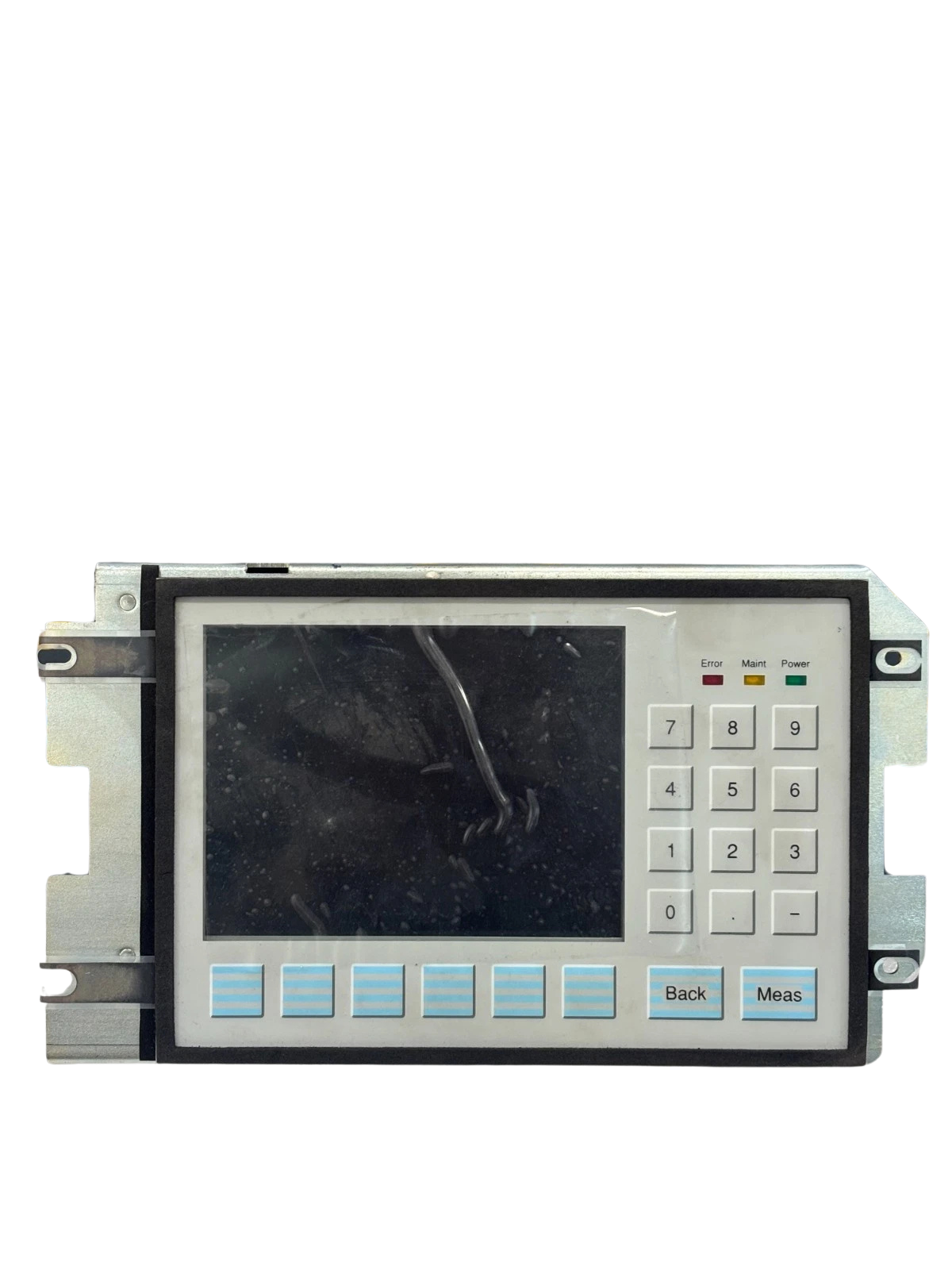

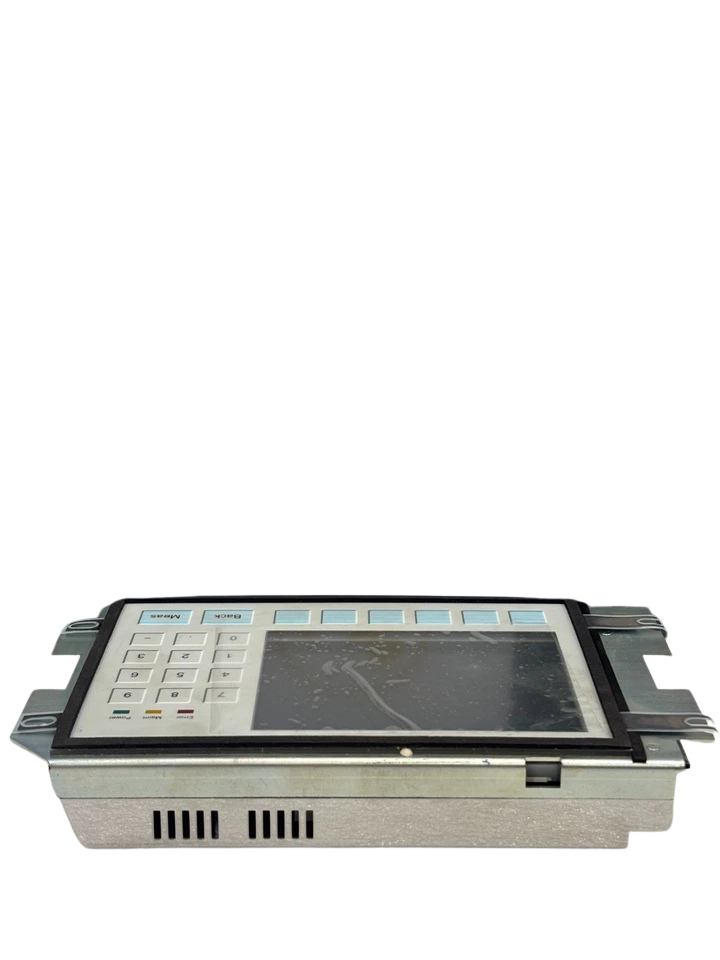

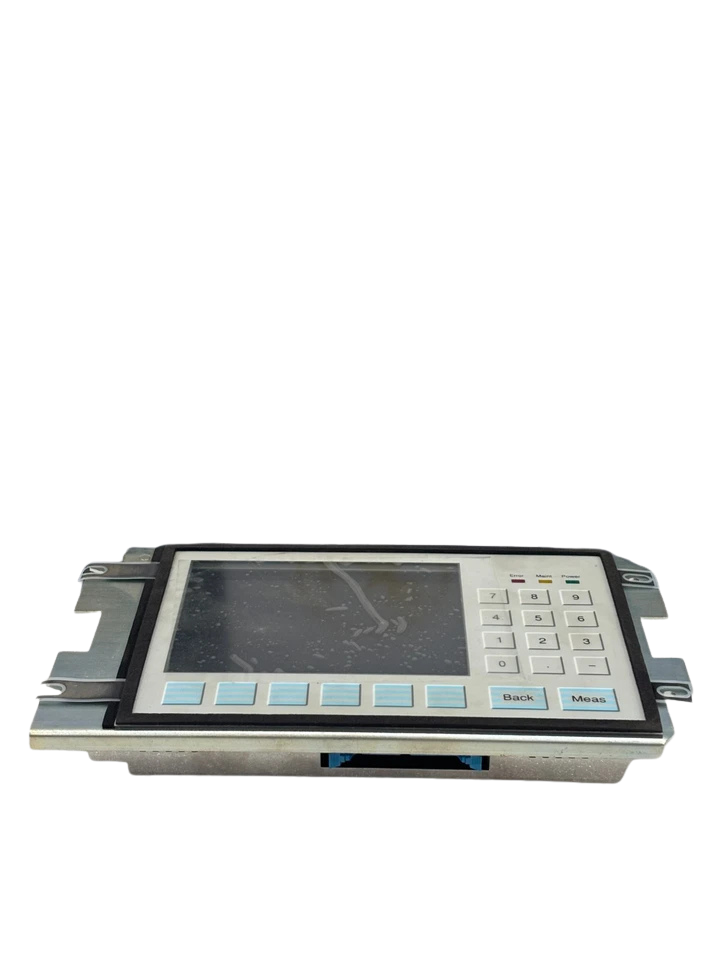

ABB 768 963 B Bedienteil Display & Keyboard Panel

ABB 768 963 B Bedienteil mit Display and Keyboard Panel (Advance Optima AO2000 Series)

The ABB 768 963 B (also indexed as 768963B / 768-963-B) is an OEM operator control terminal (Bedienteil mit Display) engineered specifically for the ABB Advance Optima AO2000 Series continuous gas analyzer systems. Designed for mission-critical marine emission monitoring (CEMS), inert gas systems, and industrial process analytics, this human-machine interface unit combines a high-contrast dot-matrix graphic display with a sealed tactile keypad.

It serves as the central front-end operator module mounted on the system central unit or housing door, allowing technicians and field engineers to execute zero/span calibrations, configure sample train flow parameters, review optical bench detector drift, acknowledge alarms, and read live concentrations for infrared (URAS), paramagnetism (Magnos), electrochemical, and thermal conductivity measurement modules without opening pressurized enclosures.

Model Details

• Manufacturer: ABB
• Part / Model Number: 768 963 B
• Manufacturer Part Number (MPN): 768963B / 768-963-B
• Equipment Series: Advance Optima Modular Gas Analyzers (AO2000 / AO2020 / AO2040)
• Component Type: Operator Interface Terminal (Bedienteil) with Integrated Display and Membrane Keyboard

Features

1. Industrial Tactile Membrane Switchboard: Equipped with sealed, chemically resistant tactile buttons, numeric entry keys, navigation arrows, and dedicated status softkeys engineered to withstand oil mist, cleaning solvents, and abrasive marine atmospheres.
2. High-Contrast Industrial Display: Built with a back-lit monochrome dot-matrix graphic LCD displaying multi-component gas trends, error diagnostics, calibration constants, and multi-language system menus.

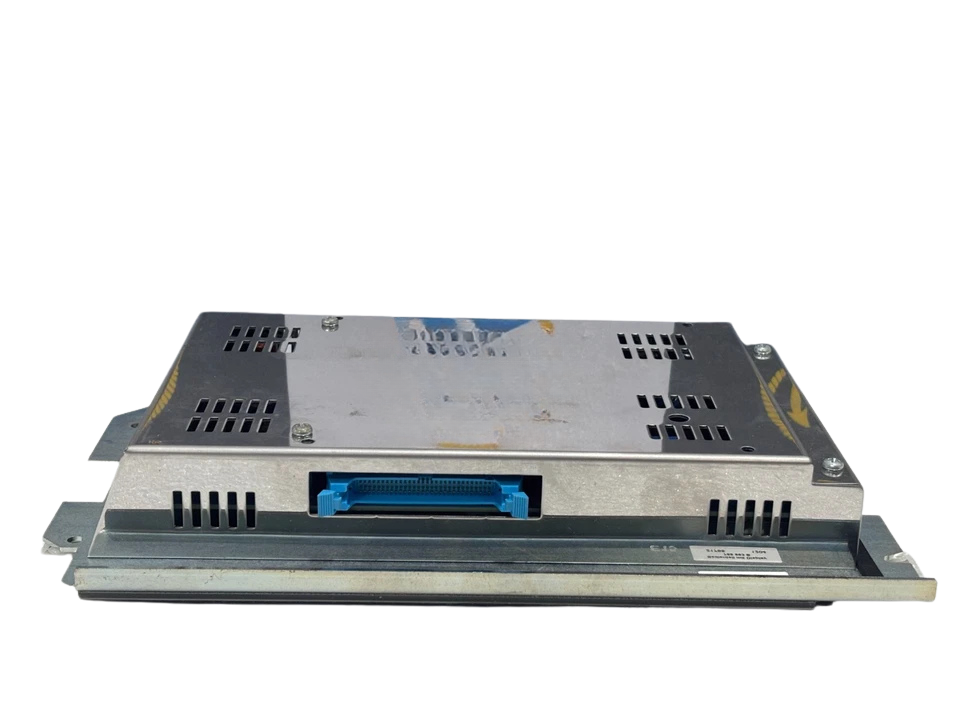

3. Direct Bus Integration: Interfaces seamlessly with the internal Advance Optima central processing unit board via dedicated flat ribbon bus ribbon cabling, minimizing latency in telemetry and status feedback.
4. Engineered for High-Vibration Enclosures: Designed to meet maritime environmental vibration and shock classes, preventing connector walkout or contact bouncing during continuous vessel or plant operation.
5. IP65 Front Panel Seal Integrity: When clamped flush against the 19-inch rack or wall-mount enclosure cut-out, the integrated front gasket maintains an ingress-resistant seal against moisture and dust intrusion.

Compatibility

• ABB Advance Optima AO2000 System Central Units: AO2020 (19″ Rack-mount chassis), AO2040 (Wall-mount housing)
• ABB Modular Multi-Gas Analyzers: Systems utilizing Uras14 / Uras26 (NDIR), Magnos106 / Magnos206 (Paramagnetic O2), Caldos15 / Caldos17 / Caldos27 (Thermal Conductivity), and Limas11 (UV) measurement detector modules.
• Marine Continuous Emission Monitoring Systems (CEMS): MarPrime, GAA, and clean-power scrubber stack monitoring skids configured with Advance Optima front-end processing racks.

Part Number Cross-References

• ABB / H&B Part Number: 768 963 B
• Alternative Manufacturer Number: 768963B
• Dashed Notation: 768-963-B
• Associated Sub-assembly Reference: 17167 0936 / 11333 0647
• System Category Reference: AO2000 Central Operator Terminal / Display-Bedienteil

Applications

• Marine Vessel Exhaust Gas Cleaning Systems (EGCS / SOx Scrubbers): Monitoring inlet and outlet stack concentrations (SO2/CO2 ratio verification under MARPOL Annex VI regulations).
• Marine Inert Gas Systems (IGS): Oxygen level quantification in cargo spaces and blanketing lines aboard crude oil, chemical, and product tankers.
• Industrial Emission Monitoring (CEMS): Power plants, cement kilns, incinerators, and refinery flue stacks tracking NOx, CO, CO2, and SO2.
• Chemical & Petrochemical Process Control: Real-time gas tracking across synthesis, hydrogen purification, ammonia manufacturing, and cracking furnaces.
• Biogas & Landfill Methane Measurement: Multi-channel measurement of CH4, CO2, O2, and H2S content for fuel blending.

Frequently Asked Questions

What causes keypad failure on the ABB 768 963 B panel?

The primary causes of membrane keyboard failure are environmental exposure (penetration of heavy solvents or high humidity behind cracked switch overlays) and mechanical degradation from using tools or pens rather than fingers to press the keys. Regular cleaning with a lint-free damp cloth prevents chemical degradation of the polyester top membrane.

Can the ABB 768 963 B be used interchangeably between AO2020 and AO2040 units?

Yes. The 768 963 B display and keyboard assembly serves as the standardized user interface module across the entire Advance Optima system. The pin configuration and signaling protocols match both the rack-mounted AO2020 central unit and the wall-mounted cast metal AO2040 system chassis.

Does replacing this operator panel reset analyzer calibration constants?

No. The operational parameters, detector range calibrations, zero offsets, and gas coefficients are stored within non-volatile NVRAM/EEPROM chips located on the AO2000 main CPU central processor board, not inside the operator panel. Replacing the 768 963 B is a plug-and-play mechanical swap that preserves all active system calibration records.

What should I check if the backlight illuminates but the screen displays no text?

First, verify that the ribbon cable is seated squarely on all header pins and that the retaining latches are fully engaged. A shifted connector by one pin row will supply power to the backlight circuit while disconnecting the data bus lines. If the physical connection is sound, verify the logic supply voltage on the motherboard test points.
