ABB TZIDC V18345-1020521001 Digital Positioner HW 5.0

Precision Control: ABB TZIDC V18345-1020521001 Digital Positioner

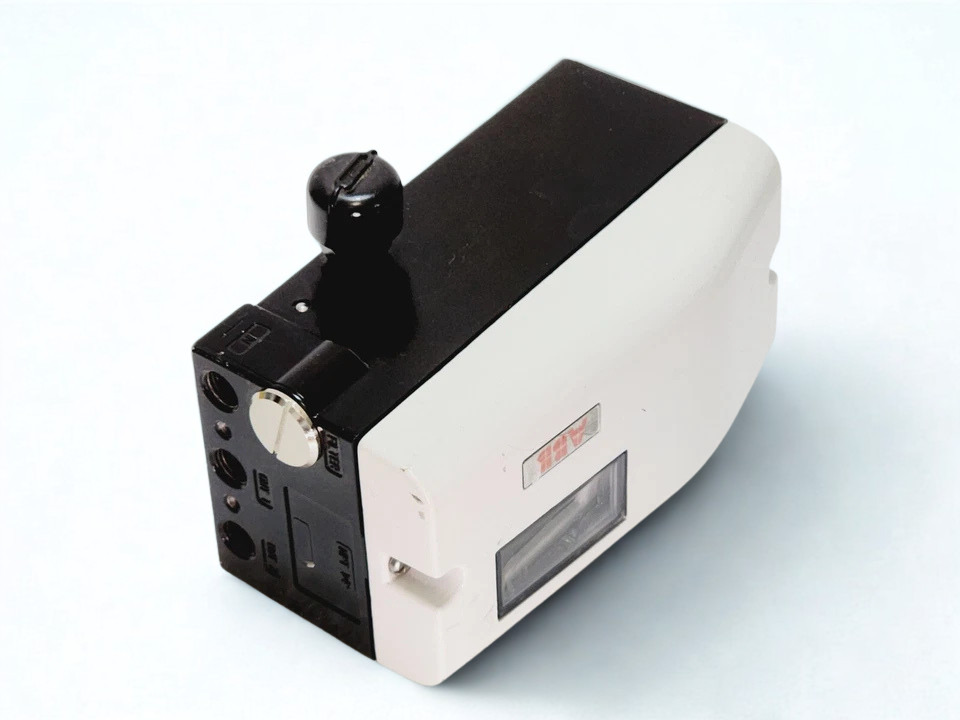

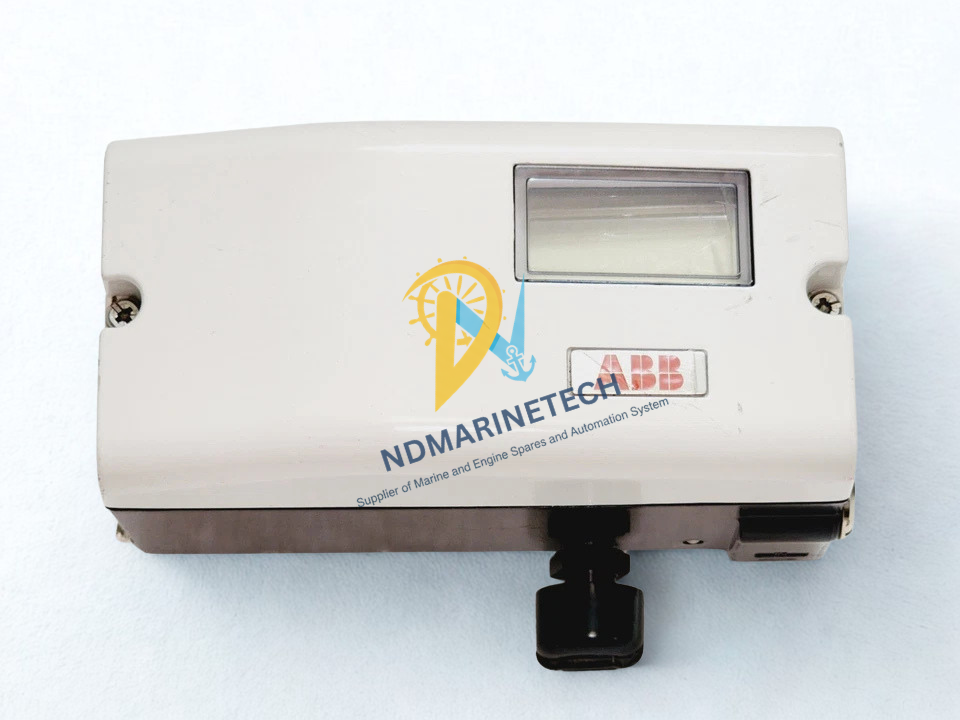

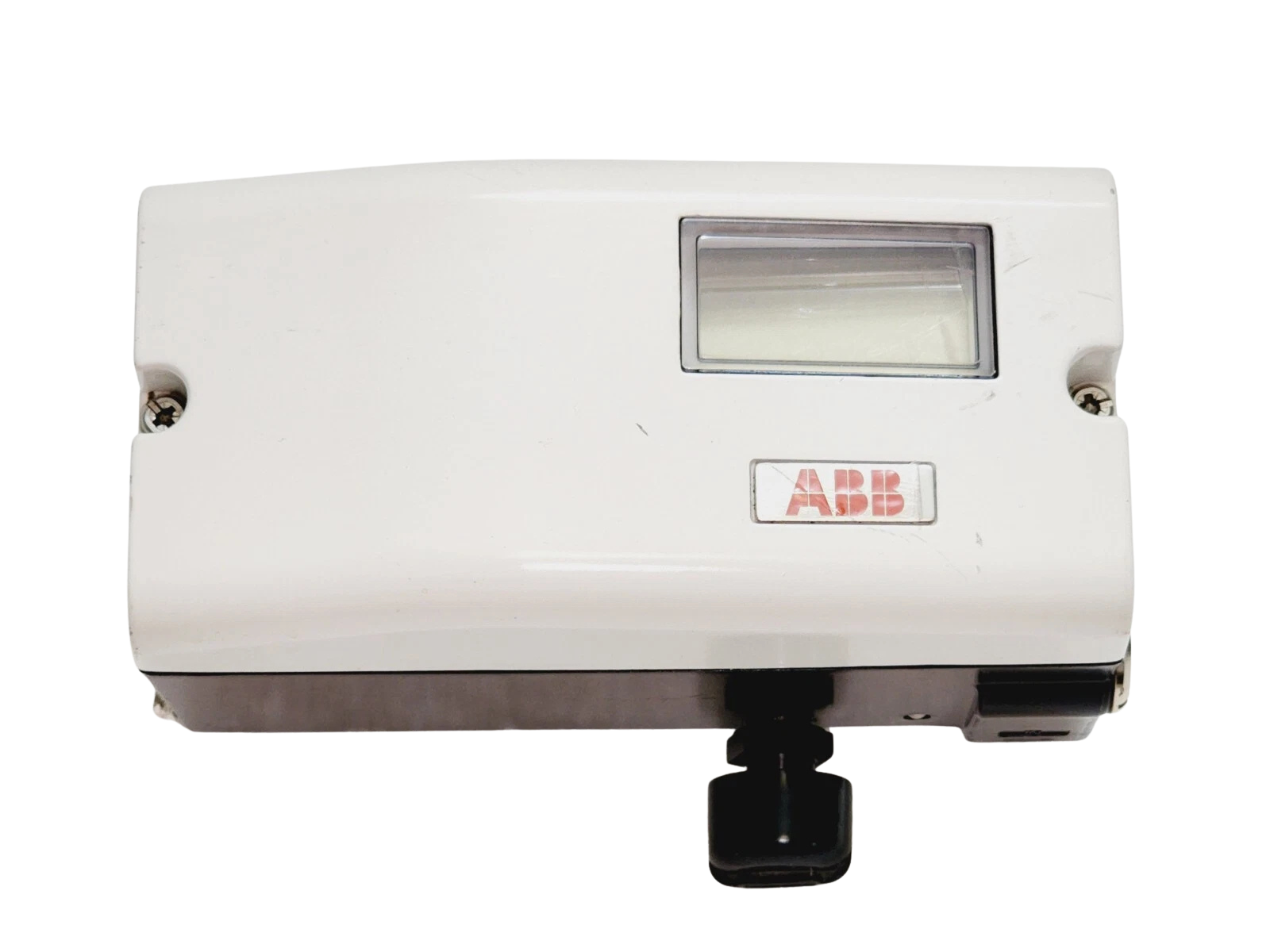

The ABB TZIDC V18345-1020521001 is a positioner that can be set up electronically and can talk to other devices. It is made to be attached to linear or rotary actuators. It uses a very efficient two-wire technique that works at 4–20 mA. This model stands out because of its strong construction and smart auto-stroke function, which makes commissioning easy and saves hours of manual calibration during dry-dock or plant shutdowns.

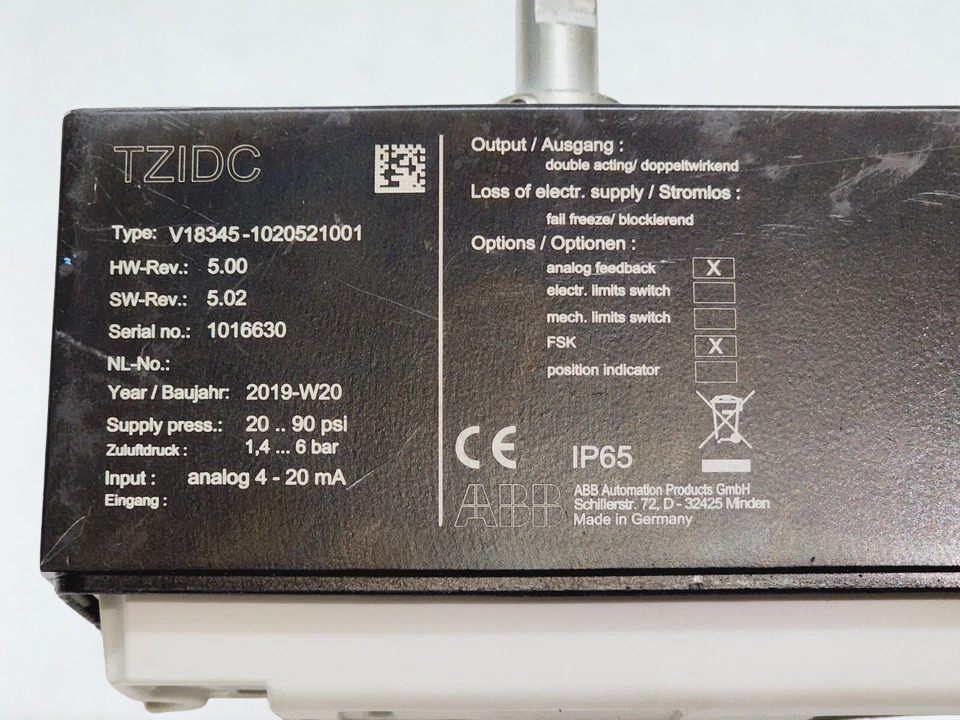

Technical Specifications

Features

1. Better resilience to shock and vibration: Built to stay under exact control even when mounted on machines that vibrate at high frequencies or offshore platforms.
2. Adjustable: The valve includes a built-in Autosetup feature that discovers the zero point and full-scale balance on its own.
3. Low Air Consumption: Its new pneumatic system cuts down on bleeding, which saves a lot of money on running costs and makes the compressor work less.
4. HART Communication allows you set things up and fix them from a distance, and it also offers you real-time information on how well the valve is working and how healthy it is.
5. Modular Design: The V18345 platform can use a number of plug-in modules to send feedback signals, both analog and digital. This makes it particularly adaptable to numerous types of systems.

NDMarineTech Engineer’s Guide:

Pro-Tip from our engineer: When installing the HW Rev 5.0 on a ship or in a humid plant, ensure your instrument air is strictly compliant with ISO 8573-1 Class 3. Even though this unit is rugged, oil or moisture in the air lines is the #1 cause of stiction in the pilot valve. Always use the integrated filter regulator and check the moisture traps weekly. During initial commissioning, use the local user interface (LUI) for a quick Plug and Produce setup—it’s intuitive enough that you wont even need the manual for basic scaling.
