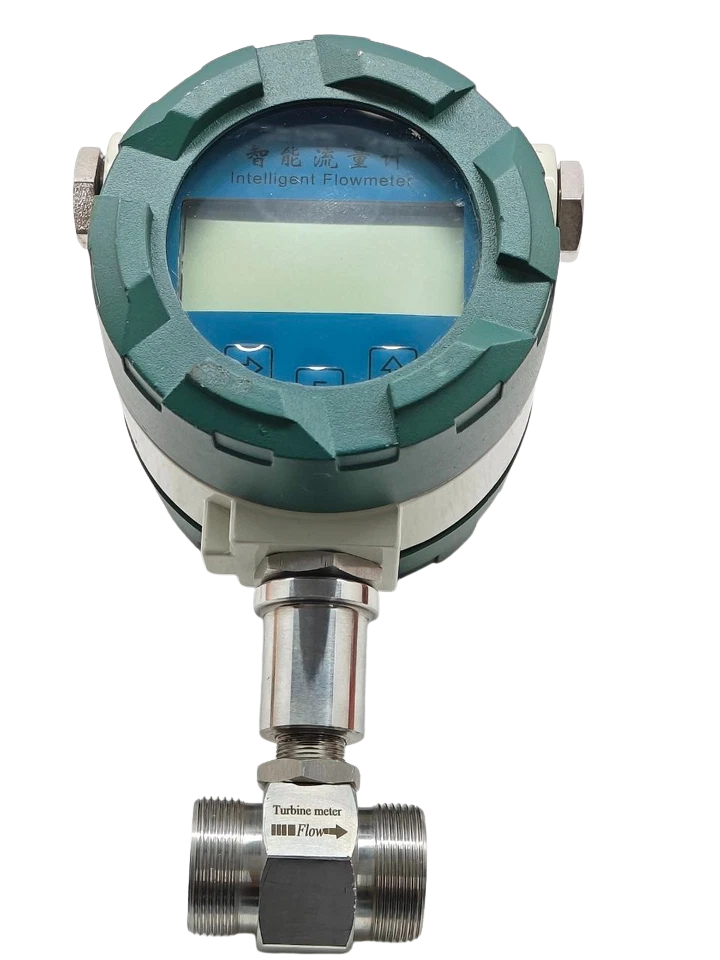

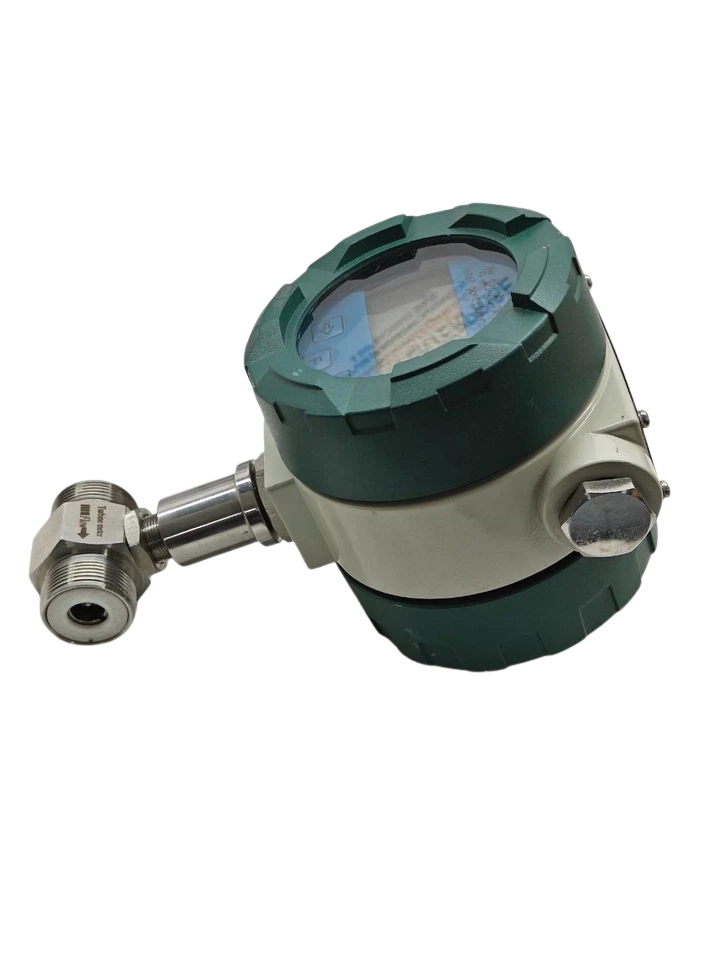

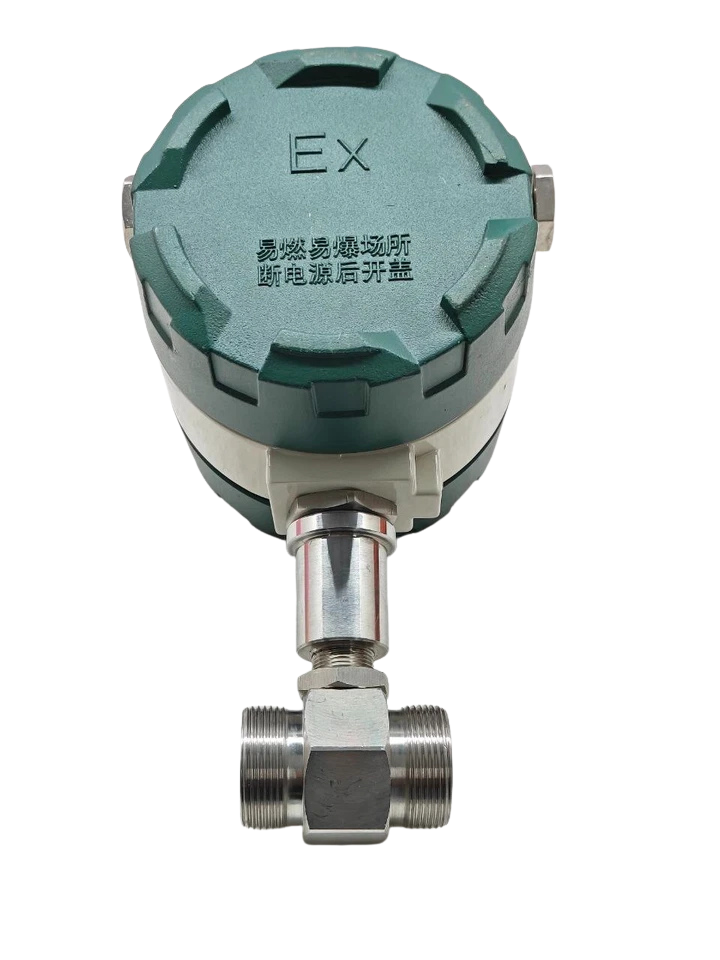

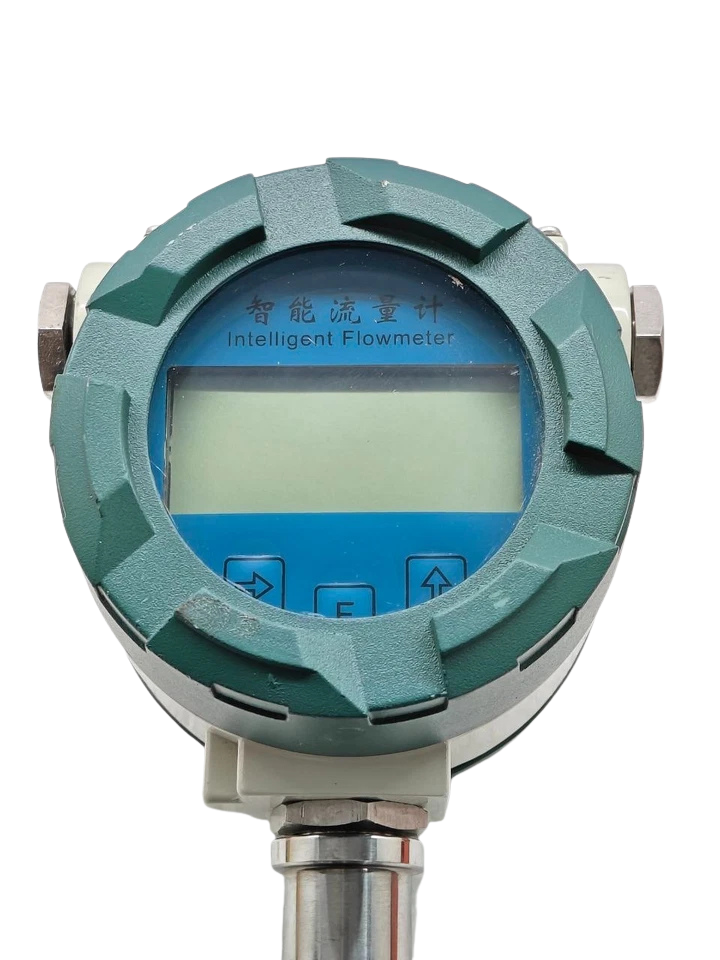

Changzhou Tianli TX-LWGY-10 Turbine Flow Meter

Changzhou Tianli TX-LWGY-10-C-05-W-S-E-N 16122036 Liquid Turbine Flow Meter

The Changzhou Tianli TX-LWGY-10-C-05-W-S-E-N (Part Number: 16122036) is an inline axial liquid turbine flow transmitter engineered for volumetric flow measurement in closed-pipe fluid systems. Built specifically for clean, low-viscosity, non-corrosive liquids, this model features a nominal diameter of DN10 with a standard threaded process connection engineered to handle working pressures up to 6.3 MPa (63 bar).

The operational mechanics rely on dynamic kinetic energy conversion: as the fluid passes through the precision-machined metering chamber, it strikes the multi-blade duplex stainless steel rotor. The angular velocity of the impeller rotates in direct linear proportion to fluid velocity. Embedded within the pickup coil assembly, an external magnetic sensor detects the passing of each rotor blade without fluid boundary penetration, generating high-frequency alternating voltage pulses. The integrated transmitter electronics condition this raw pulse train into a calibrated square-wave pulse or standardized 4–20 mA analogue transmission loop with an accuracy of ±0.5% of reading.

Model Details:

• Manufacturer: Changzhou Tianli Automation Instrument Co., Ltd.
• Full Order Code / Model: TX-LWGY-10-C-05-W-S-E-N

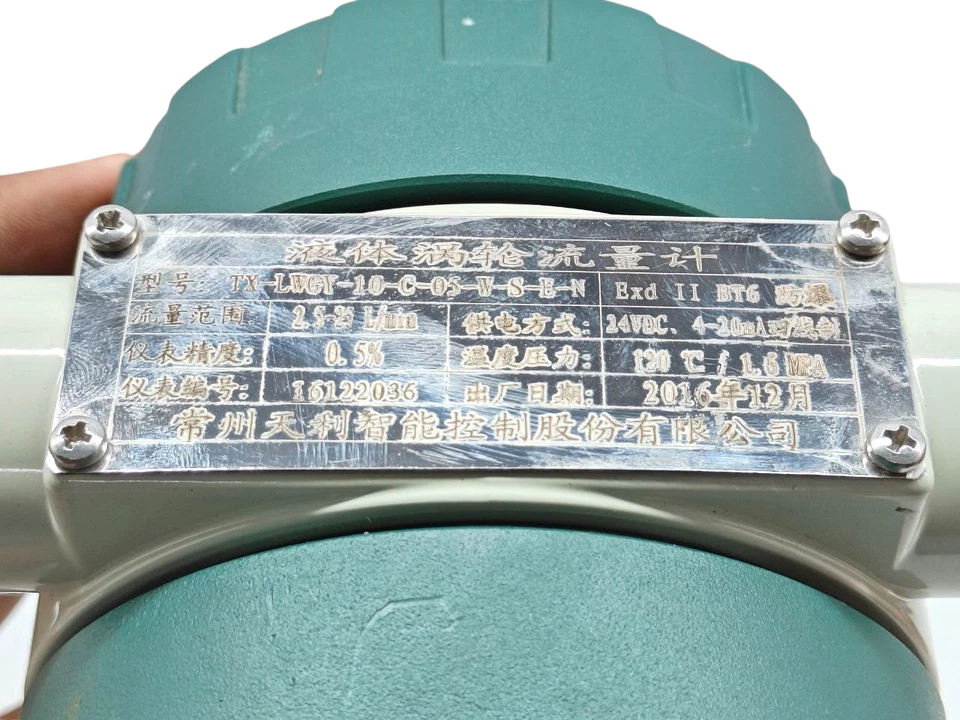

• Manufacturer Part Number (MPN) / Factory Serial Reference: 16122036

Code Configuration Breakdown:

• TX-LWGY: High-stability liquid turbine flow meter series.
• -10: Nominal bore size DN10 (10 mm / 3/8-inch pipeline diameter).
• -C: Male threaded process connection (standard BSPP/G parallel pipe thread; G 1/2″ or G 3/8″ male coupling).
• -05: Calibrated measurement accuracy class: ±0.5% of reading.
• -W: Wetted body material SS304 / 1Cr18Ni9Ti with cemented tungsten-carbide sleeve bearings for extended operational life.
• -S: Standard medium temperature rating (-20°C to +80°C / extended option to +120°C).

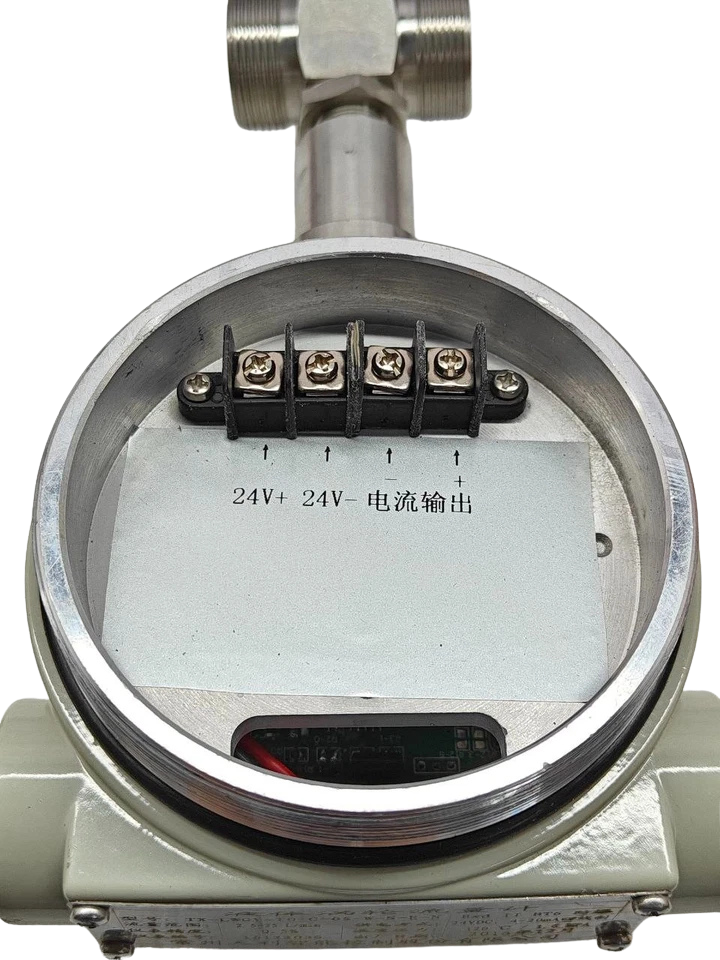

• -E: External 24 VDC power supply with two-wire 4–20 mA / three-wire pulse frequency output.
• -N: Blind sensor/transmitter configuration without integrated LCD field display (direct remote signal feed to PLC/DCS).

Compatibility

• Marine Engine Automation Skids: MAN B&W Alpha Lubricator systems, Wärtsilä fuel injection/feeder modules, and Caterpillar/MaK auxiliary fuel measurement rails.
• Flow Computers & Batch Controllers: KEP (Kessler-Ellis Products) SUPERtrol / Battrol series, OMNI 3000/6000 series, Contrec 400/500 series batch controllers, and Yokogawa UT35A/UT55A controllers.
• Marine Shipboard Alarm & Monitoring (AMS): Kongsberg K-Chief 600, Wärtsilä NACOS Platinum, Praxis Mega-Guard AMS, and Valmet DNA Marine automation systems.
• Industrial PLCs: Siemens SIMATIC S7-1200 / S7-1500 (via SM 1231 / AI 8xU/I cards), Allen-Bradley CompactLogix, and Schneider Electric Modicon M340/M580.
• Boiler & Auxiliary Plant Units: Aalborg / Saacke marine boiler burner fuel consumption lines and Alfa Laval fuel oil conditioning modules (FCM).

Part Number Cross-References

• Tianli Alternative Configuration: Tianli LWGY-10A (Pulse sensor without integrated transmitter)
• Flowserve / Automax Equivalents: DN10 Turbine Line Series
• Hoffer Flow Controls Equivalent: HO-1/2X1/4 Series Mini-Flow Turbine (DN10 equivalent)
• Badger Meter Equivalent: Vision 1000 / Blancett Model 1100 (DN10 Threaded 3/8″ Turbine)
• Endress+Hauser Functional Equivalent: Promass / Drow Flowmeter inline micro-turbines

Frequently Asked Questions

How is the flow rate calculated from the pulse output on the TX-LWGY-10?

The flow rate is calculated using the meter’s factory-calibrated K-factor, which indicates the exact number of pulses generated per unit volume (e.g., pulses per liter). By inputting this K-factor into your PLC frequency counter or flow computer, the system calculates instantaneous volumetric flow rate and sums totalized volume over time.

Can the Changzhou Tianli TX-LWGY-10 meter be installed vertically?

Yes. The meter can be installed vertically provided the liquid flows upward through the meter body. Upward vertical flow ensures that the measuring tube remains completely flooded with fluid, eliminating pockets of entrapped air or gases that cause rotor acceleration and false reading spikes. Downward vertical flow is not recommended.

What should I do if the meter is not outputting a 4–20 mA signal?

First, verify that the external 24 VDC power supply is delivering clean voltage within the 20.4–27.6 VDC tolerance across the input terminals. Second, check the total loop impedance to verify that loop resistance does not exceed 600–900 ohms. Third, inspect the pickup coil housing for proper mechanical seating and ensure the rotor spins freely without mechanical binding from pipe particulate.

Why is an upstream strainer required for this turbine meter?

Turbine meters rely on fine tolerances between the duplex stainless steel impeller blades and the bore wall. Hard particulate matter, line rust, or pipe scale can impact the high-speed rotor, bending the blade geometry or damaging the carbide sleeve bearing surfaces. Fitting a 40- to 60-mesh strainer upstream prevents debris ingestion and preserves calibrated measurement accuracy.
