GOETZE 682mGF0-SP Pressure Reducing Valve

GOETZE 682mGF0-SP Pressure-Reducing Valve: Marine & Industrial Flanged Pressure Regulator

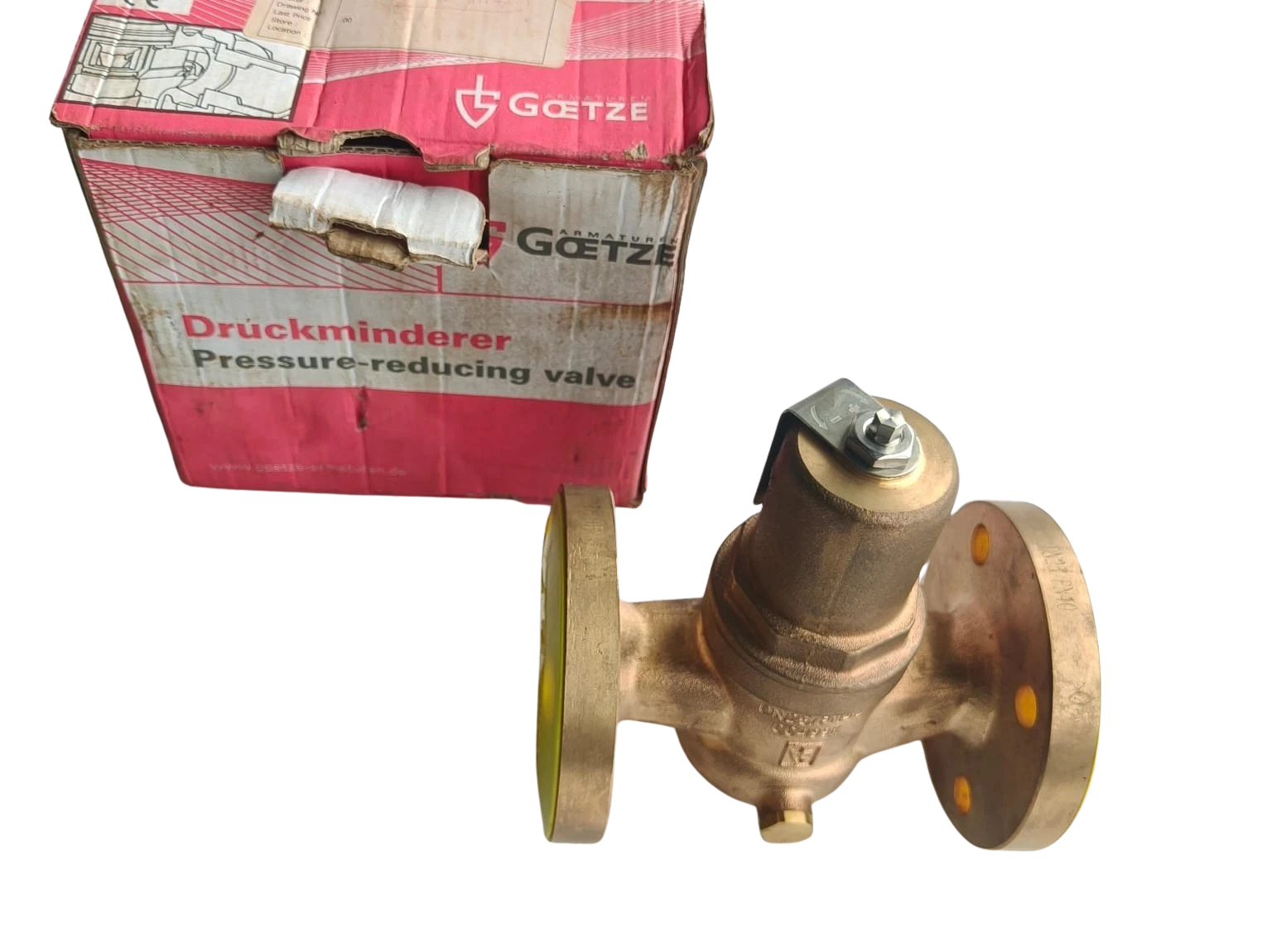

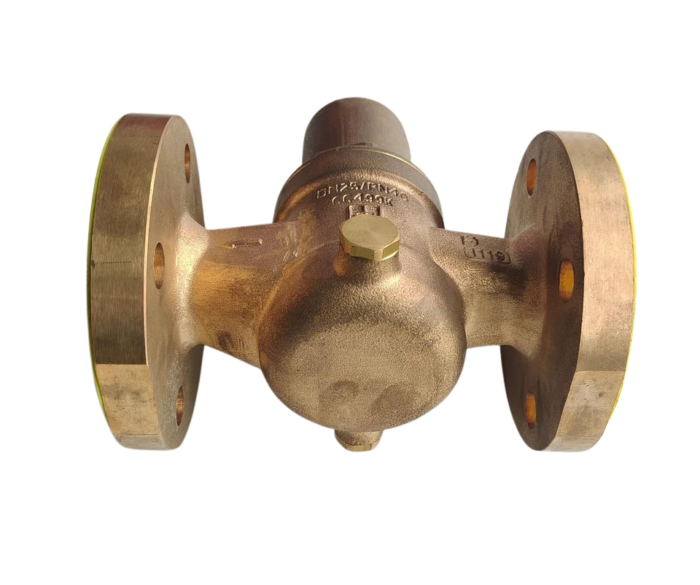

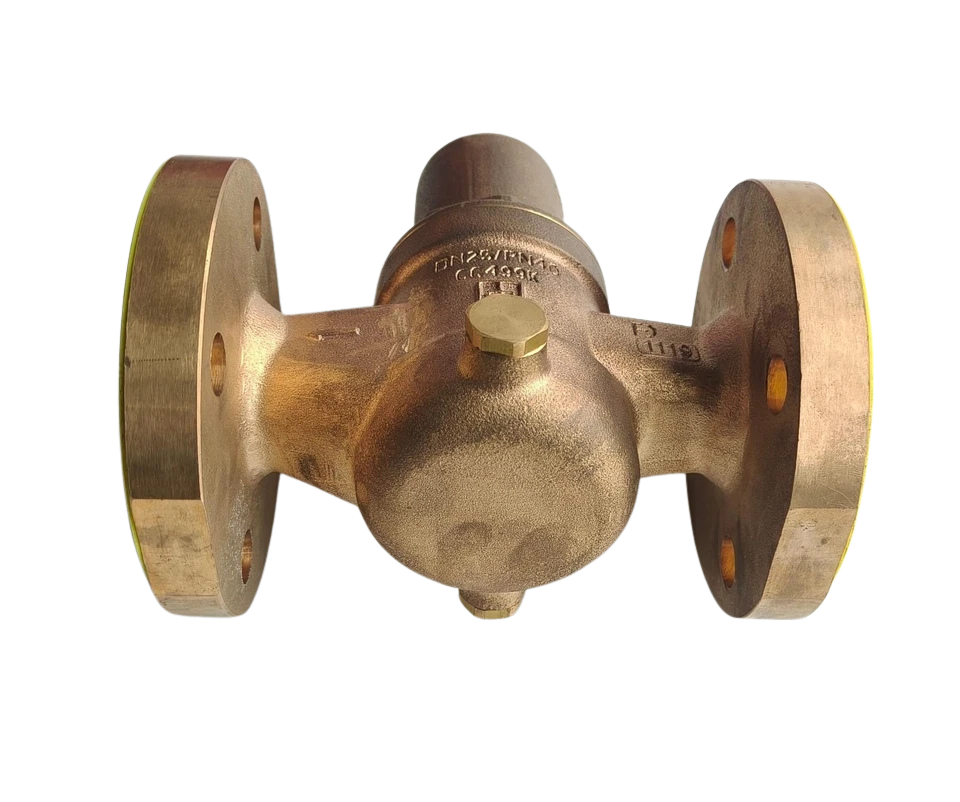

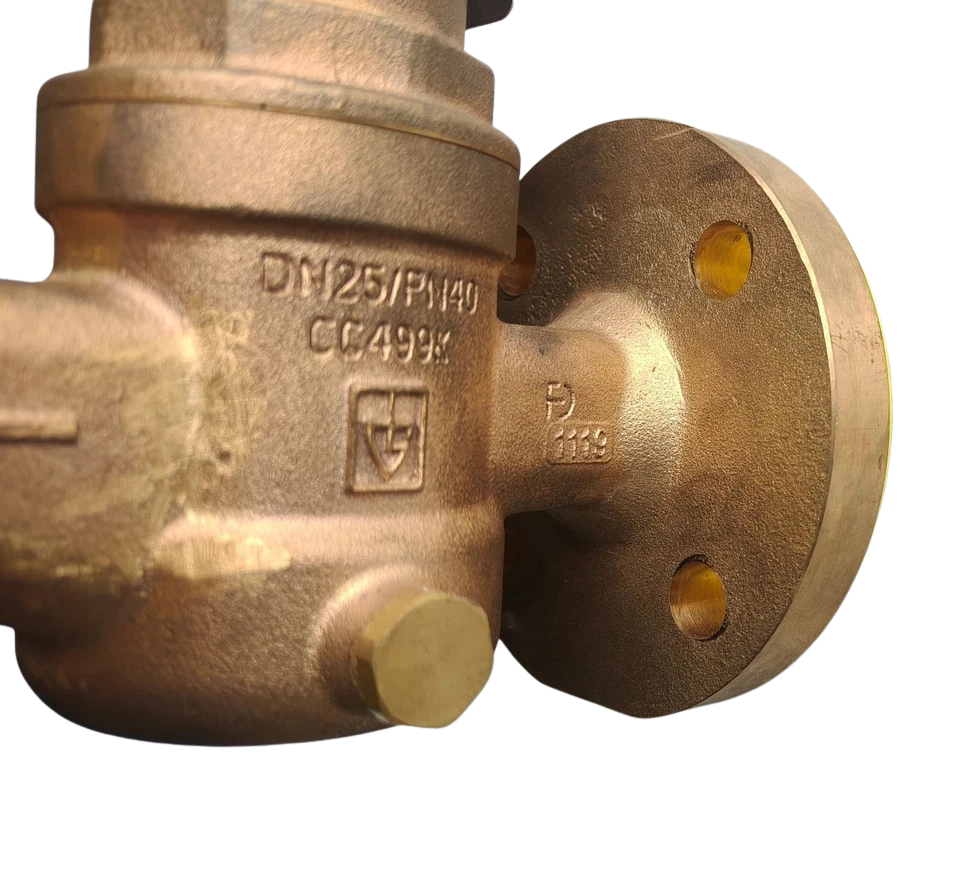

The GOETZE 682mGF0-SP is a heavy-duty, direct-acting diaphragm pressure-reducing valve engineered for harsh marine, offshore, and heavy industrial fluid circuits. Manufactured from seawater-resistant gunmetal (CC499K / CuSn5Zn5Pb2-C) with a high-integrity stainless steel trim (1.4571 / AISI 316Ti), the 682mGF0-SP provides inlet-pressure balancing to maintain a stable downstream pressure regardless of upstream fluctuations.

This model features an all-in-one drop-in functional cartridge equipped with an integrated stainless steel dirt trap (0.6 mm to 0.75 mm mesh size), allowing complete maintenance, cleaning, or seat renewal in situ without breaking the pipeline flange connections.

Model Details:

• Manufacturer / Brand: GOETZE KG Armaturen (Germany)
• Series Designation: 682 Series

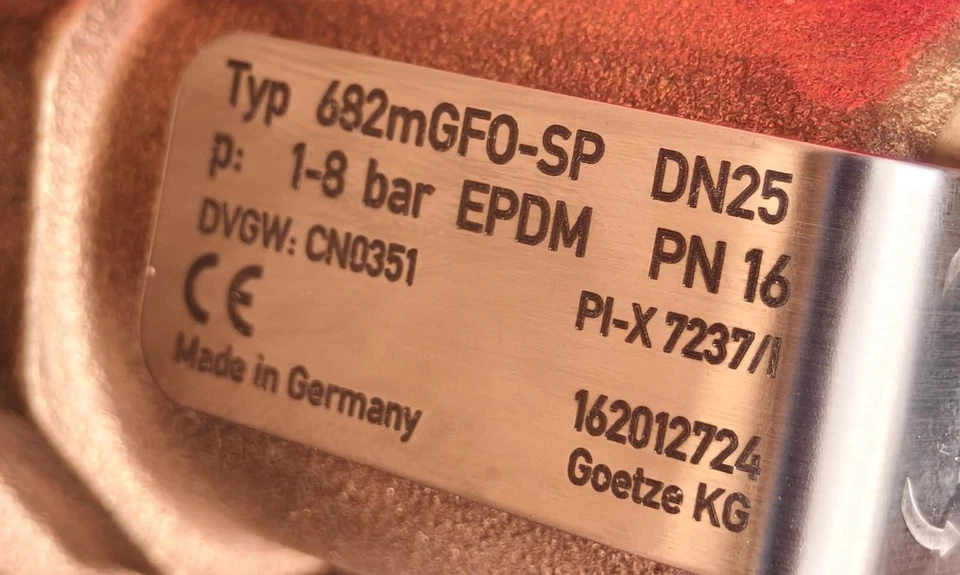

• Model Code / MPN: 682mGF0-SP (Sizes: DN15 through DN100 / 1/2″ to 4″)
• Standard Pressure Ratings: Inlet up to 16 bar / 40 bar (optional high-pressure setup); Outlet range: 1.0 to 8.0 bar standard (custom springs for 0.5–2.0 bar and 5.0–15.0 bar)
• Pressure Gauge Port Allocation: Dual integrated G 1/4″ BSP female ports (DN15–DN50: 2x outlet pressure tapings; DN65–DN100: 1x inlet and 1x outlet port).

Key Engineering Features

1. Balanced Cartridge Architecture: Features an inlet pressure compensation diaphragm to ensure that upstream line pressure swings do not perturb the calibrated downstream setpoint.
2. Corrosion-Proof Wet Parts: Cast Gunmetal CC499K housing paired with stainless steel 1.4571 spindle/spring internals prevents de-zincification in saline, brackish, and chlorinated potable water loops.
3. Modular Clean-in-Place Maintenance: The pre-assembled control cartridge and stainless steel mesh screen unthread vertically from the bonnet, reducing engine-room downtime by over 70% during periodic surveys.
4. Dual Gauge Monitoring Allocations: Factory-machined G 1/4″ NPT/BSP gauge tapings allow direct mounting of localized upstream/downstream glycerine-filled manometers without tapping the pipeline.
5. Elastomer Flexibility: Standard EPDM diaphragm and seals rated from -20°C to +120°C (certified for potable water acc. to DIN 1988 / DVGW) with optional high-chemical/oil-resistant FKM configurations.

Part Number Cross-References & Ordering Options

• GOETZE Base MPNs: 682mGF0-SP-DN15, 682mGF0-SP-DN20, 682mGF0-SP-DN25, 682mGF0-SP-DN32, 682mGF0-SP-DN40, 682mGF0-SP-DN50, 682mGF0-SP-DN65, 682mGF0-SP-DN80, 682mGF0-SP-DN100
• IMPA Marine Store Guide References: IMPA 756601, IMPA 756602, IMPA 756603, IMPA 756604, IMPA 756605, IMPA 756606
• ISSA Maritime Catalog Codes: ISSA 40.150.01 through 40.150.15

Applications & Deployment Environments

• Shipboard Domestic & Drinking Water Systems: Precise pressure attenuation after hydrophore tanks preventing water-hammer and pipe bursting across accommodation decks.
• Engine Room Compressed Air Reduction: Stepping down medium/high-pressure starting air reserves (30–40 bar) to control/service air pressures (6–8 bar) for pneumatic actuators.
• Inert Gas & Nitrogen Blanketing Systems: Precision regulation for cargo tank purge and blanketing lines on product/chemical carriers.
• Firefighting & Deluge Sprinkler Systems: Main feeder line pressure drop control for localized water mist and sprinkler sections.
• Industrial Cooling Loops: Plant process water, heat exchanger supply lines, and industrial chilling utilities.

Upstream Dirt Trap Maintenance

While the 682mGF0-SP integrates a 0.6–0.75 mm stainless steel filter screen inside the cartridge, severe rust scales from aging carbon steel pipework will quickly choke the internal strainer. Always mount a dedicated coarse Y-strainer (GOETZE Series 685 / 2183 or equivalent 250 µm unit) 5 to 10 pipe diameters upstream.

Commissioning & Pressure Calibration

• Isolate the upstream and downstream shut-off valves.
• Crack open the upstream valve slowly to prevent hydraulic shock on the newly seated diaphragm.
• Unscrew the bonnet adjustment bolt to fully de-tension the spring.
• Mount calibrated glycerine test gauges to the G 1/4″ tapped ports on the valve body.
• Slowly rotate the top adjusting spindle clockwise to compress the spring until the downstream gauge aligns with the desired setpoint under zero-flow (static) conditions.
• Open downstream process valves to establish operating flow and check dynamic drop (droop). Fine-tune by 1/4 turns to stabilize.

Frequently Asked Questions

How do I set and adjust the downstream outlet pressure on the GOETZE 682mGF0-SP?

To adjust the outlet pressure, loosen the counter-nut on the spring bonnet. Turning the central adjustment screw clockwise compresses the internal set spring, which raises the downstream pressure Turning it counter-clockwise relaxes the spring, lowering the downstream pressure. Always verify the reading on a downstream pressure gauge mounted to the integrated G 1/4″ port while water is flowing.

Can the GOETZE 682mGF0-SP handle seawater and aggressive brine?

The 682mGF0-SP features a high-purity Gunmetal CC499K (RG5) casting, which provides superior resistance to dezincification and uniform marine corrosion compared to standard brass or cast iron. For direct raw continuous high-velocity seawater lines, ensure periodic checks for galvanic couples, or specify the 682 series in full duplex / 316Ti stainless steel construction if required by survey class.

Why is pressure creeping downstream under static (no-flow) conditions?

Downstream pressure creep indicates foreign particulates (such as pipe slag, rust particles, or teflon tape remnants) have lodged between the sealing disc and the cartridge seat, or the EPDM diaphragm has ruptured. Due to the modular design of the 682mGF0-SP, you can depressurize the line, remove the bonnet, pull the cartridge unit, clean the integrated 0.6 mm screen, and inspect the seat without unbolting the valve flanges.

Can the valve be installed in vertical pipe orientations?

Yes. The GOETZE 682mGF0-SP can be installed in both horizontal and vertical piping runs. However, in horizontal pipelines, installing the valve with the spring bonnet pointing upright is recommended to facilitate cartridge removal and prevent suspended pipeline sludge from settling inside the spring chamber.
