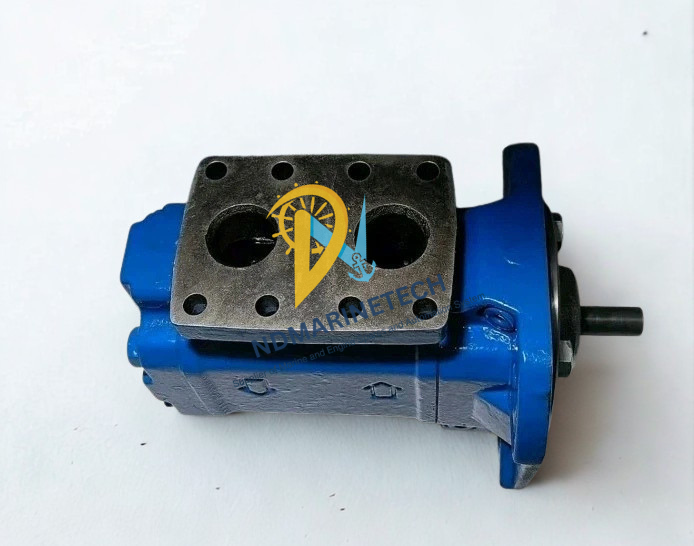

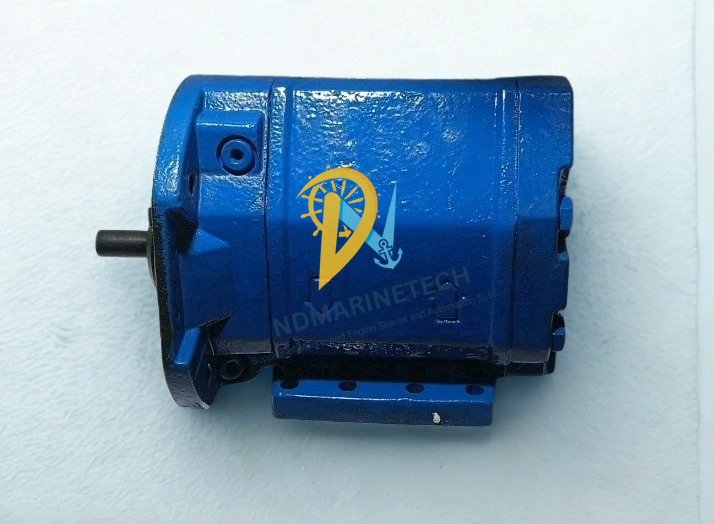

IMO ACE 025N3 NTBP Triple Screw Pump
- Brand: IMO AB (Colfax / Circor)
- Model: ACE 025N3 NTBP
- MPN: ACE025N3NTBP

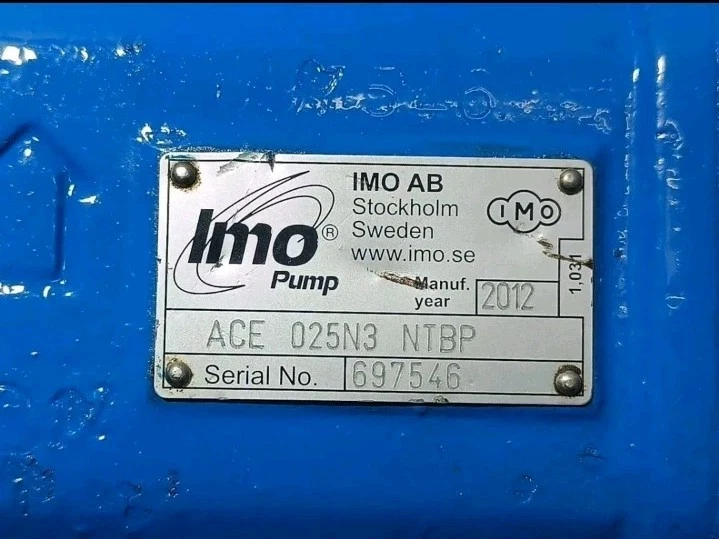

- Manufacturing Year: 2012
- Pump Type: Triple Screw
- Condition: Refurbished
IMO Pump ACE 025N3 NTBP – High-Performance Triple Screw Pump
The IMO ACE 025N3 NTBP is a high-efficiency positive displacement triple screw pump that moves fluids. This unit, made in 2012, is part of the third generation (N3) of the ACE series. It is best for low-pressure uses. It is mostly used to move and circulate hydraulic fluids, fuel oils, and lubricating oils.
The best thing about it is that it delivers oil without making any noise or pulsating, which keeps the oil from getting air in it. This is particularly important for protecting bearings and purifiers downstream. The NTBP designation stands for a certain type of seal and bearing that is made to last through the temperature changes that happen in maritime fuel modules.
Specifications
| Feature | Specification |
|---|---|
| Flow Rate | Up to 45 L/min (Depending on RPM/Viscosity) |
| Max Pressure | 16 Bar (1.6 MPa) |
| Viscosity Range | 1.4 – 1500 cSt |
| Max Fluid Temp | 155°C (311°F) |
| Inlet/Outlet Size | G 1″ (Standard ISO 228/1) |
| Rotor Diameter | 25 mm |
| Seal Type | Shaft Seal (T-Seal) |
