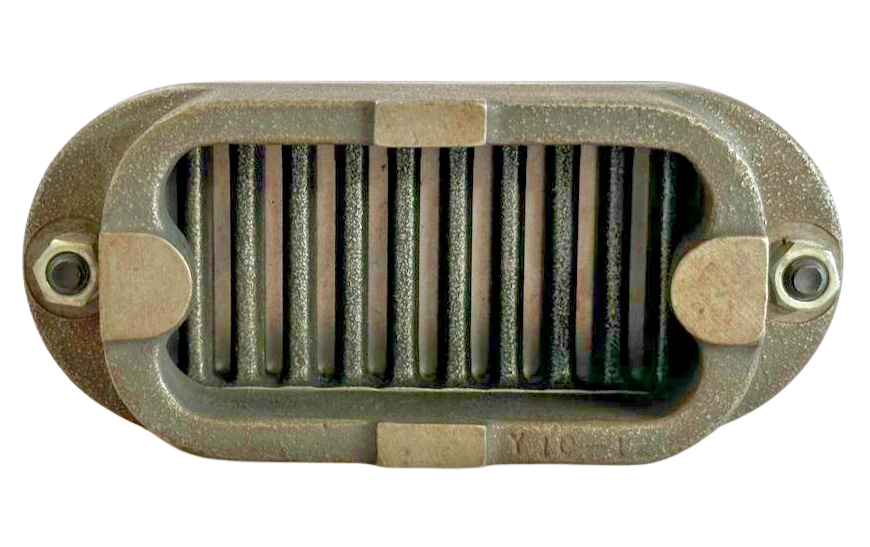

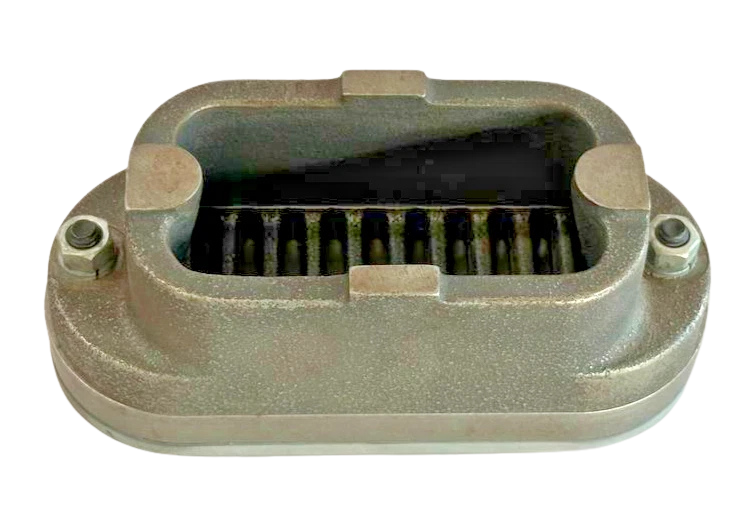

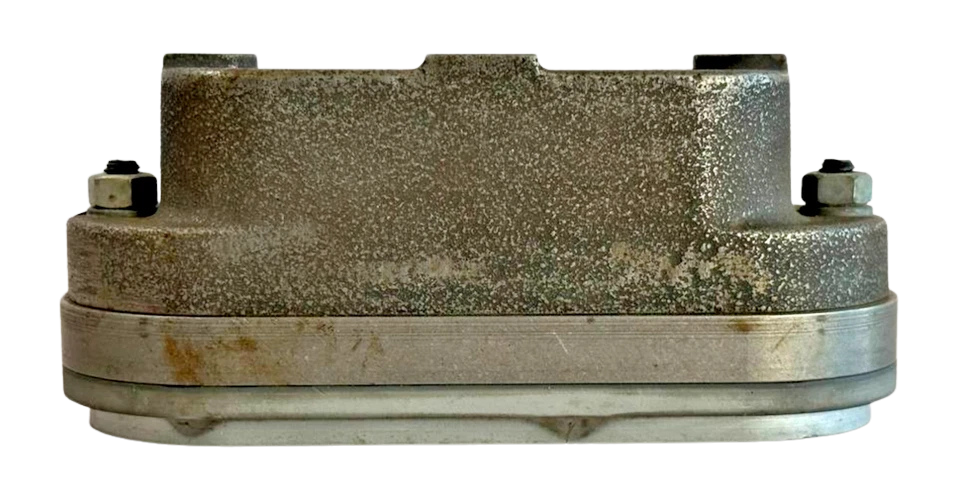

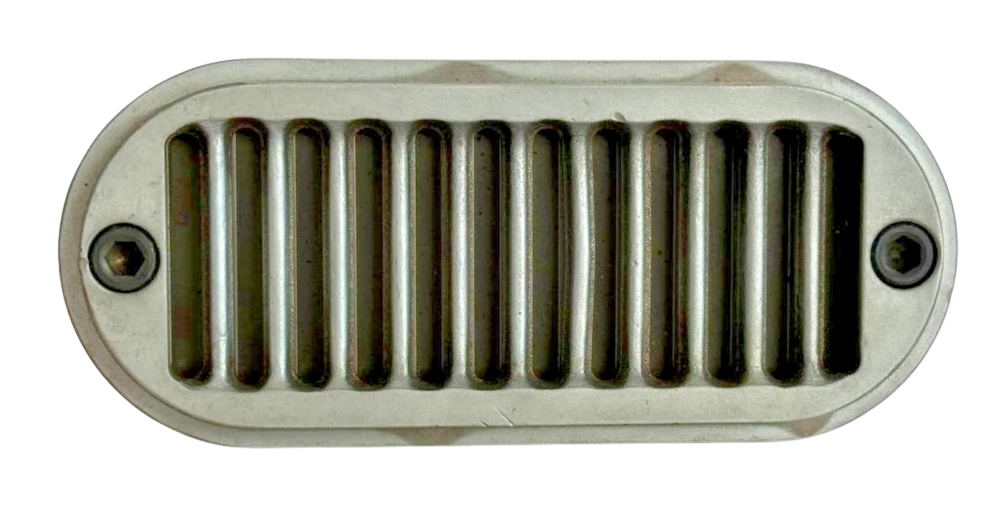

Industrial Suction Valve VAL 0190

The Industrial Suction Valve VAL 0190 is a precision-manufactured compressor and pump suction valve assembly designed to regulate fluid and gas intake under high-stress operating thresholds. Built specifically for heavy industrial and marine engine applications, this assembly features an optimized flow path that minimizes pressure drop and eliminates backflow leakage during the compression cycle. Crafted from high-tensile, corrosion-resistant metallurgy, the VAL 0190 guarantees structural longevity and operational reliability in continuous-duty environments.

Model Details

• Manufacturer Part Number (MPN): VAL 0190
• Assembly Type: Complete Suction Valve Assembly (Includes valve seat, guard, sealing elements, and dampening springs)
• Configuration: Direct drop-in replacement module for standard reciprocating compressor and heavy fluid pump heads.

Key Features

1. Zero-Leakage Sealing Architecture: Precision-lapped valve plates mate tightly against the seat to eliminate media slippage and boost volumetric efficiency.
2. High-Temperature Resistance: Engineered with specialized alloy springs and sealing faces capable of maintaining elasticity and structural integrity up to 250°C.
3. Optimized Flow Dynamics: Streamlined internal porting significantly lowers flow resistance, reducing overall compressor power consumption.
4. Robust Marine-Grade Metallurgy: Constructed to resist pitting and chemical degradation from moisture-laden air, synthetic lubricants, and industrial condensates.
5. Modular Maintenance Design: Fully disassemblable structure allows for fast field overhauls, reed replacements, and cleaning without replacing the entire housing.

Applications

• Multi-stage industrial air and gas reciprocating compressors
• Marine auxiliary diesel engine starting air compressors
• Heavy-duty industrial water and chemical transfer pumps
• Petrochemical refinery gas booster skids
• Heavy manufacturing pneumatic power plants

Compatibility & Equipment Models

• Standard industrial reciprocating compressor blocks utilizing 0190-series port footprints
• Marine auxiliary air systems requiring high-cycle endurance intake valving
• Interchangeable with select OEM compressor setups requiring a 40-bar rating valve cartridge

Part Number Cross-References

• OEM Cross-Ref 1: VAL-0190-COMP
• Alternate Part ID: CPV-0190-SUC
• Industry Standard Code: 0190-SUC-VAL-ASSY

Marine Engineer Expert’s Guide

• Installation Precautions: Always inspect the cylinder head mating surface for carbon deposits or pitting prior to seating the VAL 0190 assembly. Ensure the copper or composite gasket ring is fresh; reusing crushed gaskets leads to bypass leakage and localized overheating.
• Torque Sequence: When tightening the valve cage holding bolts, follow a strict criss-cross torque pattern matching the manufacturer’s specified foot-pounds. Over-torquing can distort the valve body, binding the internal plates and causing premature fatigue fracture.
• Maintenance Pro-Tip: During routine overhauls (typically every 4,000 running hours), perform a chalk test on the valve plate to verify proper seating contact. Any irregular wear patterns indicate a warped valve guard or uneven spring tension requiring immediate component replacement.

Frequently Asked Questions

What types of compressors are compatible with the VAL 0190 suction valve?

The VAL 0190 is engineered primarily for industrial reciprocating piston compressors and process gas pumps utilizing standard drop-in pocket valve configurations matching its dimensional envelope.

Is the VAL 0190 supplied as a complete assembly or bare components?

This product is supplied as a complete factory-assembled unit, including the valve seat, guard, springs, and sealing plates, fully tensioned and ready for installation.

Are material test certificates included with the shipment?

Yes, material certificates of conformity and heat-code traceability documentation can be provided upon request at the time of order placement.

Can this valve handle aggressive or wet gas environments?

Yes, the standard configuration utilizes high-grade stainless steel components that offer exceptional resistance to corrosive process gases and moisture-laden compressed air environments.
