JRC GX CMZ-1140 Antenna Interface Module

JRC GX CMZ-1140 Antenna Interface Module (AIM)

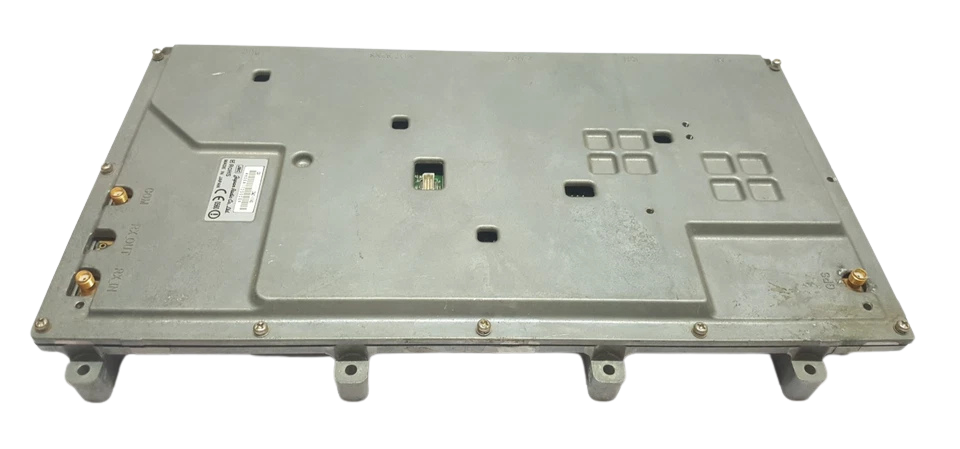

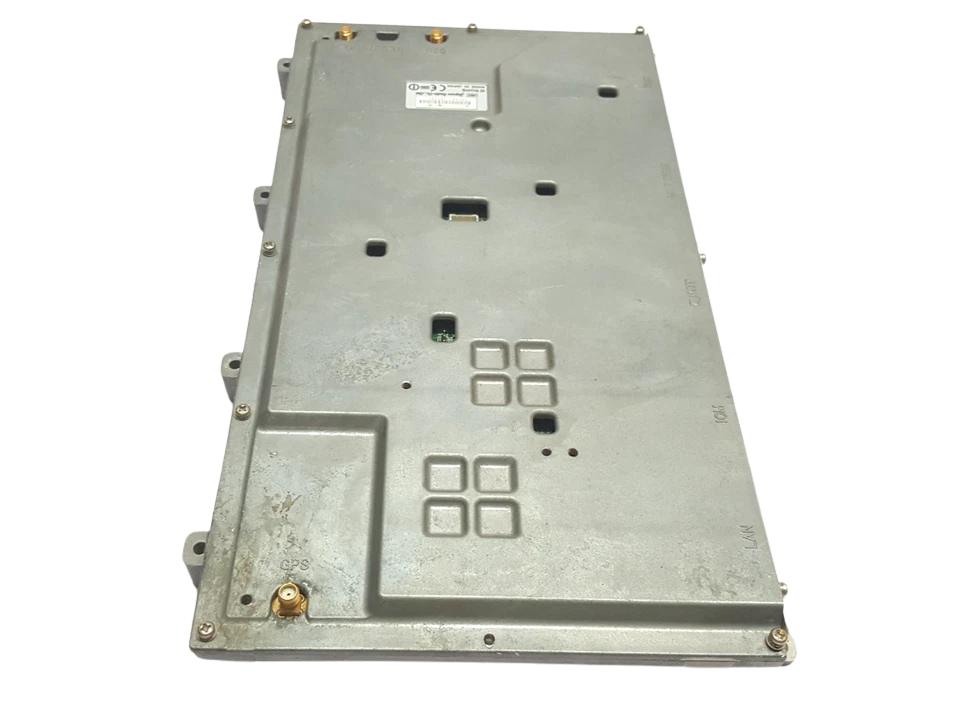

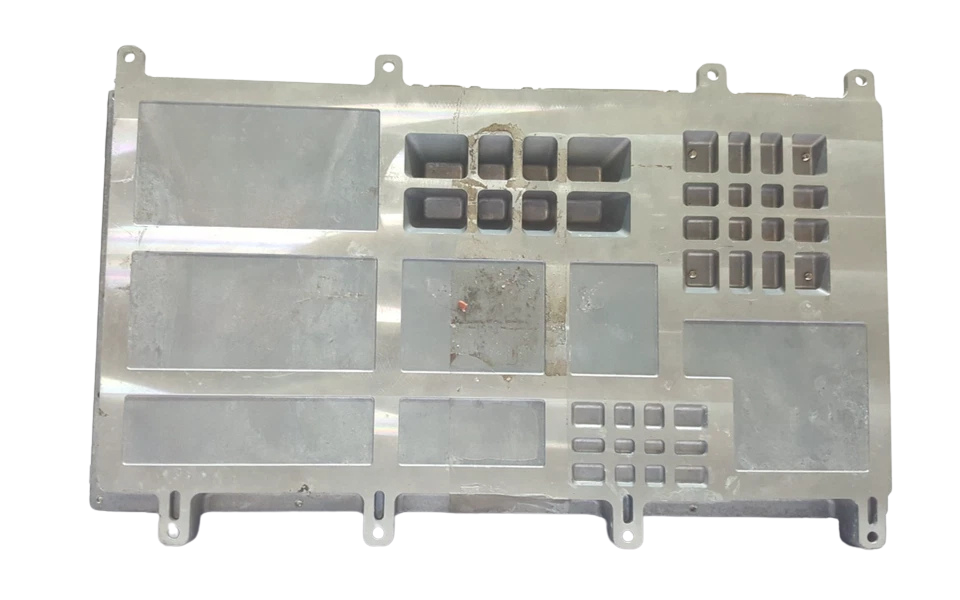

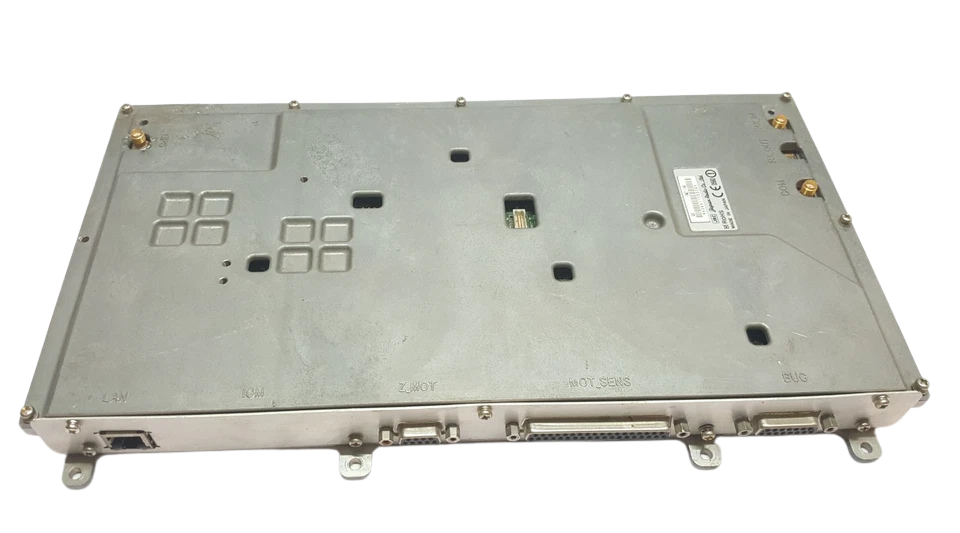

The JRC GX CMZ-1140 (Part Ref: CMZ1140-1) is an Above Deck Equipment (ADE) Antenna Interface Module (AIM) engineered specifically for maritime satellite communication earth stations. Designed for operation inside the radome pedestal assembly of the JRC JUE-60GX Inmarsat Global Xpress (GX) terminal, the CMZ-1140 acts as the central sub-system controller and telemetry interface.

The module aggregates serial motor command lines, encoder feedback loops, limit-switch sensor triggers, RF down-converter/up-converter power conditioning, and reference control signaling. Built with high-grade marine conformal coating to withstand thermal cycling, continuous vessel vibration, and electro-mechanical stress, the CMZ-1140 guarantees high-precision target tracking across 3-axis gyro-stabilized satcom platforms.

Model Details

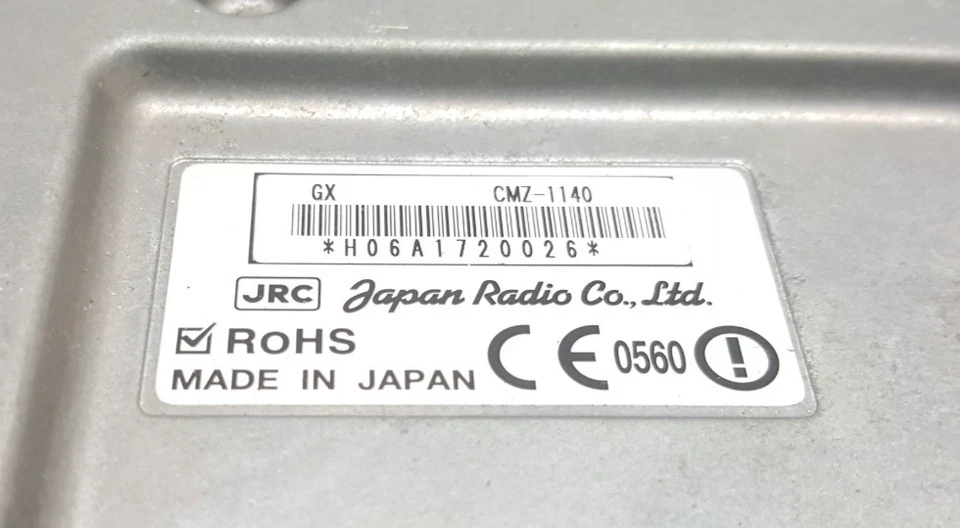

• Manufacturer: Japan Radio Co., Ltd. (JRC)
• Model: GX CMZ-1140
• Manufacturer Part Number (MPN): CMZ-1140 / CMZ1140-1
• Equipment Classification: Antenna Interface Module (AIM) / Pedestal Controller PCB Sub-assembly
• Target System: JRC JUE-60GX Maritime Satellite Earth Station (Inmarsat Global Xpress)

Technical Details

Compatible Core Equipment

• Satellite Terminal: JRC JUE-60GX Marine Satellite Communication System
• Motion Sensor Unit: JRC CHG-233 / CHG233-1 Sensor Unit
• Mechanical Stops: Limit Switch 5TZAH00545 series
• RF Sub-Assemblies: JRC JUE-60GX Block Up Converter (BUC) & Ka-band Low-Noise Block (LNB)
• Baseband Units: JRC Below Deck Equipment (BDE) / Central Terminal Controller

Part Number Cross-References

• JRC CMZ-1140
• JRC CMZ1140-1
• JRC AIM CMZ-1140
• JRC GX AIM Board Assembly

Features

1. Integrated ADE Servo Coordination: Manages real-time 3-axis tracking loop dynamics, eliminating satellite signal acquisition drift caused by severe vessel rolling, pitching, and yawing.
2. High-Reliability Sensor Interlock: Direct hardware-level inputs for the JRC CHG-233 sensor pack and physical limit switches to prevent motor over-travel and mechanical damage to internal cable wraps.
3. Industrial Noise Immunity: Differential RS-422/RS-485 balanced transmission lines protected by bidirectional TVS diodes to suppress transients and EMI from nearby radar sweeps.
4. Marine-Toughened Electronics: Industrial wide-temperature solid state capacitors and moisture-barrier conformal coatings to prevent dendritic dendrite growth and electrolytic corrosion in salt-fog environments.
5. Plug-and-Play Field Replacement: Standardized factory terminal blocks and pre-mapped pin assignments ensure minimal vessel downtime during offshore service calls.

Applications

• Commercial Merchant Shipping: Bulk carriers, oil/chemical tankers, and container vessels utilizing JRC JUE-60GX satellite terminals for commercial operations and crew welfare connectivity.
• Offshore Energy Fleet: Dynamic Positioning (DP) drilling vessels, anchor handling tugs (AHTS), and pipe-laying barges needing uninterrupted Ka-band VSAT link stability.
• Specialized Vessels: Deep-sea research ships, fishing trawlers, and offshore support vessels operating in high-vibration maritime sectors.

Frequently Asked Questions

What is the primary role of the JRC GX CMZ-1140 in a JUE-60GX installation?

The CMZ-1140 serves as the Antenna Interface Module (AIM) inside the JUE-60GX Above Deck Equipment (ADE). It acts as the local micro-controller that processes sensor signals from the CHG-233 rate sensor and limit switches, interprets tracking commands from the below-deck unit, and manages pedestal motor drives.

Can the CMZ-1140 board be hot-swapped while the system is powered on?

No. Never disconnect or reconnect the CMZ-1140 while the JUE-60GX power supply or BDE modem is active. High DC currents and inductive loads from the antenna drive motors can damage the board’s internal logic and serial driver transceivers. Always isolate the circuit breaker before servicing.

How do I confirm if my existing CMZ-1140 module is defective?

Common symptoms of a failing CMZ-1140 include ADE communication timeouts on the terminal control display, perpetual hunting/sweeping without satellite acquisition, failure to register antenna elevation/azimuth limits, and absent DC supply voltages on motor drive headers.

Does the CMZ-1140 require firmware flashing upon installation?

The CMZ-1140 module contains factory onboard firmware for low-level pedestal management. However, depending on the software version of your below-deck terminal (BDE), the terminal software may push an updated FPGA/microcontroller image during its initial boot sequence. Always verify compatibility with your JUE-60GX firmware baseline.
