Russian Marine Chronometer CCCP 6MX Kirova Dial 5594 Ships Fusee Clock

Russian Marine Chronometer CCCP Ships Fusee Clock – Soviet 1MChZ Kirova (Dial Serial: 5594 / Caliber 6MX)

The Soviet 6MX (6МХ) mechanical marine chronometer represents the pinnacle of state-regulated nautical timekeeping produced behind the Iron Curtain. Manufactured by the First Moscow Watch Factory (1MChZ / Poljot, historically bearing the Kirova designation), this instrument served as primary dead-reckoning and celestial navigation chronometers aboard Soviet naval vessels, merchant fleet cargo liners, and polar exploration ships.

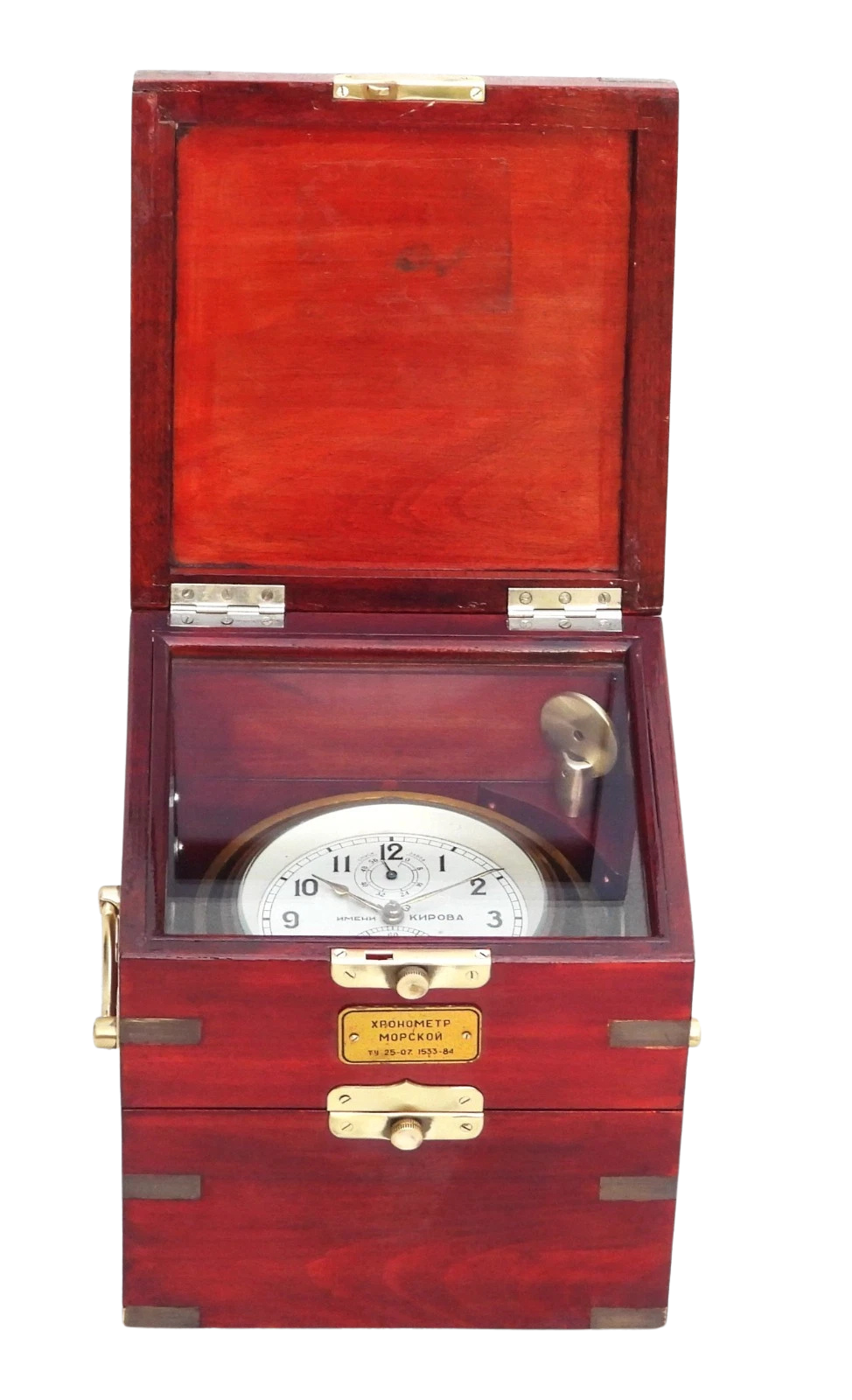

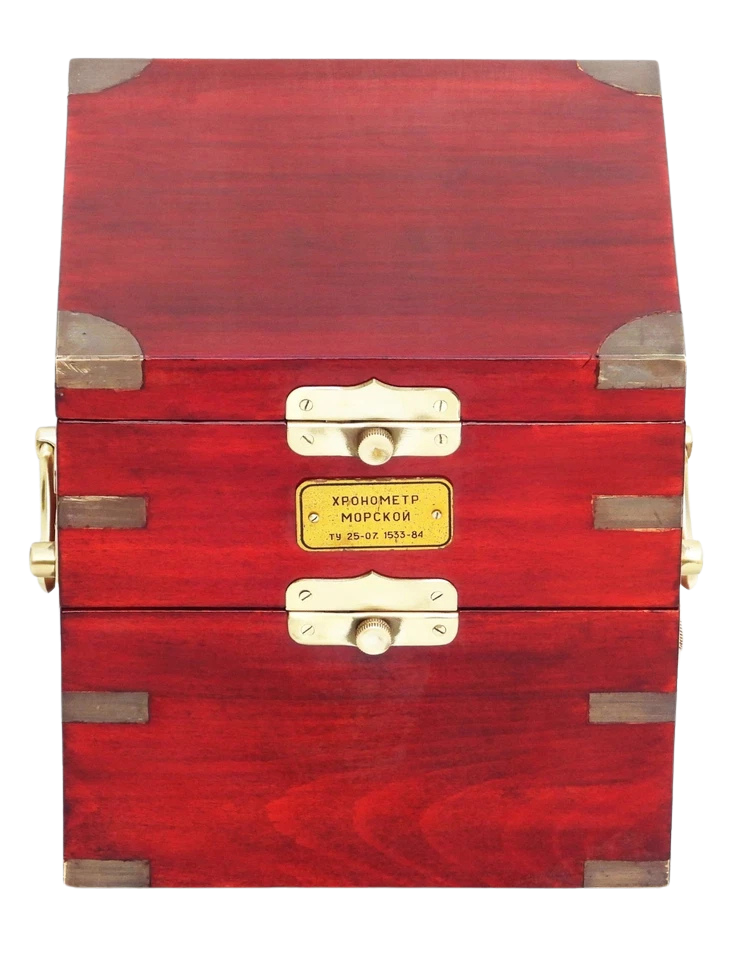

Unit Serial No. 5594 is preserved in Very Good Condition (VGC). Engineered to operate independent of shipboard electrical distribution systems, this instrument features a spring-driven fusee-and-chain assembly, an earnshaw-type spring detent escapement, a temperature-compensated bimetallic balance wheel with cylindrical weights, and an authentic diamond balance endstone. Mounted within a precision self-leveling two-axis brass gimbal ring housed in a traditional mortise-and-tenon three-tier varnished hardwood case, it maintains precise horizontal dial stability through high roll and pitch vessel dynamics.

Model Details

• Model Designation: Marine Chronometer Caliber 6MX / 6МХ
• Factory Codes: 1MChZ / 1-МЧЗ им. Кирова (1st Moscow Watch Factory)
• Dial Serial / Chassis Number: 5594
• Standardization References: GOST 8916-70 / TU 25-07.1352-79 (Soviet State Naval Standard for Shipboard Mechanical Chronometers)
• Part Number Cross-References:
  • NATO Codification Equivalent: Class 6645 (Time Measuring Instruments / Marine Chronometer)
  • Functional Counterparts: Thomas Mercer Survey Class, Wempe Chronometerwerke Hamburg Typ II, Hamilton Model 21 Marine Chronometer.

Technical Details

Features

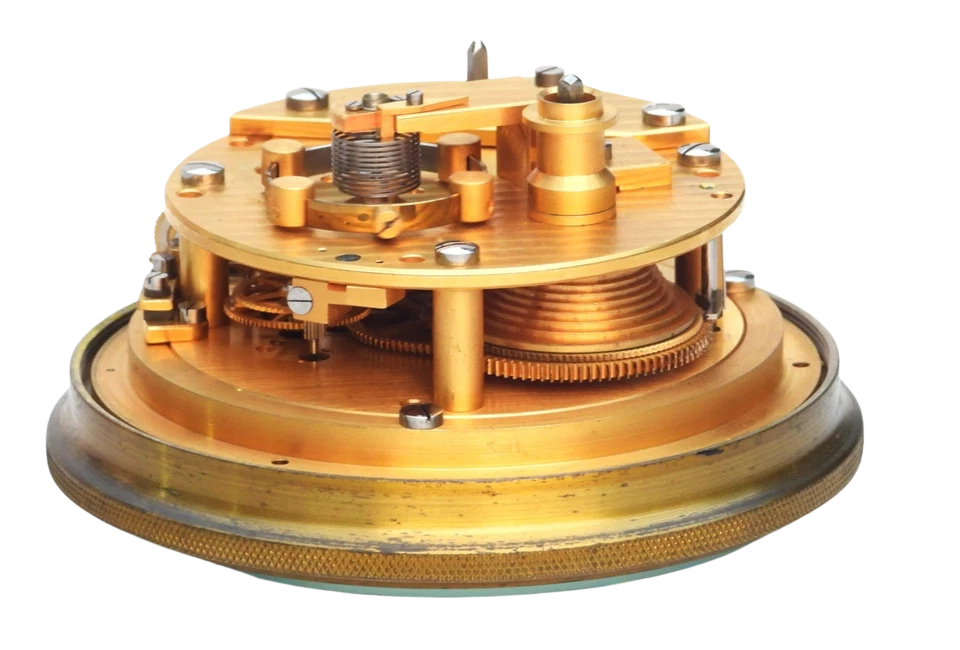

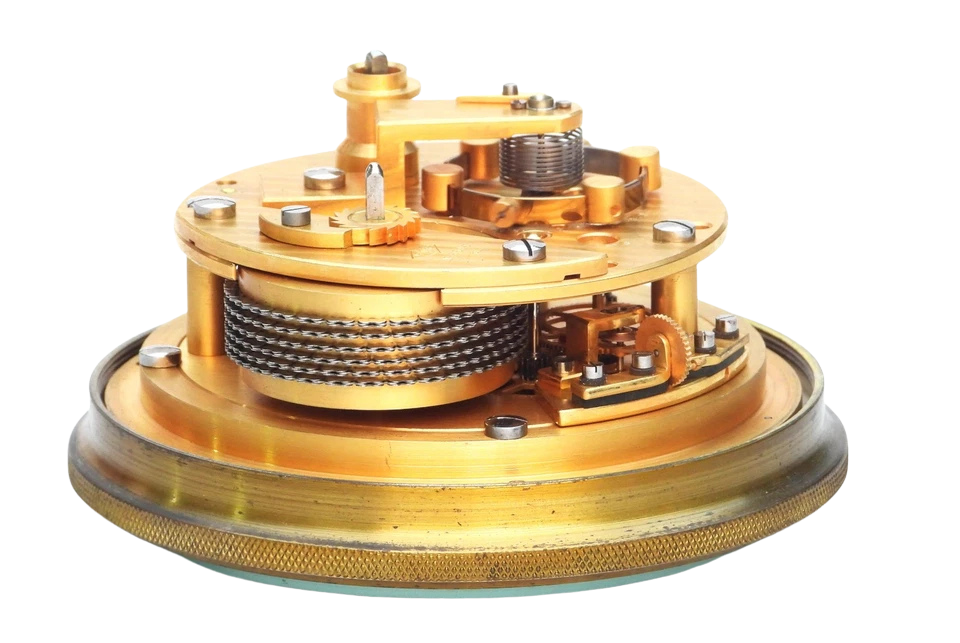

1. Linear Fusee & Chain Mainspring Regulation: Incorporates a genuine conical fusee driven by a precision chain to equalize mainspring main barrel torque drop-off, providing stable torque transfer across the full 56-hour run cycle.

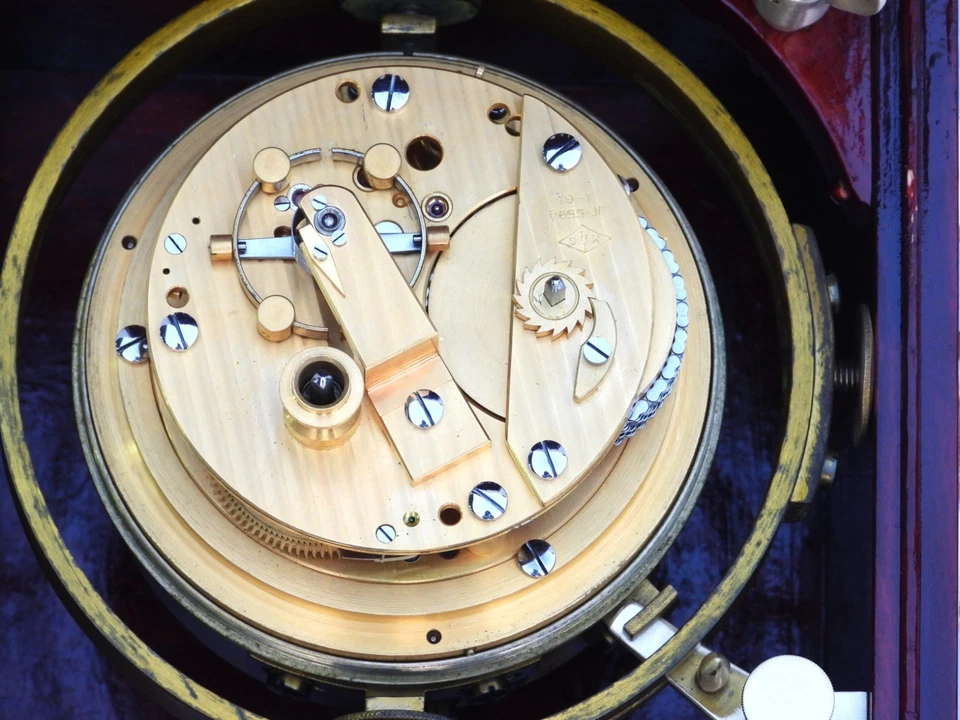

2. High-Purity Earnshaw Spring Detent Escapement: Transmits direct, low-friction impulse energy to the balance assembly once per complete oscillation, bypassing the high sliding friction of conventional lever escapements.

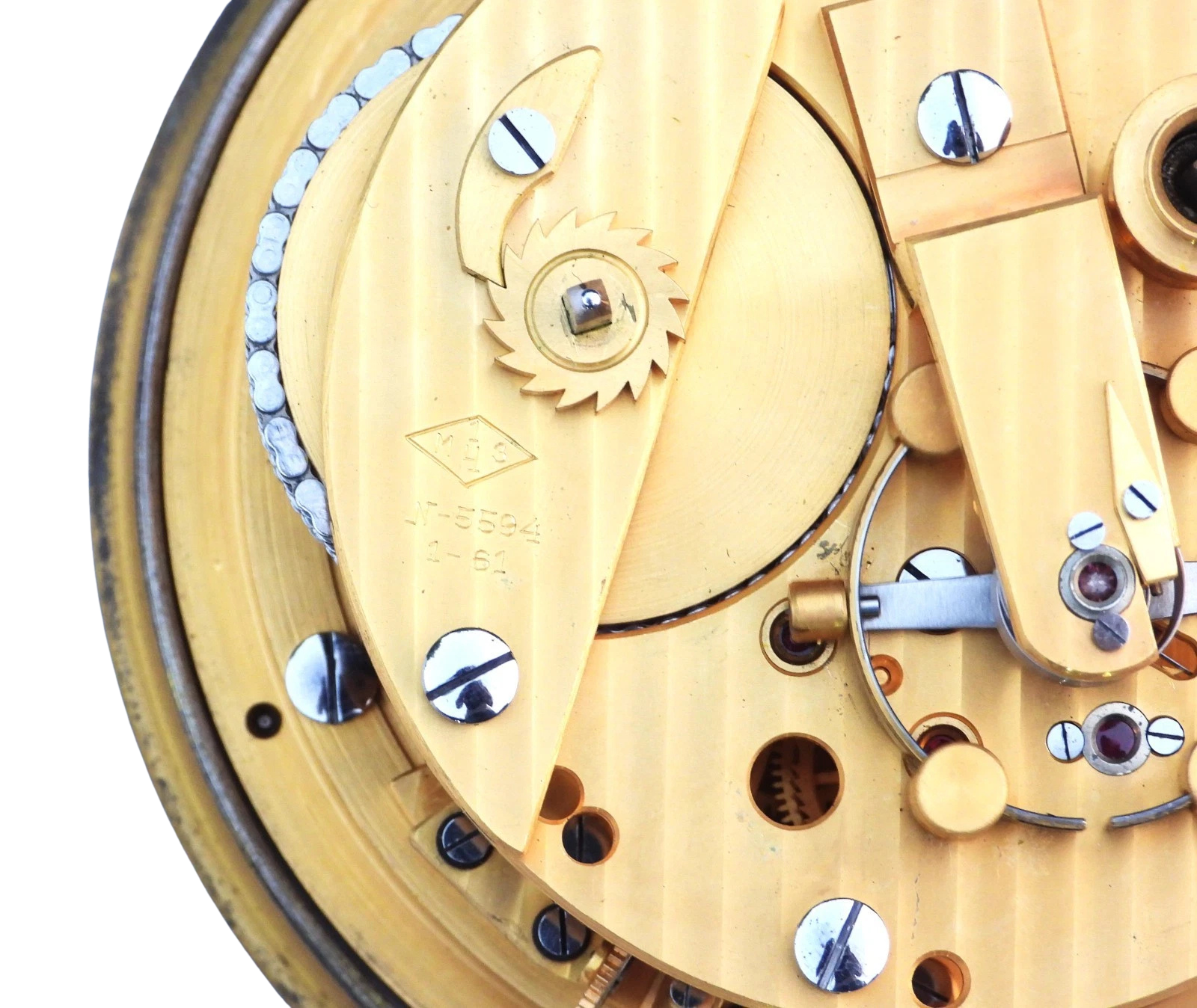

3. Natural Diamond Pivot Jewel: Fitted with an authentic single-crystal diamond capstone on the upper balance cock to virtually eliminate pivot friction and resist microscopic wear under continuous marine vibration.
4. Thermal Bimetallic Compensation Balance: Split-annulus steel-brass laminated balance rim with adjustable threaded brass and platinum-alloy timing screws prevents rate deviation caused by maritime temperature swings.

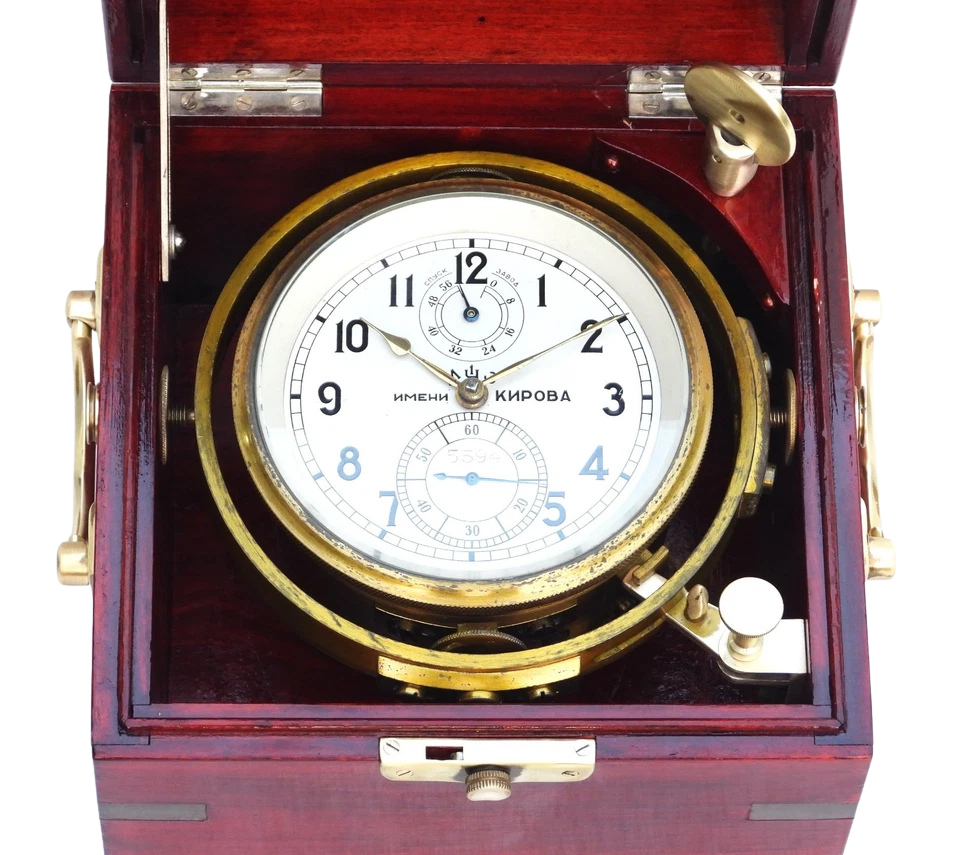

5. Full-Gimbaled Sea-Going Articulation: Precision two-axis counterweighted gimbal cradle counteracts up to 45° of vessel list, pitch, and roll, retaining a horizontal dial configuration.

Applications & Deployment Profiles

• Vessel Emergency Standby Navigation: Serves as a primary SOLAS-compliant dead-reckoning time standard during onboard electronic navigation blackout, EMP event, or complete satellite network degradation (GPS/GLONASS spoofing).
• Offshore Maritime Training Institutions: Benchmark hardware for naval academies, merchant marine bridge simulator centers, and celestial navigation practical instruction courses (sextant time-sights).
• Naval History & Horological Collections: Authentic museum-grade exhibit centerpiece representing cold war Soviet horological engineering and the 1st Moscow Watch Factory’s defense production branch.
• High-End Yacht Chart Table Installation: Functional precision accent for deep-sea expedition yachts, historic sailing vessels, and marine executive boardrooms.

Frequently Asked Questions

How accurate is the Soviet 6MX marine chronometer compared to quartz marine clocks?

While modern quartz marine clocks offer high long-term stability, a properly serviced and calibrated mechanical 6MX chronometer maintains daily variations under ±0.5 seconds per day under consistent ambient chart-room temperatures. Its spring detent escapement and conical fusee movement deliver steady mechanical torque regulation without reliance on battery power.

What is the purpose of the conical fusee assembly in this ship’s clock?

As a mechanical mainspring uncoils, its torque output gradually drops. The conical spiral fusee counteracts this by changing the effective mechanical gear radius via a micro-chain. When the spring is at full tension, the chain pulls on the smallest diameter; as tension drops, it moves to the widest diameter, delivering uniform power to the gear train.

Why does the 6MX dial have an “Up-and-Down” (0–56) indicator?

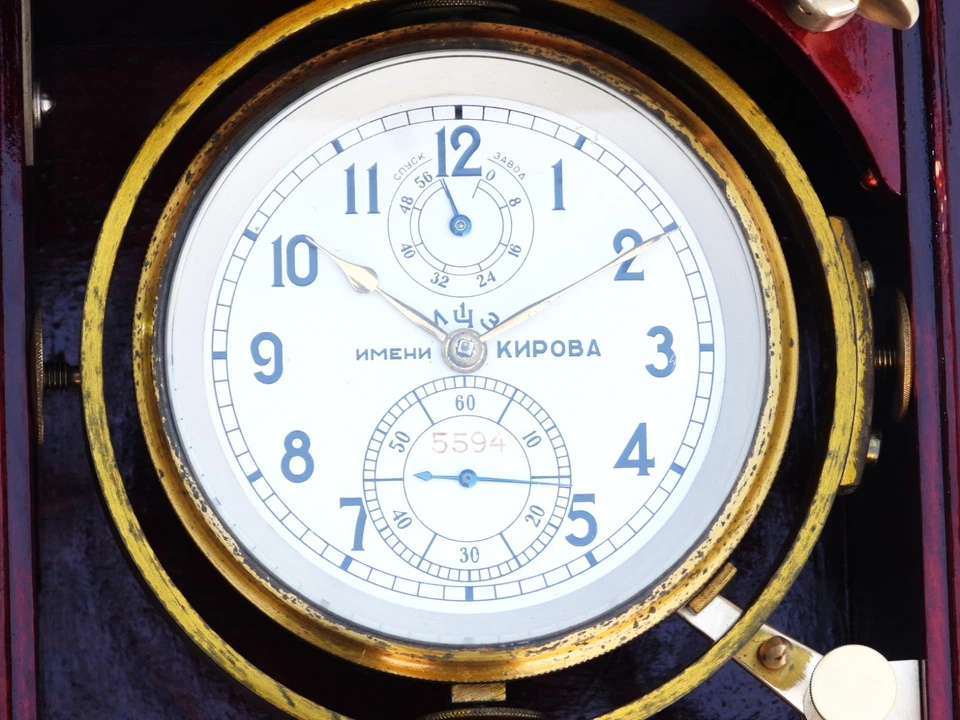

The sub-dial situated directly beneath the 12 o’clock position is a state-of-wind (power reserve) indicator. Rather than indicating hours remaining, traditional marine chronometers track “hours run since last wind.” When fully wound, the hand reads “0. If it approaches “48–56,” it alerts the navigating officer to wind the spring before isochronal drift develops.

Can this chronometer be installed on a modern active yacht or working ship?

Yes. The 6MX was built to withstand real maritime operations. Its counterweighted brass gimbal mechanism neutralizes vessel pitching and rolling to keep the movement horizontal. It operates as a verified fail-safe backup for ocean passages and sextant positioning.
