Spohn & Burkhardt VNS011EA Heavy Crane Joystick

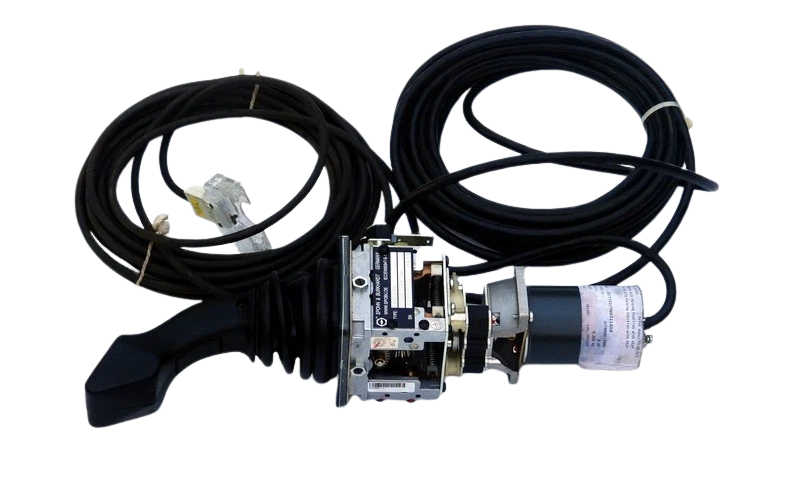

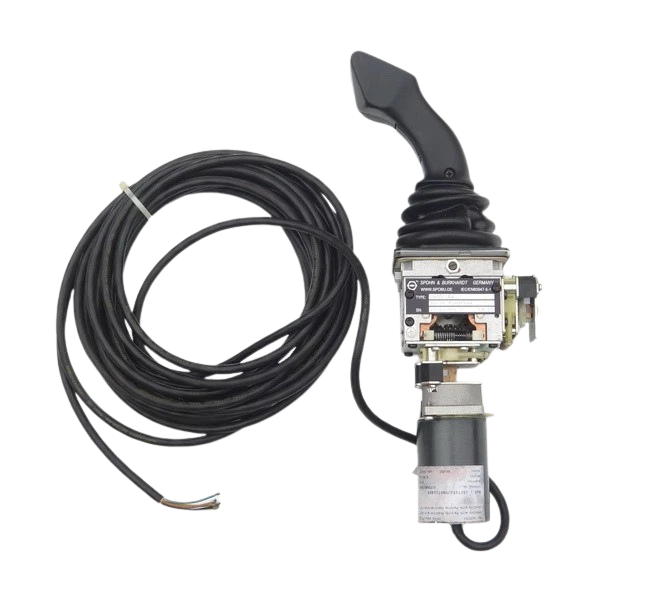

Spohn & Burkhardt Germany Type VNS011EA Heavy Crane Metal Joystick (9.2-Tonne Application)

The Spohn & Burkhardt Type VNS011EA is an ultra-rugged, dual-axis master controller engineered specifically for harsh marine, offshore, and heavy port handling machinery. Cast from high-integrity aluminum alloys and fitted with hardened spur gears, the VNS0 platform is built to withstand mechanical abuse, extreme vibration profiles, saline environments, and ambient operating extremes ranging from -40°C to +85°C.

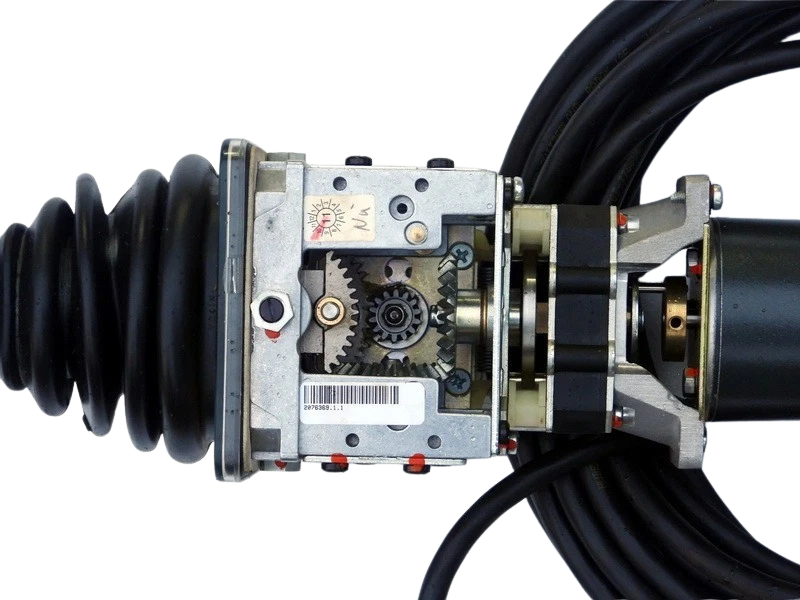

Optimized for 9.2-Tonne SWL (Safe Working Load) marine deck cranes, grab cranes, and auxiliary harbor hoists, the VNS011EA translates operator commands into proportional analog signals or stepped switching sequences with micro-radian precision. Internally, the unit accommodates precision conductive plastic/cermet potentiometers paired with stepped cam disc assemblies that drive double contact microswitches. The heavy-duty cast chassis prevents torsional flex, eliminating mechanical hysteresis during critical marine cargo luffing, slewing, and hoisting maneuvers.

Model Details

• Manufacturer: Spohn & Burkhardt GmbH & Co. KG (Blaubeuren, Germany)
• Base Series: VNS0 (Voll-Nockenschalter Standard 0 / Heavy-Duty Allrounder)
• Model Code: VNS011EA (Common variant: VNS011EAR with Spring Return)

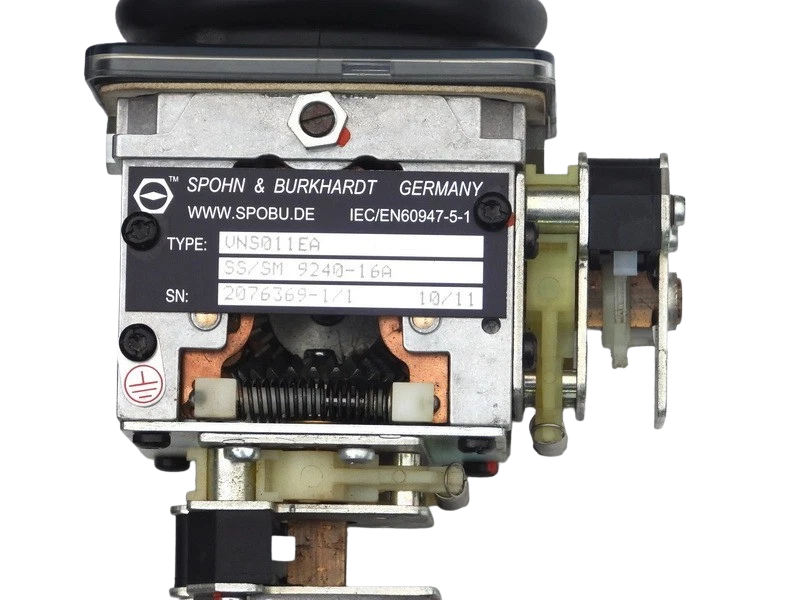

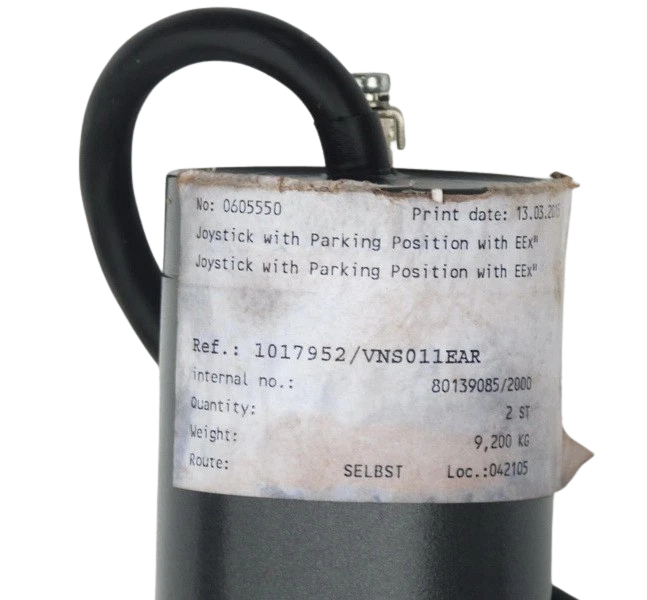

• Manufacturer Part Number (MPN): VNS011EA / VNS011EAR-8P1.8P1
• Commission / Job Reference Codes: 2031686-2, 2031686.2.1, SM 7206-L, PW 70

Features

1. Die-Cast Aluminum Mechanical Chassis: Torsion-resistant housing paired with machined brass and hardened steel gearing provides shock resistance exceeding 50g, maintaining axis integrity under continuous vessel motion.
2. Modular Multi-Contact Cam Switching: Houses up to 12 double-contact blocks per axis with silver-nickel or hard-gold flashed contacts to resist salt fog sulfidation and low-current oxidation.
3. Dual-Axis Symmetrical Limiting Gate: Precise mechanical guide channels allow independent or simultaneous X/Y quadrant transitions (slewing/luffing/hoisting) without cross-axis signal crosstalk.
4. Integrated Precision Feedback: Coupled with dual-track 5 kΩ cermet/conductive plastic potentiometers and optional optical encoders for closed-loop inverter drive (VFD) and PLC crane management systems.
5. Sub-Panel Maritime Gasketing (IP65 Above Flange): High-grade ozone, UV, and oil-resistant chloroprene boot and continuous O-ring flange seal prevents seawater ingress into cabin consoles and open deck stands.

Compatibility

• Marine Deck Cranes: MacGregor (GL, GLB, HCRC series 9.2T–36T), Liebherr (CBW, CBB, RL offshore series), NMF (Neuenfelder Maschinenfabrik), TTS Marine, Kenz Figee, and IHI Marine deck cargo cranes.
• Harbor & Port Handling: Liebherr LHM mobile harbor cranes, Gottwald / Konecranes Gottwald port mobile hoists, ZPMC STS and RTG gantry consoles.
• Industrial EOT & Process Cranes: Demag, Stahl CraneSystems, and GH Cranes ladle/billet and container yard cranes.
• Winch Systems: Rolls-Royce Marine, Brattvaag, Hatlapa, and Ulstein hydraulic/electric anchor handling and tugger winches.

Part Number Cross-References

• Spohn & Burkhardt: VNS011EA, VNS011EAR, VNS0-11-EA, VNS0-11-EA-R-G41, VNS011EAP
• OEM Commission & Internal Serial Codes: 2031686-2, 2031686-2-1, 1700Z04-00:30030
• Functional Equivalents (Panel Adapters May Apply): Gessmann V6/VV6 series, ABB CraneMaster CS300, Siemens 3SB heavy-duty crane controllers.

Applications

• Shipboard Cargo Handling: Main hoist, luffing jib, and slewing control on 9.2-Tonne provision and container feeder deck cranes.
• Offshore Rig & Supply Vessel Winches: Motion-compensated winches, umbilical reel controls, and mooring capstans.
• Foundry & Metallurgy: Steel mill ladle cranes, magnet handling cranes, and scrap yard scrap-handling gantries.
• Bulk Material Terminals: Grab unloaders, ship-loader hoists, and continuous bucket excavators.

Frequently Asked Questions

What is the primary difference between a Spohn & Burkhardt VNS0 and NNS0 joystick?

The VNS0 is fitted with an 8 mm lever rod and is optimized for heavy-duty stepped contact switching with internal potentiometers, whereas the NNS0 features a larger 12 mm hollow shaft specifically configured for non-contact inductive/Hall sensors and integrated multi-function ergonomic handle wiring.

Can the VNS011EA be converted from spring-return to friction-brake operation in the field?

Yes. The modular drive casting allows the internal return springs to be replaced with an adjustable mechanical friction brake block (Arrangement B). However, for crane hoisting and luffing motions, spring-return to center (Arrangement R) is mandated by international marine cargo crane safety standards (ISO 7752 / EN 13001).

How do I troubleshoot an erratic speed reference from the joystick?

Disconnect power to the crane console and measure terminal resistance between potentiometer outer leads (typically 5 kΩ constant) and between the negative rail and wiper while slowly cycling the lever. A sudden spike in resistance or intermittent OL reading indicates carbon track micro-cracking caused by vibration, requiring replacement of the internal potentiometer pod.

Is the Spohn & Burkhardt VNS011EA suitable for 4–20 mA current loop interfaces?

Yes. While the base joystick outputs a passive potentiometer signal (ratiometric 0–10 V DC), Spohn & Burkhardt provides integrated snap-on signal conversion modules (OEC or ESS cards) mounted to the lower bracket to output direct 4–20 mA current loops for long cable runs to remote crane machinery rooms.
