Leistritz L3MF-060/096 Triple Screw Pump (2018)

Leistritz L3MF-060/096 Triple Screw Pump (New 2018)

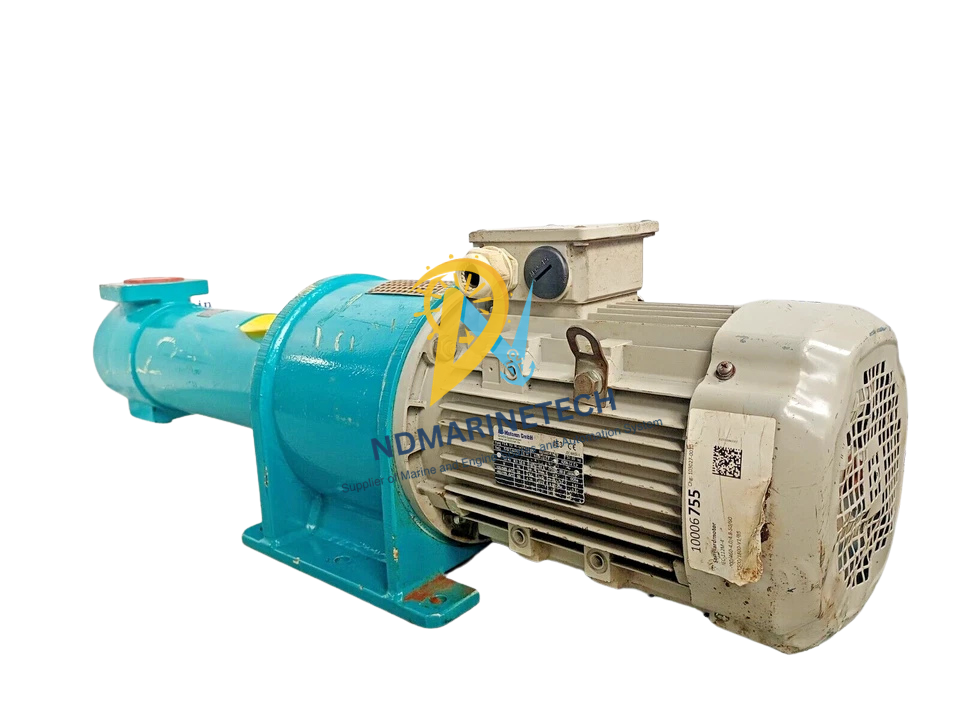

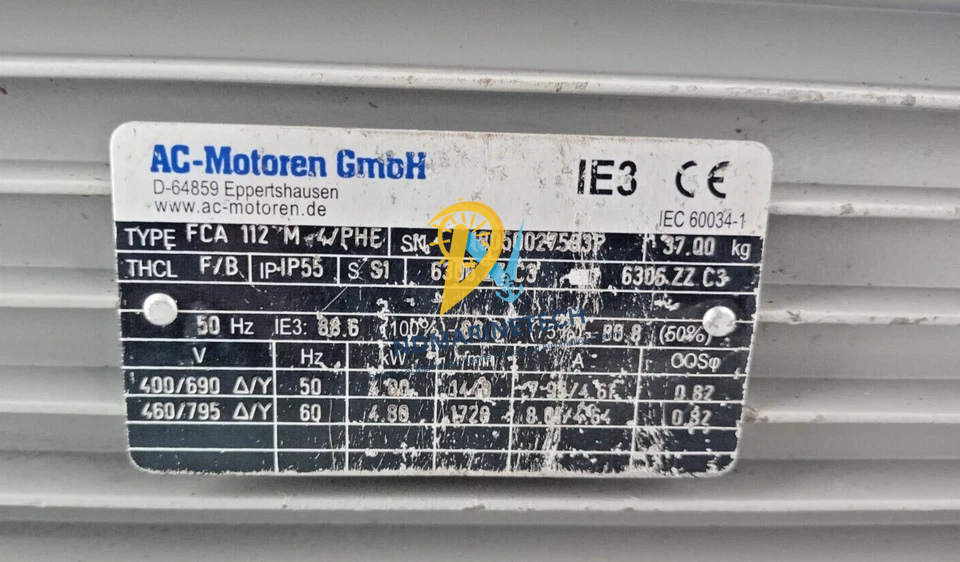

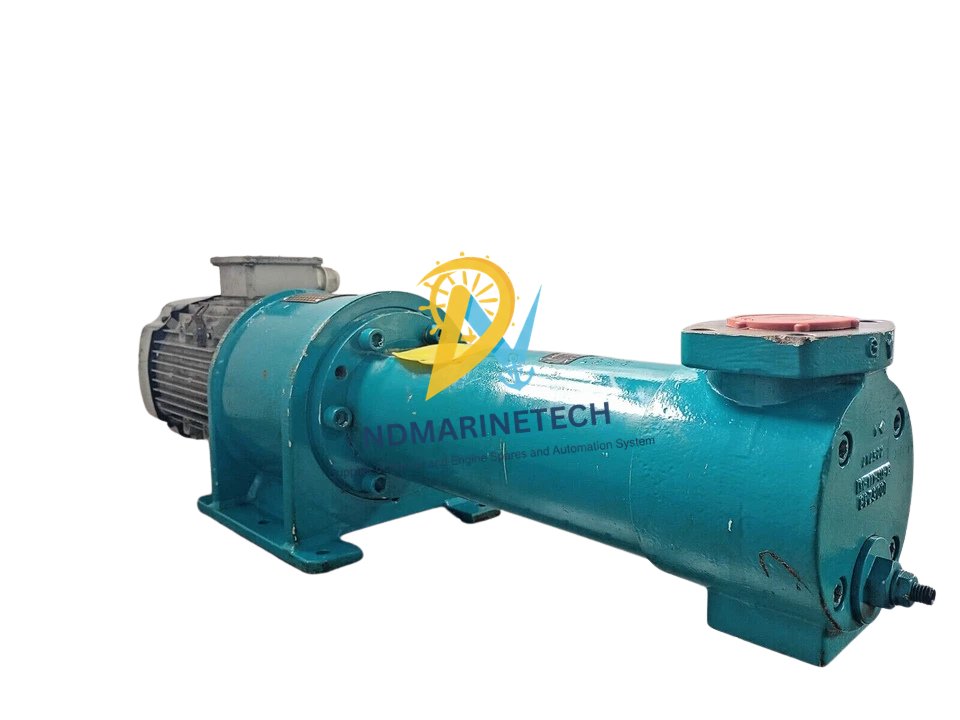

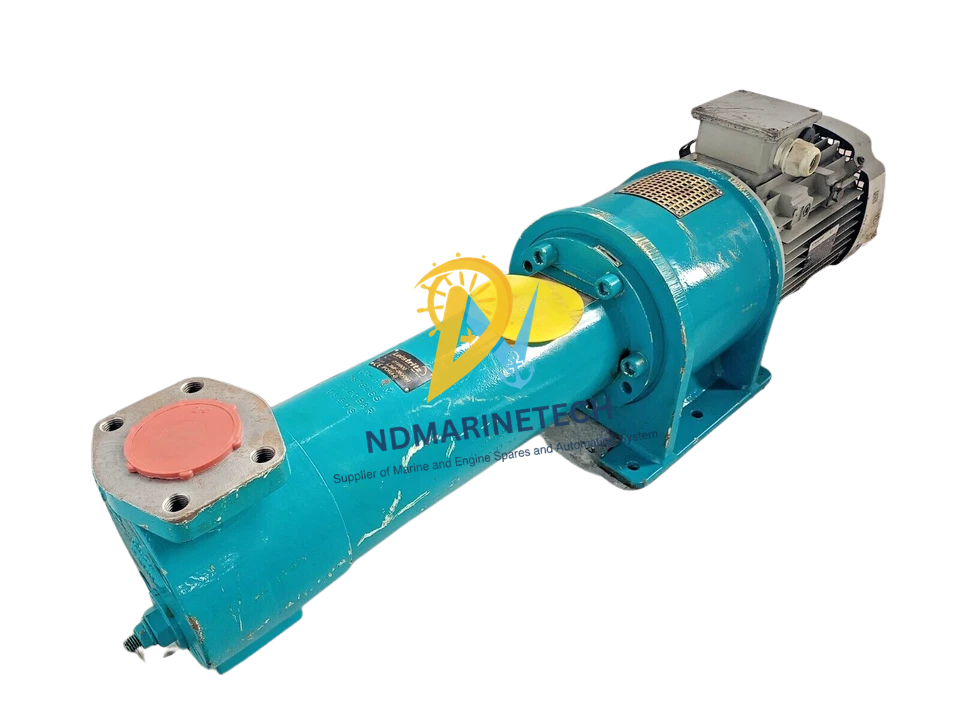

Leistritz L3MF-060/096 is a precision and reliable high-performance triple screw, positive displacement pump. Widely used in the maritime and industrial markets, this pump is designed to work with non-abrasive, lubricating liquids with excellent efficiency. This machine features a 4/4.8 kW motor (50/60 Hz) and is a plug-and-play, one-stop solution for your important pumping needs. This is a 2018 model which provides the optimal combination of modern engineering standards and affordable availability.

Leistritz Pumpen L3MF-060/096 Specifications

Main Features

1. Hydro-dynamically Balanced Rotors: Removes axial thrust on bearings, therefore reducing mechanical stress and increasing the service life of internal components significantly.
2. High Volumetric Efficiency: Ensures a steady flow rate irrespective of pressure variations, minimizing operational costs and improving energy efficiency.
3. Pulsation free operation The design of the triple screw assures a continuous, smooth flow and provides protection for the downstream pipework, valves and sensitive equipment from vibration fatigue.
4. Self-Priming Capability: The high suction performance allows reliable starting of the device under difficult suction conditions and hence minimizes the risk of cavitation.
5. Rugged and Compact Design: Built to endure the harshness of marine conditions, offering long service life with less maintenance.

Additional Information

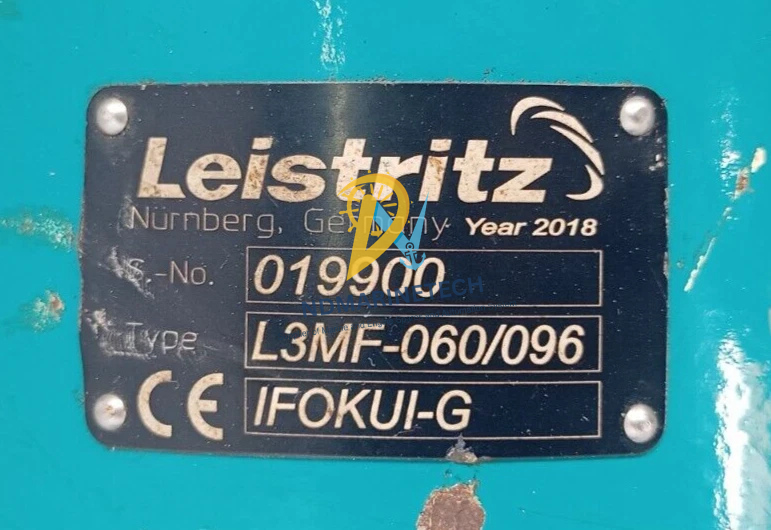

• MPN: L3MF-060/096
• Cross-References: Compatible with industry-standard L3 series replacements for marine fuel/lube systems.
• Condition: Brand New (2018 Surplus Stock)
• Lead Time: Ready for immediate dispatch.

Applications

• Marine Lubrication Systems Suitable for the lubrication of the main engine and the auxiliary engine.
• MGO, MDO, HFO Fuel Oil Transfer: Efficient handling of Marine Gas Oil, Marine Diesel Oil and Heavy Fuel Oil.
• Booster Modules: Reliable diesel engine fuel booster modules.
• hydraulic systems: suitable for power transmission fluids requiring non-abrasive lubrication.
• Industrial Oil Circulation: Suitable for transmission of general oil and thermal oil.

Marine Engineer’s Guide:

1. Startup Procedure: Always check that the suction valve is fully open before startup. Positive Displacement Pumps Never start up against a closed discharge valve. Make sure your bypass or relief valve is working so you do not over pressurize.
2. Alignment is Everything: Even when using a pre-mounted baseplate, recheck the alignment of the pump to the motor shaft after final installation onboard. A few microns of misalignment can result in premature seal failure and bearing wear.
3. Cleanliness: While these pumps are tough, they’re finely made. Clean your suction strainers in accordance with the planned maintenance schedule to prevent metallic particles slicing the screw spindles.
4. Mechanical Seal Weep: If you see a little weep at the mechanical seal in the first few hours of operation, don’t panic. Allow a short run-in time. But if it keeps leaking, examine the suction pressure-the seal is supposed to be under suction pressure therefore any air ingress on the vacuum side can cause dry running.
