Masoneilan Dresser 8012-4C Pneumatic Valve Positioner

Masoneilan Dresser 8012-4C Pneumatic Valve Positioner

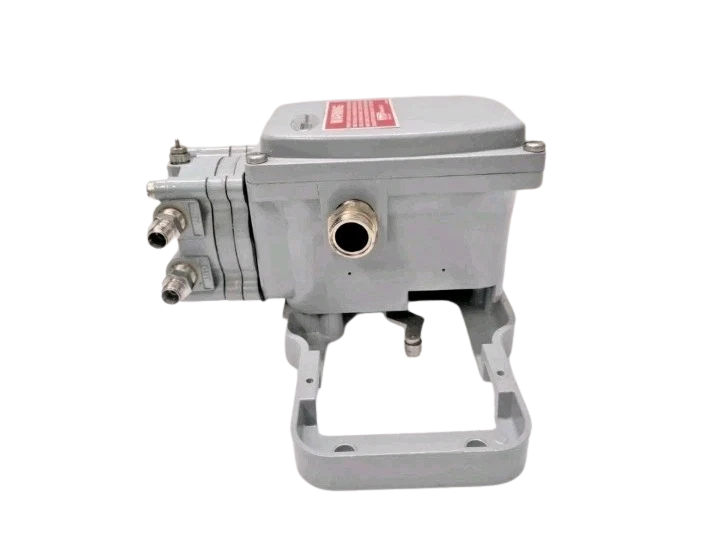

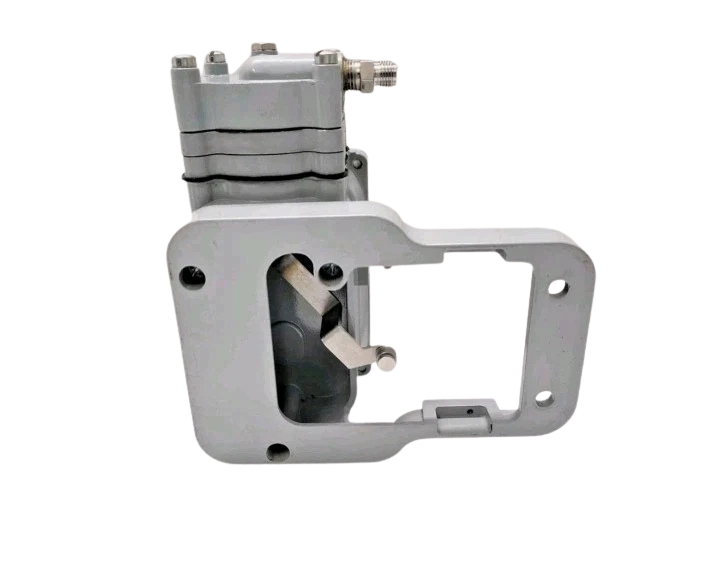

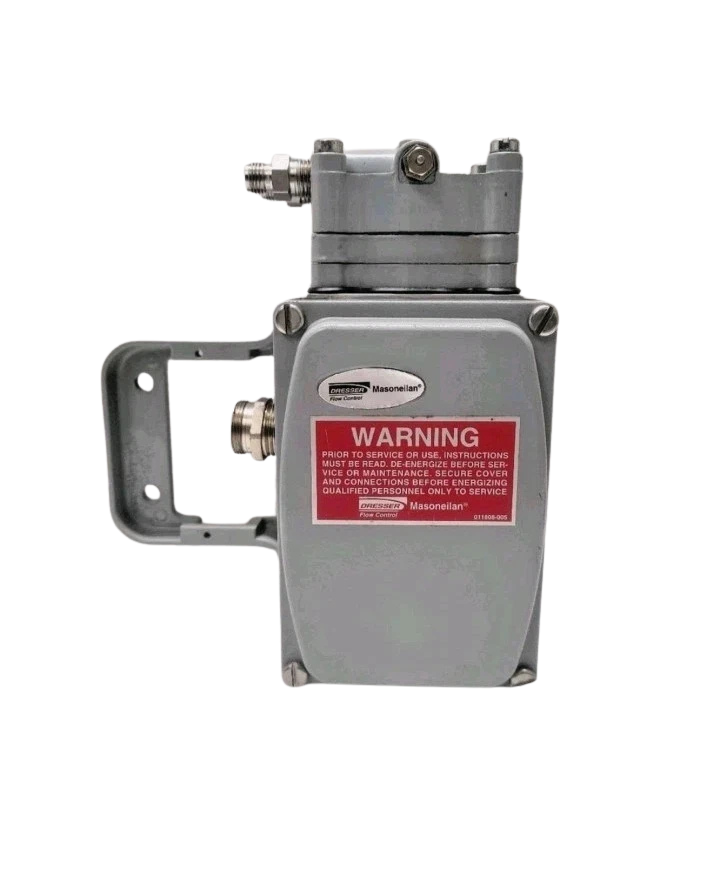

The Masoneilan Dresser 8012-4C is a force balance electro-pneumatic valve positioner designed for precise linear stroke control valve applications. This rugged instrument is designed to immediately couple an electrical control signal to a pneumatic actuator for correct stem positioning despite stem friction, packing box drag or imbalanced dynamic forces on the valve plug. The 8012-4C is housed in a sturdy die-cast aluminum casing with a NEMA 4X weather resistant designation for tough industrial and maritime settings. The high-capacity pneumatic relay offers fast stroking rates and is the industry standard for essential process control loops.

Model Details

• Manufacturer: Masoneilan (Dresser / Baker Hughes)
• Series: 8012 Series
• MPN (Manufacturer Part Number): 8012-4C
• Style: Lever Reciprocating / Linear Stroke

Features

1. High Capacity Pneumatic Relay: Provides for faster stroke speeds and better dynamic responsiveness for quick loop corrections.
2. Friction-Free Beam Fulcrum employs beryllium copper flexure bearings to remove mechanical wear and calibration drift.
3. Sealed exterior Terminal Leads: Comes with 1/2″ NPT conduit nipple and 18 inch epoxy sealed exterior leads to keep moisture out before startup.
4. Flexible Zero/Span Calibration Vernier zero adjustment allows up to 100% zero suppression or elevation for split-ranging and reverse-action arrangements.

Applications

• Marine engine room steam and cooling water temperature control loops
• Offshore oil and gas production separation skids
• Refinery chemical dosing and pressure reduction lines
• Power plant boiler feedwater regulation skids
• Heavy industrial HVAC and process fluid distribution pipelines

Marine Engineer Expert’s Guide

• Moisture Defense on Ships: Marine engine environments subject electronics to extreme humidity and salt fog. Even though the 8012-4C features epoxy-sealed leads, always apply extra heat-shrink self-vulcanizing tape over the 1/2″ NPT conduit interface junction to protect against aggressive salt-laden condensation.
• Air Supply Quality Control: Pneumatic instrument air must comply with ISO 8573-1 Quality Class 2.4.3 (free of moisture, oil, and heavy particulates). Regularly actuate the built-in sapphire orifice clean-out plunger during routine monthly checks to prevent salt or scale saltation from clogging the internal jet nozzle.
• Split-Ranging Calibration Tip: When utilizing this positioner for split-range applications (e.g., dual valves sharing a single 4–20mA output command), utilize the vernier zero and span adjustments sequentially. Always verify spring tension lock-nuts are firmly torqued post-calibration to withstand shipboard vibration profiles.

Frequently Asked Questions

What is the primary function of the Masoneilan Dresser 8012-4C?

The 8012-4C is an electro-pneumatic positioner that translates an incoming 4–20 mA electrical control signal into a precise pneumatic output pressure, ensuring exact linear valve stem positioning despite high friction or load disturbances.

Can the Masoneilan 8012-4C be used on rotary valves?

No. The 8012-4C is specifically built for linear-stroke reciprocating actuators. For rotary valves (such as Camflex or ball valves), use multi-lobe cam variants like the Masoneilan 8013 series.

What hazardous area classifications does this positioner support?

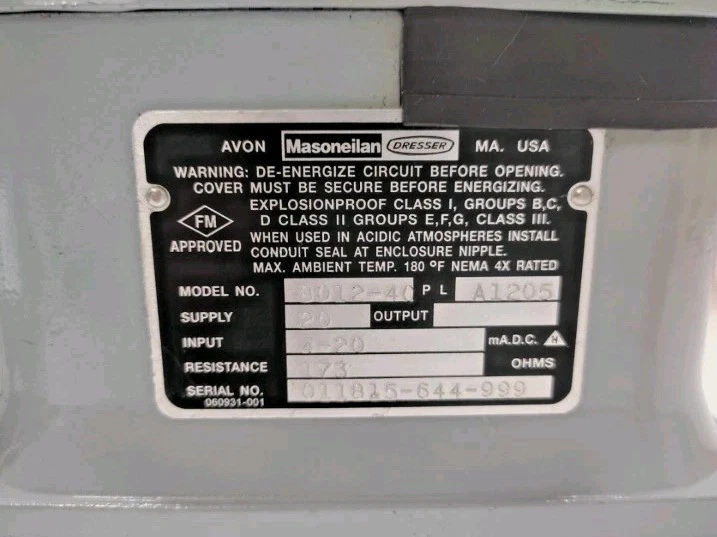

It carries FM approvals for Explosion-Proof Class I, Division 1 (Groups B, C, D), Dust-Ignitionproof Class II (Groups E, F, G), and Class III hazardous environments when installed according to proper control drawings

How do I handle maintenance for clogged pneumatic nozzles?

The unit includes an integrated clean-out plunger designed explicitly for the metering tube assembly. Pushing this plunger clears debris from the sapphire nozzle orifice without requiring complete instrument teardown
