Daihatsu DL-20 Engine Spare Parts

The Daihatsu DL-20 series is the most important part of many marine auxiliary and stationary power systems because I have worked in the engine room for years as a marine engineer. It’s not just a matter of choice; reliability is a safety requirement. Our real and high-quality replacement parts for the DL-20 make sure that your engine stays thermally efficient and structurally sound even in the worst maritime conditions.

These spare parts are made to exact OEM tolerances to keep them from wearing out too quickly and causing your engine to fail completely. You can get fuel injection parts, cylinder liners, or piston rings from them.

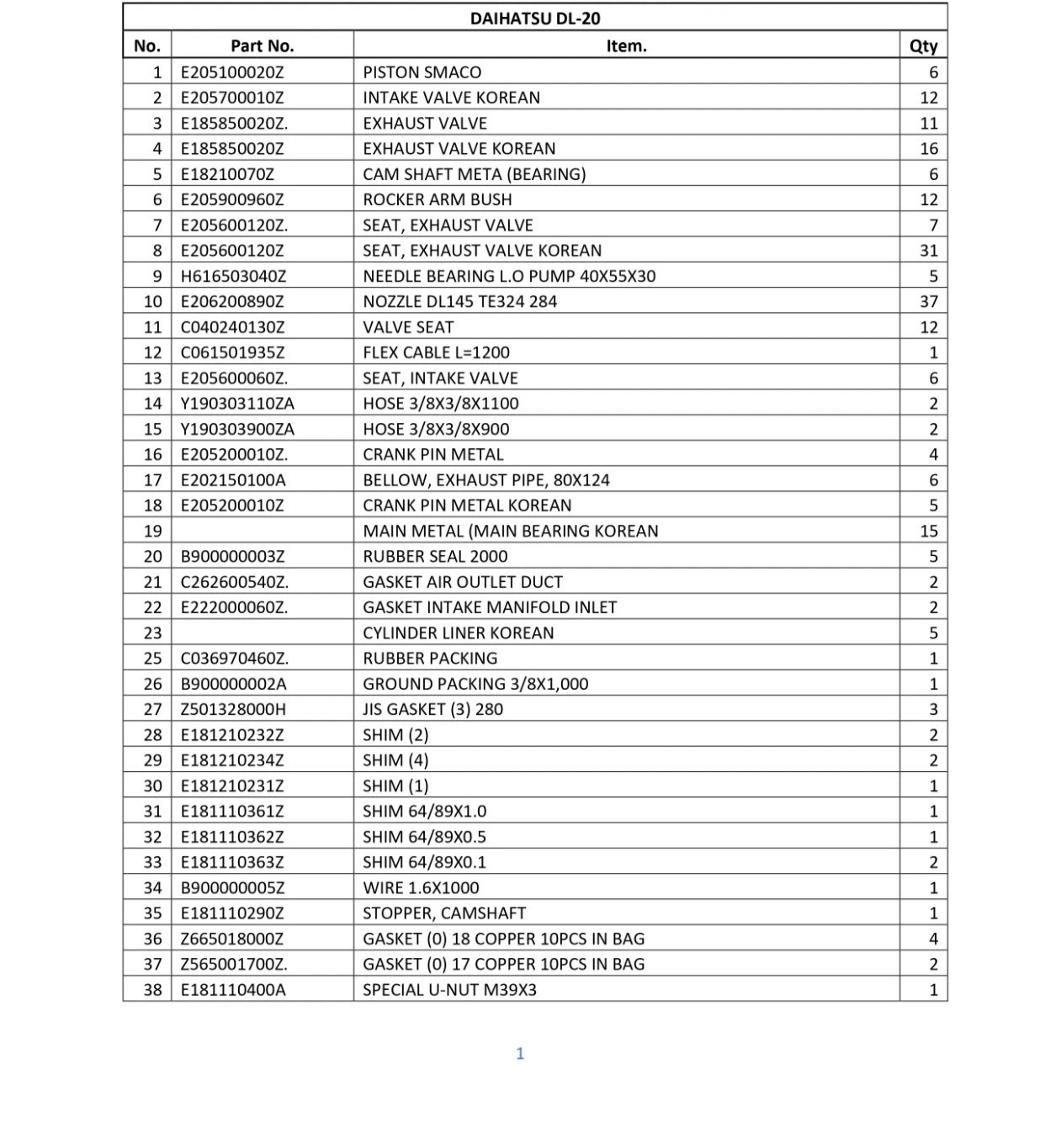

**DAIHATSU DL-20 SPARES STOCK LIST**
No.	Part No.	Item Description	Qty

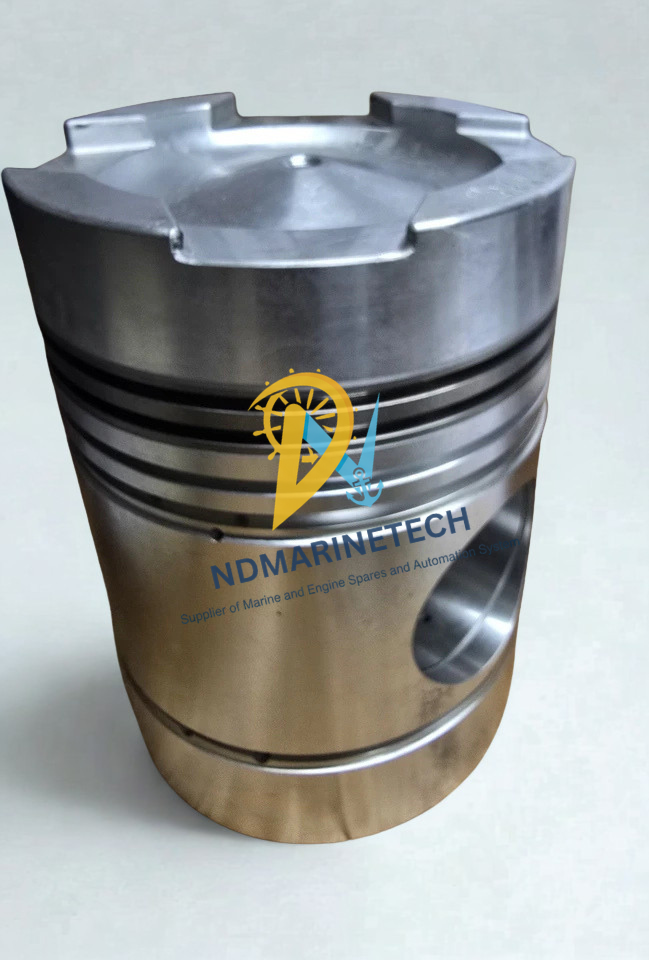

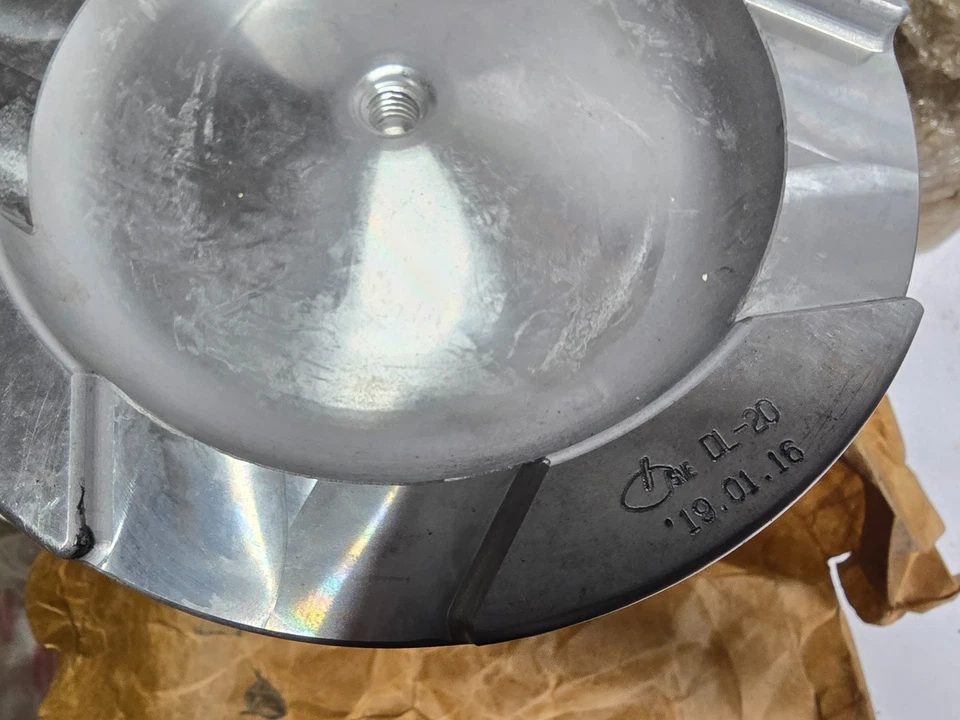

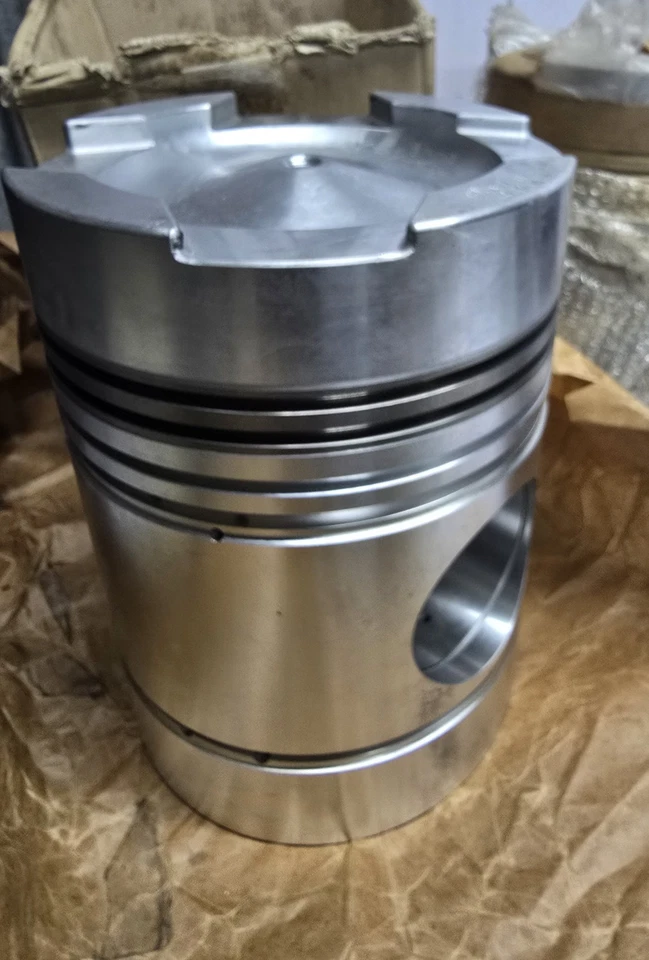

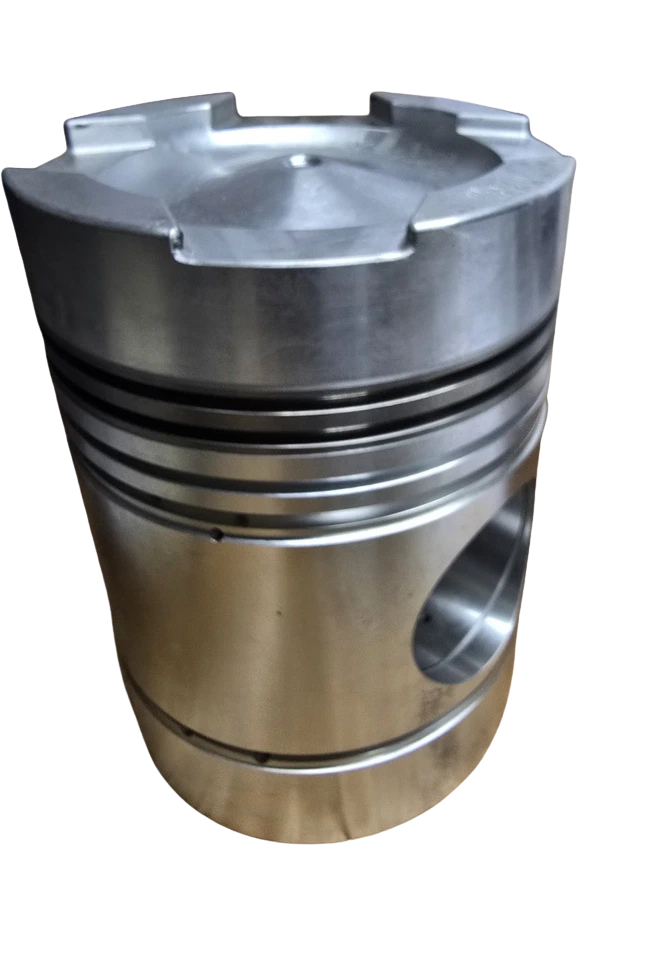

1	E205100020Z	PISTON SMACO	6

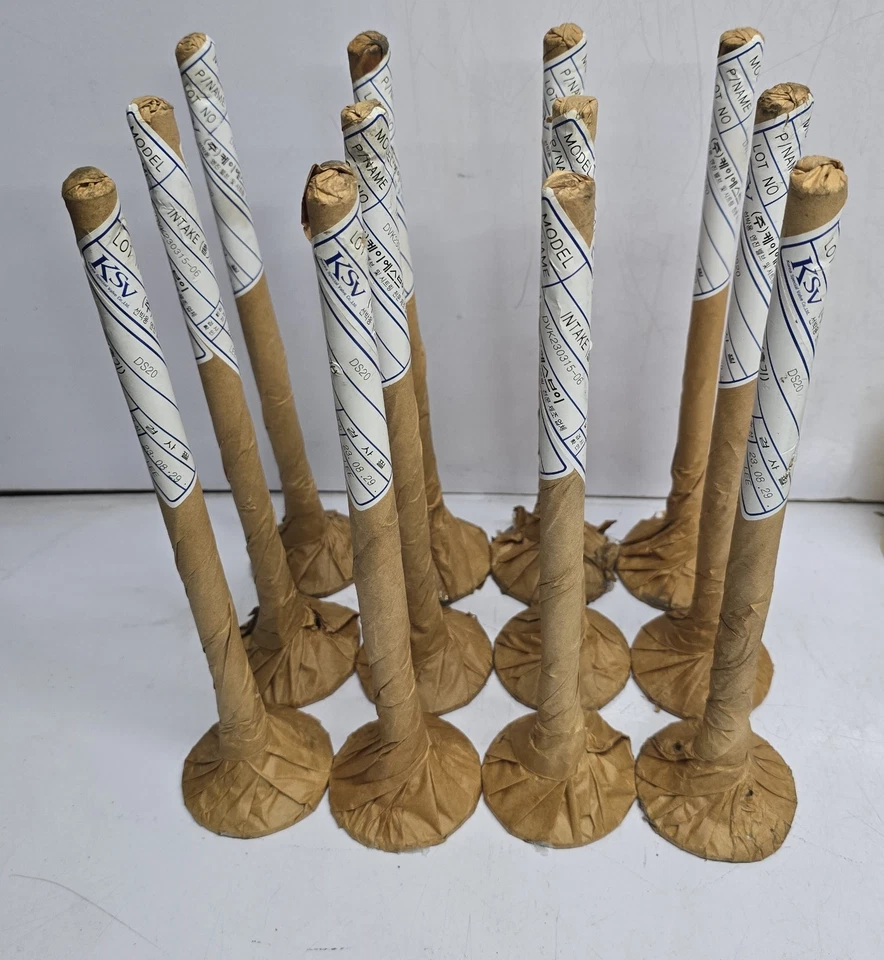

2	E205700010Z	INTAKE VALVE KOREAN	12

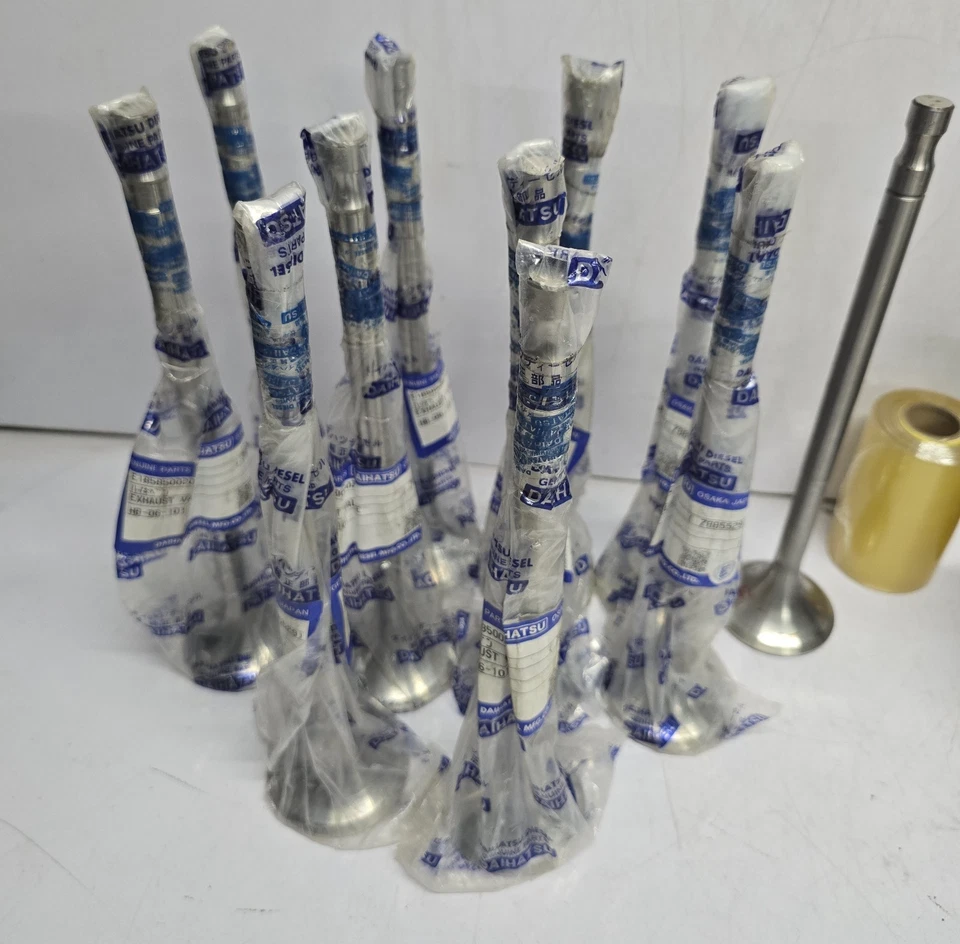

3	E185850020Z.	EXHAUST VALVE	11
4	E185850020Z	EXHAUST VALVE KOREAN	16
5	E18210070Z	CAM SHAFT META (BEARING)	6
6	E205900960Z	ROCKER ARM BUSH	12
7	E205600120Z.	SEAT, EXHAUST VALVE	7
8	E205600120Z	SEAT, EXHAUST VALVE KOREAN	31
9	H616503040Z	NEEDLE BEARING L.O PUMP 40X55X30	5
10	E206200890Z	NOZZLE DL145 TE324 284	37
11	C040240130Z	VALVE SEAT	12
12	C061501935Z	FLEX CABLE L=1200	1

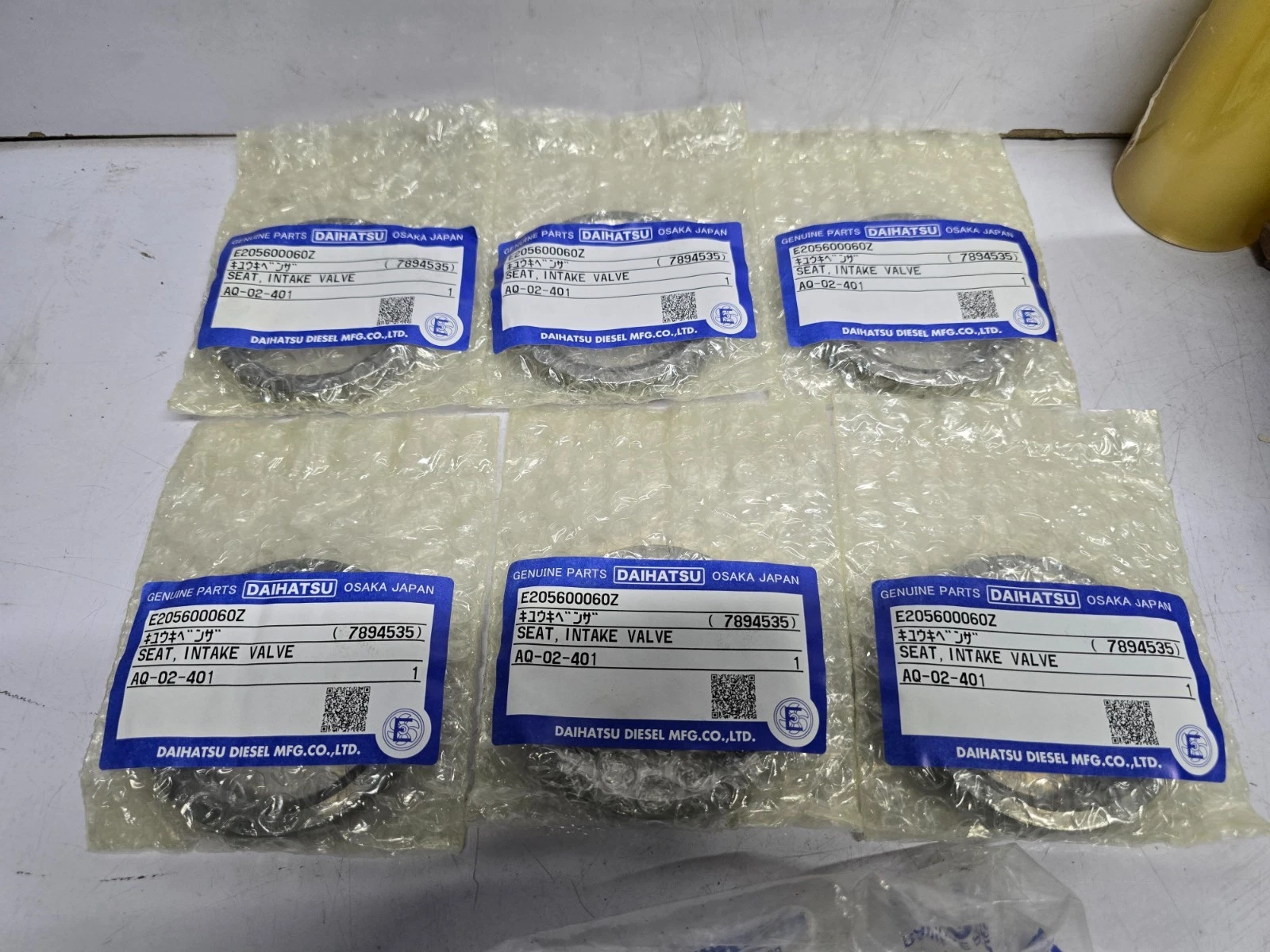

13	E205600060Z.	SEAT, INTAKE VALVE	6

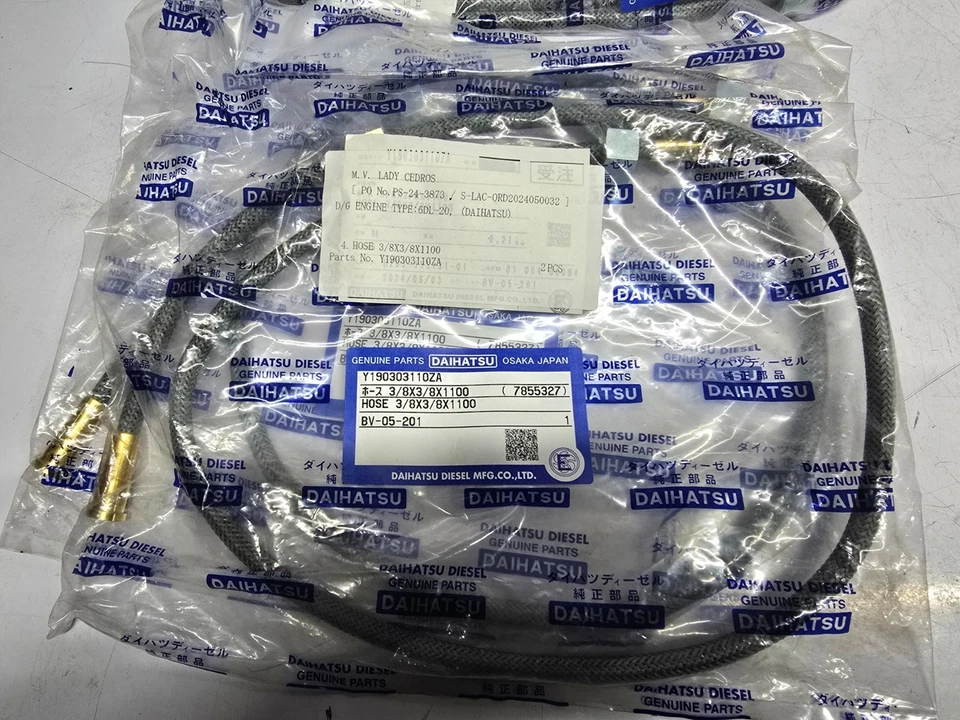

14	Y190303110ZA	HOSE 3/8X3/8X1100	2

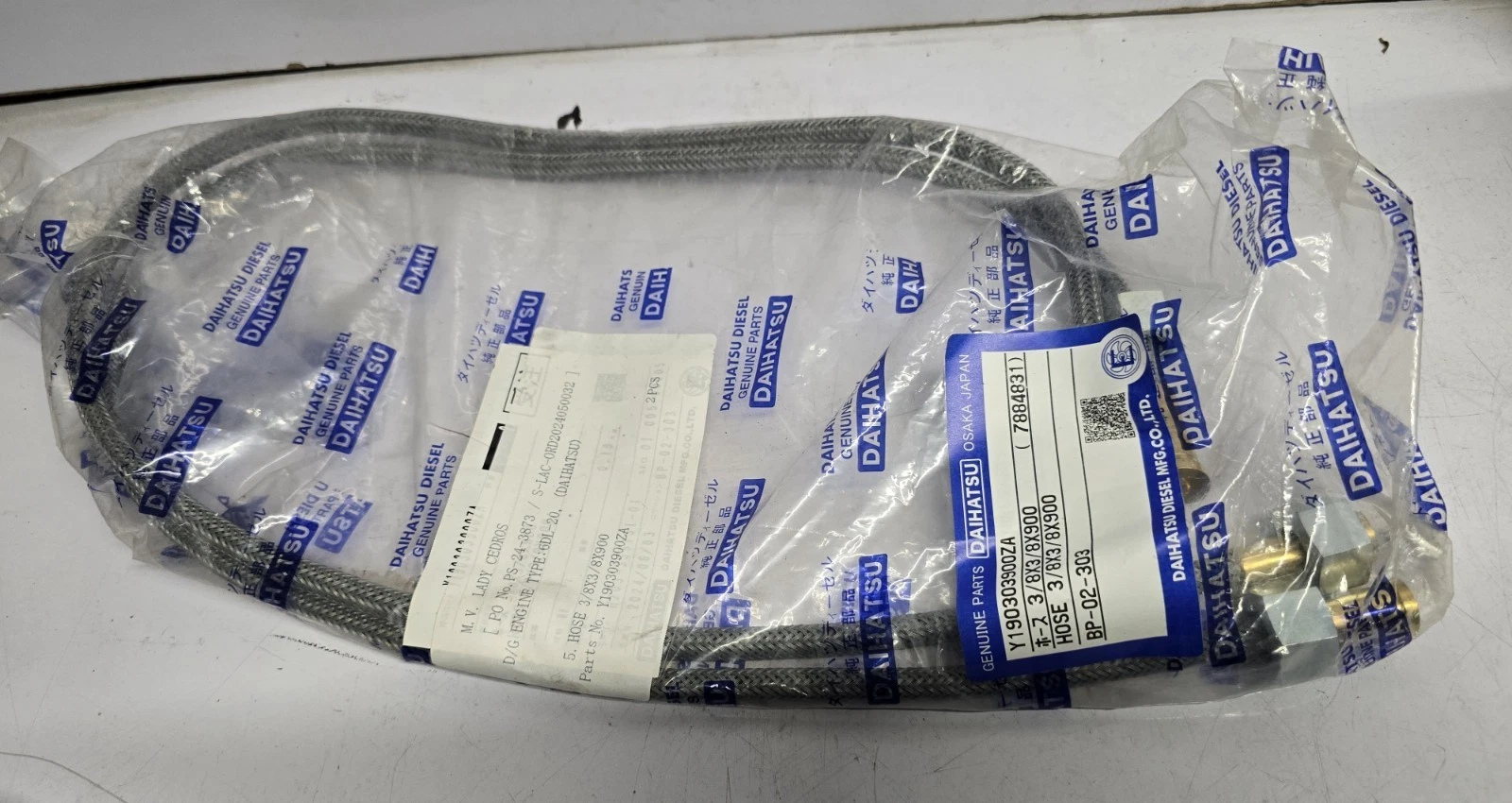

15	Y190303900ZA	HOSE 3/8X3/8X900	2
16	E205200010Z.	CRANK PIN METAL	4
17	E202150100A	BELLOW, EXHAUST PIPE, 80X124	6
18	E205200010Z	CRANK PIN METAL KOREAN	5
19	–	MAIN METAL (MAIN BEARING KOREAN)	15
20	B900000003Z	RUBBER SEAL 2000	5
21	C262600540Z.	GASKET AIR OUTLET DUCT	2
22	E222000060Z.	GASKET INTAKE MANIFOLD INLET	2
23	–	CYLINDER LINER KOREAN	5
25	C036970460Z.	RUBBER PACKING	1
26	B900000002A	GROUND PACKING 3/8X1,000	1
27	Z501328000H	JIS GASKET (3) 280	3
28	E181210232Z	SHIM (2)	2
29	E181210234Z	SHIM (4)	2
30	E181210231Z	SHIM (1)	1
31	E181110361Z	SHIM 64/89X1.0	1
32	E181110362Z	SHIM 64/89X0.5	1
33	E181110363Z	SHIM 64/89X0.1	2
34	B900000005Z	WIRE 1.6X1000	1
35	E181110290Z	STOPPER, CAMSHAFT	1
36	Z665018000Z	GASKET (0) 18 COPPER 10PCS IN BAG	4
37	Z565001700Z.	GASKET (0) 17 COPPER 10PCS IN BAG	2
38	E181110400A	SPECIAL U-NUT M39X3	1
39	E181210200Z	BOLT, CAMSHAFT BEARING (2)	6
40	E225600290Z.	GUIDE, NOZZLE HOLDER	2
41	Z212010060ZZ	HEX. SOCKET BOLT (0) 10X60	20
42	E205100150Z	SNAP RING, PISTON PIN	5
43	E206203100Z.	ADJUST SCREW	3
44	E205800160Z	VALVE ROTATOR	6
45	E185610050B	VALVE GUIDE	8
46	Y509000011Z	CARTRIDGE ASSY (200ME)	2
47	E229500160Z	CAP, ROCKER ARM KOREAN	12
48	E185610290A	VALVE STEM SEAL:15	24
49	E226000080Z	STARTING VALVE PISTON KOREAN	7
50	E225600290Z	GUIDE, NOZZLE HOLDER KOREAN	3
51	E225900140A	VALVE YOKE KOREAN	4
52	E181210160A	CAM SHAFT BEARING (2)	6
53	E181210020Z	CAM SHAFT BEARING (1)	2
54	C038140270Z	PUMP SHAFT	3
55	E186619010D	IN.EX. TAPPET ASSY	2
56	E246402170A.	DELIVERY VALVE KOREAN	2
57	E246402170A	DELIVERY VALVE ZEXEL (USED)	16
58	E205200030Z	PISTON PIN BUSH C3	3
59	E205900060Z	ROCKER ARM BUSH	6
60	E246402230Z	HOLDER, DELIVERY VALVE	4
61	E246402590Z	EYE BOLT	8
62	C038110130A	BEARING STOPPER GEAR SIDE	1
63	E225900090Z	SCREW KOREAN	12
64	E205900040Z	7 T. VALVE YOKE KOREAN	6
65	E225600070A	GUIDE FOR VALVE YOKE KOREAN	48
66	E206800100Z	CIRCLIP 32X32 KOREAN	29
67	E266213190Z	RETAINING NUT KOREAN	6
68	E206200210A.	F.O INJECTION PIPE KOREAN	8
69	E185710111A	OUTER VALVE SPRING KOREAN	10
70	E185710112A	INNER VALVE SPRING KOREAN	10
71	E206200510Z	RETAINING KOREAN	3
72	E206200210A	F.O INJECTION PIPE	1
73	E205600110Z	SPECIAL NUT M30X2.0 KOREAN	23
74	Z560223057ZZ	O-RING FOR LINER KOREAN	50
75	–	PISTON RING SET KOREAN	6
76	Z335006016ZZ	STARTING PIN (0) 6X16 10PCS IN BAG	1
77	E206200370Z	CAP NUT (1-FS)	6
78	E181210140Z	KNOCK PIN CAMSHAFT METAL	5

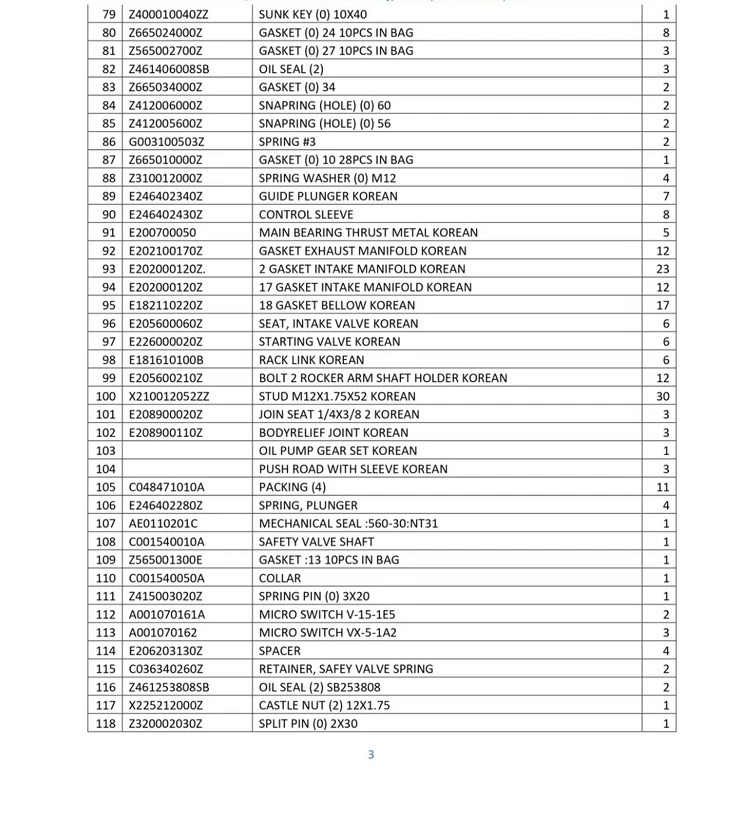

79	Z400010040ZZ	SUNK KEY (0) 10X40	1
80	Z665024000Z	GASKET (0) 24 10PCS IN BAG	8
81	Z565002700Z	GASKET (0) 27 10PCS IN BAG	3
82	Z461406008SB	OIL SEAL (2)	3
83	Z665034000Z	GASKET (0) 34	2
84	Z412006000Z	SNAPRING (HOLE) (0) 60	2
85	Z412005600Z	SNAPRING (HOLE) (0) 56	2
86	G003100503Z	SPRING #3	2
87	Z665010000Z	GASKET (0) 10 28PCS IN BAG	1
88	Z310012000Z	SPRING WASHER (0) M12	4
89	E246402340Z	GUIDE PLUNGER KOREAN	7
90	E246402430Z	CONTROL SLEEVE	8
91	E200700050	MAIN BEARING THRUST METAL KOREAN	5
92	E202100170Z	GASKET EXHAUST MANIFOLD KOREAN	12
93	E202000120Z.	2 GASKET INTAKE MANIFOLD KOREAN	23
94	E202000120Z	17 GASKET INTAKE MANIFOLD KOREAN	12
95	E182110220Z	18 GASKET BELLOW KOREAN	17
96	E205600060Z	SEAT, INTAKE VALVE KOREAN	6
97	E226000020Z	STARTING VALVE KOREAN	6
98	E181610100B	RACK LINK KOREAN	6
99	E205600210Z	BOLT 2 ROCKER ARM SHAFT HOLDER KOREAN	12
100	X210012052ZZ	STUD M12X1.75X52 KOREAN	30
101	E208900020Z	JOIN SEAT 1/4X3/8 2 KOREAN	3
102	E208900110Z	BODYRELIEF JOINT KOREAN	3
103	–	OIL PUMP GEAR SET KOREAN	1
104	–	PUSH ROAD WITH SLEEVE KOREAN	3
105	C048471010A	PACKING (4)	11
106	E246402280Z	SPRING, PLUNGER	4
107	AE0110201C	MECHANICAL SEAL :560-30:NT31	1
108	C001540010A	SAFETY VALVE SHAFT	1
109	Z565001300E	GASKET :13 10PCS IN BAG	1
110	C001540050A	COLLAR	1
111	Z415003020Z	SPRING PIN (0) 3X20	1
112	A001070161A	MICRO SWITCH V-15-1E5	2
113	A001070162	MICRO SWITCH VX-5-1A2	3
114	E206203130Z	SPACER	4
115	C036340260Z	RETAINER, SAFEY VALVE SPRING	2
116	Z461253808SB	OIL SEAL (2) SB253808	2
117	X225212000Z	CASTLE NUT (2) 12X1.75	1
118	Z320002030Z	SPLIT PIN (0) 2X30	1
119	Z400005020Z	SUN KEY (0) 5X20	2
120	C263400070A	GASKET, SPEED SWITCH	3
121	X200112028ZZ	BOLT (1) 12X1.75X28	4

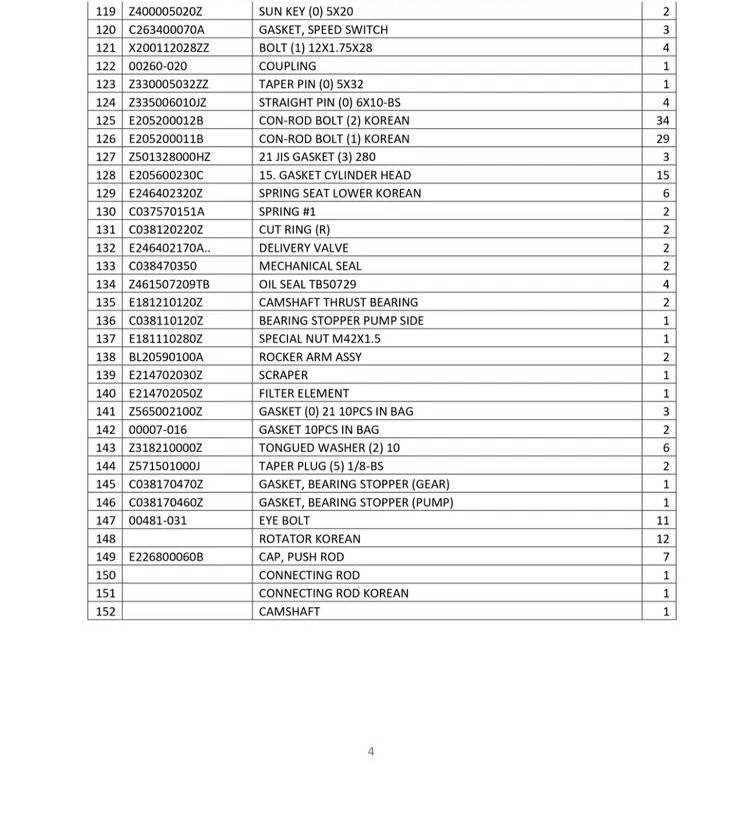

122	00260-020	COUPLING	1
123	Z330005032ZZ	TAPER PIN (0) 5X32	1
124	Z335006010JZ	STRAIGHT PIN (0) 6X10-BS	4
125	E205200012B	CON-ROD BOLT (2) KOREAN	34
126	E205200011B	CON-ROD BOLT (1) KOREAN	29
127	Z501328000HZ	21 JIS GASKET (3) 280	3
128	E205600230C	15. GASKET CYLINDER HEAD	15
129	E246402320Z	SPRING SEAT LOWER KOREAN	6
130	C037570151A	SPRING #1	2
131	C038120220Z	CUT RING (R)	2
132	E246402170A..	DELIVERY VALVE	2
133	C038470350	MECHANICAL SEAL	2
134	Z461507209TB	OIL SEAL TB50729	4
135	E181210120Z	CAMSHAFT THRUST BEARING	2
136	C038110120Z	BEARING STOPPER PUMP SIDE	1
137	E181110280Z	SPECIAL NUT M42X1.5	1

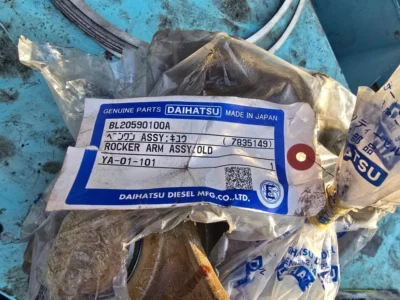

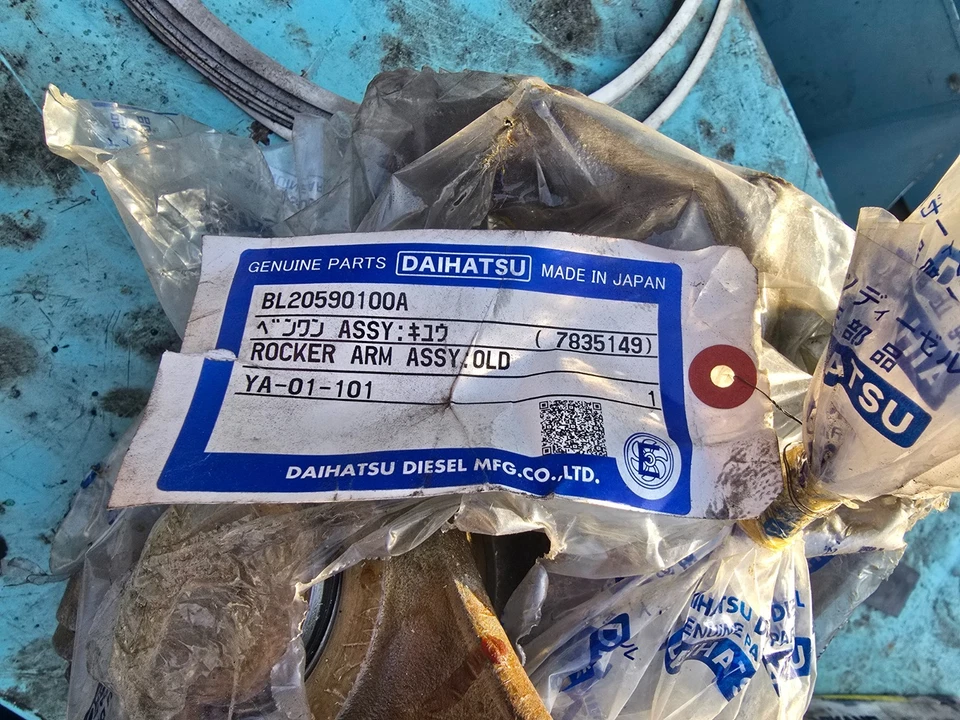

138	BL20590100A	ROCKER ARM ASSY	2
139	E214702030Z	SCRAPER	1
140	E214702050Z	FILTER ELEMENT	1
141	Z565002100Z	GASKET (0) 21 10PCS IN BAG	3
142	00007-016	GASKET 10PCS IN BAG	2
143	Z318210000Z	TONGUED WASHER (2) 10	6
144	Z571501000J	TAPER PLUG (5) 1/8-BS	2
145	C038170470Z	GASKET, BEARING STOPPER (GEAR)	1
146	C038170460Z	GASKET, BEARING STOPPER (PUMP)	1
147	00481-031	EYE BOLT	11
148	–	ROTATOR KOREAN	12
149	E226800060B	CAP, PUSH ROD	7
150	–	CONNECTING ROD	1
151	–	CONNECTING ROD KOREAN	1

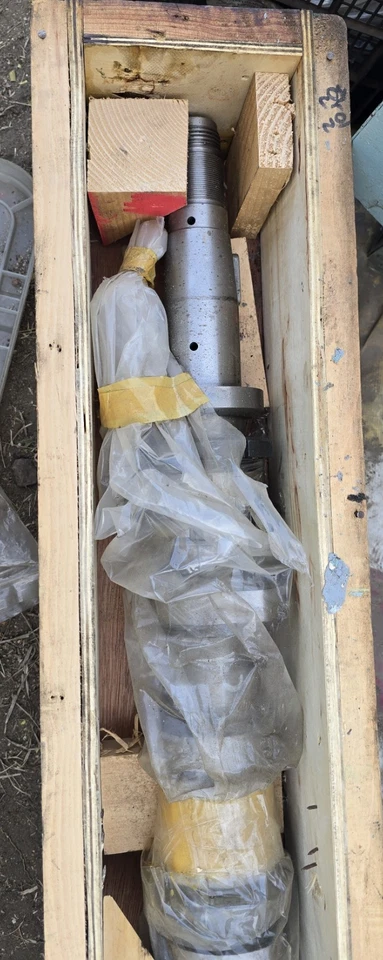

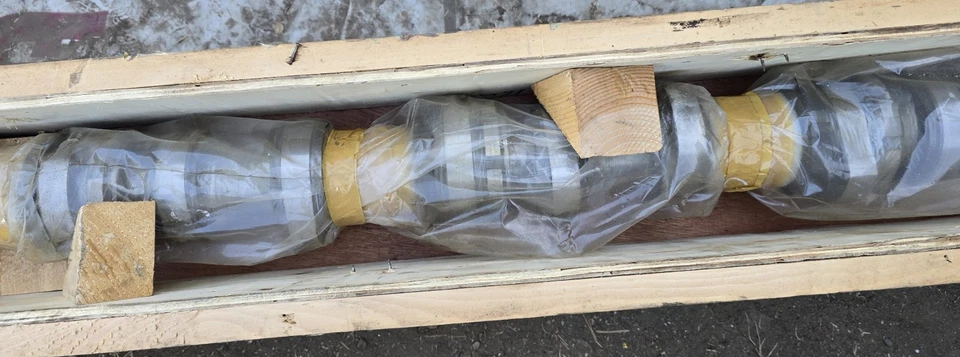

152	–	CAMSHAFT	1

Maintenance Tips:

Check the fuel injection valves every 2,000 to 2,500 hours to make sure that combustion is working at its best.
Lube Oil Analysis: Check for metal particles on a regular basis. If you find them, it might be time to replace the bearing or liner early.
Cooling System: Keep an eye on the jacket water chemistry to stop cavitation from happening on the outside of the DL-20 cylinder liners.

Note on Documentation: Because of copyright laws, we only offer the specific Technical Datasheet and Instruction Manual as digital downloads when you buy them or ask about them. Please get in touch with our tech desk for the PDF files.
