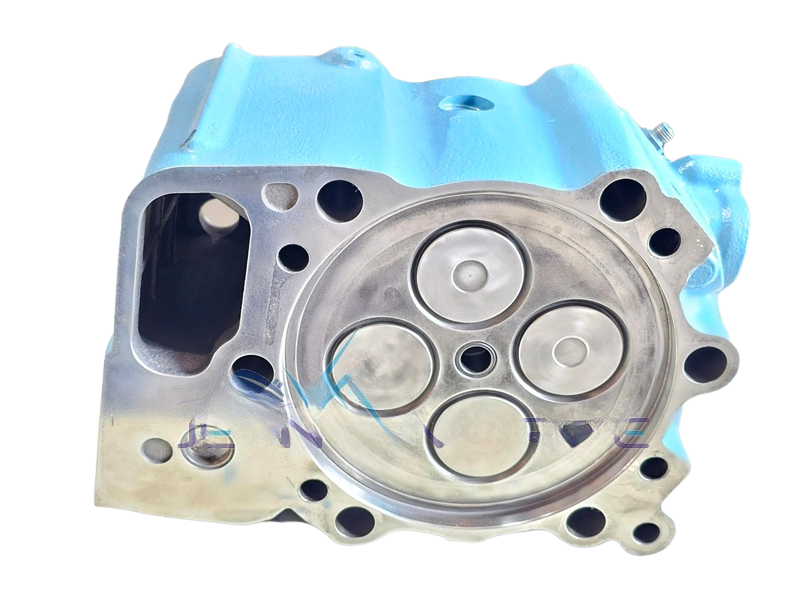

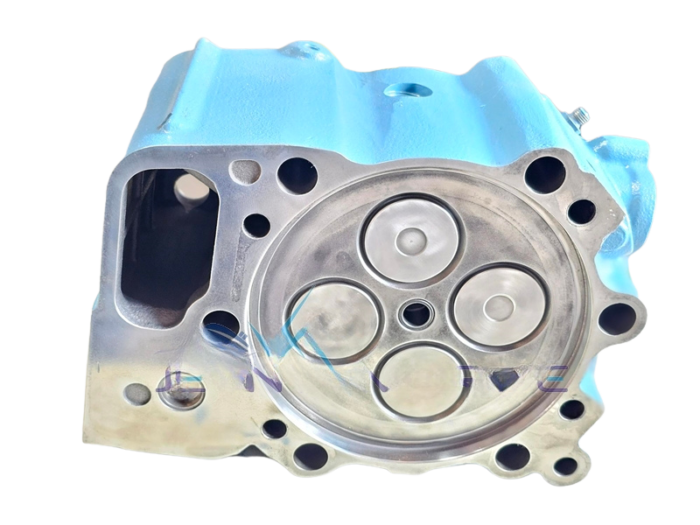

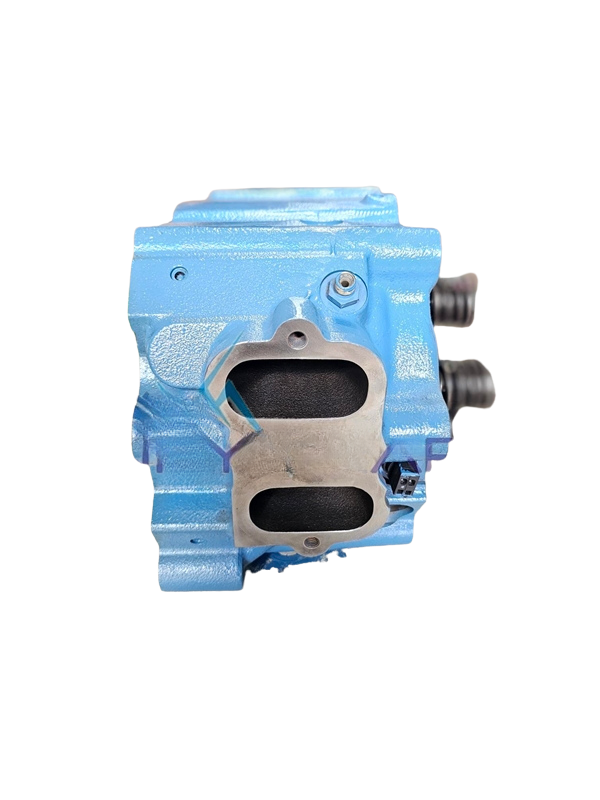

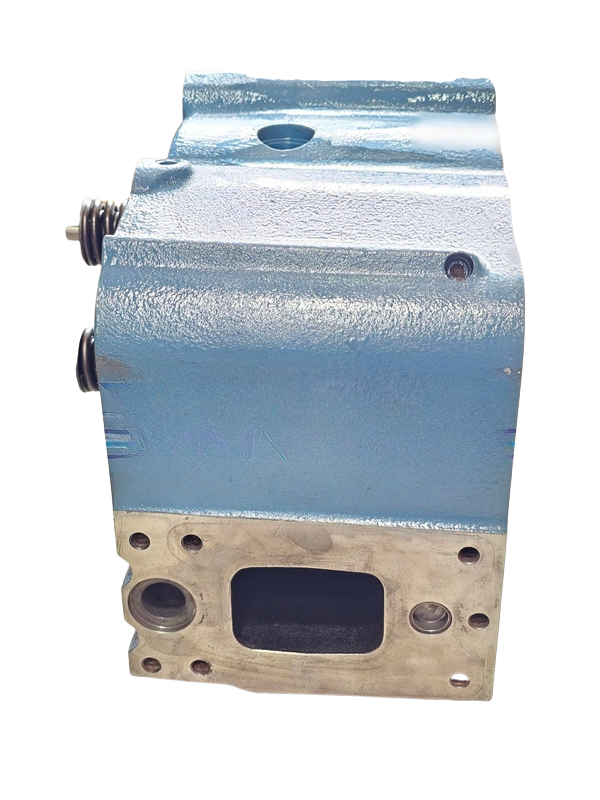

MTU 4000 Cylinder Head

MTU Series 4000 Cylinder Head Assembly (12V4000 / 16V4000 / 20V4000)

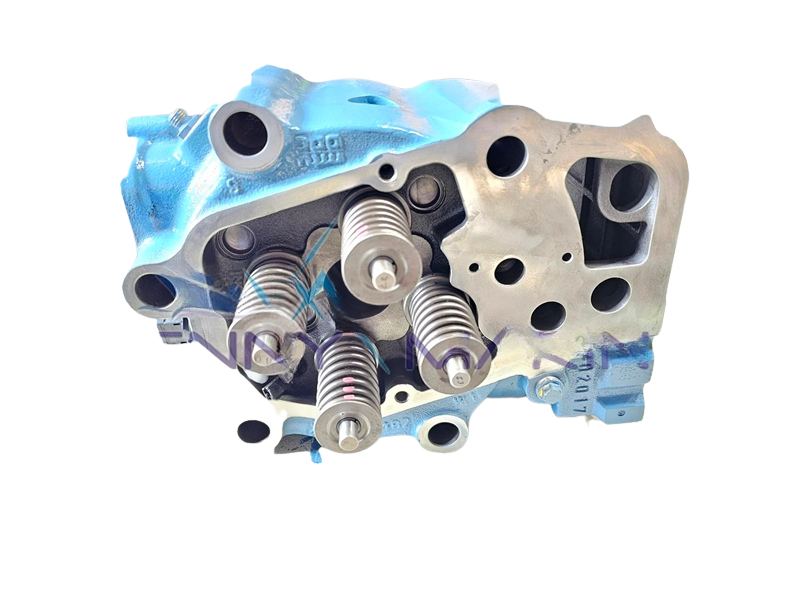

The MTU 4000 Cylinder Head is engineered to withstand extreme thermal gradients and high mechanical firing pressures encountered in high-speed, four-stroke marine propulsion, offshore dynamic positioning, and continuous power generation applications. Designed for individual-cylinder architecture, this cylinder head features an optimized 4-valve crossflow configuration that ensures efficient scavenging, balanced charge-air distribution, and centralized common rail injector pocket cooling.

Technical Details: MTU 4000 cylinder head

Key Technical Features

1. Advanced Crossflow 4-Valve Duct Design: Maximizes volumetric efficiency and intake-to-exhaust gas exchange under high turbocharger boost pressures.
2. High-Conductivity Cast Alloy Construction: Cast from high-grade vermicular/grey iron alloys to resist thermal fatigue, micro-cracking, and mechanical stress at elevated peak cylinder pressures.
3. Targeted Flame Plate & Injector Well Cooling: Internal water jackets guide high-velocity coolant directly around exhaust valve seats and the central injector pocket to prevent hot-spot formation and nozzle carbonization.
4. Hardened Stellite-Faced Valve Seat Inserts: Heavy-duty exhaust and intake valve inserts provide exceptional resistance to high-temperature wear and corrosion from diverse fuel grades (MGO, MDO).
5. Modular Individual Cylinder Design: Simplifies onboard overhauls (top-end maintenance) by allowing cylinder-by-cylinder maintenance without lifting adjacent cylinder assemblies.

Compatible Engine Sub-Models

• Marine Propulsion (12V/16V/20V): M60, M61, M63, M70, M71, M72, M73, M73L, M90, M91, M93
• Marine Auxiliary & Genset: M03, M50, M50A, M50B, M50N
• Power Generation (Stationary/Continuous): G21, G22, G23, G41, G61, G62, G63, G81, G82, G83, GS4000
• Rail, Mining & Industrial: R40, R41, R43, C01, C21, L61, L62, L63, T94

Manufacturer Part Numbers (MPN) & Cross-References

• Bare Cylinder Head Casting: 524 010 65 20, 524 010 66 20, 524 010 71 20, 524 010 82 20
• Complete Cylinder Head Assembly: 524 010 93 20, 524 010 94 20, X52401000020, X52401000045, X52401000088
• Detroit Diesel / Cross OEM Equivalents: 23528407, 23512888, 23531201, 23533400
• Related Gasket & Seal Kits: X52404200043, 5240161580, 5240160220

Industrial Applications

• Commercial Marine & Shipping: High-speed passenger ferries, fast crew supply vessels (FSVs), tugboats, offshore supply vessels (OSVs), and container feeder propulsion.
• Superyachts & Patrol Craft: Naval interception craft, coast guard cutters, and luxury mega-yacht continuous propulsion packages.
• Offshore Energy & Drilling: Main power generation sets on semi-submersible rigs, drillships, and FPSOs requiring uncompromised uptime under high load steps.
• Power Plants & Grid Stabilization: Base-load power generation, black-start systems, hospital standby power stations, and data center critical backup units.
• Heavy Rail & Mining Haul Trucks: Diesel-electric locomotives, open-pit mining ultra-class haul trucks, and mechanical dredge drives.

Critical Field Maintenance Tips

• Never Reuse Stretch Bolts: The 4 cylinder head stretch bolts undergo plastic-elastic deformation. Measuring overall length is not sufficient—always fit new genuine stretch bolts to prevent cylinder head lifting under peak combustion load
• Valve Recession Measurement: Before installing a reconditioned head, measure valve drop-in (recession) relative to the cylinder head bottom deck using a dial gauge depth micrometer. Maximum permissible valve sinkage is strictly defined by MTU service limits; exceeding this lowers the effective compression ratio and causes starting difficulties and unburnt fuel smoke.
• Coolant Ferrule & Jumper O-Ring Integrity: Always replace the lower coolant transfer ferrules, Viton sealing rings, and oil transfer sleeves with OEM grade fluoropolymer seals. Coat sparingly with specified lubricant; never use silicone/RTV gasket maker as loose silicone beads will block internal injector cooling channels.

Frequently Asked Questions

What are the most common signs of a cracked or failed MTU 4000 cylinder head?

Primary indicators include sudden pressurization of the expansion tank cooling system (exhaust gas entering the coolant jacket), white steam in the exhaust stack, engine oil contamination (milky emulsification from leaking coolant transfer sleeves), high crankcase pressure, and intermittent misfires logged by the engine management system (ADEC / SAM).

Can I install the same cylinder head across 12V, 16V, and 20V configurations?

Yes. MTU Series 4000 engines utilize an individual cylinder head concept where each cylinder has its own dedicated head casting. The base cylinder head assembly is interchangeable across 8V4000, 12V4000, 16V4000, and 20V4000 engines within the same design iteration and engine generation. Always confirm casting revisions when upgrading between older Tier 1/2 and modern Tier 4/SCR common-rail variants.

What is the typical overhaul interval for MTU 4000 cylinder heads?

Under standard operating profiles (W5/W6 schedule), top-end inspection and cylinder head reconditioning typically take place between 12,000 and 18,000 operating hours, or around 6–8 years for marine continuous duty. High-load naval or sprint applications (M90/M93) may require valve train inspection at lower hour thresholds.

Do your reconditioned cylinder heads include complete valve train components?

Yes. Fully dressed exchange cylinder heads come fully assembled with new or re-certified intake and exhaust valves, hardened valve seat rings, valve guides, high-tensile valve springs, spring retainers, collets, and rotocaps. Each unit is vacuum-tested across all valve seats and ready for immediate drop-in installation.
